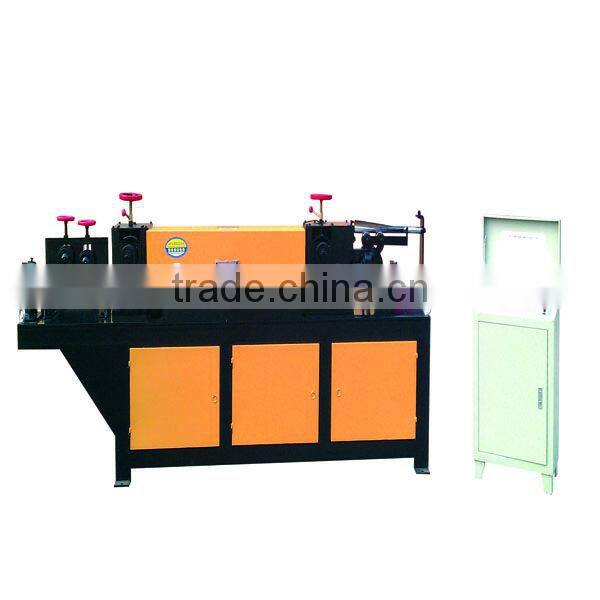

Diameter 5-14mm wire straightener and cutter machine
Henan Taike Industrial and Equipment CO.,LTD. is an experienced and sucessful enterprise enterprise in China in the field of special function small construction machinery industry of manufacturing and sales, Founded in June, 2009. Main products are: steel bar bending machine, steel bar cutting machine, straightening and cutting machine, tamping rammer, and other series of products, the company to design innovative, reliable products to meet domestic and foreign customers,and all of the products have been approved by the ISO9001:2000 quality certificate.
Our products have strong competitive business. Products are sold nationwide and exported to Southeast Asia, the Middle East, Africa, Russia, and more than 20 countries or regions is establishment of good relations of cooperation
GTQ5-12 wire straightener and cutter machine
Usage: suitable for straightening and cutting of 4-14mm round steel and 4-12mm
deformed steel. Automatic CNC system makes it easy to operate and improve the working efficiency and straightening accuracy.
Especially suitable for big building site and metal processing company.
Main data for wire straightener and cutter machine
Model:GTQ5-12B
Straightening diameter: Φ4 to Φ12mm
Straightening wheels: 6 pics
Speed of working: 35-45m/min
Cutting space: 900mm (can be longer)
Cutting length error: ±0.5cm
Straightening accuracy: ±2mm/m
Motor power: 11KW
Overall size: 2200*700*1100mm
Control box size:650*430*850mm
Weight: 900kgs
Technicial parameter & construction machinery rebar straightener and cutter
Straightening diameter |
φ4 –φ12 mm |
No. of straightening wheel |
6 pics |
Speed of working |
35-45 m/min (high/low speed adjustable) |
Cutting space |
800-900 mm (can be longer) |
Error of cutting length |
±0.5cm |
Straightening accuracy |
±2mm/m |
Motor power |
11 KW |
Overall size |
2200×690×1160(mm) |
Gross weight |
900 kg |
Packing ways: Iron frame packing,
Shipping:Settle the shipment by sea cargo/by air cargo for mass production
Machine warranty for one year.

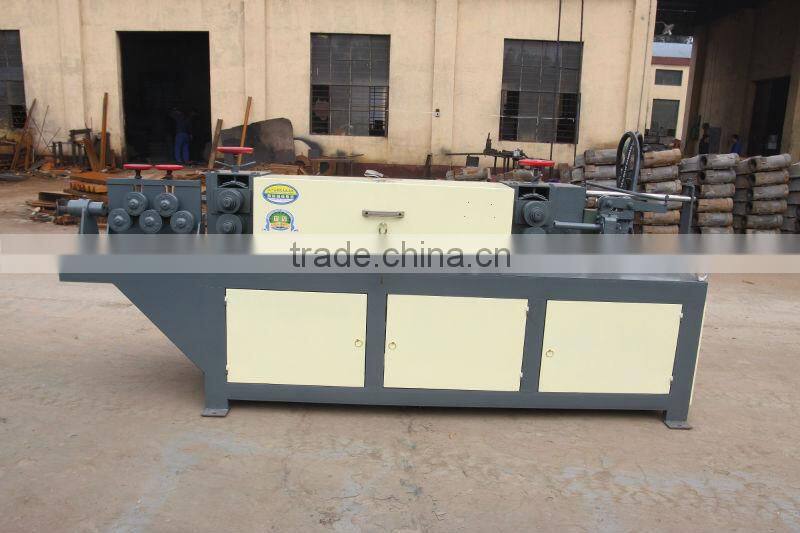

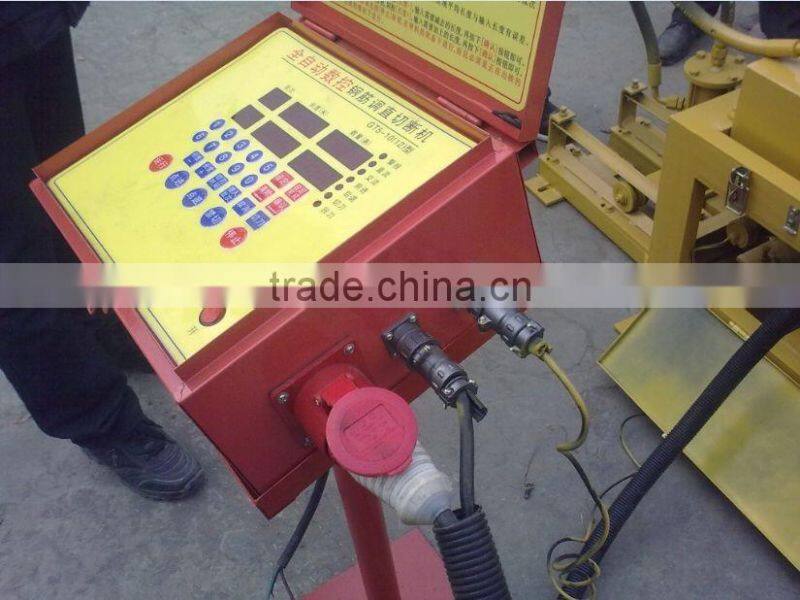

Details for electrical bar straightening and cutting machine

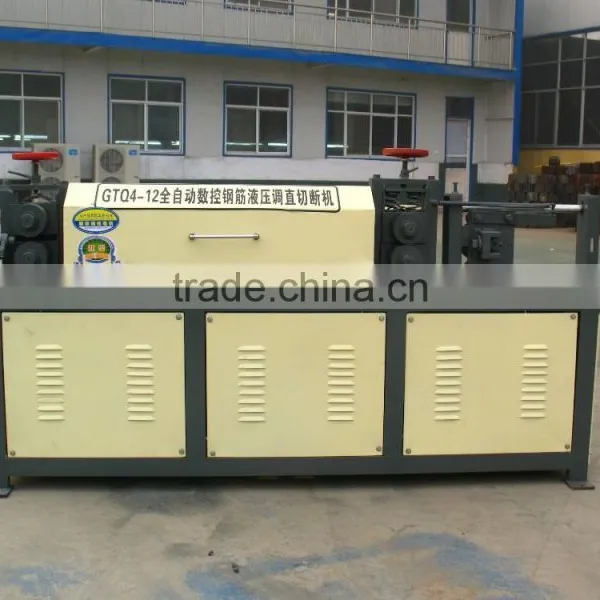

Factory picture
