Home > Products > Shotcrete machine > Professional high quality concrete spraying machine for sale

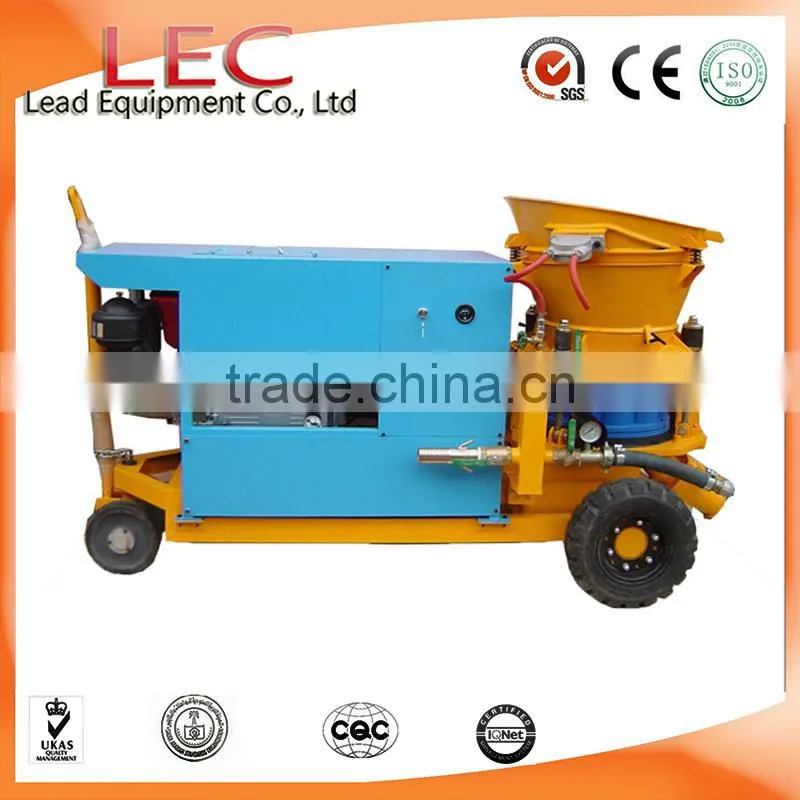

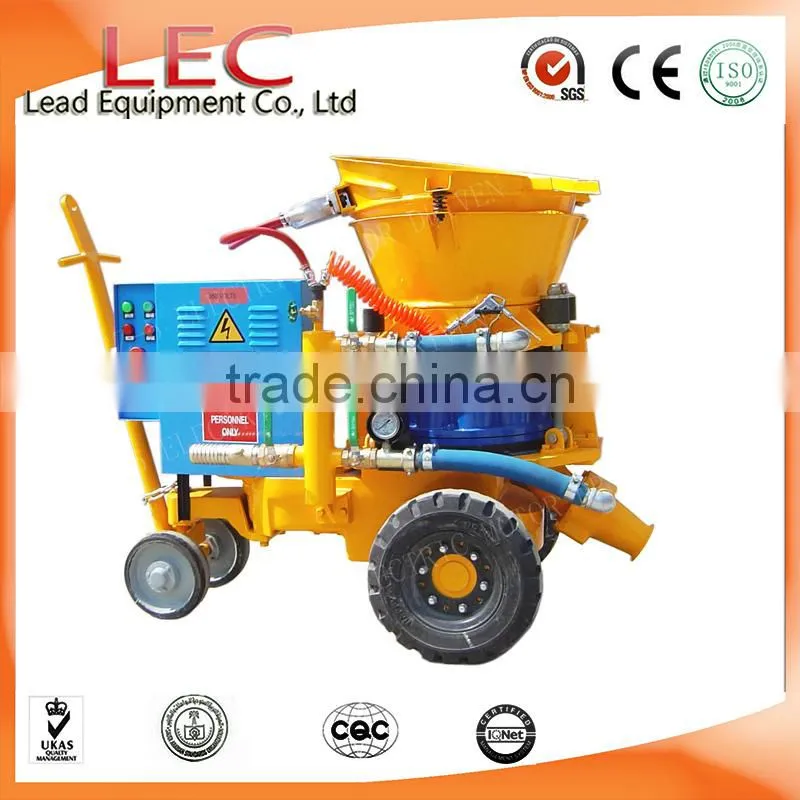

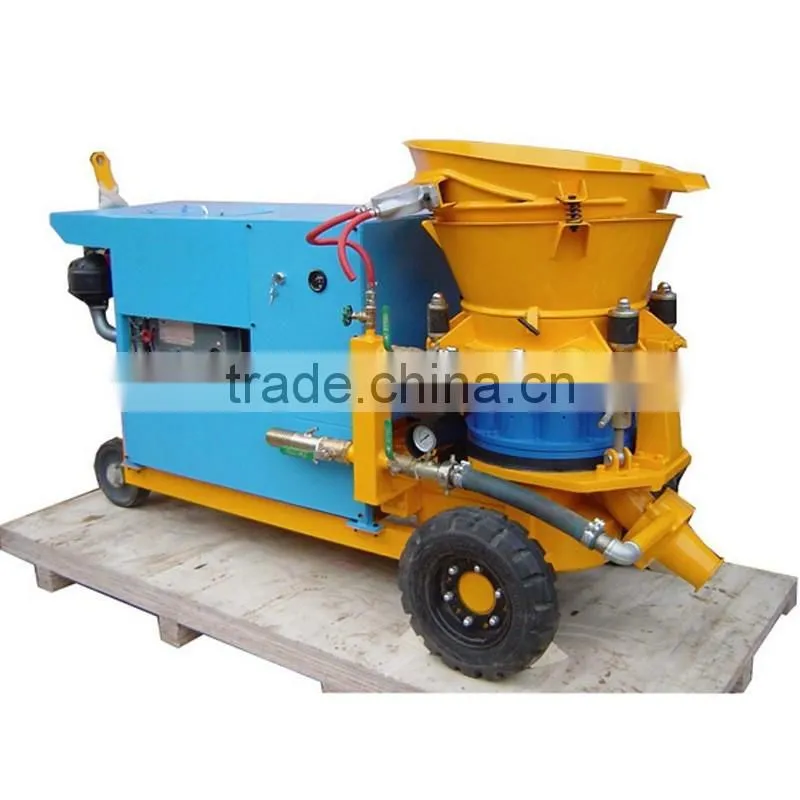

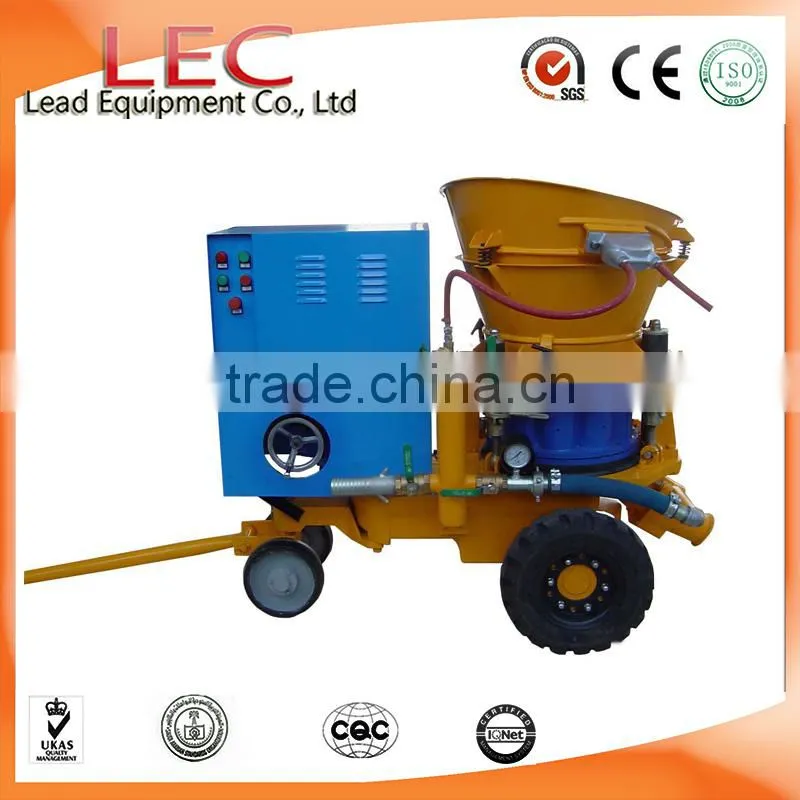

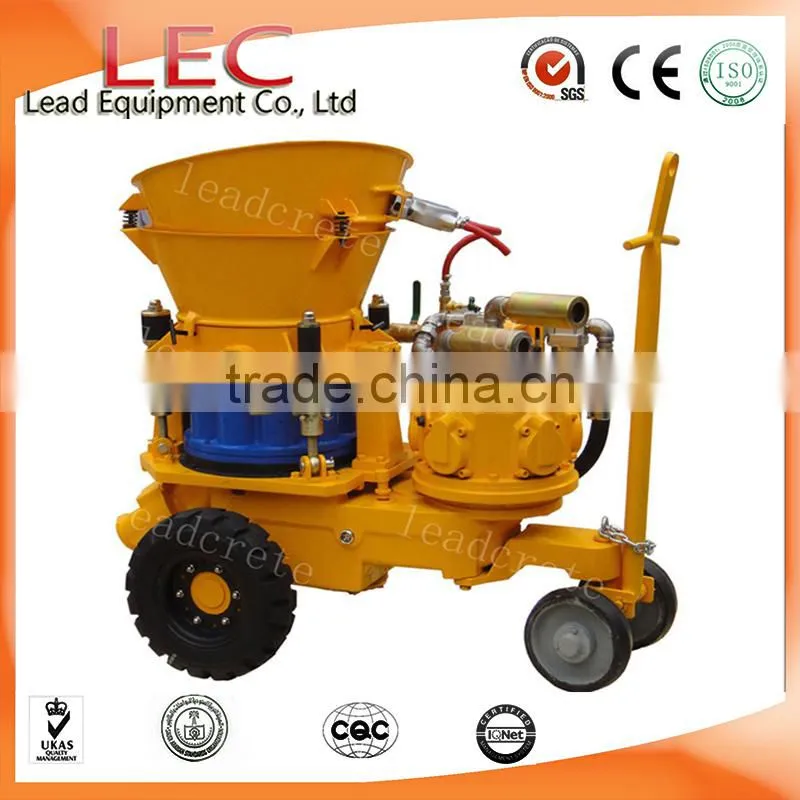

Professional high quality concrete spraying machine for sale
- 10000 Set / Sets per Month
- Shanghai or Qingdao or Tianjin or Ningbo or Guangzhou or other
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Anti-explosion Air Pneumatic Brake Windlass Winch
-
6 Air Cylinder Pneumatic Piston Motor for 1 ton Hand Operated Air Winch
-
1 ton ISO supplier mining and construction used air motor winch
-
3 ton Mine and Construction used Anti-explosion Pneumatic Winch Machine
-
10 ton ISO Supplier Mining Anti-explosion Piston Air Winch
-
Well performance easy operated and maintained piston type pneumatic motor
Product Details
| Max. Conveying Distance | 200 | |||
| Max Aggregate Size | 15 | Hose Inner Diameter | 51 mm | |
| Air Consumption | 8~9m3/min(285-325CFM) | Place of Origin | Henan, China | |
| Brand Name | LEC | Model Number | LZ-5D | |
| Voltage | diesel | Power(W) | 5.5 KW | |
| Dimension(L*W*H) | 1.35*0.75*1.2m | Weight | 720 kg | |
| Certification | ISO,CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Professional high quality concrete spraying machine for sale
1. LZ-5D Professional high quality concrete spraying machine description
LZ-5D concrete spraying machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors.
LZ-5D concrete spraying machine is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
2. LZ-5D Professional high quality concrete spraying machine application
LZ-5D concrete spraying machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
3. LZ-5D Professional high quality concrete spraying machine features
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life
LZ-5A concrete spraying machine
LZ-5E concrete spraying machine
LZ-5V concrete spraying machine
Diesel drive:
Output Capacity | 3-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Water cement ratio | <0.4 |
Max. Aggregate Size | Dia.15 mm |
Conveying Hose Inner Diameter | Dia.51 mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 9m3/min(325CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Diesel Type | CF1105M |
Power | 13kw/18hp |
Overall Dimension(L× W× H) | 2.2×0.96×1.2m |
Net Weight | 850kg |
concrete spraying machine rotor :
Accessories of concrete spraying machine :
Applications:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Other kinds of concrete spraying machine we supply:
Package
1. We are China's leading gunite machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certifications of our company
FAQ:
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
Contact Us
- Zhengzhou Lead Equipment Co., Ltd.
- Contact nameNancy Liu Chat Now
- Phone86-371-63902781
- AddressXisihuan Ring-road East, Tielu, Xushui Town, Zhongyuan District, Zhengzhou, Zhengzhou, Henan
