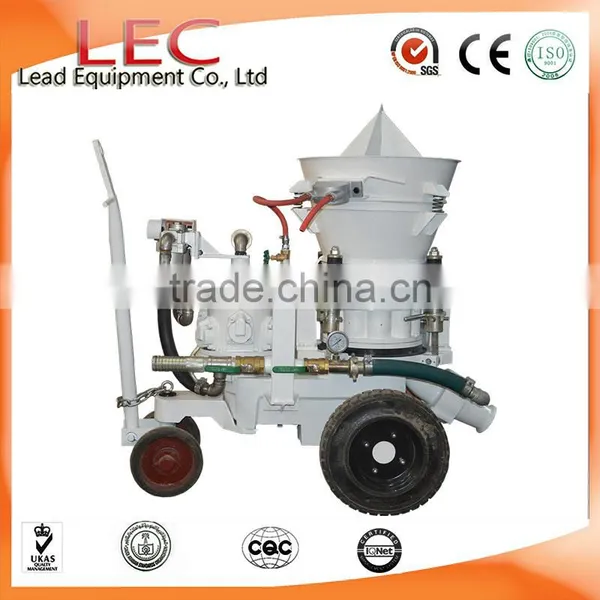

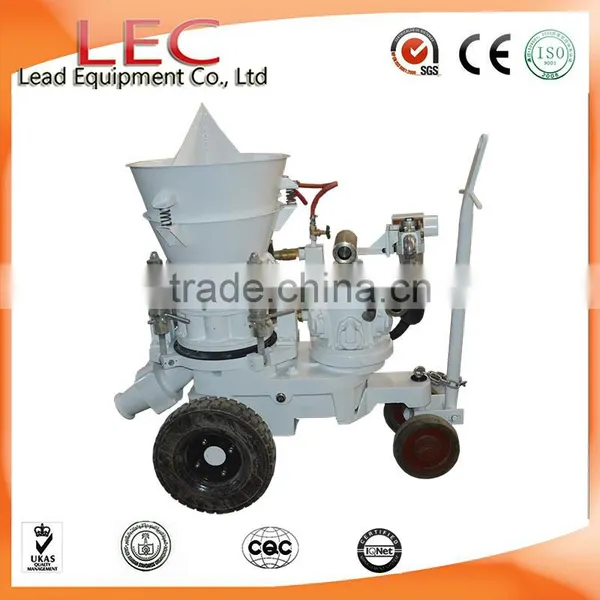

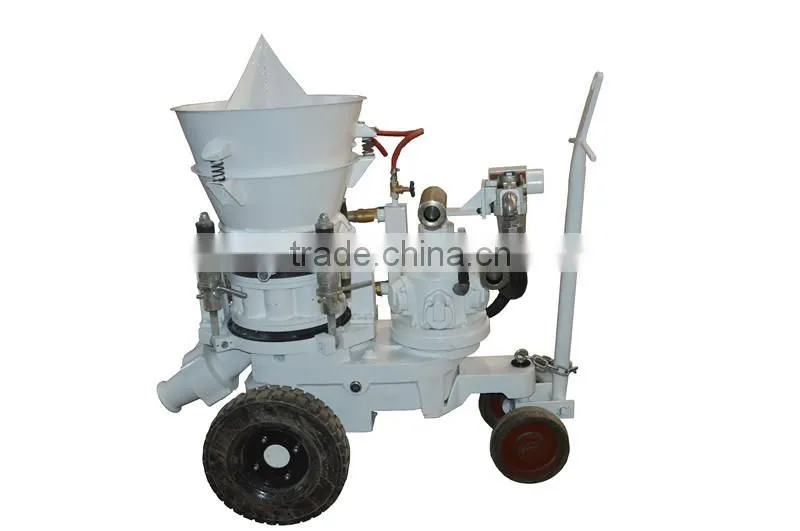

OEM supplier ISO certificate LZ3AR air motor driven dry refractory gunning machine
OEM supplier ISO certificate LZ3AR air motor driven dry refractory gunning machine description
LZ3AR refractory gunite machine is specifically designed for refractory dry-mix shotcrete gunning applications with air motor drive. With this LZ3AR, you can get low dust, low bound and high performance spraying flow in nozzle.

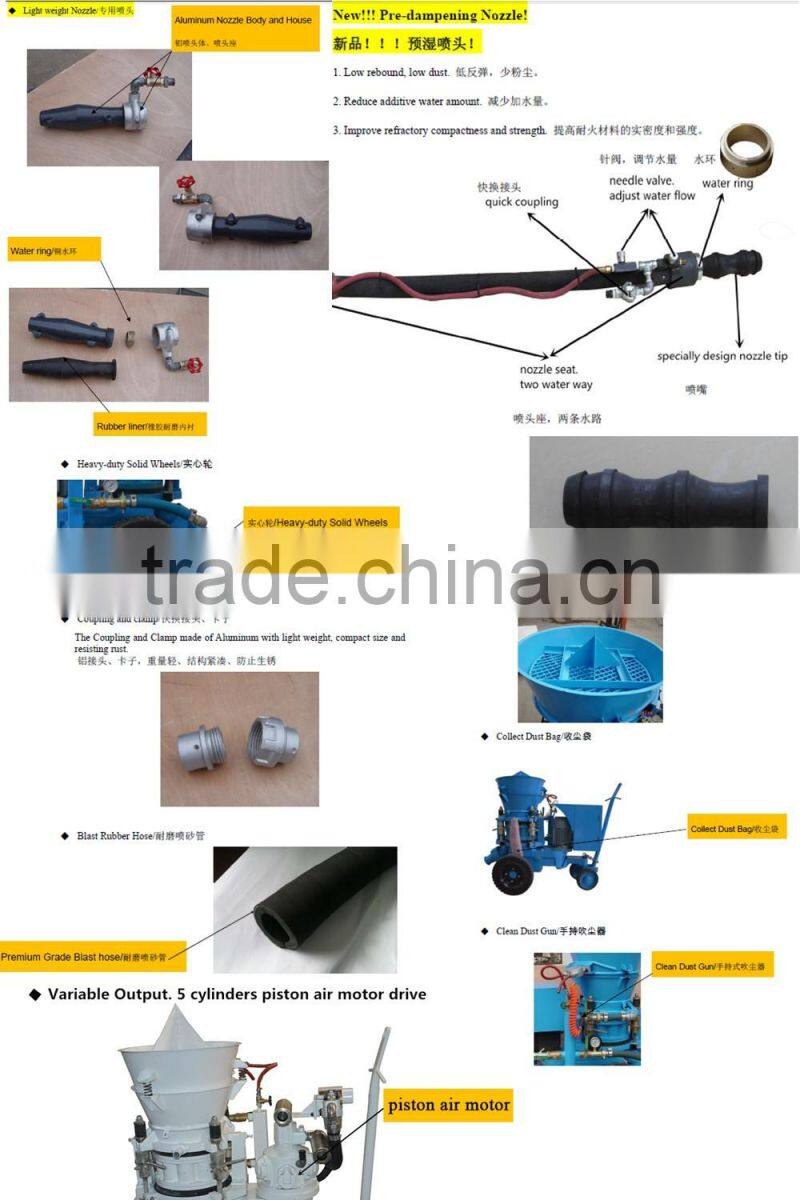

OEM supplier ISO certificate LZ3AR air motor driven dry refractory gunning machine features
1. Variable Output 5 cylinders piston air motor drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coupling and clamp

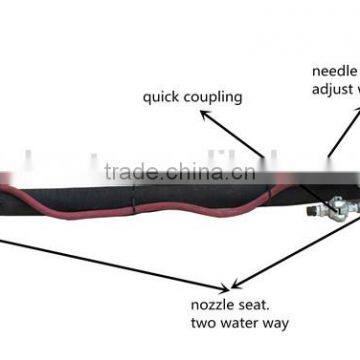

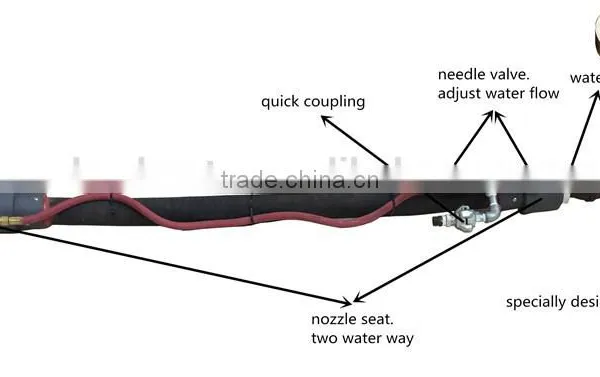

7. Light weight nozzle
8. Blast rubber hose

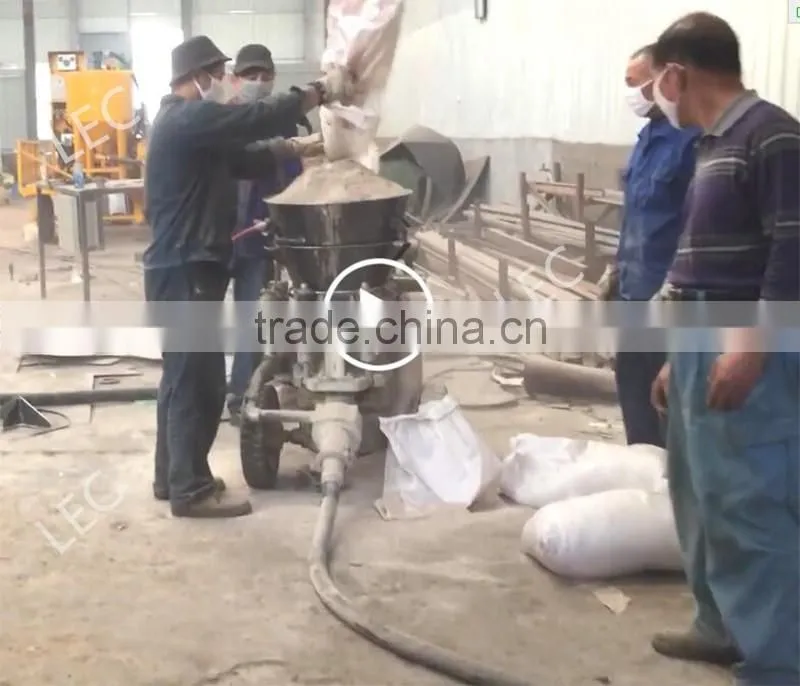

refractory gunite machine video application:
OEM supplier ISO certificate LZ3AR air motor driven dry refractory gunning machine technical sheet
Rated Output | 1-3m3 /h (2-6 ton/h) |
Max. Horizontal Conveying Distance | 200m |
Max. Aggregate Size | Φ10 mm |
Conveying Hose Inner Diameter | 38mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10-11m3/min |
Engine | 4kw |
Material Charging Height | 1.1m |
Rotor Speed | 13.2r/min |
Overall Dimension(L×W×H) | 1.13×0.54×1.1m |
Weight | 430kg |

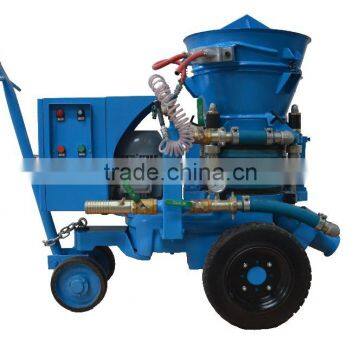

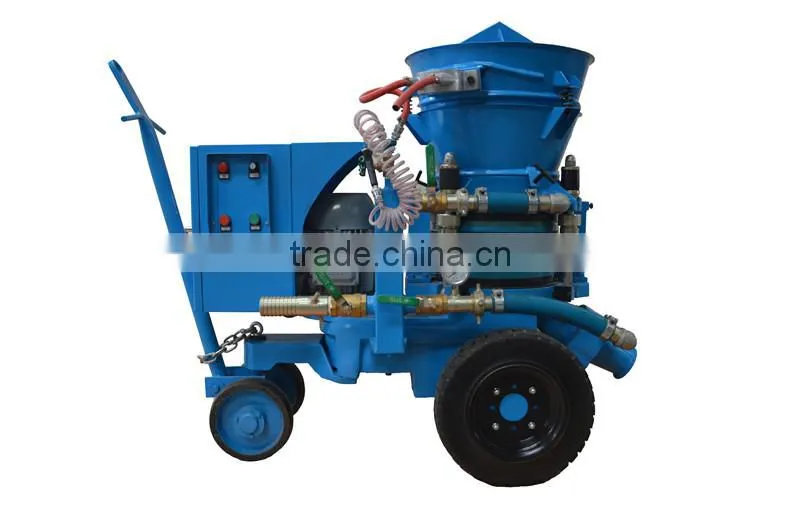

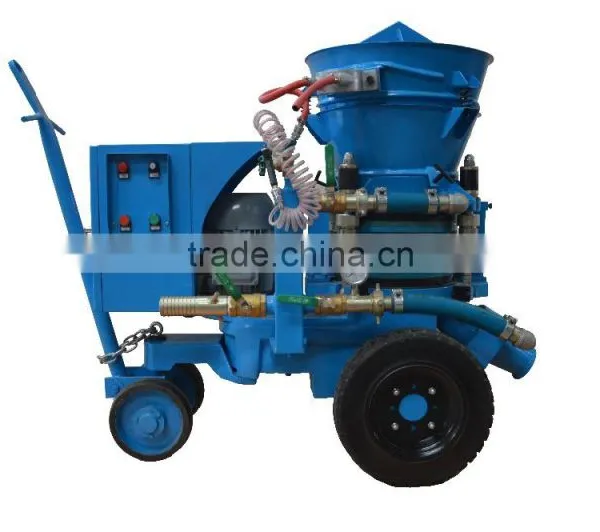

LZ3ER electric motor driven dry refractory gunning machine technical sheet
Rated Output | 1-3m3 /h (2-6 ton/h) |
Max. Horizontal Conveying Distance | 200m |
Max. Aggregate Size | Φ10 mm |
Conveying Hose Inner Diameter | 38mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 5~6m3/min |
Electric motor | 4kw(3 phase380V50Hz) |
Material Charging Height | 1.1m |
Rotor Speed | 13.2r/min |
Overall Dimension(L×W×H) | 1.13×0.54×1.1m |
Weight | 430kg |

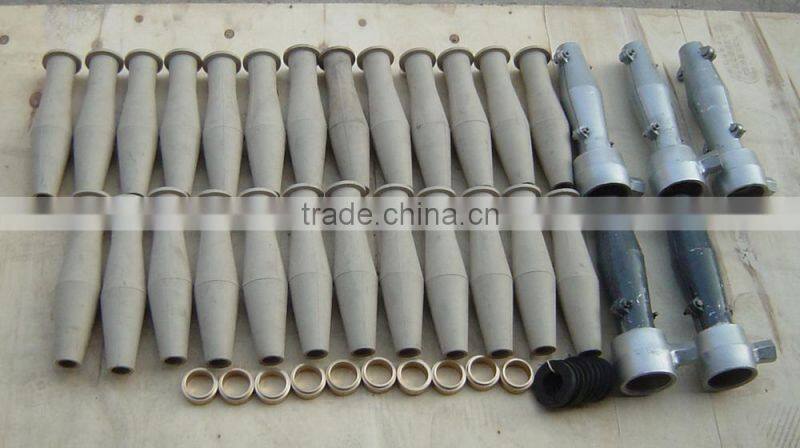

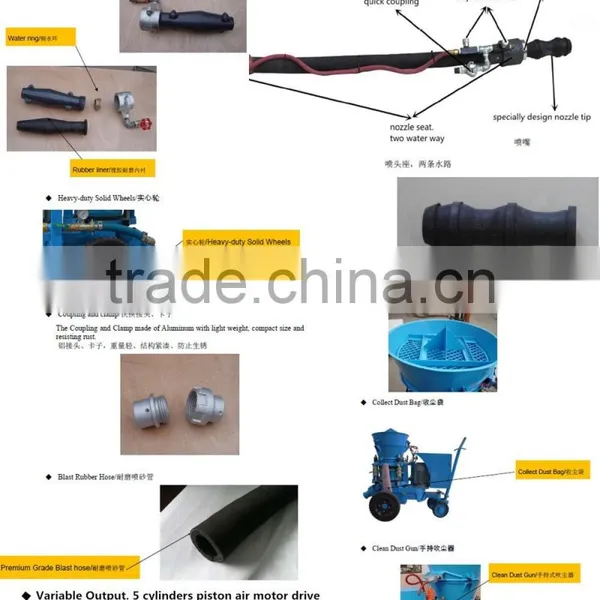

OEM supplier ISO certificate LZ3AR air motor driven dry refractory gunning machine parts:

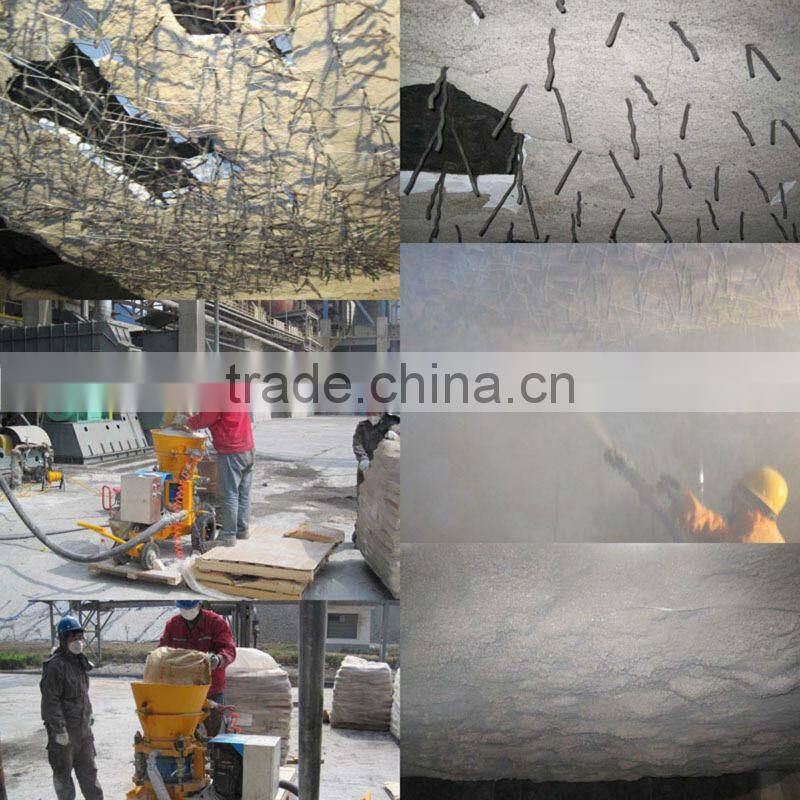

OEM supplier ISO certificate LZ3AR air motor driven dry refractory gunning machine can be used for refractory spraying applications, as well as for concrete shotcrete application.

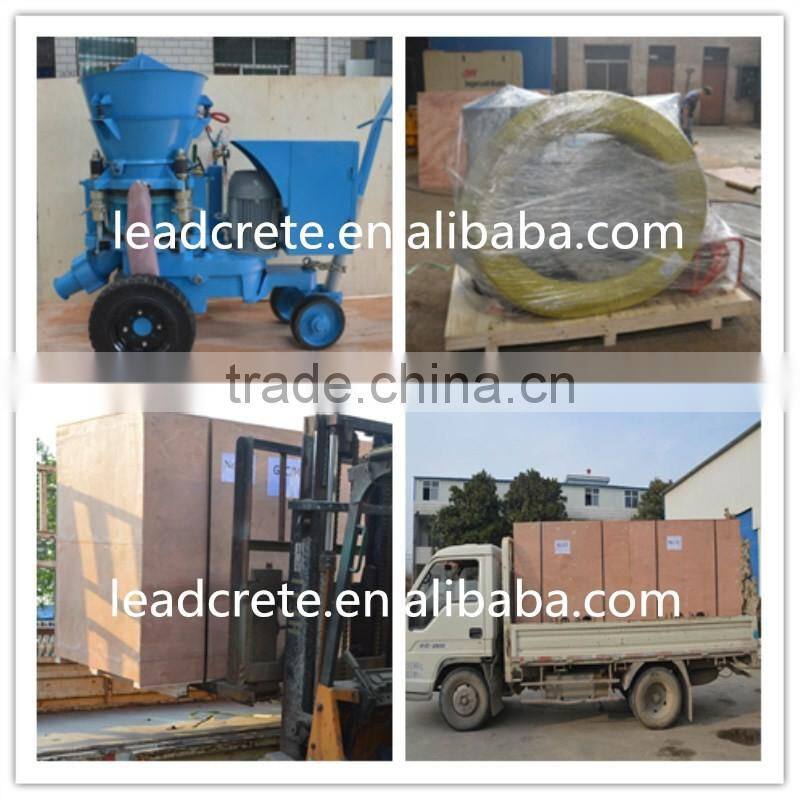

Package of refractory gunning machine:
Why choose us ?
1. We are China's leading dry refractory gunning machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certifications of our company:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

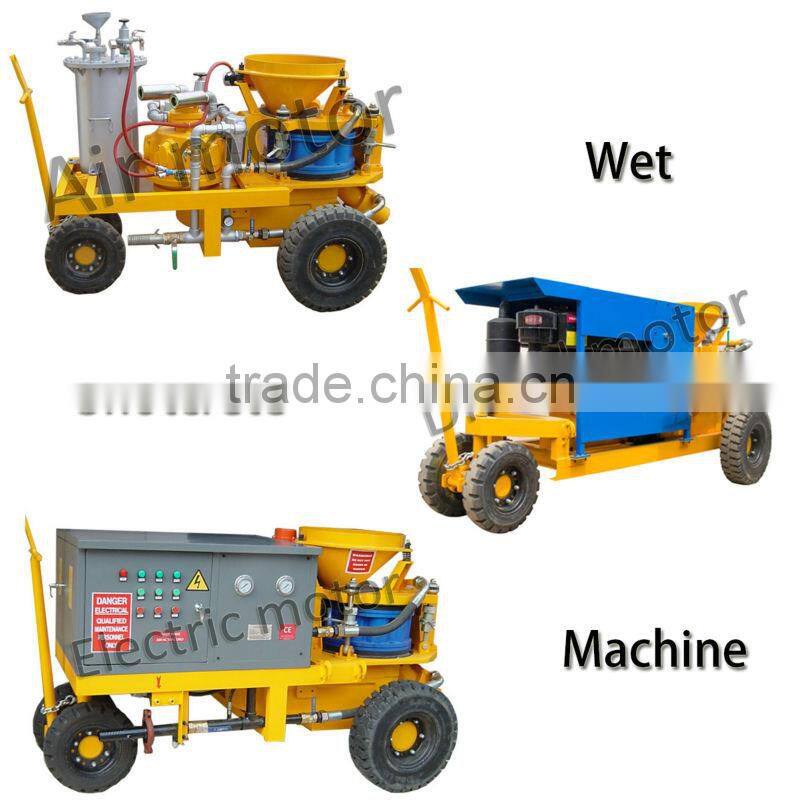

We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
FAQ:
If you have any quetion please feel free to contact me:
Thank you for your time and welcome to visit our factory!
