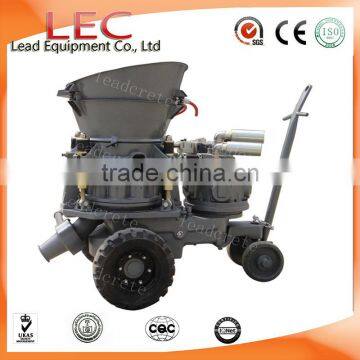

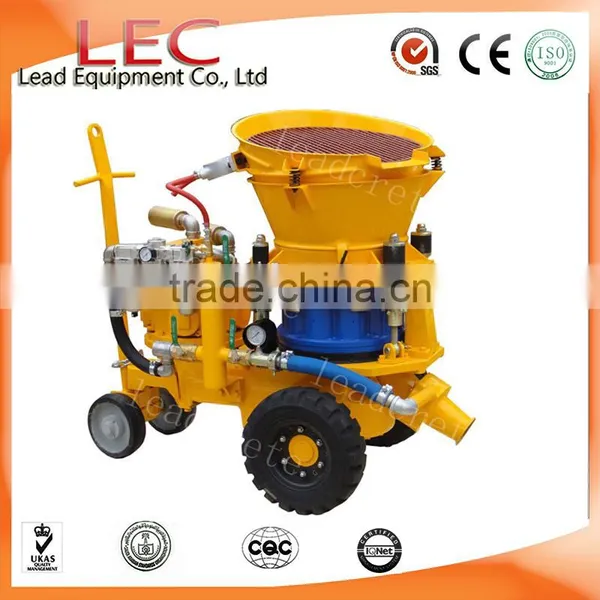

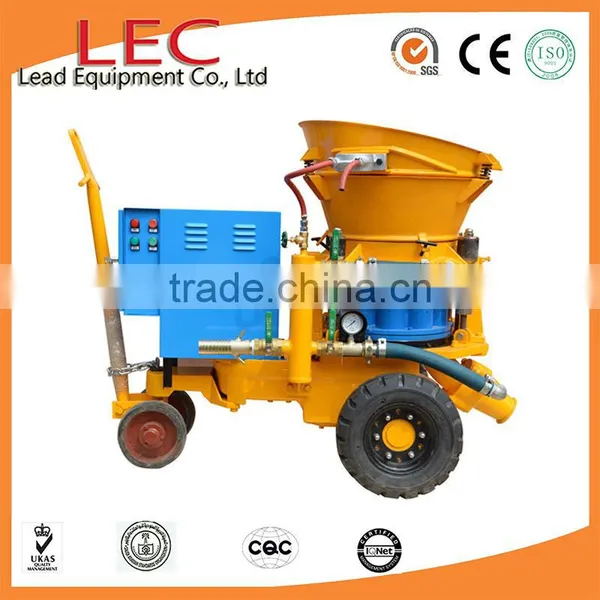

LZ-5D Widely application professional dry mix gunite machine
1. LZ-5D widely application professional dry mix gunite machine description
LZ-5D gunite machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors.
LZ-5 gunite machine is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
2. LZ-5D widely application professional dry mix gunite machine application
LZ-5D gunite machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
3. LZ-5D widely application professional dry mix gunite machine features
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life
4.Advantages
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
LZ-5A gunite machine
LZ-5E gunite machine
LZ-5V gunite machine
Diesel drive:
Output Capacity | 3-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Water cement ratio | <0.4 |
Max. Aggregate Size | Dia.15 mm |
Conveying Hose Inner Diameter | Dia.51 mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 9m3/min(325CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Diesel Type | CF1105M |
Power | 13kw/18hp |
Overall Dimension(L× W× H) | 2.2×0.96×1.2m |
Net Weight | 850kg |
gunite machine Rotor :
Accessories of gunite machine :
Applications:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Other kinds of shotcrete machine we supply:
Package
1. We are China's leading gunite machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certifications of our company:
FAQ:
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
