Variable Output LZ3ER Specially Designed for Refractory Spraying Machine
Variable Output LZ3ER Specially Designed for Refractory Spraying Machine Description

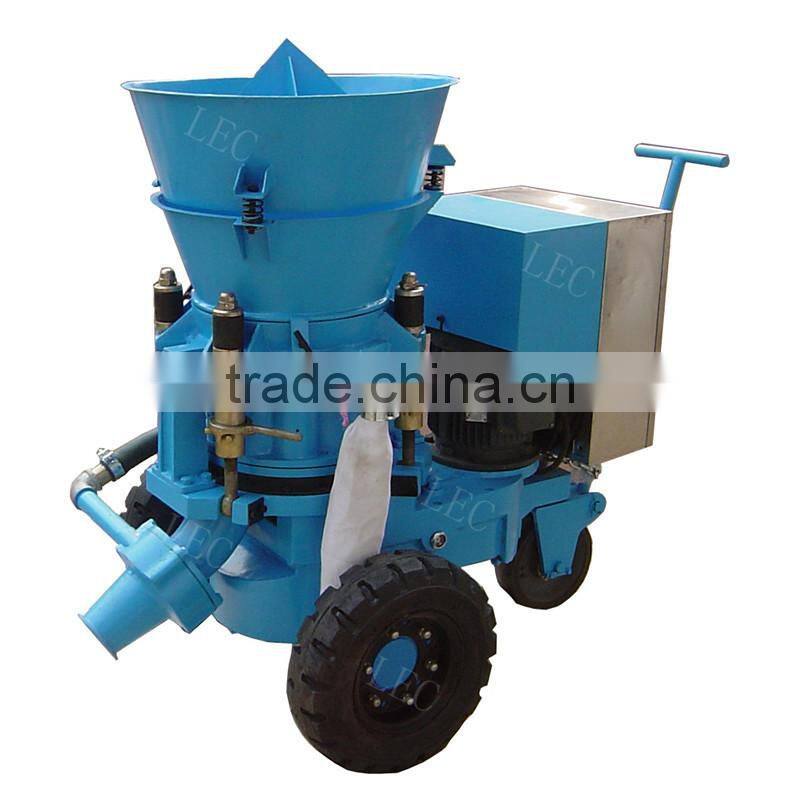

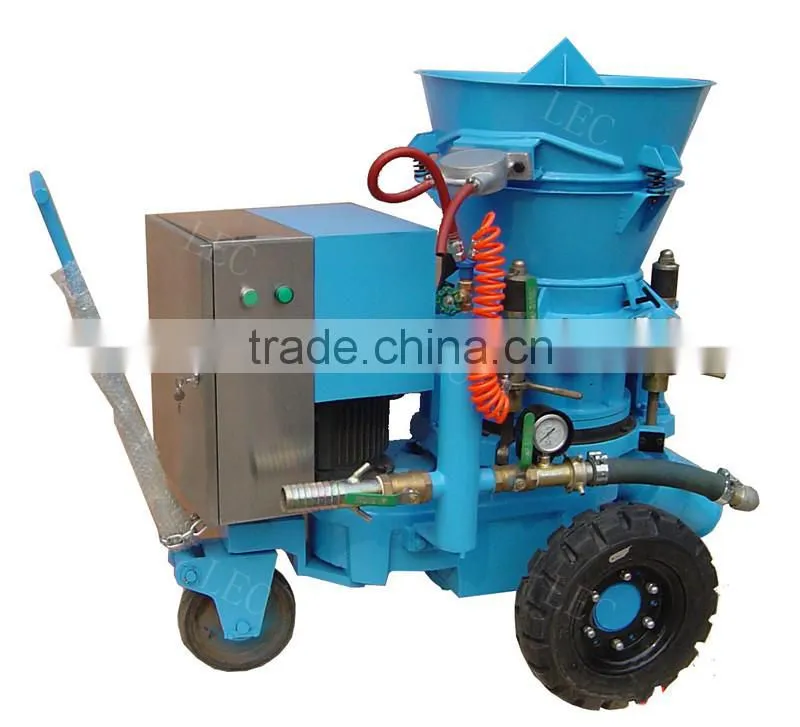

LZ3ER refractory shotcrete machine is specifically designed for dry refractory spray shotcrete applications, as well as for concrete shotcrete application.
With this LZ3ER refractory shotcrete machine, you can get low dust and high performance spraying flow in nozzle.
Variable Output LZ3ER Specially Designed for Refractory Spraying Machine Features

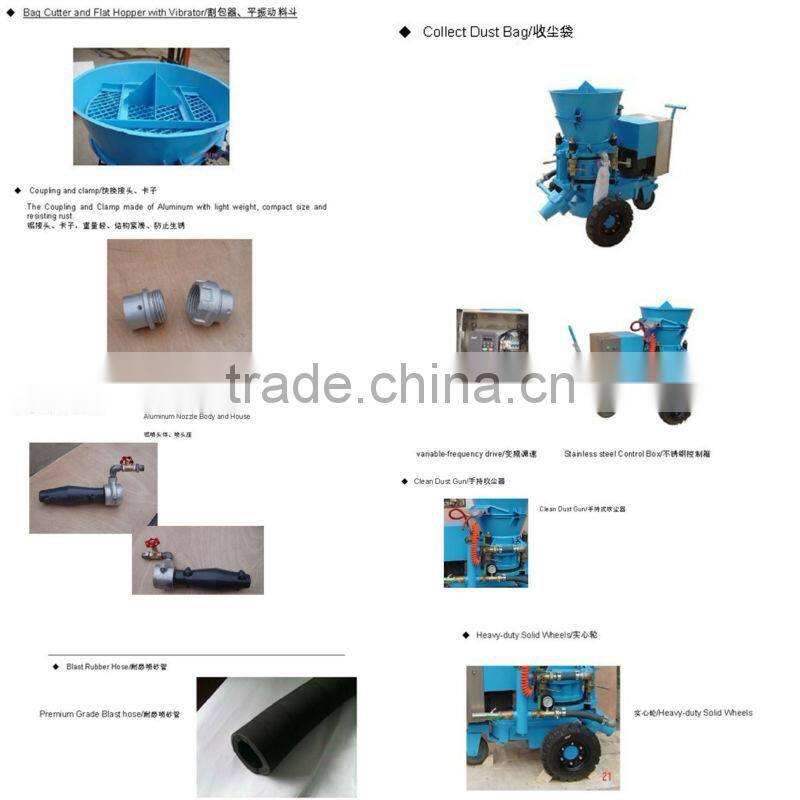

1. Variable Output with variable-frequency drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coulping and clamp
7. light weight nozzle
8. Blast rubber hose
refractory gunite machine video application:
Variable Output LZ3ER Specially Designed for Refractory Spraying Machine Technical sheet
Specification (with Electric motor drive): | |
Rated Output |
1-3m3 /h(or 2-6tons/h) |
Max. Horizontal Conveying Distance |
200m |
Max. Aggregate Size |
Dia.10 mm |
Conveying Hose Inner Diameter |
38mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
5~6m3/min(180-215CFM |
Motor Power |
4kW |
Voltage |
3 phase,380V,50Hz |
Material Charging Height |
1.1m |
Rotor Speed |
13.2r/min |
Overall Dimension(L×W×H) |
1.13×0.54×1.1m |
Weight |
430kg |
Variable Output LZ3ER Specially Designed for Refractory Spraying Machine spare parts:

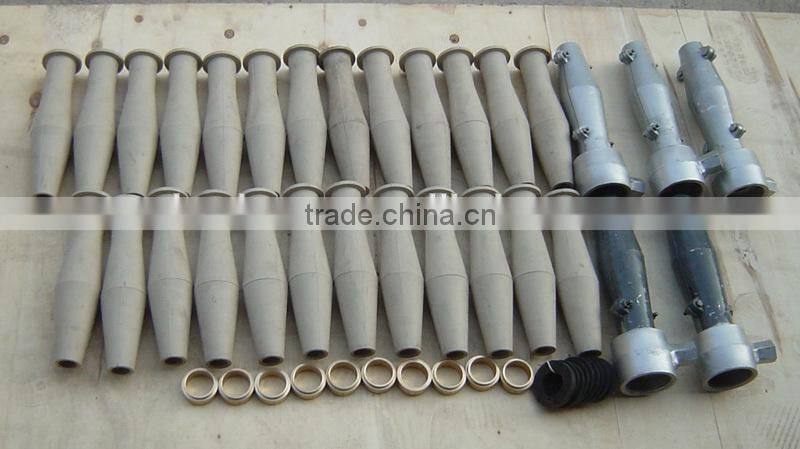

Refractory Nozzles:
Rotors :

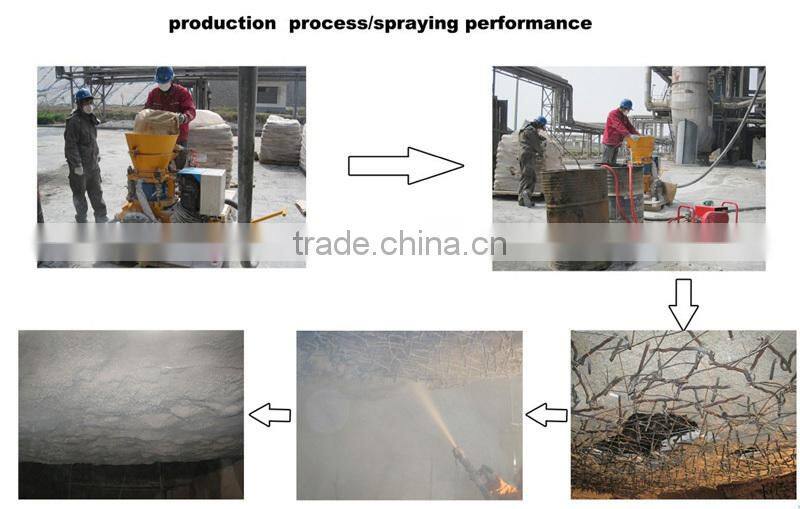

Variable Output LZ3ER Specially Designed for Refractory Spraying Machine Application:
Variable Output LZ3ER Specially Designed for Refractory Spraying Machine Package:
Why choose us ?
1. We are China's leading refractory spraying machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certificate:

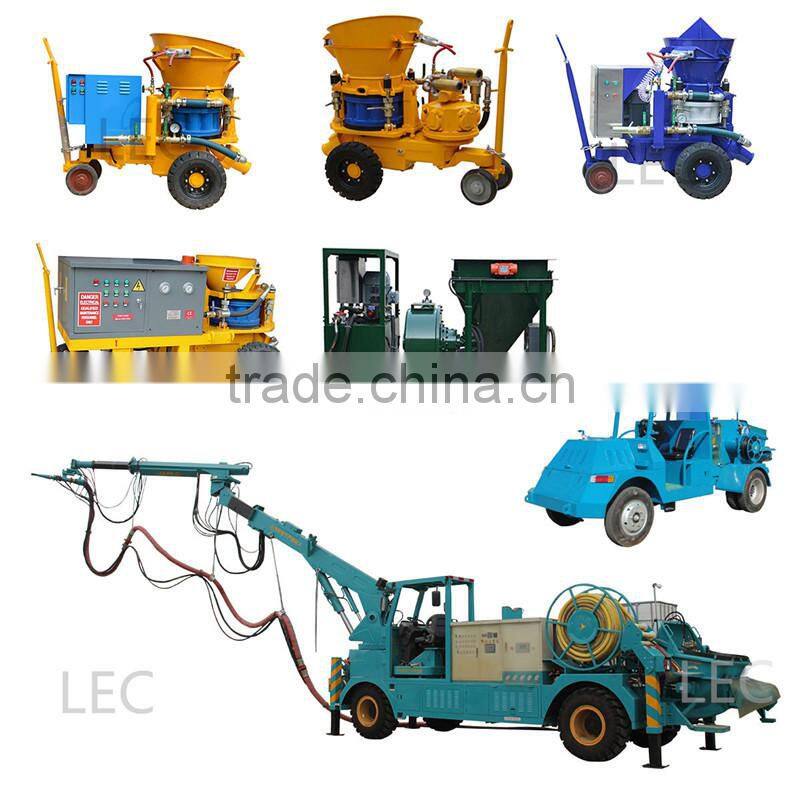

We can also customize the shotcrete machines and below are some customized shotcrete machines for your reference.
You can tell us your request and welcome to consult!
FAQ:
