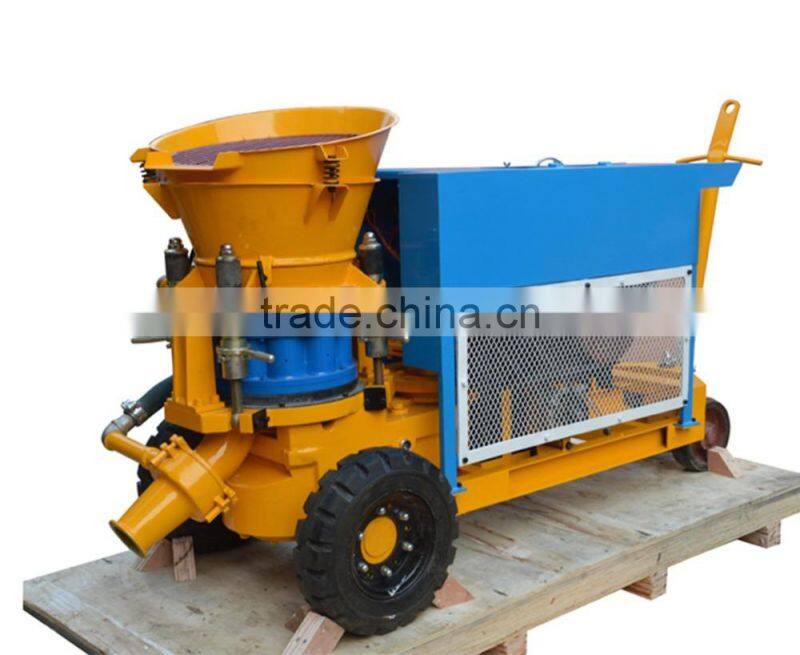

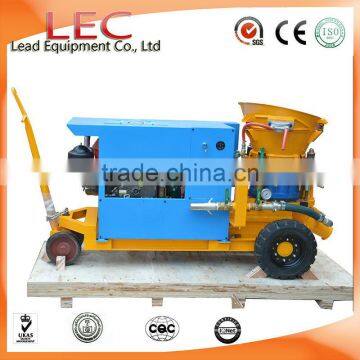

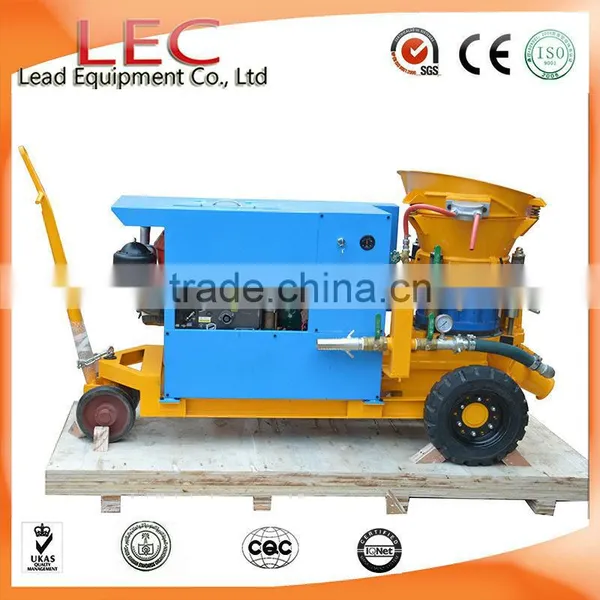

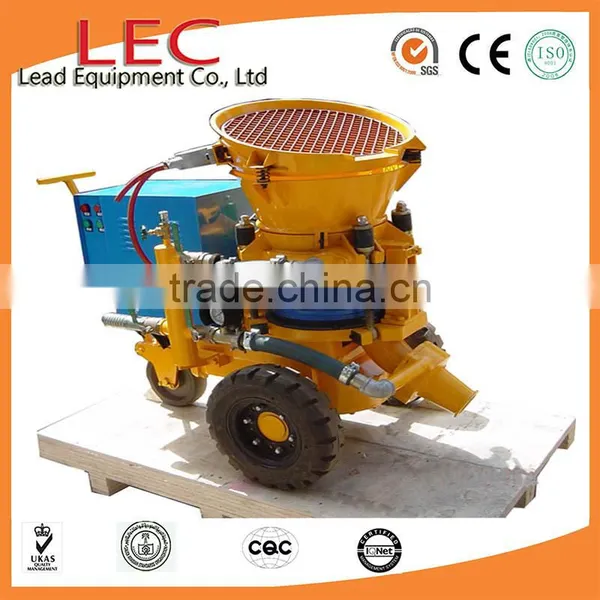

LZ-3D Dry Mix Gunite Diesel Engine Shotcrete Machine Concrete Sprayer
1. LZ-3D dry mix gunite diesel engine shotcrete machine concrete sprayer description:
LZ-3D diesel engine concrete sprayer for the dry spraying process.
LZ-3 diesel engine concrete sprayer can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.
LZ-3 concrete sprayer is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
2. LZ-3D dry mix gunite diesel engine shotcrete machine concrete sprayer technical parameters:
Rated Output |
2-3m 3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤ 1: 3~5 |
Max. Aggregate Size |
Φ 10 mm |
Conveying Hose Inner Diameter |
38/51mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
5~6m 3 /min(180-215CFM |
Diesel Engine |
10hp,2200rpm |
Diesel Engine Starting |
Electric start |
Clutch Type in Diesel Engine |
Automatic Clutch |
Material Charging Height |
0.9m |
Rotor Speed |
9-13r/min |
Overall Dimension(L× W× H) |
1.8× 0.8× 1.2m |
Net Weight |
480kg |
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
LZ3000E wet-mix concrete spraying machine video application:

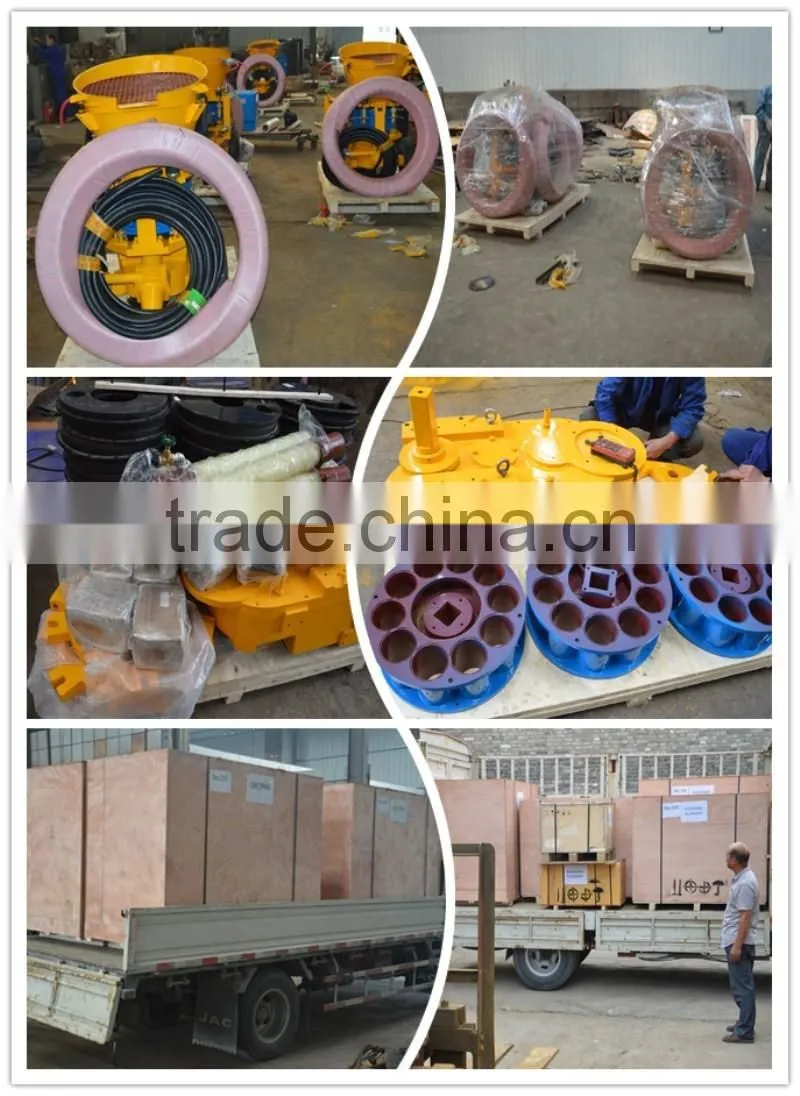

Accessories of Shotcrete Machine :
Package:

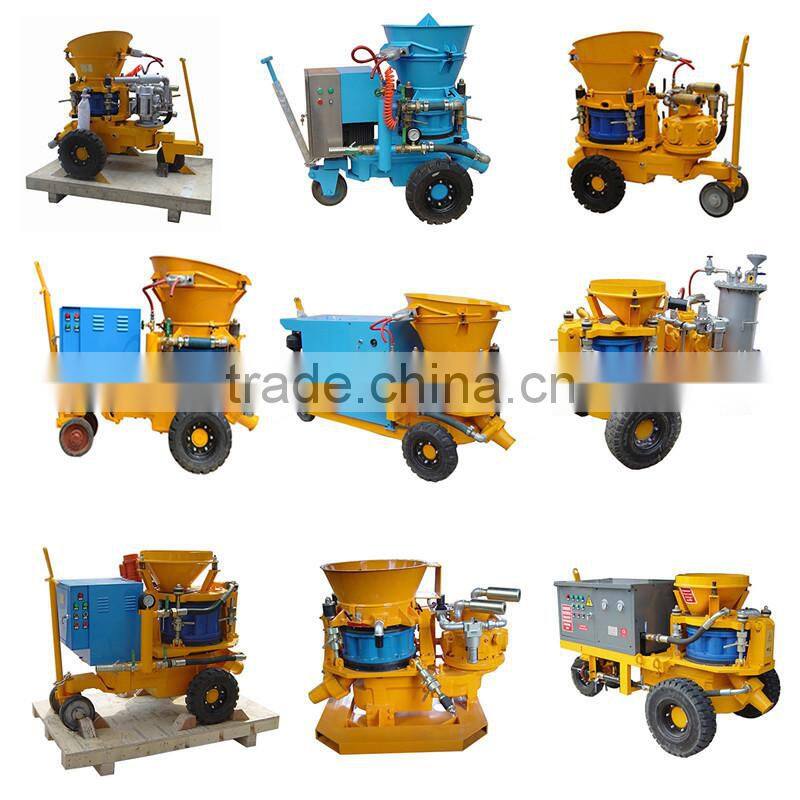

Other type concrete sprayer :
Application:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Why choose us ?
1. We are China's leading concrete sprayer manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certification of our company
FAQ:
1. Q: Can we have other drive mode ?
A: yes. we also supply air motor type, electric motor type.
2. Q: Can we choose skid or rail-wheel type?
A: Yes. we can make it as per your need.
If you have any question please feel free to contact me.
Thank you for your time and welcome to visit our factory!
