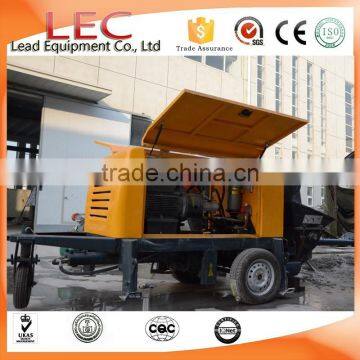

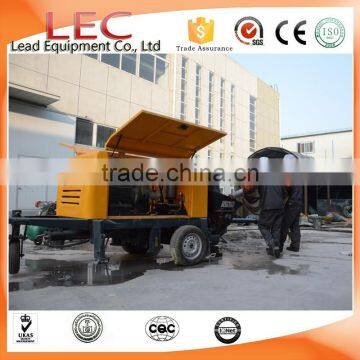

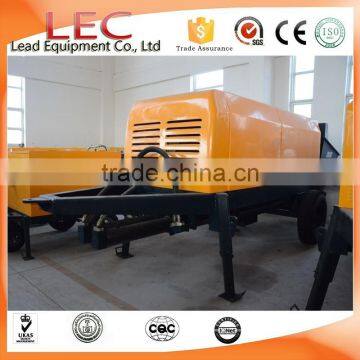

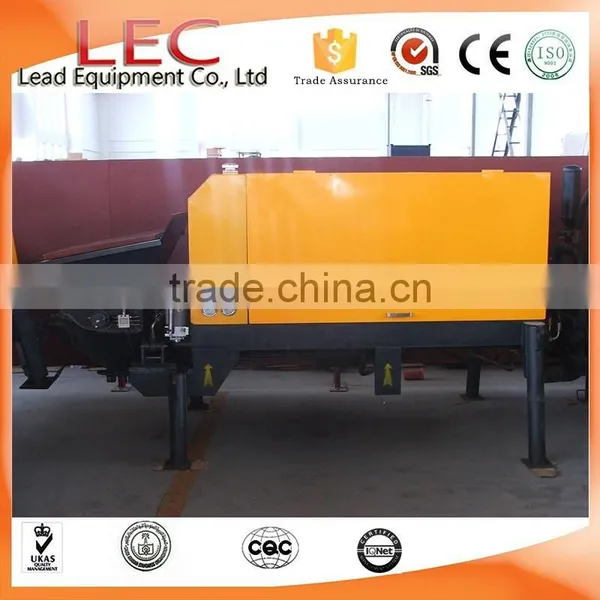

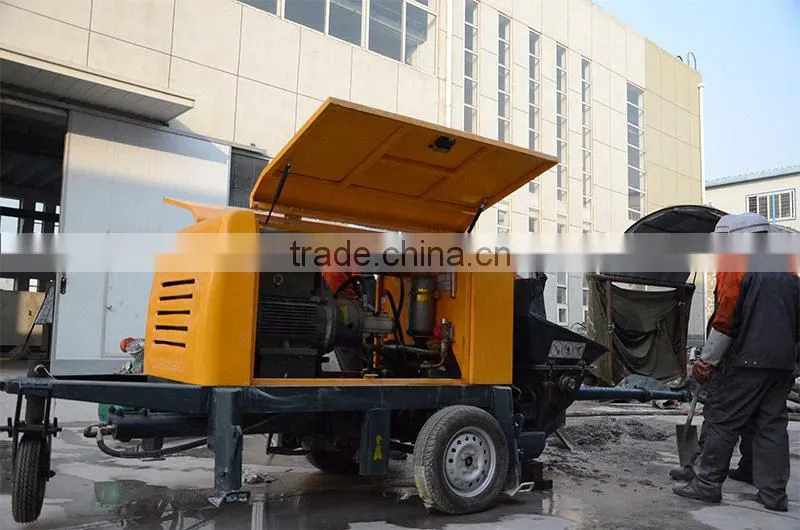

LPB30-08A concrete mortar spraying machine
Especially suitable for the mixing mortar in the first floor and spray in high floors.
Application of mortar spraying machine :

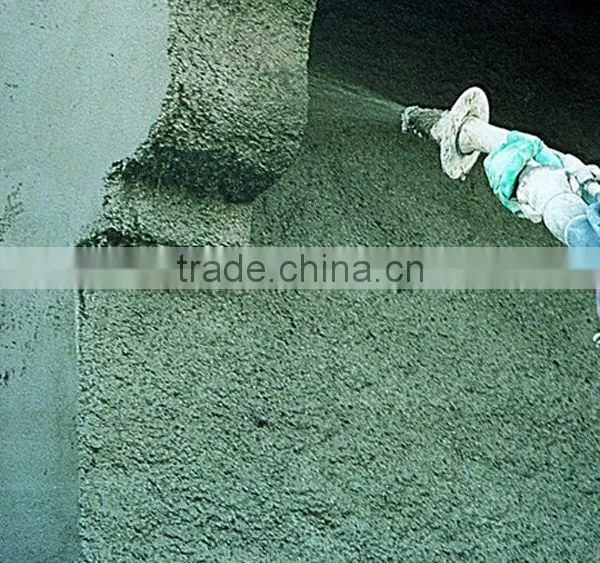

It is suitable for pumping and spraying the wet ready-mixed mortar which can be pumped
Main features of mortar spraying machine
1. High working pressure, stable flow, can deliver mortar with higher sand content.
2. It use S valve and piston pump.
3. Main pump is gear pump
4. Ready mixed mortar in first floor. Pump to high floor (It can reach to 150m) and spray.
5. High-quality wear resistant alloy components for long service-life.
6. Compact structure. Operation and maintenancecost is low.
7. It has anti-pump function and can minimizing pipeline jam
8. PLC control and with remote control quite easy to use.
Technical parameters of mortar spraying machine :
Model No. |
LPB30-08A |
LPB30-08B |
|
Theoretical pump pressure(MPa) |
High pressure |
4 |
7 |
Low pressure |
2 |
4 |
|
|
The actual output (m³/h) |
High pressure |
8 |
8 |
Low pressure |
16 |
16 |
|
Rated power(kw) |
15 |
22 |
|
Hopper volume(m³) |
0.2 |
0.2 |
|
Filling height(mm) |
1150 |
1150 |
|
Max. vertical conveying height(m) |
70 |
120 |
|
Max. horizontal transmission distance(m) |
350 |
600 |
|
Overall dimension(L×W×H)(mm) |
3650×1000×1650 |
3650×1000×1650 |
|
Total weight(kg) |
1500 |
1550 |
|
Packing: In Nude,One unit/20GP
Delivery time: Usually in 10 working days for mortar spraying machine .
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Spare parts supply timely
During-sale service for mortar spraying machine :
1. Acceptance of the product
2. Assist client product construction scheme
After sale service for mortar spraying machine
1. Spare parts will be delivered as you need.
2. Engineers will go to clients’ site for guiding the installation and test-running;
3. Warranty period: 12 months since the installation and commissioning;
When ready mixed mortar is in the site, following mortar spraying machine can also be choosed.
LMP50/40 mechanical transmission single piston mortar pump
LMP40 10-H with frequency converter peristaltic type mortar spraying pump
Only for transfer mortar to high floors, hydraulic small mortar pump on sale can be choosed
If you are interested in our products, please contact us with no hesitation. We are sure any of your questions will get our prompt attention& reply. And we are looking forward to your visit to our factory. Welcome ~
