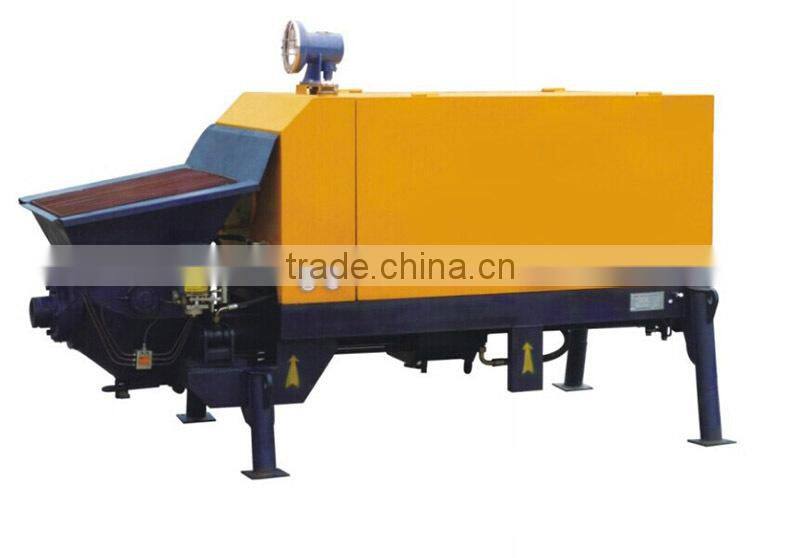

LHBMD 20 coal mine tunnel concrete pump for sale
Brief introduction of coal mine tunnel concrete pump :
The pump can used in the concrete construction of underground (mine concrete pumps, metal mines concrete pump, copper mine concrete pump, phosphate mine concrete pump, Iron mine concrete pump, aluminum mine concrete pump, tin mine concrete pump), it also can be used for rail and road tunnels, bridges and culverts, utilities, mining, defense and other high-rise buildings and concrete construction projects.
Specification of coal mine tunnel concrete pump :
Model NO./ Concrete Pump |
Unit |
LHBMD 20 |
Max. Theoretical Concrete Output |
m³/h |
14/21 |
Max. Concrete Pumping Pressure |
Mpa |
4.6/8.8 |
Distribution valve |
S Valve |
|
Conveying tube inner Dim |
mm |
Φ125A/100A |
Max. Theoretical Conveying Distance |
m |
Horizontal:250/Vertical:70 |
Filling Height |
mm | 1000 |
Hopper Capacity |
m³/mm |
0.4 |
Maximum aggregate size |
mm |
30 |
Concrete slump range |
mm |
120-230 |
Main motor powder |
kw |
22 |
Rated speed |
r/min |
1480 |
Voltage |
v |
380/50 |
Fuel tank capacity |
L |
150 |
Cleaning mode |
High pressure washing |
|
Dimension |
mm |
3480*1420*1620 |
Total Weight (including oil) |
kg |
1900 |
Warrantee:
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.
Feathure of coal mine tunnel concrete pump :
use S-valve to switch the direction, for fine stone concrete conveying
good sealing S-valve, installed with floating wear resistant ring
High-quality wear resistant alloy components for long service-life
high delivery pressure for demand of high-rise and long distance projects
double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
air cooling system, without dependence of external water supply
with re-pumping function to smooth construction of better accessibility
automatic lubrication system for long service-life
PLC system to ensure best electrical control performance
Application of coal mine tunnel concrete pump :
Conveying heating, heat insulation, light weight foam cement mortar.
Conveying light-weight foam cement, mortar for ground heating, heat insulation.
Conveying and injection of fireproof and heat preservation materials.
Press grouting and filling for all kinds of engineering and construction.
Package of coal mine tunnel concrete pump :
Packing: In Nude,One unit/20GP
Delivery time: Usually in 10 working days for the concrete pumps
Our Markets:
Our Advantages and services for coal mine tunnel concrete pump :
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Company Description
Lead Equipment Co., Ltd. is a leading manufacturer of shotcrete/gunite machines, grouting pumps, mortar pumps, concrete pumps and hose pumps in China, as well as an unique supplier with ISO 9001:2008 and CE certificate in above prodcuts in China.Our products have been exported to the USA, Canada, India, Malaysia, Pakistan, Korea, Bahrain and Nepal
Q1: What's the form of distribution valve for concrete pump?
A: Its S valve.
Q2: What about the output you can supply?
A: The output we can supply is from 12CBM/hour to 80CBM/hour.
Q3:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones.
Q4: If over the guarantee, we need spare parts, how?
A: Here, we are always here offer service in 24hours every day.
Diesel concrete pump
Truck mounted concrete pump
Placing booms
For more information about coal mine tunnel concrete pump , please feel free to contact me.
