cellular lightweight concrete

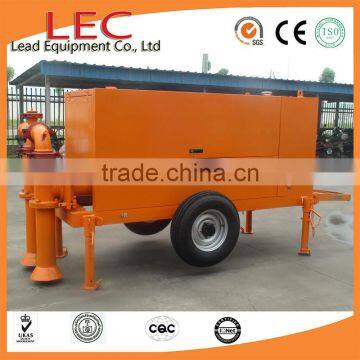

Hot sale LEC Brand Cellular Lightweight Concrete Conveying Pump
Foam Concrete Block Machinery
This fully foamed concrete equipments operation proceeds is automatic, combined the material feeding, foam generating, mixing, and transportation together.The concrete delivering pump, coming with double hydraulic cylinder. Basing on the high output pressure, it can deliver the foam concrete to the high building. It also equips with moving wheels, universal wheels, the stretch frame, easy to move to other sites.
Specifications:
1. Movable type
2. ISO,CE
3. Warranty 1year
4. Used for light concrete block
Data of Foam Concrete Block Machine Mixer LD-30:
Model |
LD-30 |
Production capacity |
15-20 m³/h |
Output Volume |
1500 L |
Material Input Volume |
2000 L |
Main Shaft Revolution |
32 r/min |
Hopper Lifting speed |
22 m/min |
Mixing Motor |
11 kW |
Winding Motor |
5.5 kW |
Water Pump Motor |
1.1 kW |
Vibrating Motor |
0.55 kW |
Foaming System |
5.5 kW |
Max. Moving Speed |
15 km/h |
Total Weight |
3200 kg |
Overall Dimension |
2600x2250x3000 mm |
Data of Foam Concrete Block Machine Pump LD-30 :
Model |
LD-30 |
Max. Output |
30 m³/h |
Max. Conveying Pressure |
8 MPa |
Max. Horizontal Transporting Range |
600 m |
Max. Vertical Transporting Height |
200 m |
Max. Particle Size of Aggregates |
8 mm |
Cylinder Bore |
80 mm |
Delivery Cylinder Bore |
140 mm |
Max. Pressure of Hydraulic System |
24 MPa |
Oil Pressure Box Volume |
200 L |
Motor Power |
30 kW |
Total Weight |
2200 kg |
Overall Dimension |
3100x920 x1300 mm |
Foam Concrete Block Machine's features:
1. Competitive price;
2. Light weight;
3. Heat preservation;
4. Sound insulation;
5. Fire proofing;
6. Aseismatic;
7. High construction speed;
8. Environmentally friendly.
A Complete of Foam Concrete Block Machine line:
- Foam Concrete Block Mixer
- Foam Concrete Block Pump
- Foam Concrete Block Mould
- FoamConcrete Block Cutting Machine
- Foaming Machine
- Foaming Agent
- Foam Concrete Hardener
Usage of Foam Concrete Block Machine :
1. Make light weight foam concrete blocks;
2. Precast wall panels;
3. Cast wall in construction site;
4. Roofing insulation and flooring insulation;
5. Gap filling;
6. Road base;
7. Leveling.
The specific production process of foam concrete block machine:
1. Feeding and blend: The quantitative cement, foam agent, steady bubble enhancer is added intothe mixer, through feeding system will be quantitative strengthening agent, foaming agent, stabilizing bubble cement mixer with 30 seconds by dry blend.
2. Mixing: quantitative warm water be added into the mixer with 2 minutes by wet mixing; The quantitative foaming agent be added into the mixer with 8 to 15 seconds mixing.
3. Inject into the mold and foaming: this material be placed into the mould immediately to foaming with 3-5 minutes.
4. Preliminary maintenance: this process is done by several standing after injection moulding.
5. Demoulding: the foam concrete board can be demould is after initial set, which have the initialstrength.
6. Cutting: this foamed concrete board blank owning a certain intensity can be cut after demoulding, and the cutting specifications can be adjusted according to the need by the cutting blade;
7. Finish product maintenance: the curing time of foam concrete board should have no less than 7 days.
As an unique supplier with ISO 9001 and CE certificate in China, we have been exported to the USA, Canada, India, ,Malasia, Pakistan, Korea, Baharain, Nepal etc. What's more, they have received praise with good quality and excellent after-sale service.
Our customer will get a one-stop service:
Pre-sales service: Customers are guided to choose the best applicable products and provided the technology-advanced, energy-saving and practical process. We are responsible for the local planning and design.
Middle-sales Service: Customers are welcome visit our factory for the spot simulation test and propose advices according to contract. We are pleasure to accept them.
After-sales service: Customers are available to get the technology support, including the installation, debugging and operation-training.
1. Why choose Lead foam concrete blocks machine?
- Duplex full-hydraulic driven system to ensure high output pressure for high-rise construction
- Automatically control the proportion of the various components, density of foaming cement easy to be adjusted
- High-quality wear resistant components for long service-life and also provide after-sales service security
- Installed with walk round, can move on the ground or mounted on the truck .
2. What is the electric voltage and rate?
A: Our local electric voltage is 380 V and 50 Hz and the electric voltage can be revised according to the local situation.
3. Warranty period your company offer for us?
A: 12 months after installation.
