Specifications

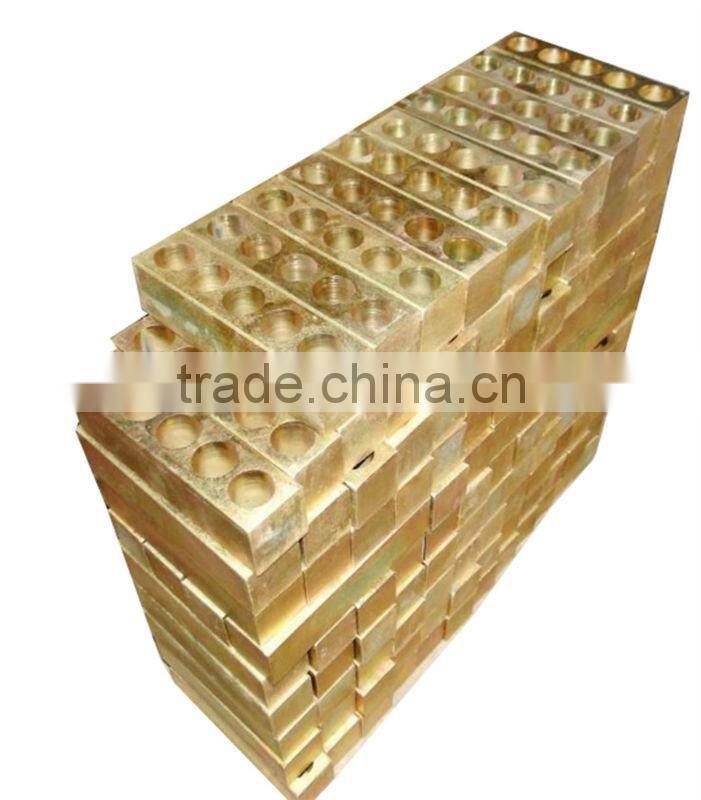

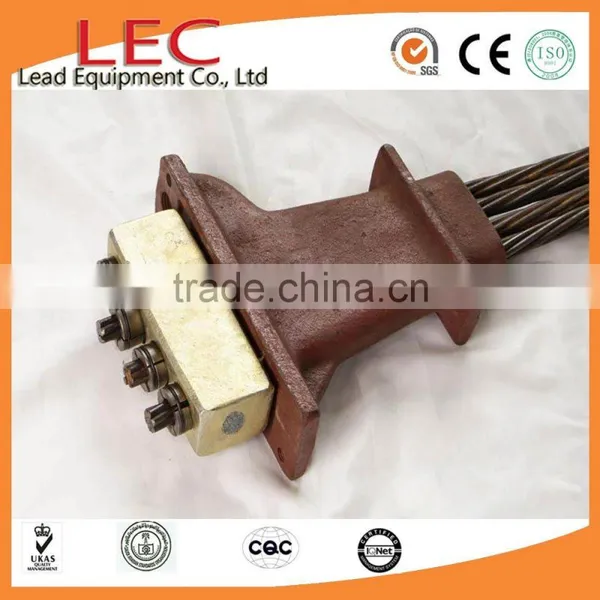

Prestress Concrete Flat Anchor Block and wedges
1. Model: LBM15(15.24mm) or LBM13(12.7mm)
2. Stress End and Dead End flat head anchor type: 2 holes, 3 holes, 4 holes, 5 holes.

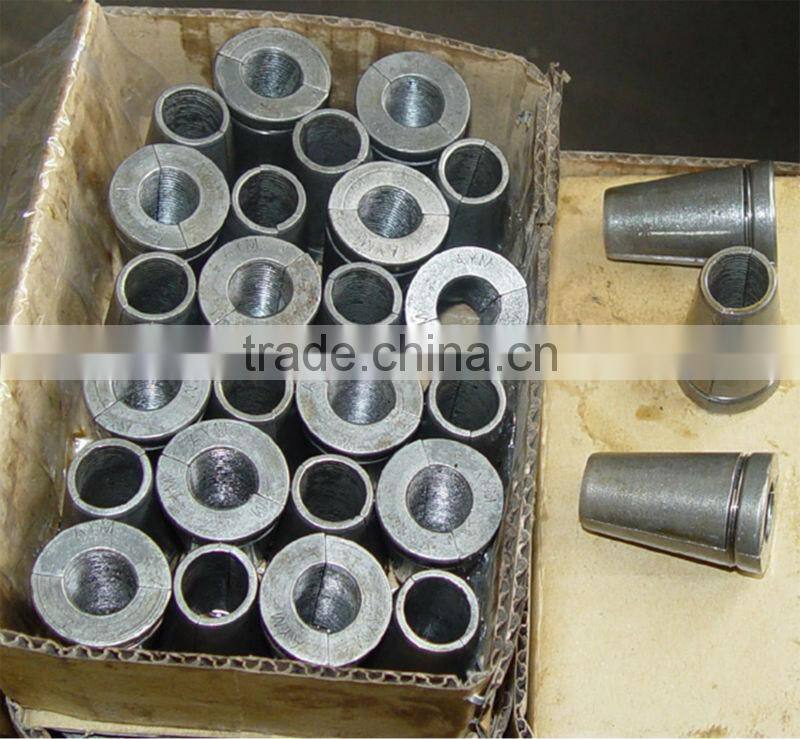

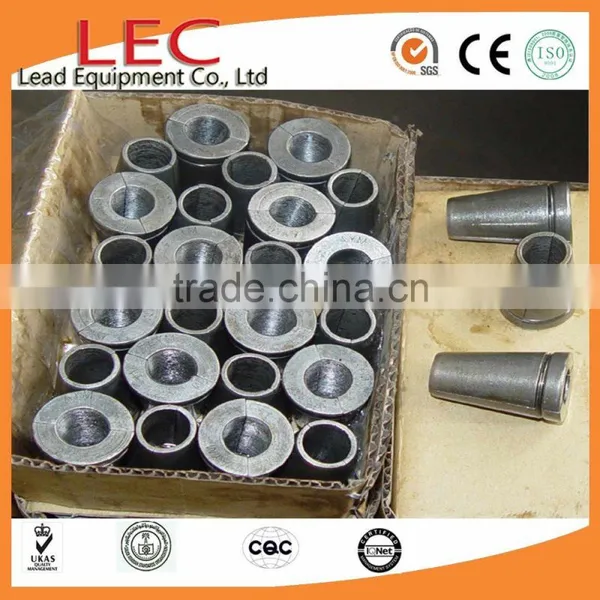

3. Wedges for flat anchor: two parts or three parts, according your requirement.
4.Applications: bridge, railway, highway, building, tunnel, slope strengthening, ect.
5. Usually, two options for customers' order:

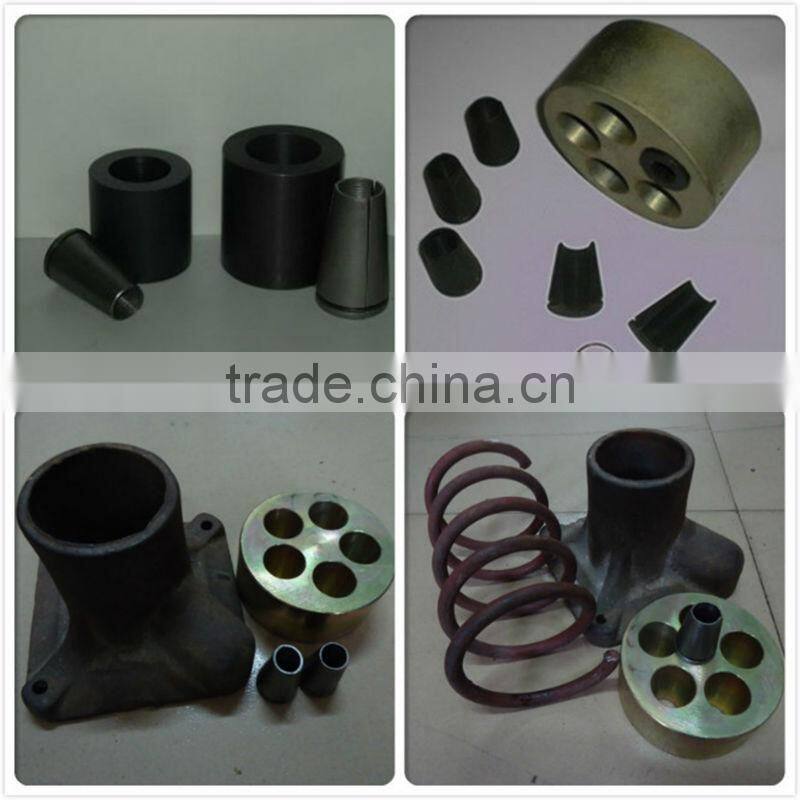

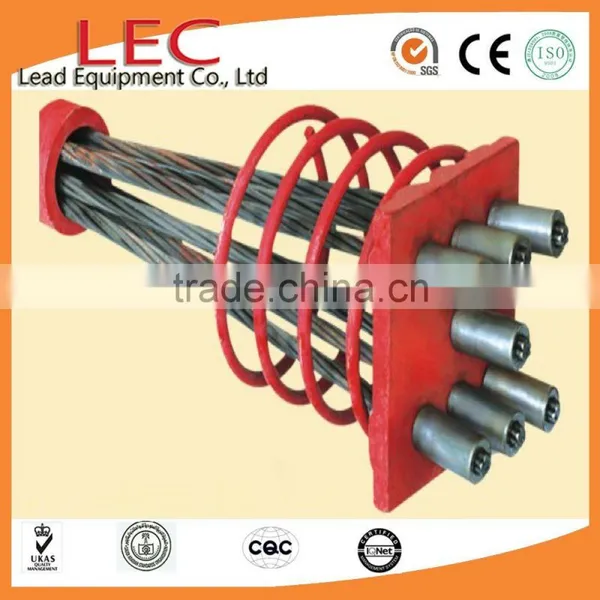

A: Complete Set Parts: Anchor Ring(Head)+ Wedge+ Anchor Bearing Plate+ Spiral spring ring.
B: Two Sets(parts): Anchor Head+ Wedges.
6. For post tension and pre-tension construction
LBM15(13) of series flat anchor wedges

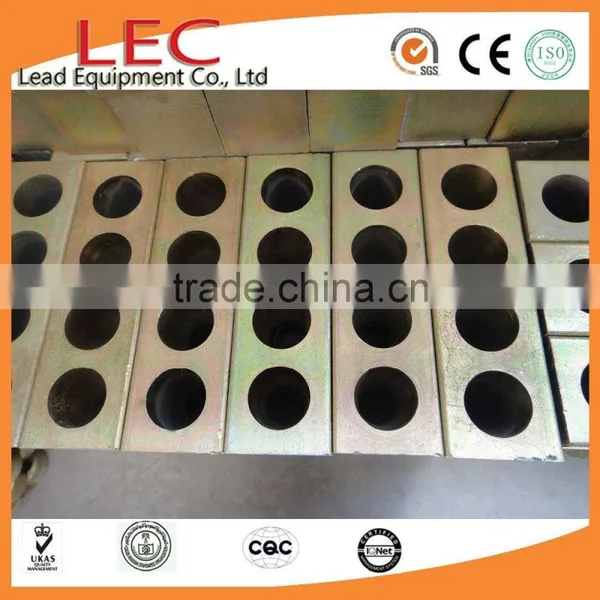

1. Flat type anchorages are mainly used for bridge deck transverse prestressing, hollow slab, and low box girder, with which the stress distribution is more uniform and reasonable, further reducing the thickness of thin structure.
2. If prestressing strand is collocated in plate-type, you can arrange the prestressing strand into flat redial pattern by flat anchorage to avoiding to increasing the thickness of plating.

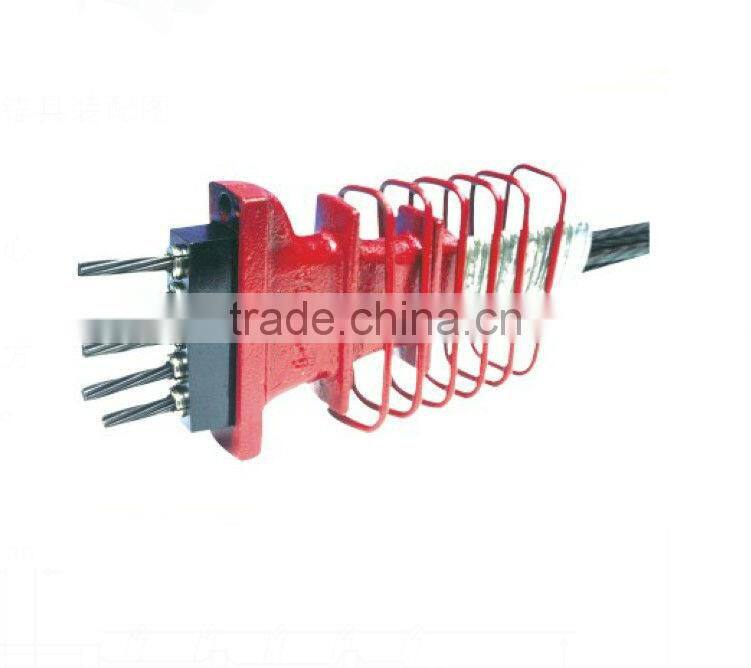

3. LBM15(13) flat stressing-end anchorage includes flat anchor plate, working wedge, flat bearing plate, and uses the QYC front-end fixed jack to stressing.
Prestressed Concrete Post Tension Flat Head Anchor
| flat anchor plate | flat ballows | flat base plate | flat scew steel | ||||||||
| A | B | C | D | E | F | L | G | H | n | t | |
| LBM15(13)-2 | 80 | 46 | 52 | 22 | 160 | 70 | 140 | 160 | 100 | 5 | 45 |
| LBM15(13)-3 | 115 | 46 | 65 | 22 | 180 | 70 | 150 | 180 | 100 | 5 | 45 |
| LBM15(13)-4 | 150 | 46 | 74 | 22 | 220 | 80 | 210 | 220 | 100 | 5 | 45 |
| LBM15(13)-5 | 185 | 46 | 90 | 22 | 260 | 80 | 270 | 260 | 100 | 5 | 45 |
Our Advantages:
We supply full complete set anchor system and equipment for construction, please see following:
A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire

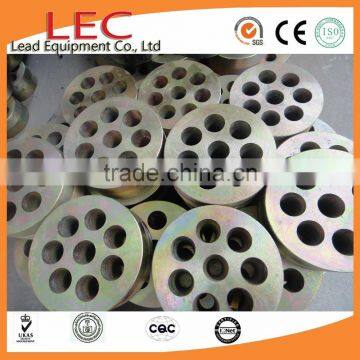

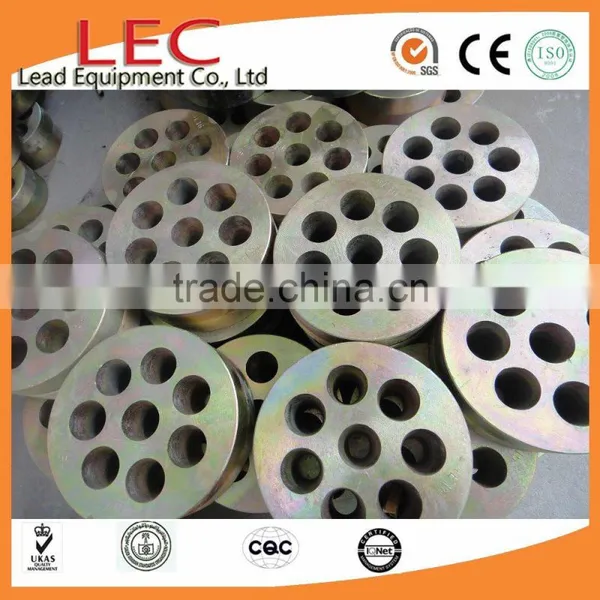

B: Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.
Flat anchor system
C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.
D: Equipement: hydraulic jack, oil pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.
PC Strands:
Corrugated Pipes(Ducts)
About our company:
1. More than 10 years experience on PT and Pre-stress Concrete Construction.
2. Supply full complete set of anchor system, pc strand, pc steel wire, hydraulic jacks, electric oil pump, corrugated pipe making machine, and other equipment.
3. China top 5 PT and Pre-stress manufacturer, with CE, ISO,Ghost certificate.
4. Products market covering more than 30 countries all of the world.
5. more than 80 engineers available for oversea service, supply face to face training on buyer’s worksite.
6. Response to customer requirement 24 hours, provide full using life technical support.
Our factory
PT and Pre-stress worksite:
1. How many holes flat anchor do you need?
2. Do you need stress end anchor or dead(fixed) end anhcor?
3. what is your required dimater for pc strand you use?
