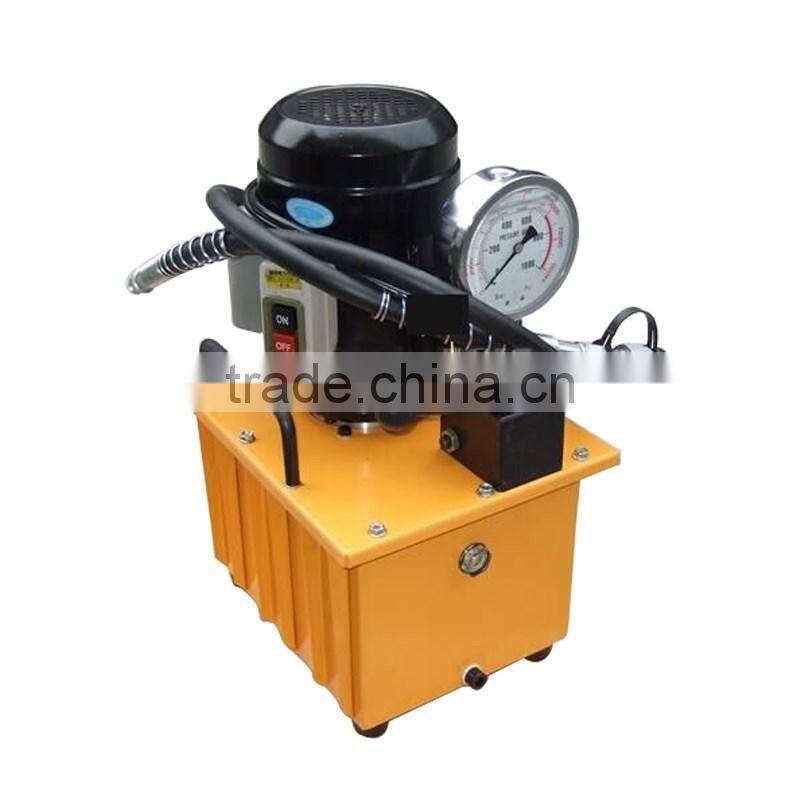

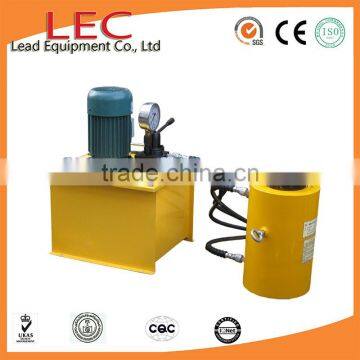

Electric Pump Station for Hydraulic Lifting Jack
1. Describe:
This ultrahigh pressure double acting electric pump station is a complete hydraulic power pack, it is made of oil pump, control valve, oil box, motor, oil gauge and etc.
2. Features:
1) small dimension, light weight, convenient usage, high working pressure.
2) Single stage pump station: simple structure, it can get higher working pressure.
3) Double stage pump station: high-low pressure pump supply oil at the same time when low pressure, it can get the large output flow; low pressure pump automatically unloading back the oil via control valve when high pressure, it can reduce the consumption of electric motor.
4) holding function: at the condition that outer oil-way is no reveal, stop the pump for holding 5 minters, rated pressure reduce less than 5Mpa.
3. Application:
1) the pump station is matched with other hydraulic tool, it can supply driven for lifting, profiling, bending pipe, straightening, tearing down, cutting, installing, gauging pipe, punching and etc.
2) It also can be installed into some machine for supplying power pack.
3) As test pressure pump station for kinds of high pressure hydraulic component, high pressure container, high pressure rubber hose.

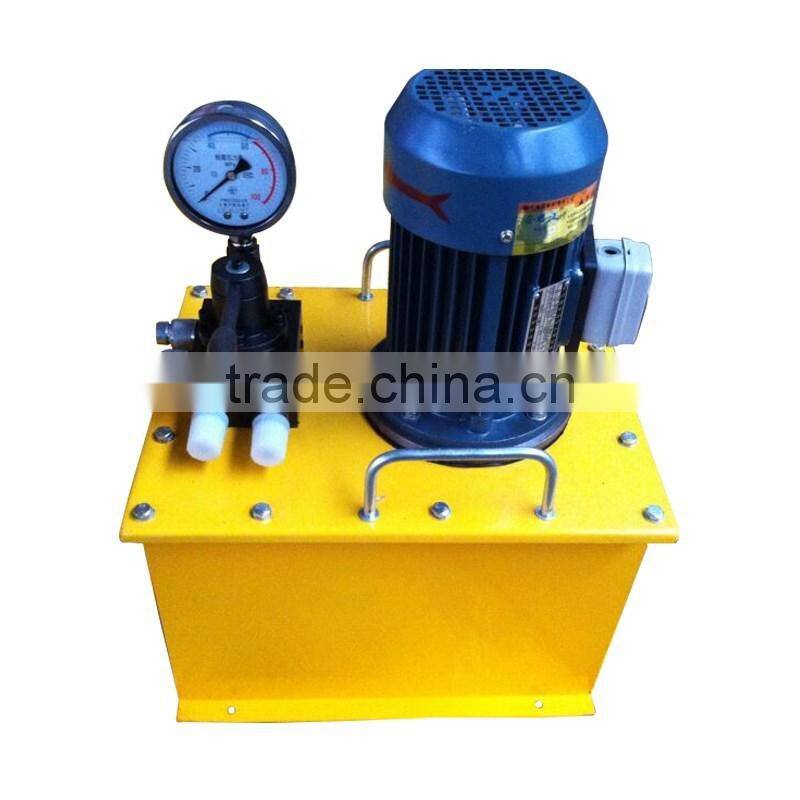

Electric Pump Station for Hydraulic Lifting Jack

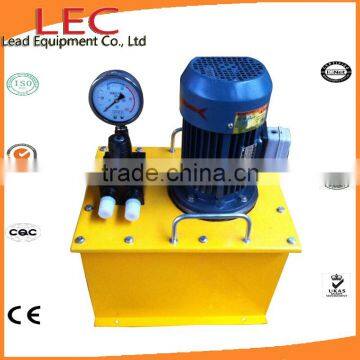

Double Acting Electric Pump Station for Hydraulic Lifting Jack
Model
| Oil capacity L
| Power of electric motor Kw
| Weight Kgs
| Remark
| |||
High pressure Mpa | Low pressure flow L/min | High pressure flow L/min | |||||
| ZB-0.55 | 63 | 0.4
| 1 | 7 | 0.55 | 30 | Single pump single oil-way
|
| ZB-0.75 | 63 | 0.7 | 2.4 | 16 | 0.75 | 45 | |
ZB-1.5 | 63 | 1 | 6 | 26 | 1.5 | 65 | |
ZB-2.2 | 63 | 2.4 | 6 | 42 | 2.2 | 75 | |
ZB-3 | 63 | 3 | 6 | 42 | 3 | 85 | |
ZB-4 | 63 | 4 | 9 | 60 | 4 | 90 | |
ZB-5.5 | 63 | 6 | 9 | 90 | 5.5 | 150 | |
| ZB-7.5 | 63 | 7 | 9 | 120 | 7.5 | 180 | |
| ZB-11 | 63 | 9 | 15 | 150 | 11 | 250 | |
Single Acting Electric Pump Station for Hydraulic Lifting Jack

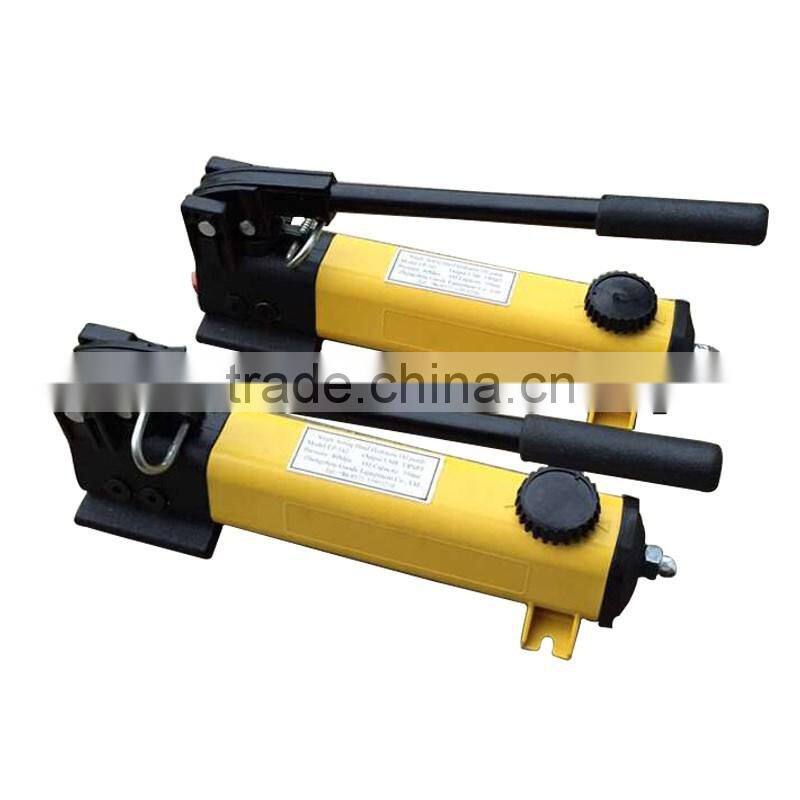

Light weight hydraulic hand pump
1. Features:
1. High performance with good quality.
2. Compact design, handle lock for easy carrying.
3. Reasonable price.
2. Technology Parameters:
Model | Working pressure | Oil capacity per stroke | Outlet thread | Oil capacity | Dimension | Weight | ||
LP | HP | LP | HP | |||||
EP-142 | 13.8 | 700 | 32 | 1.6 | 1/4NPT | 350 | 310x137x127 | 2.2 |
EP-392 | 13.0 | 700 | 32 | 1.6 | 3/8NPT | 901 | 533×157×127 | 4.0 |
3. Pictures:
Hydraulic Jack Series:

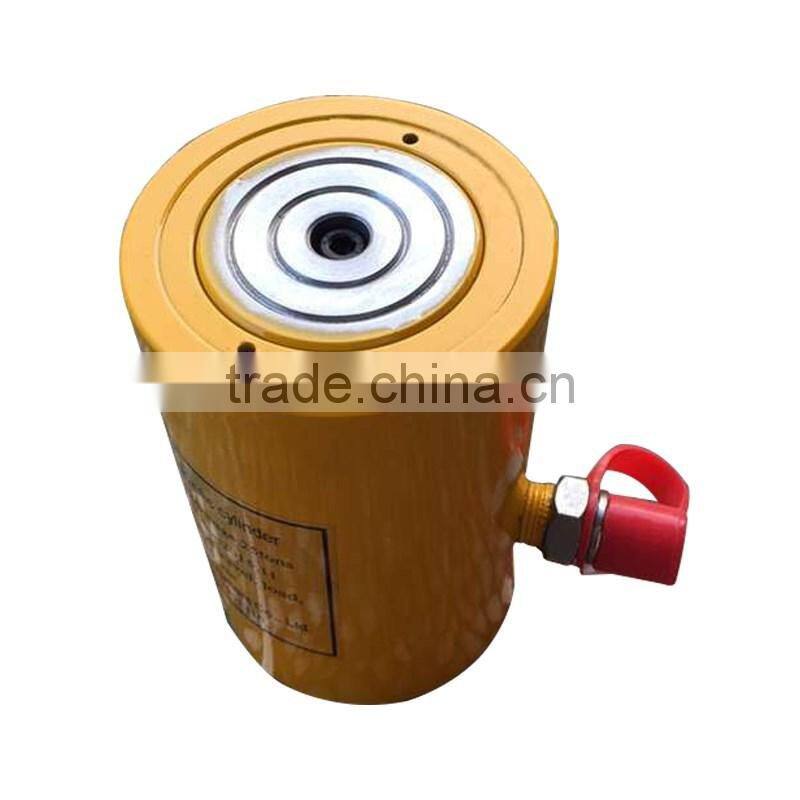

single acting hydraulic jack:

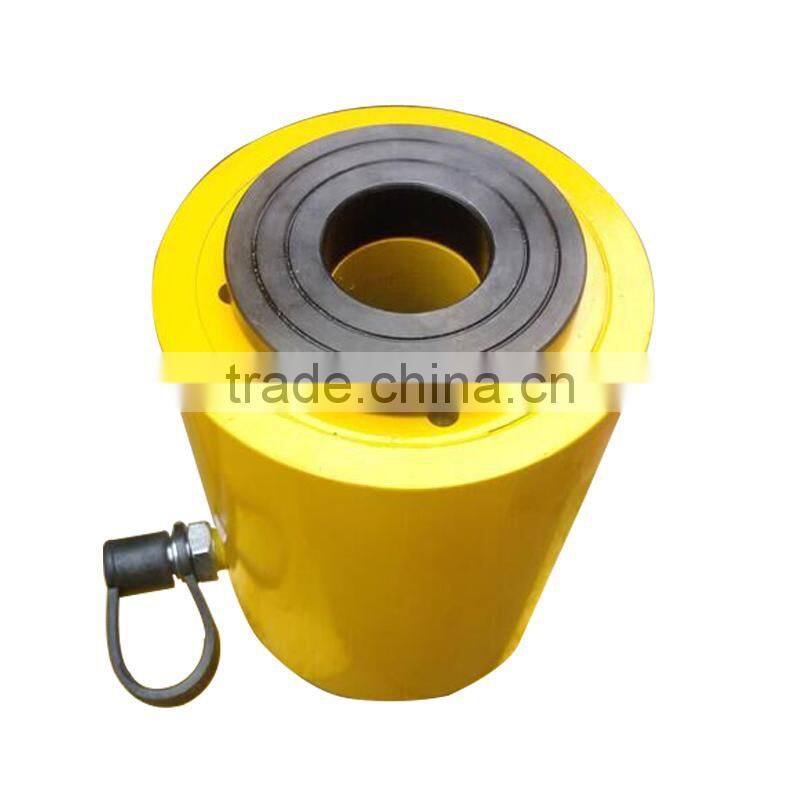

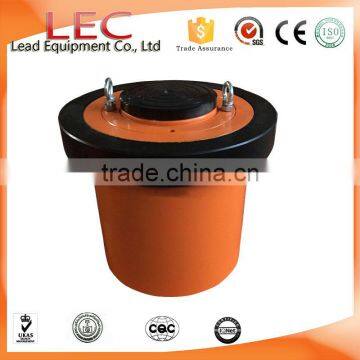

single acting hydraulic hollow jack:

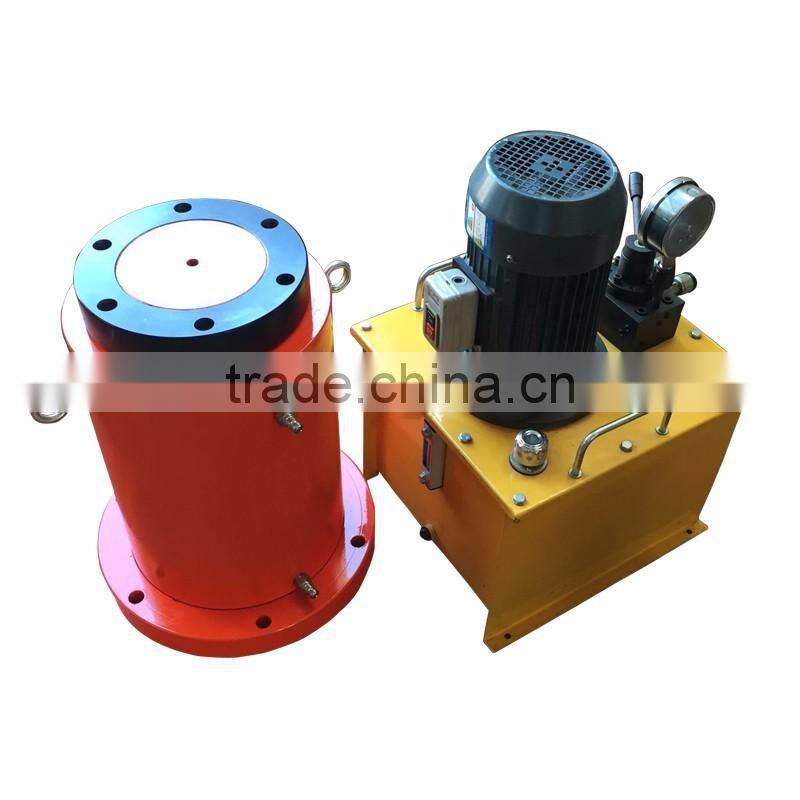

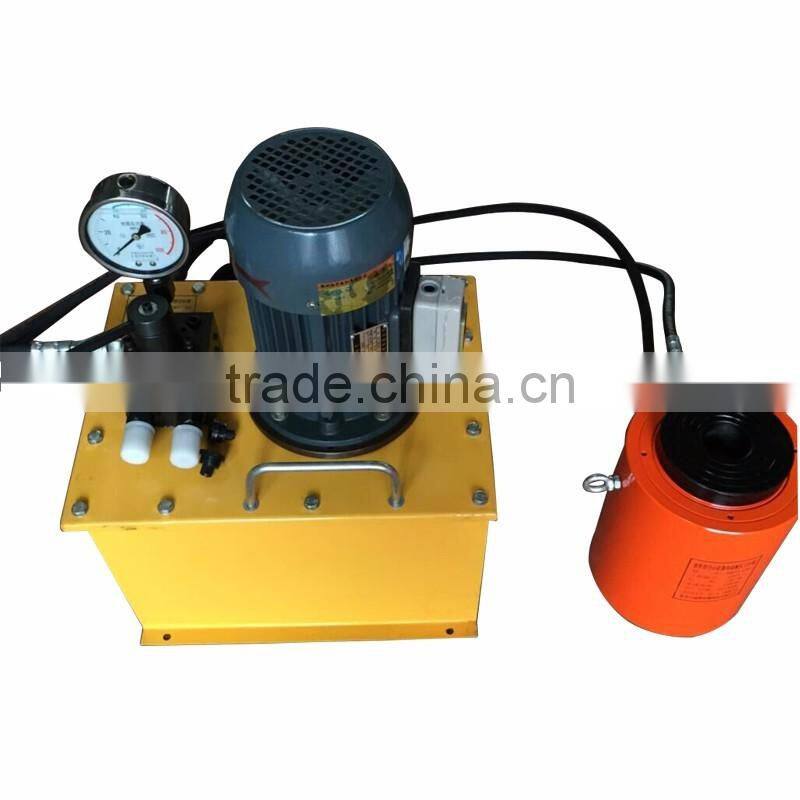

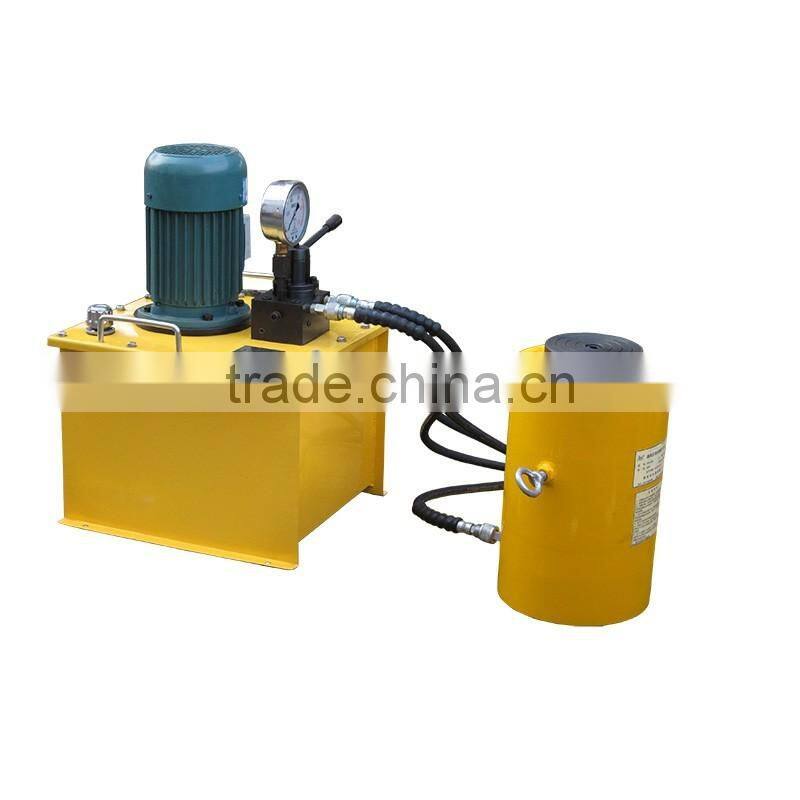

Flange type double acting hydraulic jack with electric oil pump:
double acting hydraulic hollow jack:

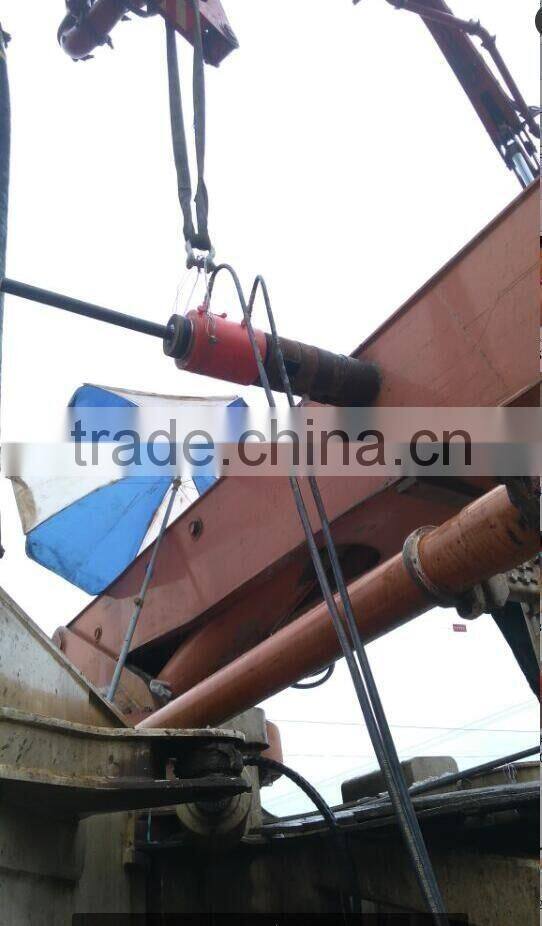

Double acting hollow hydraulic jack is working.
Other Type jack: YDC Series of Tension Hydraulic Hollow Jack
QYC Mono Strand Hydraulic Jack

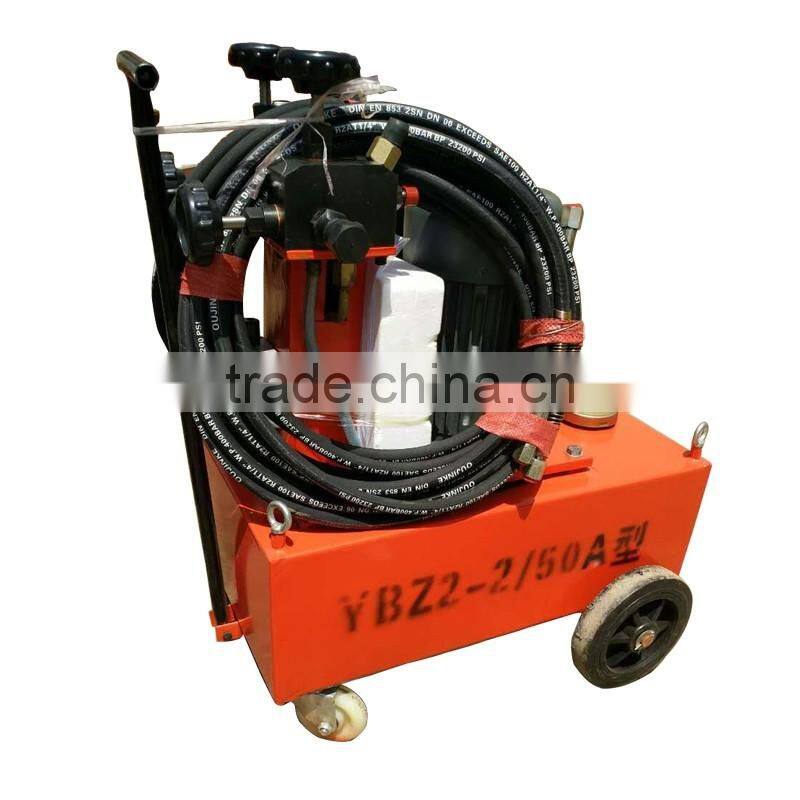

Electric Pump Station for Tension Hydraulic Jack:
5.5KW PC strands pusher machine

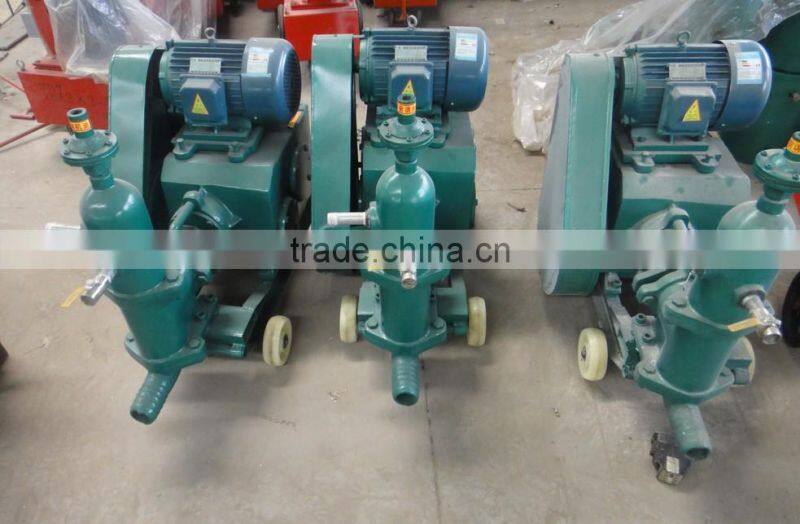

HB-3 Grout pump: 3m3/h, 1.5Mpa

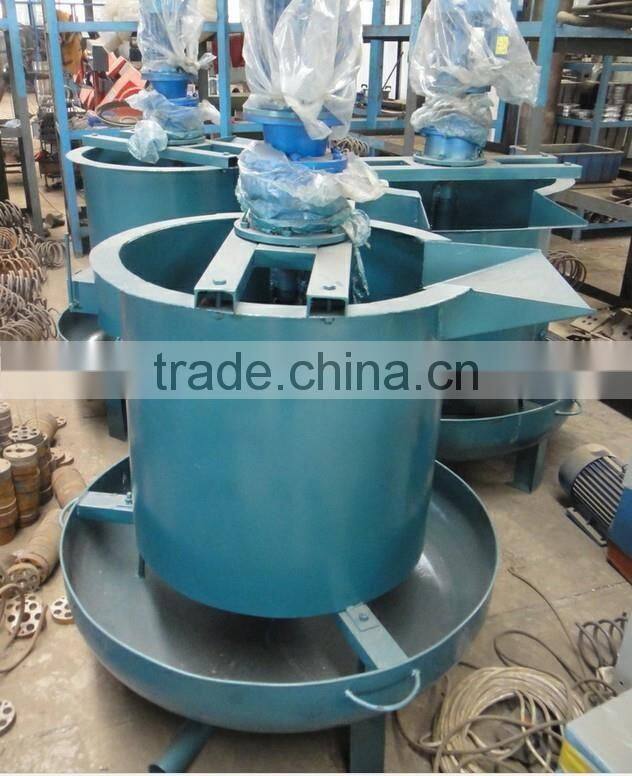

JB-180 Mixer: 180L
