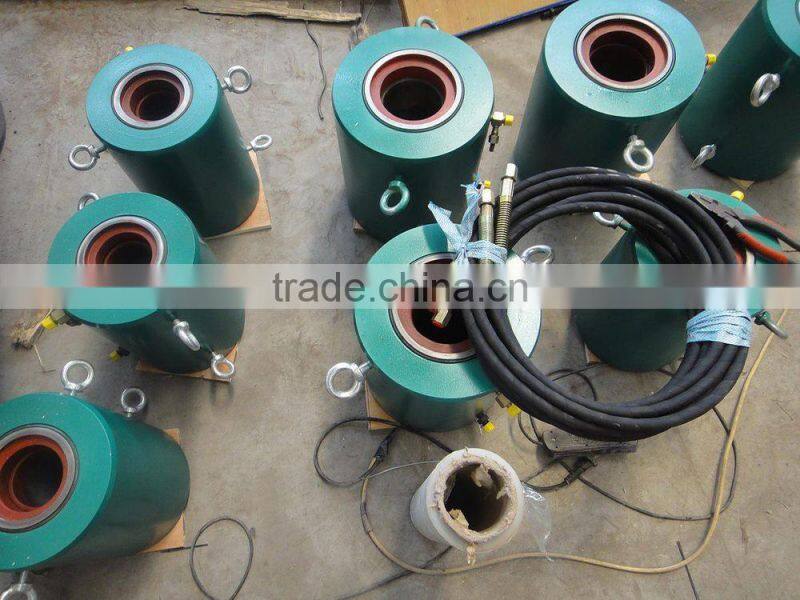

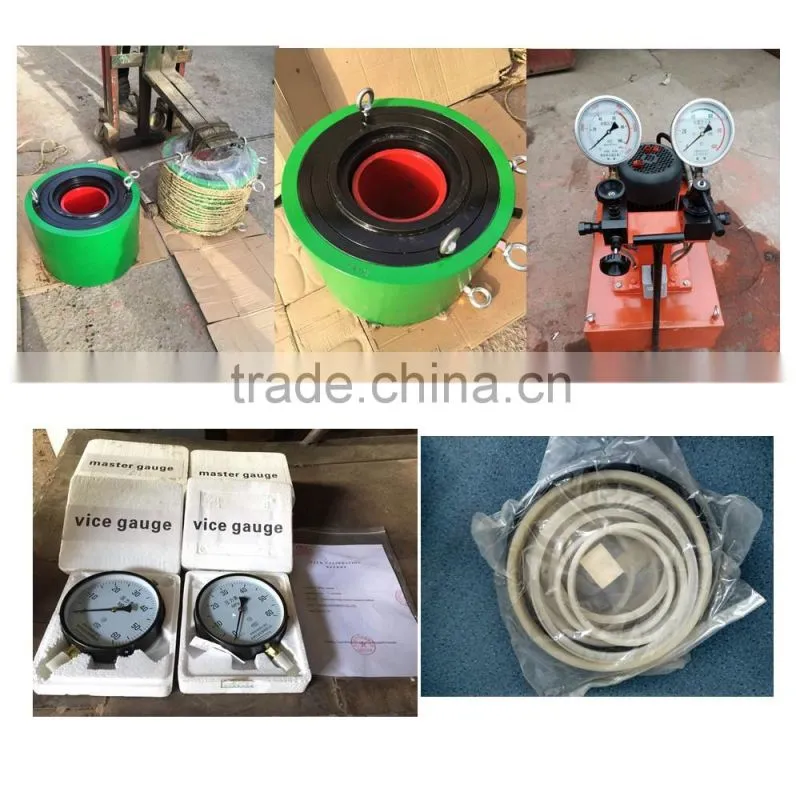

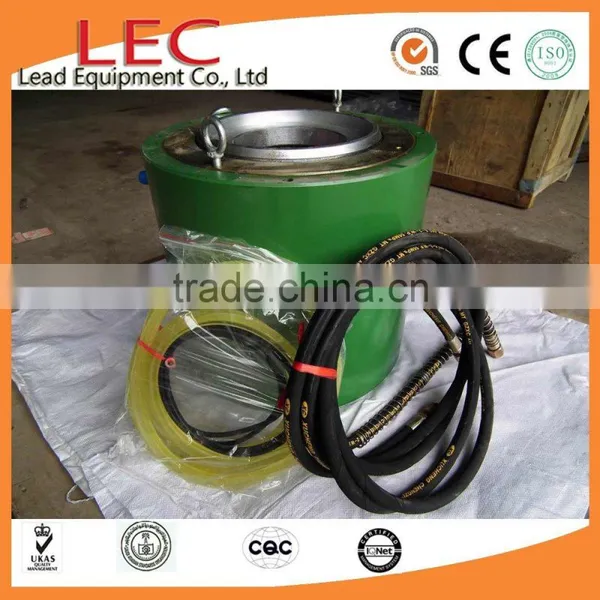

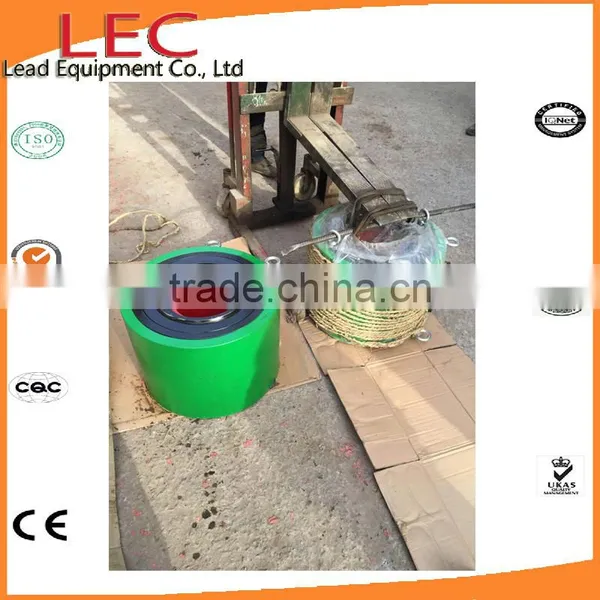

Prestressed Tension Equipment Hollow Hydraulic Jacks
Prestressed Tension Equipment Hollow Hydraulic Jacks

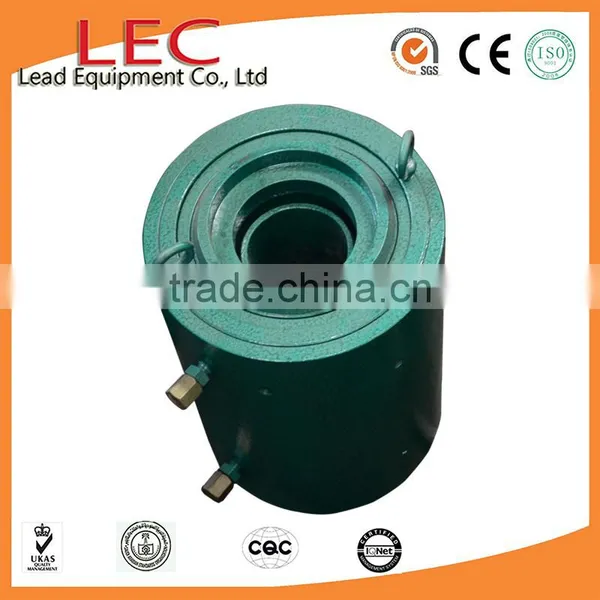

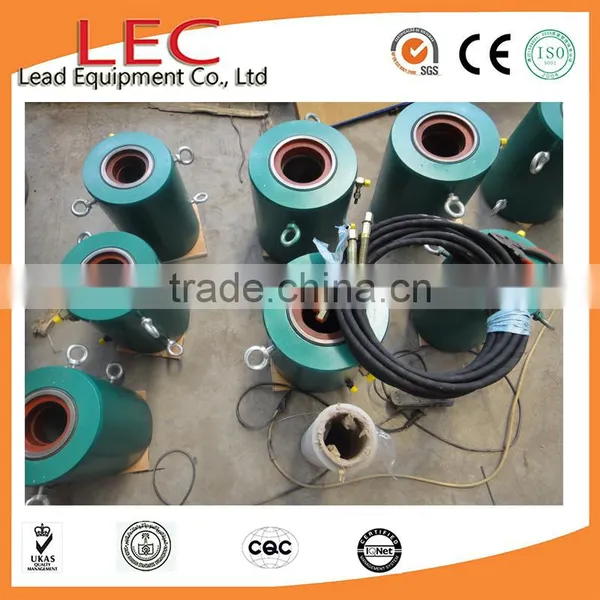

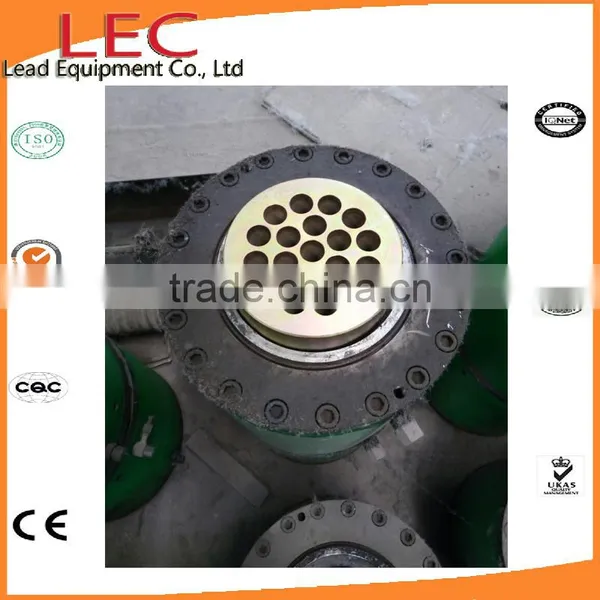

1. Type: YDC multi-strands hydraulic hollow jack
2. Usage: our YDC Cross Core Jack can tension numbers of pc stands from 1 to 55 strands.

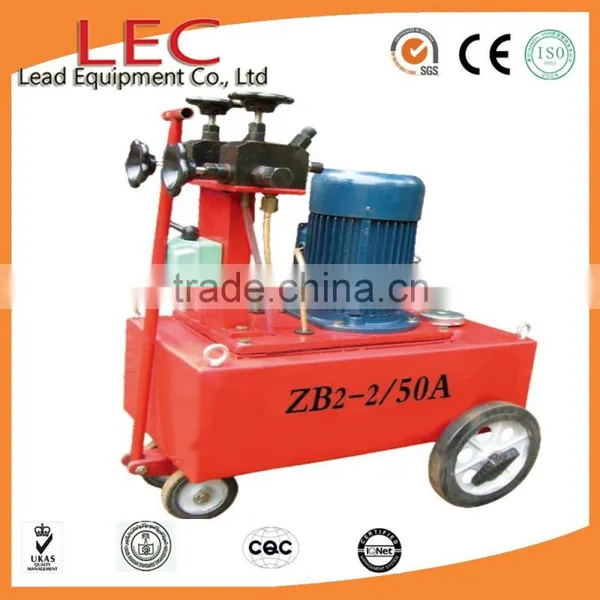

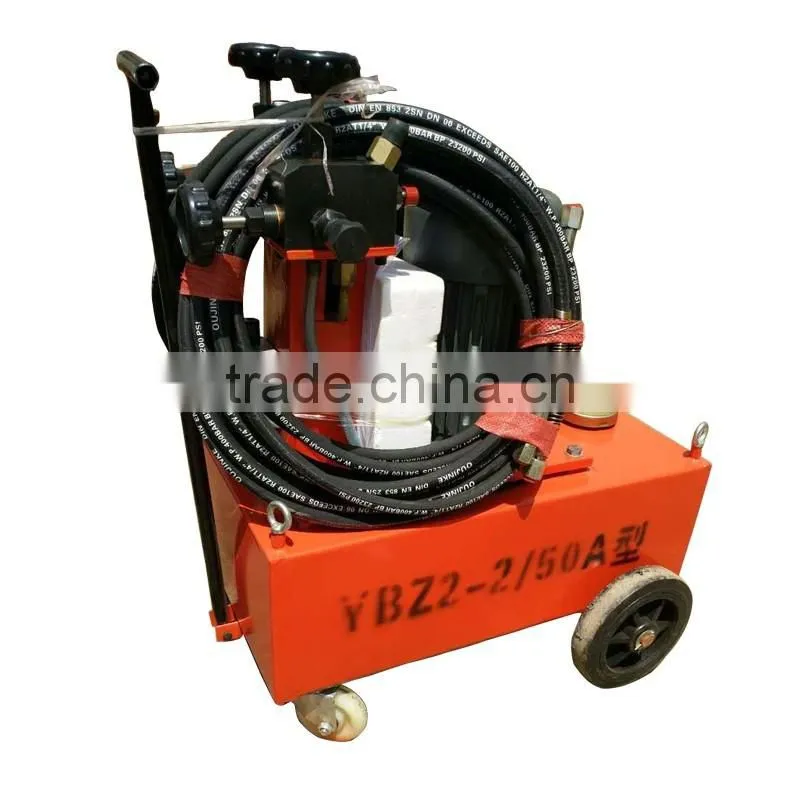

3. Matched Oil Pump: 50Mpa, 63Mpa Electric Oil Pump

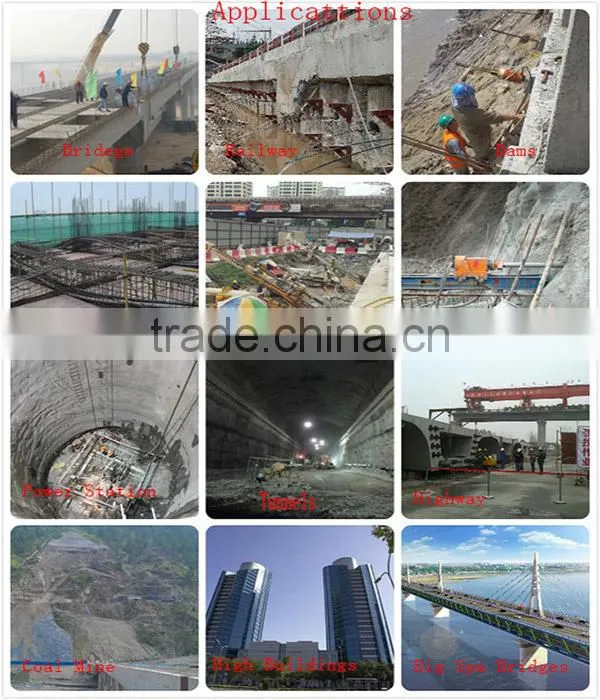

4. Application: bridges, high buildings, coal mine , railway and subway, water conservancy and hydropower engineering .
5. Features: it can tension the followings PC Strands and Stel Rebar
A It can tension standard pc strand diameter 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.
B It can tension non-standard pc strands diameter 8.0mm, 9.52mmn, 10.8mm, 12.9mm. 17.8, 21.6, 21.8mm, ect.
C It also can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar
6. OEM service: we provide OEM serives, you can put your logo on our products and equipement.
7. Professional Services: 1x7 days 24 hours service online, and engineer can service oversea
8. Warranty Time: One Year, we will send you Repair Kits if you need any time.
Technical parameter of hollow hydraulic jacks
| Types of YDC |
Tension Force Tons |
Pulling Stroke mm |
operating oil pressure Mpa |
Tensioning cylinder area mm2 |
center hole diameter mm |
Dimensions mm |
E(mm) | D(mm) | K(mm) | L(mm) |
| YDC650 | 65 | 200 | 50 | 13745 | Φ63.5 | Φ180×330 | 120 | 700 | 1350 | |
| YDC1100 | 110 | 200 | 60 | 20498 | Φ80 | Φ225×330 | 150 | 230 | 700 | 1350 |
| YDC1500 | 150 | 200 | 53 | 30222 | Φ94 | Φ270×330 | 170 | 280 | 780 | 1420 |
| YDC2000 | 200 | 200 | 59 | 39760 | Φ110 | Φ295×330 | 190 | 324 | 780 | 1490 |
| YDC2500 | 250 | 200 | 60 | 50579 | Φ122 | Φ325×330 | 200 | 360 | 780 | 1490 |
| YDC3000 | 300 | 200 | 50 | 60082 | Φ153 | Φ400×525 | 230 | 400 | 780 | 1500 |
| YDC3500 | 350 | 200 | 50 | 69331 | Φ157 | Φ420×525 | 240 | 420 | 780 | 1510 |
| YDC4000 | 400 | 200 | 52 | 79128 | Φ160 | Φ446×580 | 250 | 446 | 780 | 1510 |
| YDC4500 | 450 | 200 | 50 | 90981 | Φ180 | Φ480×600 | 270 | 480 | 800 | 1510 |
| YDC5500 | 550 | 200 | 50 | 113747 | Φ210 | Φ540×630 | 290 | 540 | 850 | 1570 |
| YDC6500 | 650 | 200 | 50 | 134706 | Φ240 | Φ580×680 | 310 | 580 | 850 | 1570 |
| YDC8000 | 800 | 200 | 50 | 159043 | Φ240 | Φ640×730 | 340 | 640 | 860 | 1580 |
| YDC10000 | 1000 | 200 | 50 | 202318 | Φ280 | Φ720×850 | 380 | 720 | 870 | 1590 |
| YDC12000 | 1200 | 200 | 50 | 231299 | Φ280 | Φ750×900 | 400 | 750 | 880 | 1600 |
Notice: The tension journey(stroke) and capacity(tons) of this type jack can be customized according to your requirement.
If you are interested in our hydraulic jack and electric oil pump, please send inquiry to me, thanks so much.
The below is my contact information:
Zhengzhou Lead Equipment Co.,Ltd.
Tel:+86-371-55090765
Fax:+86-371-63526676
Skype: francislead
WhatsApp: +8615637845245
QQ: 1482827583
Our Advantages:
We supply full complete set anchor system and equipment for construction, please see following:

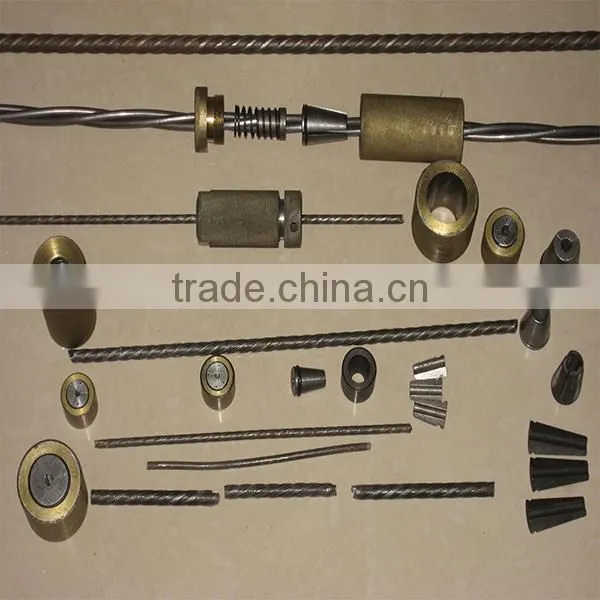

A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire

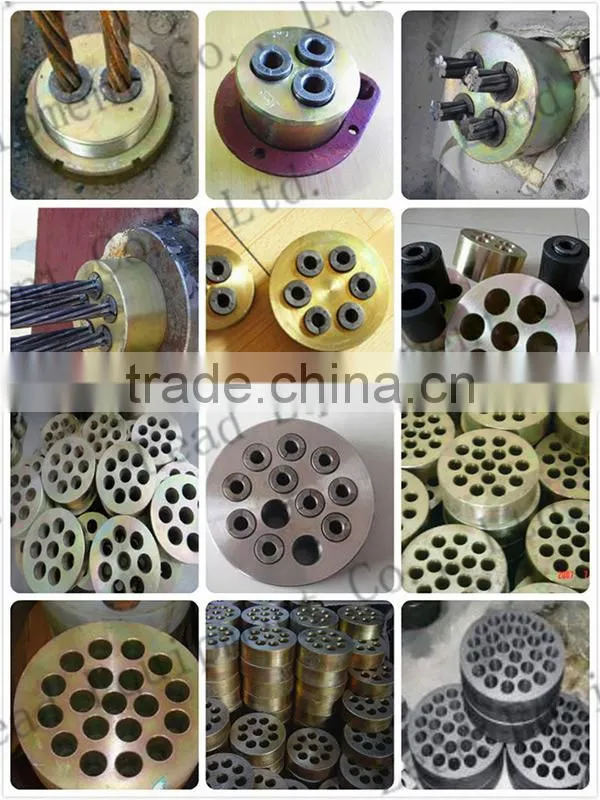

B: Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.

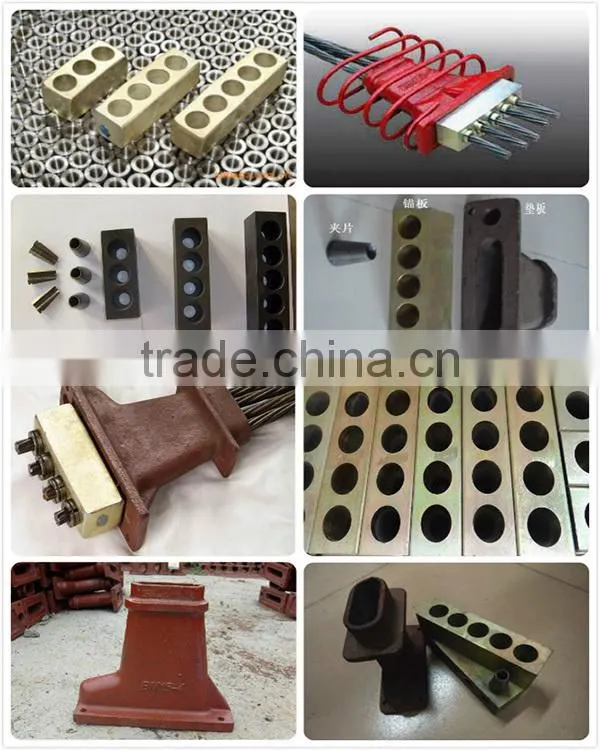

Flat anchor system
C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.

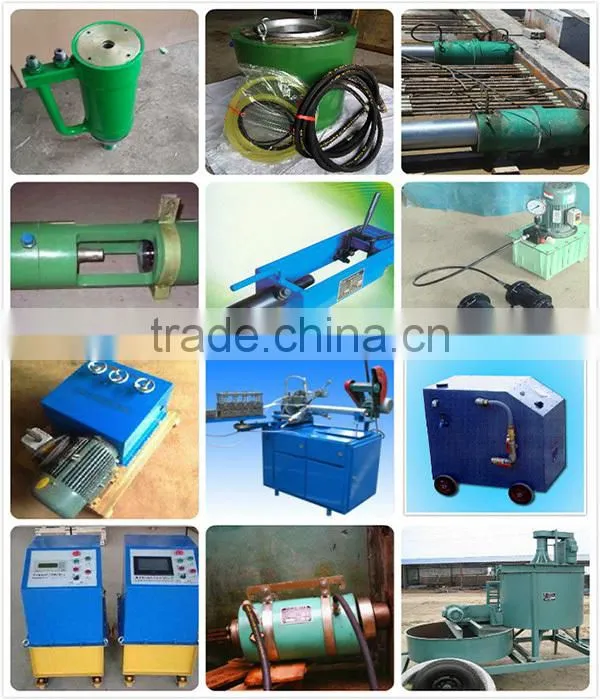

D: Equipements: hydraulic jack, oil pump, metal ducts making machine, pc strands pusher machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.

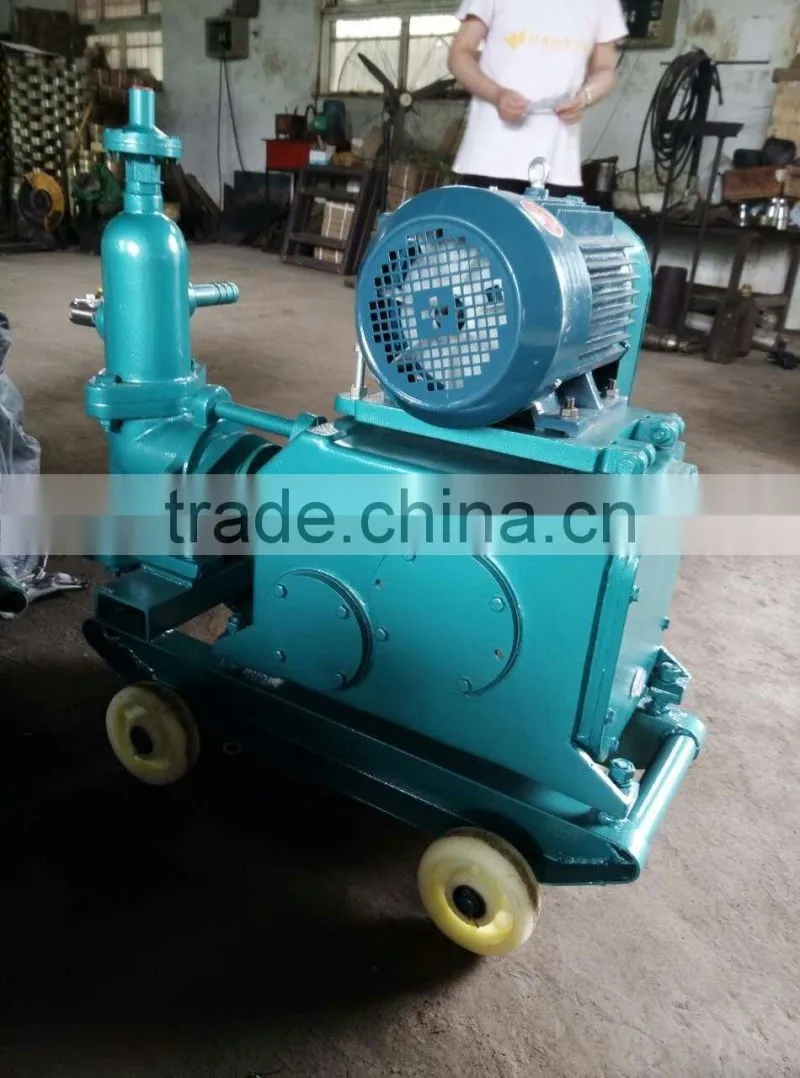

HB-3 Grout pump for prestressing workinng:

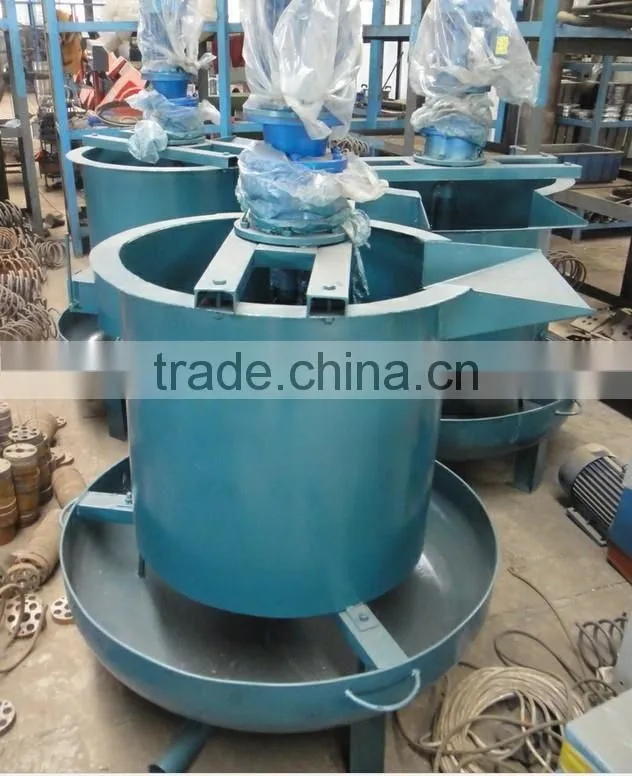

JB-180 Grout mixer:
E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.

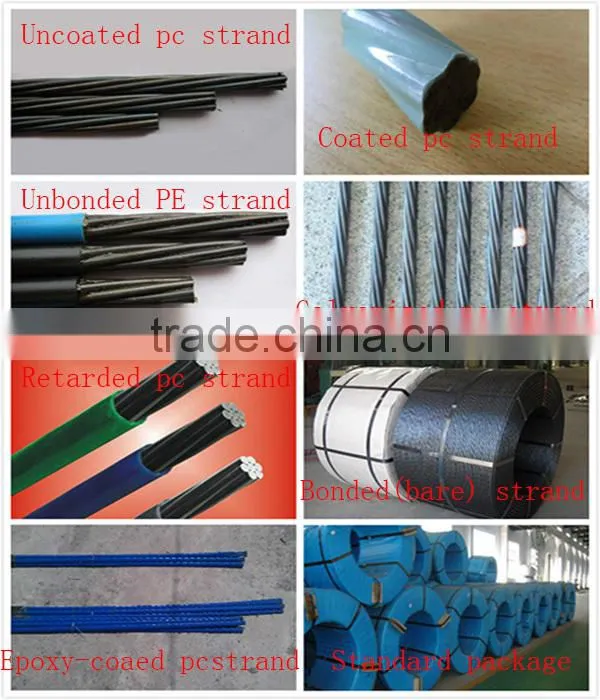

PC Strand:

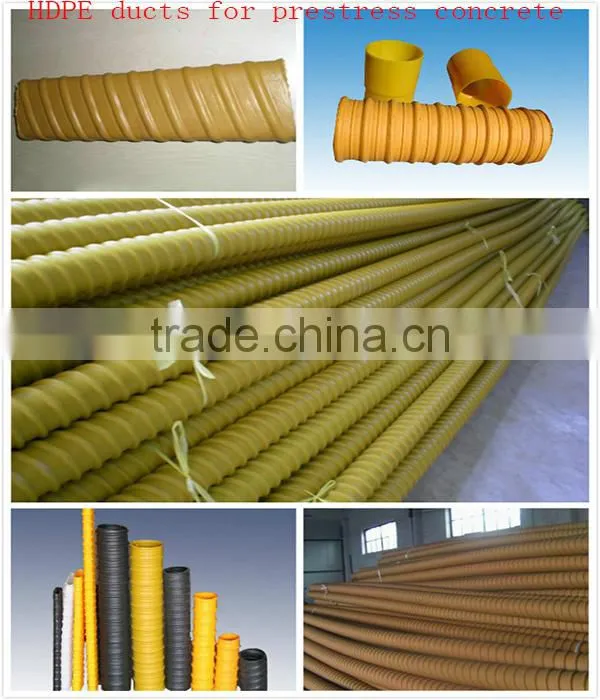

Corrugated Pipes(Ducts)
About our company:
1. More than 10 years experience on PT and Pre-stress Concrete Construction.
2. Supply full complete set of anchor system, pc strand, pc steel wire, hydraulic jacks, electric oil pump, corrugated pipe making machine, and other equipment.
3. China top 5 PT and Pre-stress manufacturer, with CE, ISO,Ghost certificate.
4. Products market covering more than 30 countries all of the world.
5. more than 80 engineers available for oversea service, supply face to face training on buyer’s worksite.
6. Response to customer requirement 24 hours, provide full using life technical support.

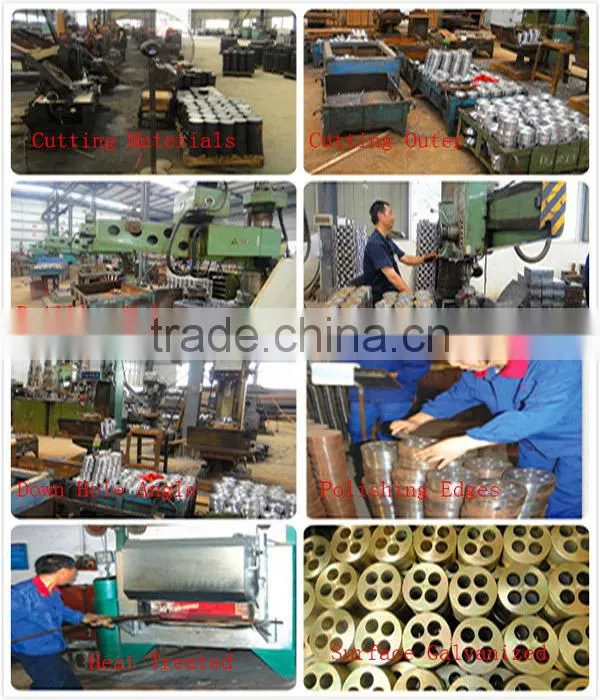

Our factory

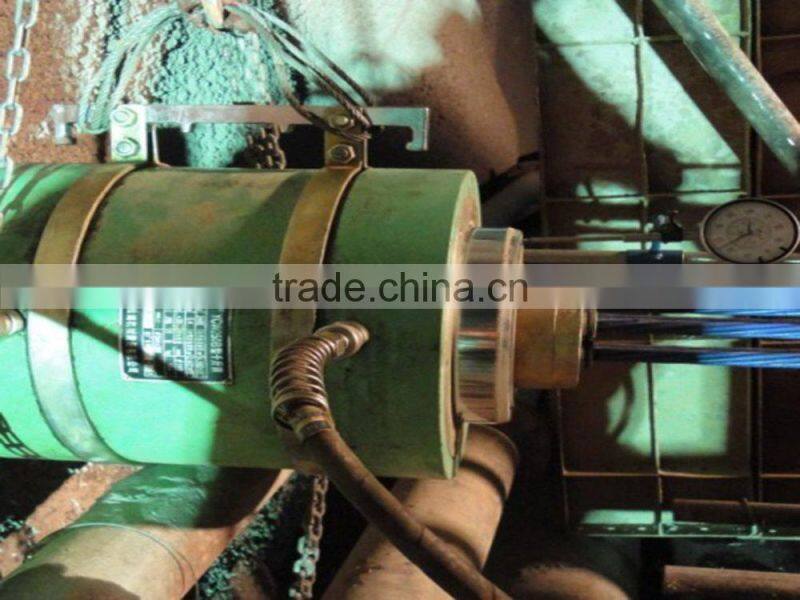

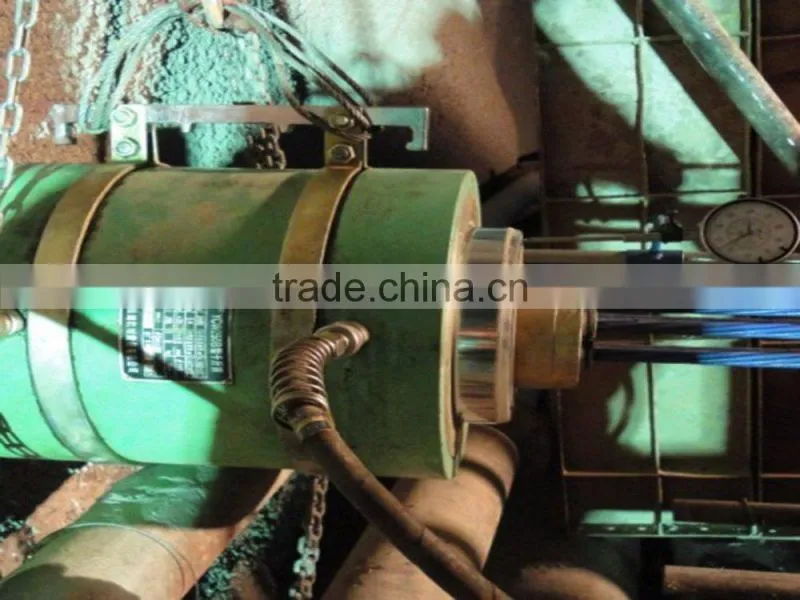

PT and Pre-stress worksite:
Please let me know yor detail information as followings:
1. What is your required maximum capacity(tons) and stroke(tension journey)?
2. How many numbers of pc strands do you tension?
