Specifications
pc strand wire
1, Model: we manufacture 9.53mm, 12.7mm, 15.24mm diameter pc strand
2. Surface on pc strand: we have Unbonded PE Coated PC Strand and Bonded(Bare) PC Strand
3. Strandard for your options: ASTMA416, AS1311,BS5896, JISG3536, GB/T5224-2003
4, Diameter with corresponding grade: 12.7mm , 1720/1860/1960MPA ,
15.2mm , 1570/1670/1770/1860/1960MPA ,
15.7 mm, 1860MPA.
5, Features: Low Relaxation, High Strength, 1x7 Wires
6. Twisted Direction: Usually Left Direction, or Right Direction is avaiable.
7, Applications: Large –span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-story industrial buildings, stadiums, coal mines and etc.
8. Samples: We are free to provide you sample for your test.
Our Advantages:
We supply full complete set anchor system and equipment for construction, please see following:
A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire
B: Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.
Flat anchor system
C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.
D: Equipement: hydraulic jack, oil pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.
PC Strand:
Corrugated Pipes(Ducts)
technical parameter of 12.7mm pc strand wire
| Speciations | Tensile Strength | Section Area | Grease volume≥ | Thickness of coat≥ | The coat features | ||
| Tensile strength≥ | Yield strength≥ | Breaking elongation≤ | |||||
| mm | Mpa | mm2 | g/m | mm | Mpa | Mpa | % |
| 9.5 | 1720 | 54.8 | 32 | 0.8 | 30 | 10 | 60 |
| 1860 | 30 | 10 | 60 | ||||
| 1960 | 30 | 10 | 60 | ||||
| 12.7 | 1720 | 98.7 | 43 | 1 | 30 | 10 | 60 |
| 1860 | 30 | 10 | 60 | ||||
| 1960 | 30 | 10 | 60 | ||||
| 15.2 | 1570 | 140 | 50 | 1 | 30 | 10 | 60 |
| 1670 | 30 | 10 | 60 | ||||
| 1720 | 30 | 10 | 60 | ||||
| 1860 | 30 | 10 | 60 | ||||
| 1960 | 30 | 10 | 60 | ||||
| 15.7 | 1770 | 150 | 53 | 1 | 30 | 10 | 60 |
| 1860 | 30 | 10 | 60 | ||||
About our company:
1. More than 10 years experience on PT and Pre-stress Concrete Construction.
2. Supply full complete set of anchor system, pc strand, pc steel wire, hydraulic jacks, electric oil pump, corrugated pipe making machine, and other equipment.
3. China top 5 PT and Pre-stress manufacturer, with CE, ISO,Ghost certificate.
4. Products market covering more than 30 countries all of the world.
5. more than 80 engineers available for oversea service, supply face to face training on buyer’s worksite.
6. Response to customer requirement 24 hours, provide full using life technical support.
The workers in pc strand production workshop
Our certification and application of pc strand

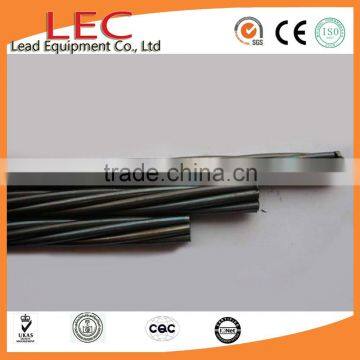

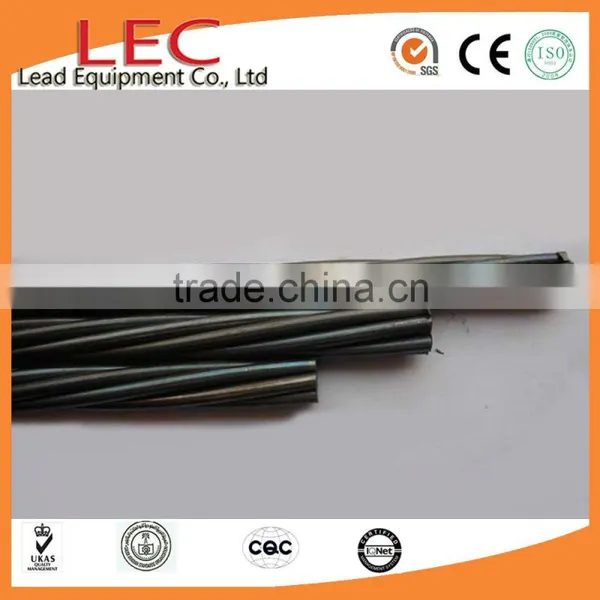

PC strand without package
PC strand with standard exporting package
Please let me know your required detail information as followings:
1. What is you required diameter for pc strands? is that 12.7mm, 15.24mm, or 9.53mm?
2. Do you need Unbonded(coated) or Bonded(uncoated) pc strand?
3. How many quantity do you need?
