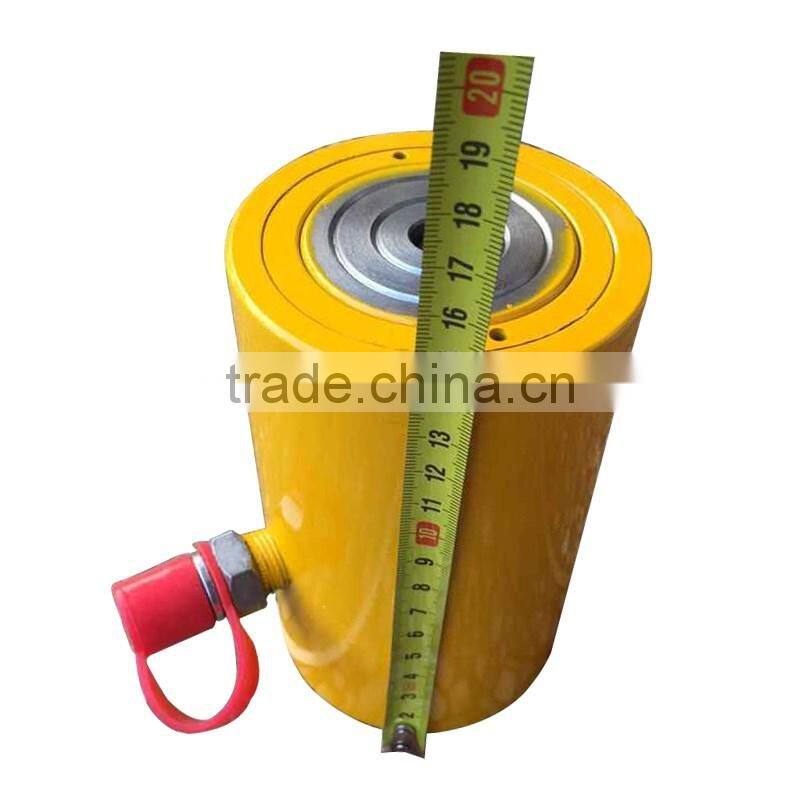

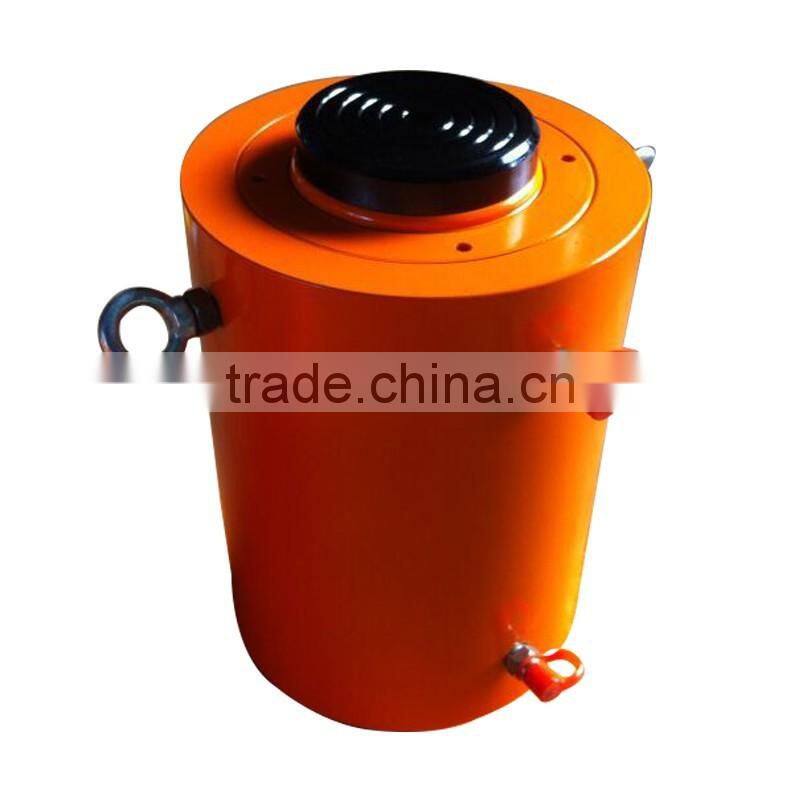

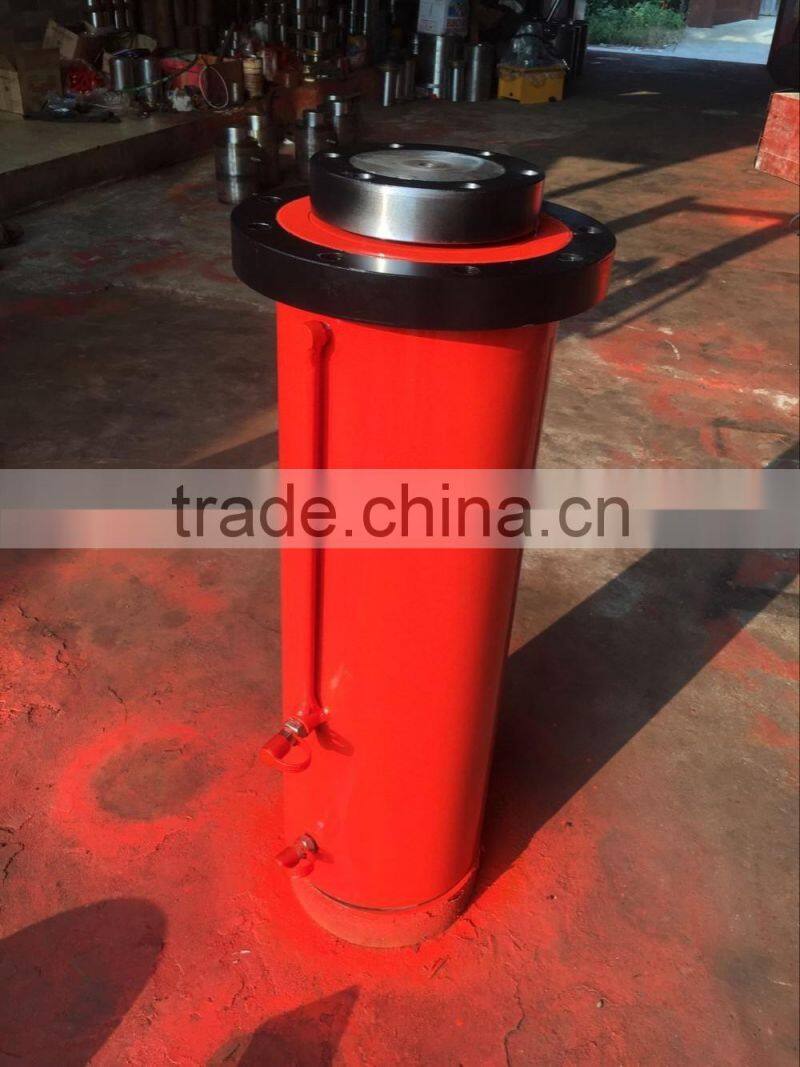

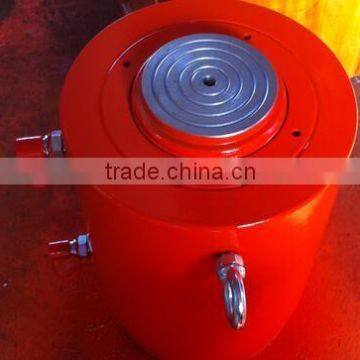

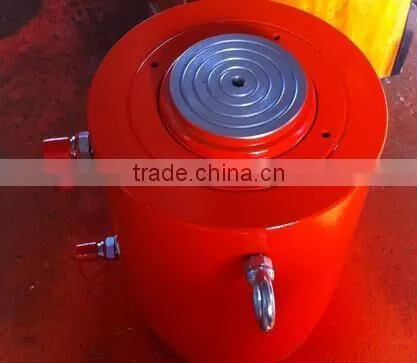

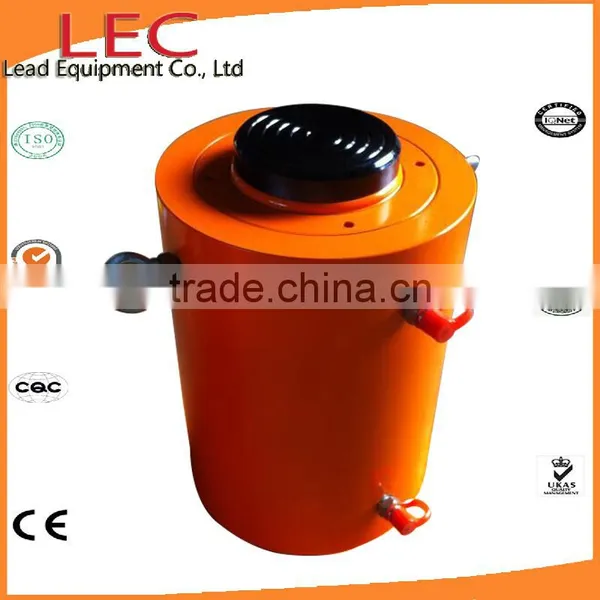

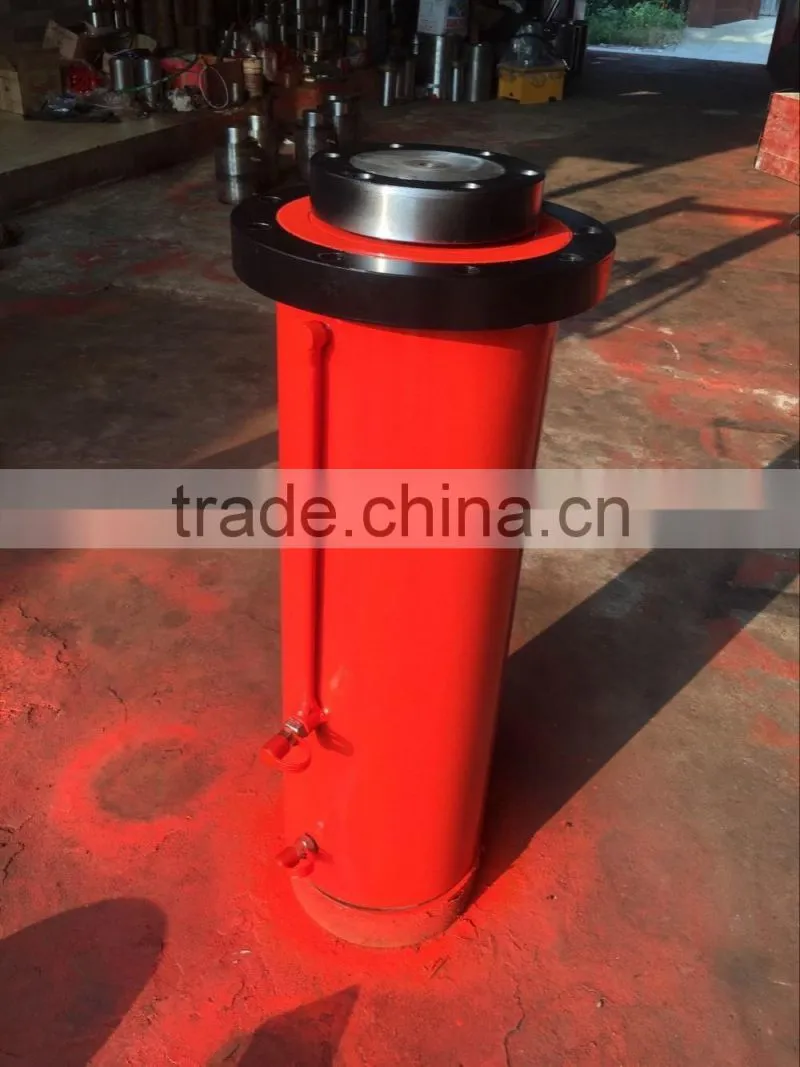

300 Tons Double Acting Hydraulic Cylinder

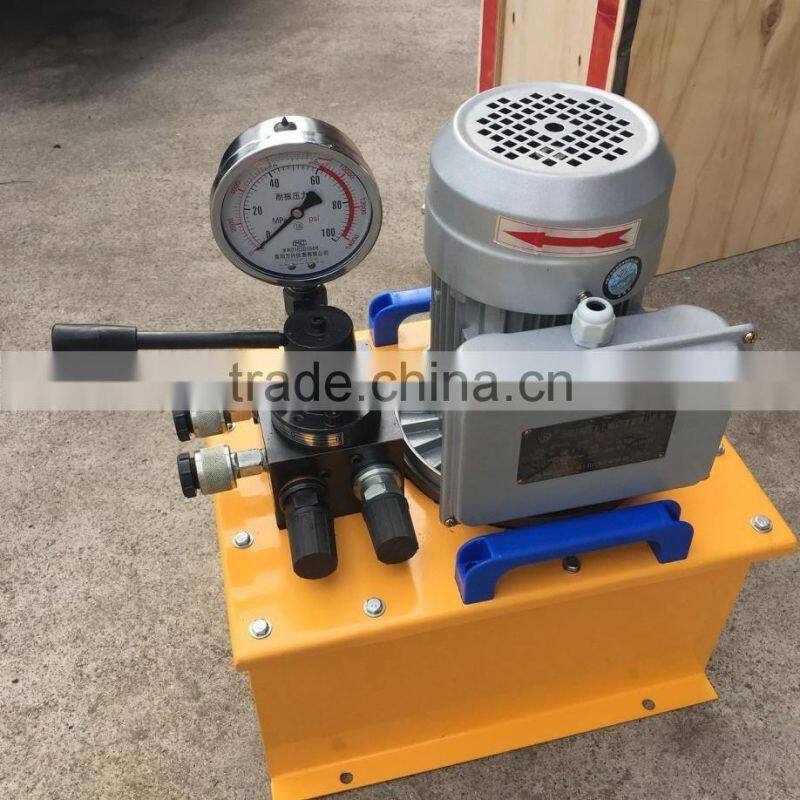

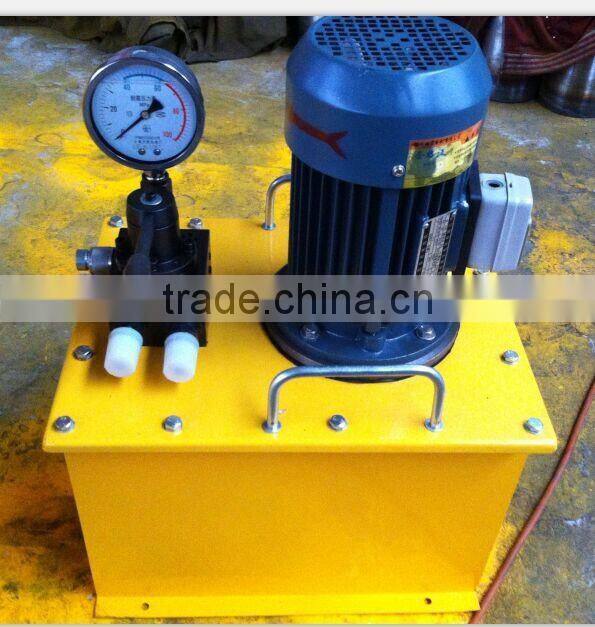

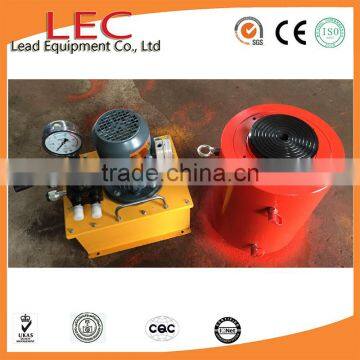

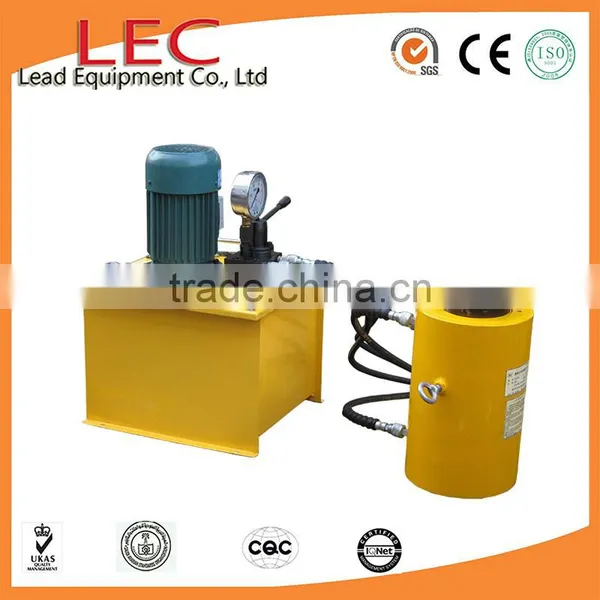

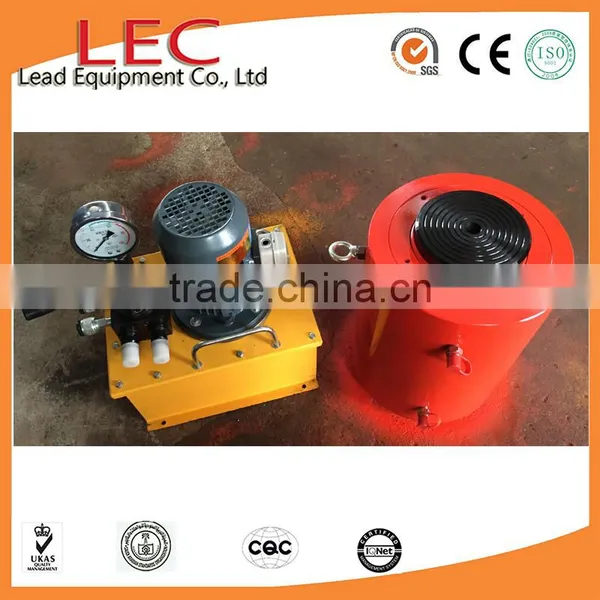

High pressure electric hydraulic cylinder is powered by high pressure electric oil pump, the function for oil pressure rebound, overflow, it is designed a safe protect pressurizer, it can protect emergent over pressure, especial construction can protect jack. Hydraulic cylinder can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.
Features:
1.High performace and godd quality.
2.Baked enamel finish for increased corrosion resistence
3.Reasonable price
300 Tons Double Acting Hydraulic Cylinder
300 Tons Double Acting Hydraulic Cylinder
Model | Tonnage T | Stroke mm | Cloased height mm | Extend height mm | Outer diameter of oil cylinder mm | Dimension of plunger mm | Dimension of oil pump mm | Weight kg | Pressure |
STQ100-100 | 100 | 100 | 250 | 350 | 180 | 100 | 140 | 58 | 63MPA |
STQ100-160 | 160 | 310 | 470 | 63 | |||||
STQ100-200 | 200 | 350 | 550 | 78 | |||||
STQ100-300 | 300 | 450 | 750 | 96 | |||||
STQ100-500 | 500 | 650 | 1150 | 130 | |||||
STQ150-100 | 150 | 100 | 260 | 360 | 219 | 125 | 180 | 58 | 63MPA |
STQ150-160 | 160 | 320 | 480 | 69 | |||||
STQ150-200 | 200 | 360 | 560 | 86 | |||||
STQ150-300 | 300 | 460 | 760 | 103 | |||||
STQ150-500 | 500 | 660 | 1160 | 255 | |||||
STQ200-100 | 200 | 100 | 285 | 385 | 240 | 150 | 200 | 96 | 63MPA |
STQ200-160 | 160 | 345 | 505 | 103 | |||||
STQ200-200 | 200 | 385 | 585 | 116 | |||||
STQ200-300 | 300 | 485 | 785 | 161 | |||||
STQ200-500 | 500 | 685 | 1185 | 221 | |||||
STQ320-100 | 320 | 100 | 310 | 410 | 330 | 180 | 250 | 196 | 63MPA |
STQ320-160 | 160 | 370 | 530 | 240 | |||||
STQ320-200 | 200 | 410 | 610 | 258 | |||||
STQ320-300 | 300 | 510 | 810 | 311 | |||||
STQ320-500 | 500 | 710 | 1210 | 456 | |||||
STQ400-100 | 400 | 100 | 355 | 455 | 380 | 200 | 290 | 198 | 63MPA |
STQ400-160 | 160 | 415 | 575 | 231 | |||||
STQ400-200 | 200 | 460 | 660 | 264 | |||||
STQ400-300 | 300 | 555 | 855 | 367 | |||||
STQ400-500 | 500 | 755 | 1255 | 456 |

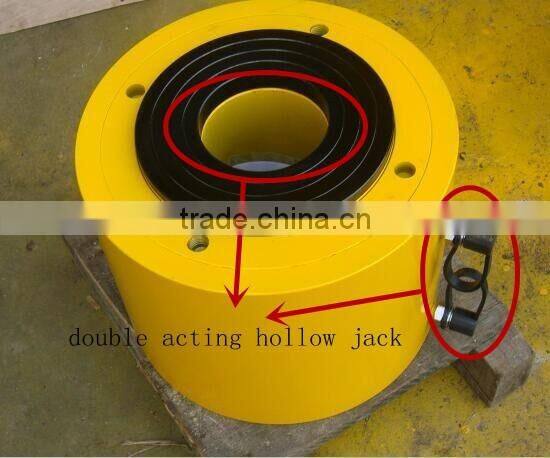

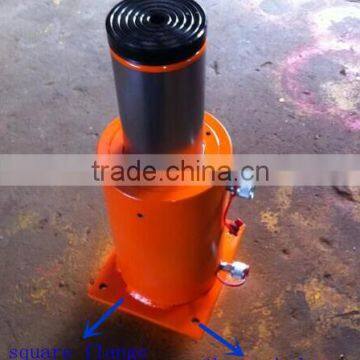

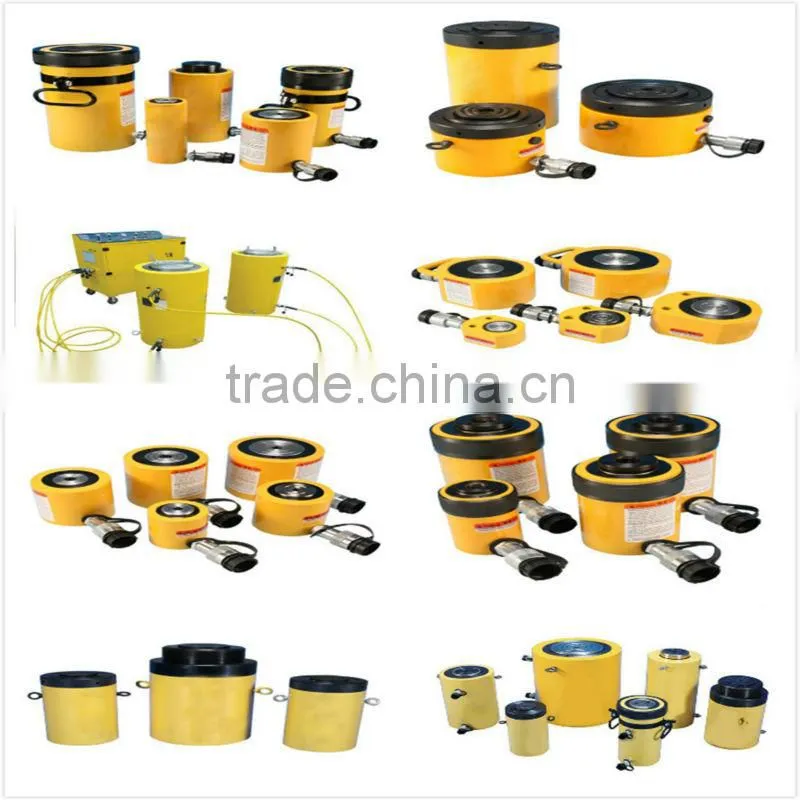

We manufacture different kinds of hydraulic jacks and cylinders as followings:
Our production workshop for jacks and cylinders
The work site of jacks and cylinders
