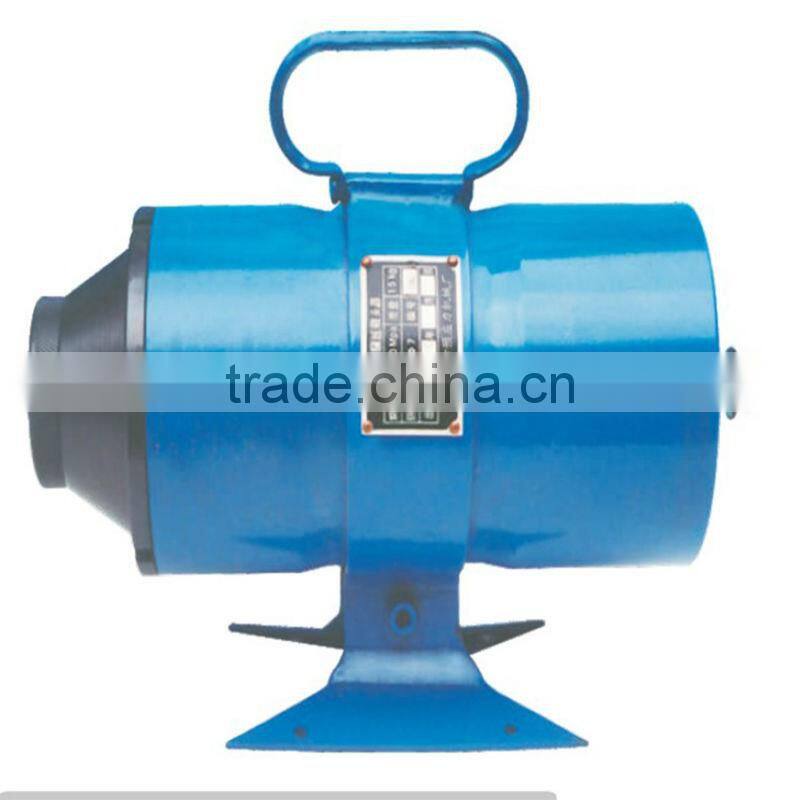

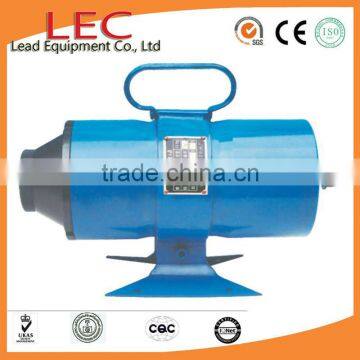

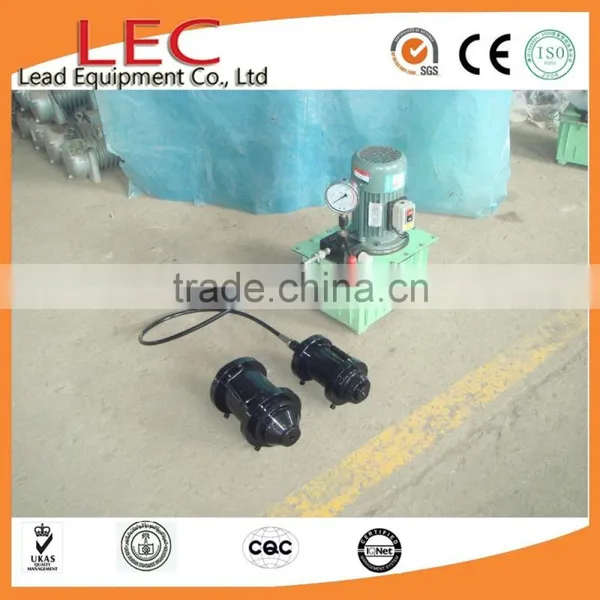

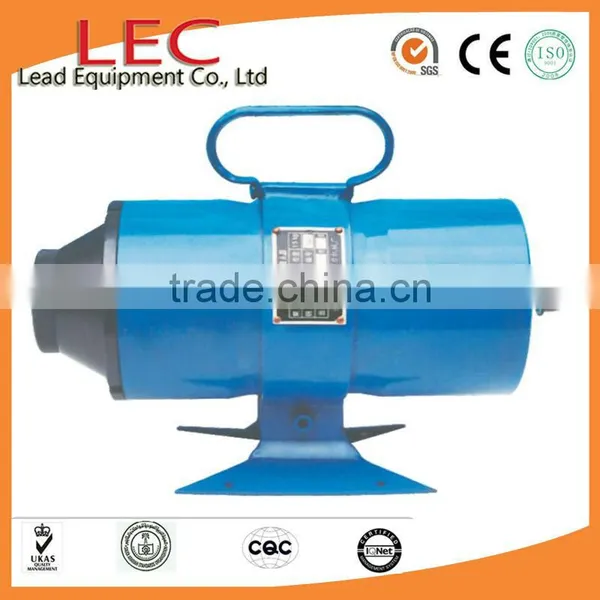

Prestressed Concrete Post Tensioning Button Head Device

US$ 510 - 850 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

LEC

Model Number:

LEC button-head device

Zhengzhou Lead Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen Qingdao Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name LEC

Model Number LEC button-head device

After-sales Service Provided Engineers available to service machinery overseas

Introduction:

button-head device for prestressed conrete anchors and post-tensioning use

1. LD series button-head device is the special equipment for prestressing project.

2. It can manufacture high-strength steel wire bundle of button-head in the post-stressing pre-stress construction.

3. It is used in the pre-stressing technology of different precast yard.

4. For prestressing and post-tensioning use.

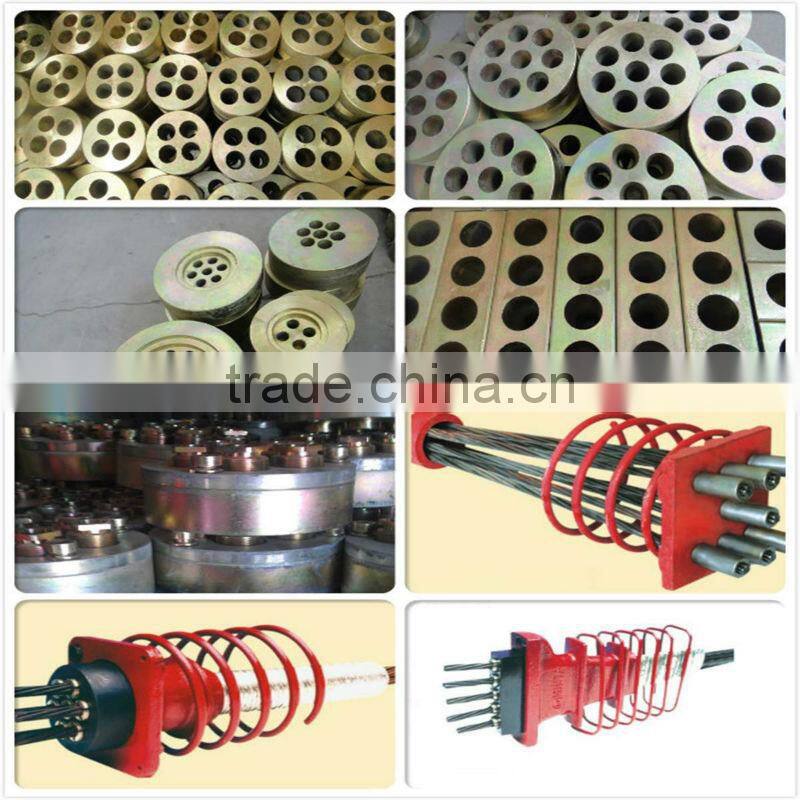

5. A set of prestressed equipment used in prestressed concrete anchors.

The parameter table of button-head device

Parameter of LD series button-head device(One)
Model	Rated hydraulic	Target of head	Max.buttonhead force	Order opening pressure	Heading stroke of piston	Clamping stroke of piston	Overall dimension	Mass
	Rated hydraulic	Target of head	Max.buttonhead force	Order opening pressure	Heading stroke of piston	Clamping stroke of piston	Overall dimension	Mass
	Mpa	mm	KN	Mpa	mm	mm	mm	Kg
LD10	40	5	88.2	3.1	6	12	98X279X199	10
LD20K	49	7	186	3.2	7.5	20	120X303X249	15

Parameter of LD series button-head device(Two)
Model	Target of cut tendon	Max.Force of cutting	Stroke of cutter	Overall	Mass
	Target of cut tendon	Max.Force of cutting	Stroke of cutter	dimension	Mass
	mm	KN	mm	mm	kg
LD10	5	166.6	20	98X326X199	11
LD20K	7	323	20	120X363X249	16.5
