Specifications

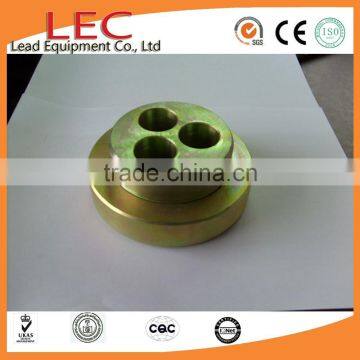

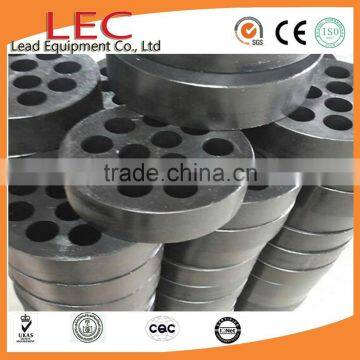

Anchor head and wedges
LYM System is consist of stress-end anchor, fixed-end anchor,anchor coupler and corrugated pipe.
It can be divided into LYM13,LYM15,LYM18 series of round anchors and LBM13,LBM15 series of
flat anchors, we also have high-strength steel wire LYM5,LYM7 series anchor.
Our anchor system has below features:
- Wide range application, it can anchor with standard strength of 1570Mpa-2000Mpa, with the diameter of 8mm,9mm,11mm,12.7mm,15.2mm,18mm pc strand and the high-strength steel wire with standard strength of 1570Mpa-1670Mpa, with the diameter of 5mm,7mm.
- Wide range of choice, LYM series anchor system is suitable for the number of pc strand from 1-55 tendons, and can be produced as per customer requirement.
- With good stressing self-anchored function, Easy operation.
- With high anchoring efficiency and reliable anchor.
- The anchor structure size is reasonable, which can satisfy anchorage efficiency coefficient but also achieve anchorage of strand of short distance.
1.Models: LYM15(15.24MM), LYM15(15.7MM), LYM13(12.7MM), LYM9(9.52M), LYM10(10.8MM), LYM22(22.6mm), ect.
2. Types: Stress End or Dead(fixed) End
3. Three options of customers usually order:

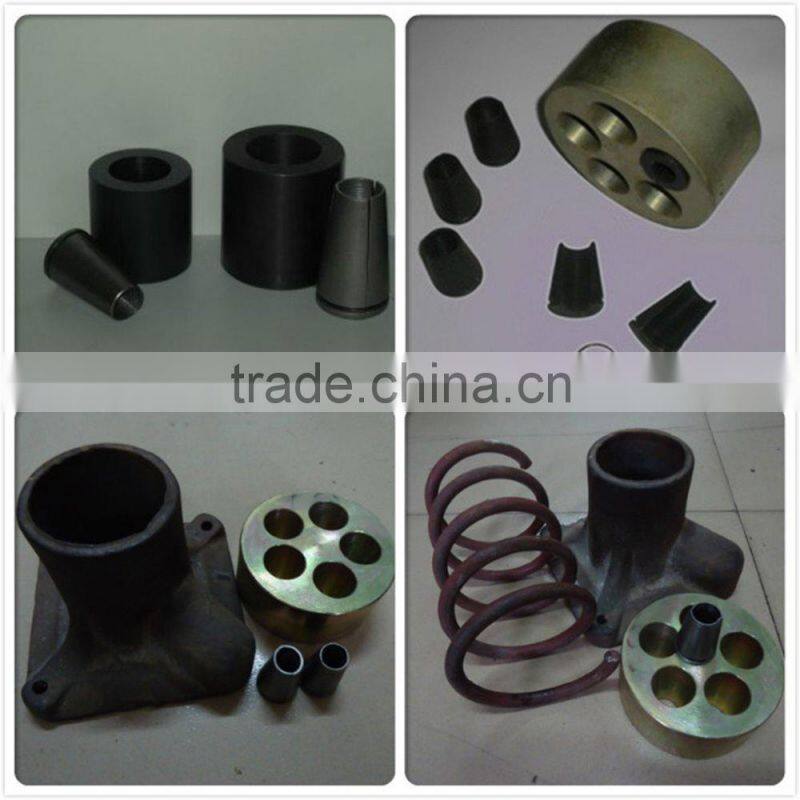

A: Complete sets: Anchor Head(Ring)+ Wedges+ Anchor Plates+ Spiral Spring Ring
B: Three sets: Anchor Head(Ring)+ Wedges+ Anchor Plates
C: Two sets: Anchor Head(Ring)+ Wedges
4. Best price: No matter you are a seller ot end user, we will provide you our best price for our tuture cooperation.
Our Advantages:
We supply full complete set anchor system and equipment for construction, please see following:
A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire
B: Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.
Flat anchor system
C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.
D: Equipement: hydraulic jack, oil pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.
PC Strand:
Corrugated Pipes(Ducts)

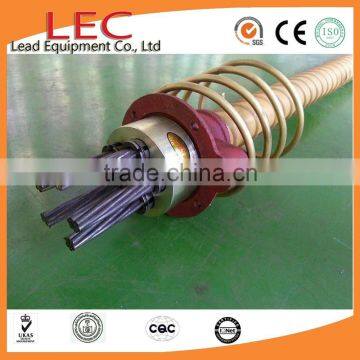

Anchorage system assembly
LYM anchorage system is consists of stressing-end anchorage, fixed-end anchorage, couple and corrugated pipe.
It can be divided into LYM15, LYM13, LYM10,LYM11,LYM18, LYM22, LBM15,LBM13 type anchorage, the anchorage system has the following features:
1. LYM15 applies to 15.2/15.24mm, 15.7mm pc strand.
2. LYM13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.
3. LYM10 applies to 9.3mm, 9.53mm pc strand.
4. LYM11 applies to 10.8mm pc strand.
5. LYM18 applies to 17.8mm pc strand.
6. LYM22 applies to 21.6/21.8mm pc strand.
The number of strand can be selected from 1~55 tendons and can be added per design requirements.

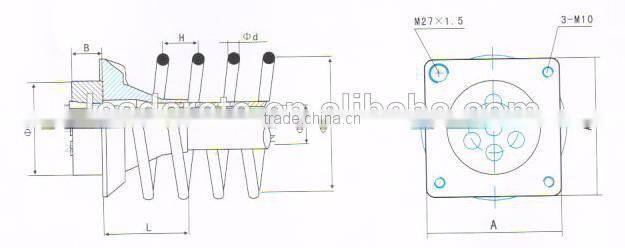

Technical data for anchor system
Model |
Anchor Head |
Anchor Plate |
Corrugated Pipe I.D. |
Spiral Reinforcement/Bar |
Matched Tension Jack Model |
|||||
ØD |
B |
A |
L |
ØC |
ØG |
H |
Ød |
n |
||
LYM15(13)-1 |
48 (40) |
50 (50) |
90 (90) |
35 (35) |
|
80(85) |
30(35) |
6 |
4(4) |
QYC270 |
LYM15(13)-2 |
94 (80) |
50 (50) |
135 (120) |
110 (110) |
45(40) |
120(110) |
40(50) |
8(8) |
3(3) |
YDC650 (YDC650) |
LYM15(13)-3 |
94 (80) |
50 (40) |
135 (120) |
110 (120) |
50(50) |
130(130) |
50(50) |
10(8) |
4(3) |
YDC1000 (YDC650) |
LYM15(13)-4 |
98 (85) |
50 (50) |
150 (135) |
120 (120) |
50(50) |
150(150) |
50(50) |
14 (10) |
4(4) |
YDC1500 (YDC650) |
LYM15(13)-5 |
108 (94) |
50 (55) |
180 (150) |
130 (120) |
55(50) |
170(160) |
50(50) |
14 (14) |
4(4) |
YDC1500 (YDC1500) |
LYM15(13)-6,7 |
127(108) |
50 (55) |
190 (165) |
160 (150) |
70(60) |
200(190) |
50(50) |
14 (14) |
4(5) |
YDC2000 (YDC1500) |
LYM15-8 |
137 |
60 |
230 |
180 |
80 |
240 |
60 |
16 |
5 |
YDC2000 |
LYM15(13)-9 |
154 (128) |
60 (60) |
240 (180) |
190 (160) |
80(60) |
240(220) |
60(50) |
16 (16) |
5(5) |
YDC2500 (YDC1500) |
LYM15(13)-10 |
167 |
60 |
250 |
210 |
80 |
270 |
60 |
16 |
6 |
YDC2500 |
LYM15(13)-11/12 |
167 (148) |
60 (60) |
260 (215) |
210 (190) |
90(80) |
270(240) |
60(60) |
16 (16) |
6(5) |
YDC3000 (YDC2000) |
LYM15-14/15 |
187 |
65 |
270 |
220 |
90 |
310 |
60 |
18 |
6 |
YDC3500 |
LYM15-16 |
207 |
65 |
290 |
250 |
90 |
330 |
60 |
18 |
6 |
YDC4000 |
Model |
Flat anchor round |
Flat corrugated Pipe I.D. |
Flat anchor plate |
flat Spiral Reinforcement/Bar |
|||||||
D |
E |
F |
G |
A |
C |
B |
H |
I |
n |
t |
|
|
LBM15L-2 LBM13L-2 |
90 |
46 |
52 |
22 |
160 |
70 |
140 |
160 |
100 |
5 |
45 |
|
LBM15L-3 LBM13L-3 |
120 |
46 |
65 |
22 |
180 |
70 |
150 |
180 |
100 |
5 |
45 |
|
LBM15L-4 LBM13L-4 |
155 |
46 |
74 |
22 |
220 |
80 |
210 |
220 |
100 |
5 |
45 |
|
LBM15L-5 LBM13L-5 |
190 |
46 |
90 |
22 |
260 |
80 |
270 |
260 |
100 |
5 |
45 |
About our company:
1. More than 10 years experience on PT and Pre-stress Concrete Construction.
2. Supply full complete set of anchor system, pc strand, pc steel wire, hydraulic jacks, electric oil pump, corrugated pipe making machine, and other equipment.
3. China top 5 PT and Pre-stress manufacturer, with CE, ISO,Ghost certificate.
4. Products market covering more than 30 countries all of the world.
5. more than 80 engineers available for oversea service, supply face to face training on buyer’s worksite.
6. Response to customer requirement 24 hours, provide full using life technical support.
Our factory

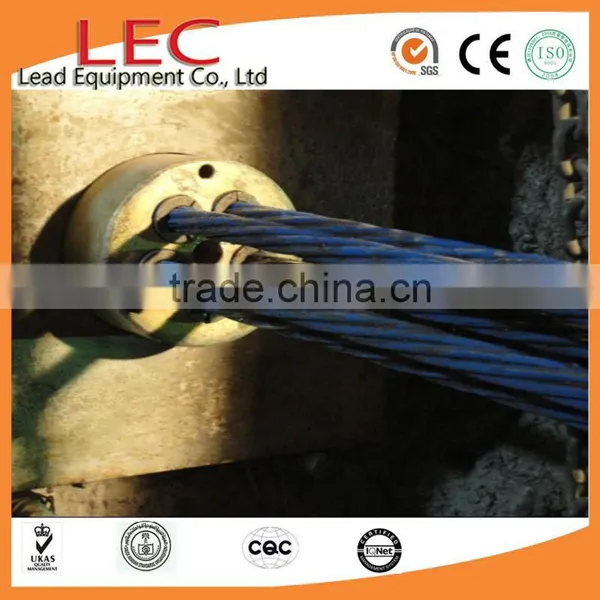

PT and Pre-stress worksite:
1. How many holes anchor do you need?
2. Do you need stress end anchor or dead(fixed) end anhcor?
3. what is your required dimater for pc strand you use?
