Specification:
hydraulic cylinder
ISO9001:2008
CE and ISO certificate
Hollow piston design Spring return structure, outer thread
Hollow plunger design allows for both pull and push forces
Single-acting, spring return
Nickel-plated, floating center tube on models over 20 tons increases product life
Baked enamel finish for increased corrosion resistance
Collar threads for easy fixturing
The technical parameter of RCH hydraulic cylinder
hydraulic cylinder
Model | Capacity(T) | Cylinder height A | Stroke | Extending height | Out diameter D | Central hole diameter Y | weight(KG) |
mm | B-Amm | mm | |||||
RCH-120 | 12 | 56 | 8 | 63 | 83 | 19.6 | 1.5 |
RCH-121 | 121 | 41 | 162 | 83 | 19.6 | 2.8 | |
RCH-123 | 184 | 76 | 260 | 83 | 19 | 4.4 | |
RCH-202 | 20 | 162 | 51 | 213 | 102 | 26.9 | 7.7 |
RCH-206 | 306 | 155 | 461 | 102 | 26.9 | 14.1 | |
RCH-302 | 30 | 179 | 63 | 242 | 114 | 33.3 | 10.9 |
RCH-306 | 330 | 156 | 486 | 114 | 33.3 | 21.8 | |
RCH-603 | 60 | 248 | 76 | 324 | 159 | 53.8 | 28.1 |
RCH-606 | 324 | 152 | 476 | 159 | 53.8 | 35.4 | |
RCH1003 | 100 | 254 | 76 | 330 | 219 | 79 | 59.9 |

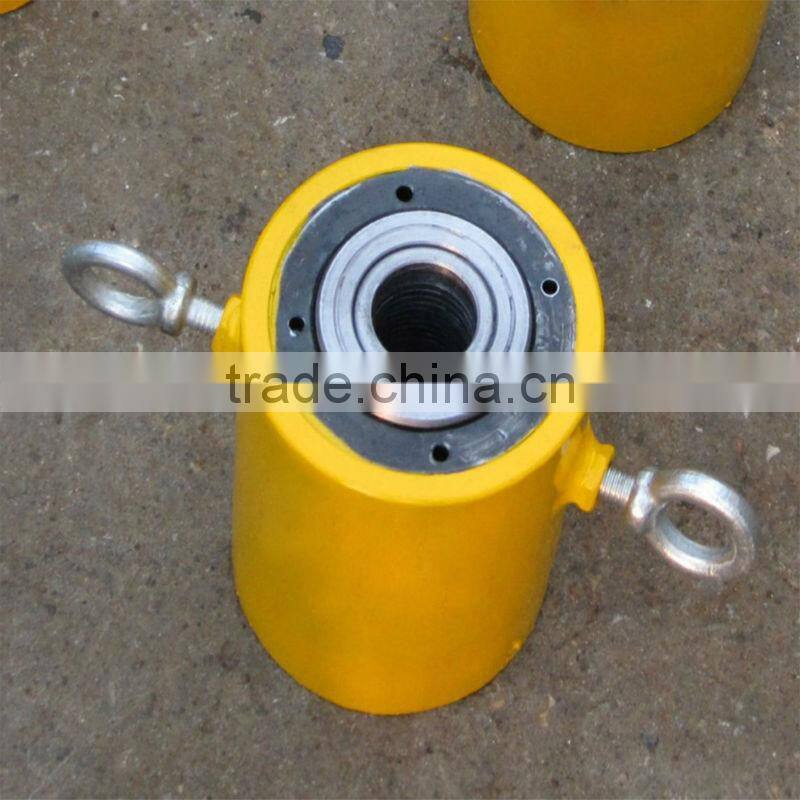

The pictures of RCH hydraulic cylinder

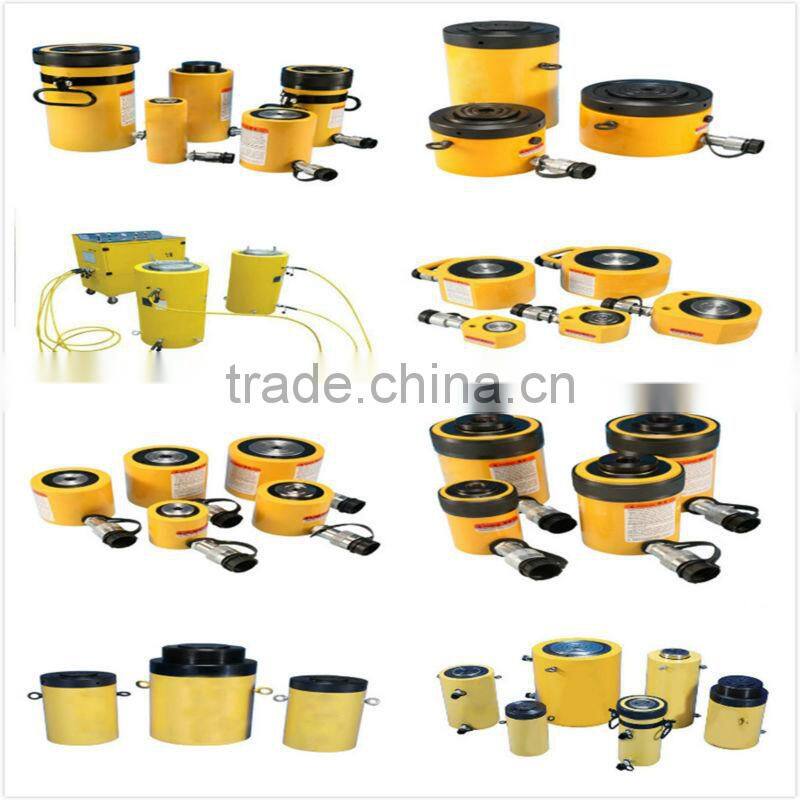

We manufacture different kinds of and cylinders as followings:
Our production workshop for jacks and cylinders
The work site of jacks and cylinders
