LEC Post Tension Prestressing Hydraulic Cylinder Jack For Construction
- 5000 Set / Sets per Month
- Shanghai Qingdao Tianjin Shenzhen Nanjing
- T/T L/C D/P D/A Credit Card PayPal
- Full Finger Motorcycle Gloves Protective Gears Glove Recreational Sports Tactics gloves racing mountain gloves Hifly Industry
- 001Full Finger Motorcycle Gloves Protective Gears Glove Recreational Sports Tactics gloves racing mountain gloves Hifly Industry
- Manual Plastic Vehicle For Pumping Oil Suction Pipe Tank Car Oil Change Pump Tubing Pumping Device
- HF-TY-01 Bottle Stand With Faucet 5 Gallon Water Bottle Stand With Faucet Drinking Bottled Water Display Stand With Faucet Quality Choice
- HF-BS001(100) Bottle Stand With Faucet 5 Gallon Water Bottle Stand With Faucet Drinking Bottled Water Display Stand With Faucet
- HF-BS001 Bottle Stand With Faucet 5 Gallon Water Bottle Stand With Faucet Drinking Bottled Water Display Stand With Faucet
Product Details
Type: | Hydraulic Jack | Max Height: | 645mm | Min Height: | 315mm |
Certification: | ISO9001:2000 and CE | Place of Origin: | Henan, China | Brand Name: | LEC |
Model Number: | YDC | Warranty: | 1 Years |
Product Description

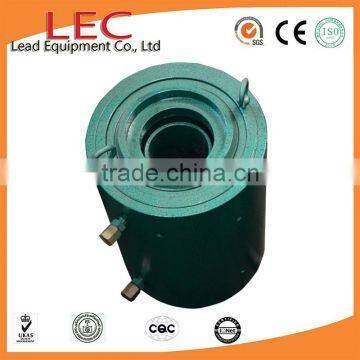

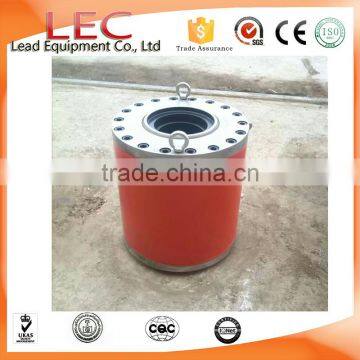

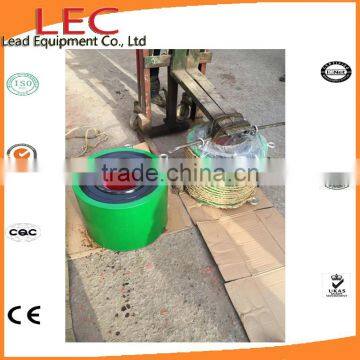

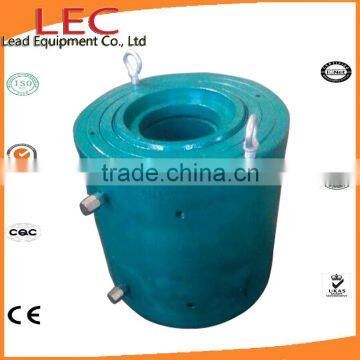

LEC Post Tension Prestressing Hydraulic Cylinder Jack For Construction
Specifications
YDC series of hydraulic cylinder jack
1. Type: YDC series of hydraulic cylinder jack
2. Matched Oil Pump: 50Mpa, 63Mpa Electric Oil Pump

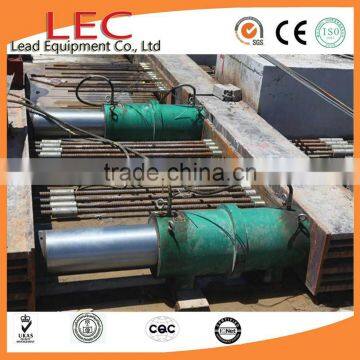

3. Application: bridges, high buildings, coal mine , railway and subway, water conservancy and hydropower engineering .
4. OEM service: we provide OEM serives, you can put your logo on our products and
equipement.
5. Professional Services: 1x7 days 24 hours service online, and engineer can service oversea.
6. Warranty Time: One Year, we will send you Repair Kits if you need any time.
Technical Parameter of YDC Series of Hydraulic Jack
Item | Nominal Tension | Rated Oil Pressure | Stroke | Area of Tensioning Piston | Center hole Diameter | Minimum Working Space | The Reserved Length of Strand | Dimension | ||
Ton | Mpa | mm | mm² | mm | L (mm) | E (mm) | K (mm) | out diameter (mm) | length (mm) | |
YDC650 | 65 | 50 | 200 | 13018 | 40 | 860 | 145 | 380 | 170 | 288 |
YDC1100 | 110 | 51 | 200 | 19792 | 80 | 1210 | 184 | 680 | 217 | 330 |
YDC1500 | 150 | 50 | 200 | 30257 | 90 | 1210 | 230 | 680 | 270 | 330 |
YDC2000 | 200 | 51 | 200 | 39820 | 110 | 1296 | 272 | 723 | 320 | 360 |
YDC2500 | 250 | 52 | 200 | 48381 | 127 | 1306 | 298 | 728 | 350 | 360 |
YDC3000 | 300 | 52 | 200 | 57727 | 145 | 1322 | 336 | 736 | 375 | 380 |
YDC3500 | 350 | 48 | 200 | 73435 | 162 | 1322 | 336 | 745 | 415 | 395 |
YDC4000 | 400 | 51 | 200 | 79168 | 162 | 1324 | 374 | 745 | 435 | 395 |
YDC4600 | 460 | 51 | 200 | 91028 | 180 | 1350 | 420 | 750 | 470 | 410 |
YDC5000 | 500 | 49 | 200 | 96997 | 200 | 1340 | 434 | 745 | 495 | 410 |
YDC5500 | 550 | 50 | 200 | 110506 | 198 | 1350 | 520 | 800 | 526 | 498 |
YDC6500 | 650 | 49 | 200 | 67544 | 212 | 1350 | 550 | 850 | 568 | 538 |
YDC9000 | 900 | 51 | 200 | 78618 | 275 | 1400 | 620 | 900 | 680 | 603 |
YDC12000 | 1200 | 51 | 200 | 231300 | 275 | 1400 | 620 | 900 | 780 | 603 |
Our Advantages:
We supply full complete set anchor system and equipment for construction, please see following:
A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire
B: Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.
Flat anchor system
C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.
D: Equipement: hydraulic jack, oil pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.
PC Strand:

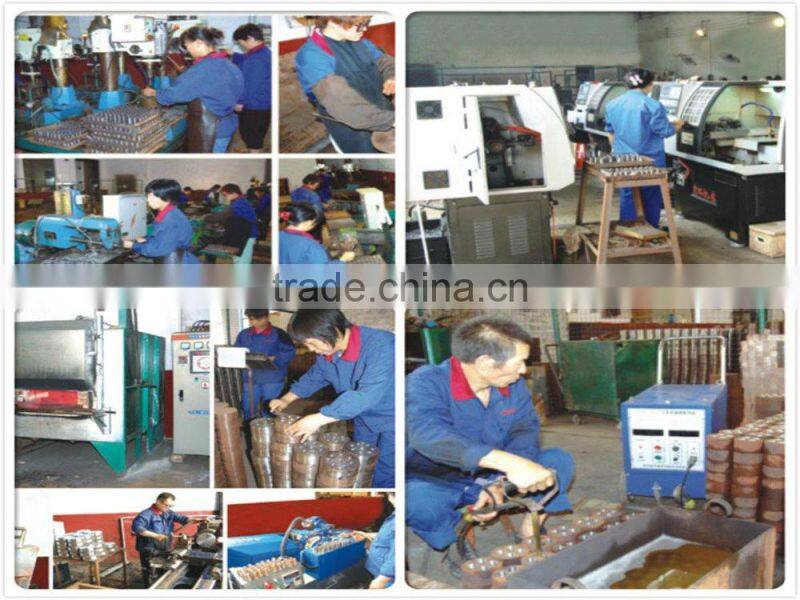

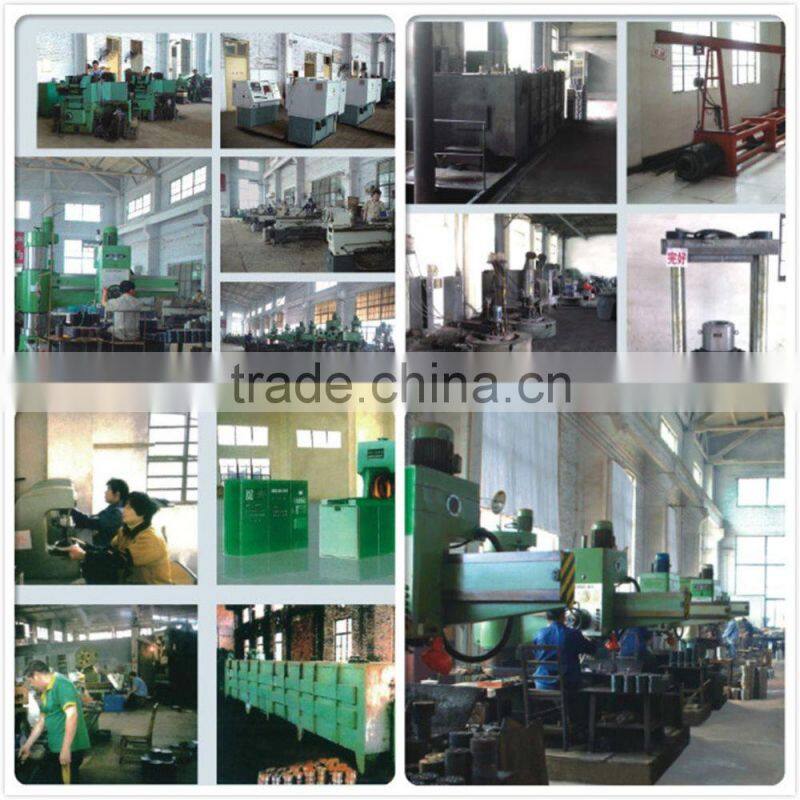

About our company:
1. More than 10 years experience on PT and Pre-stress Concrete Construction.
2. Supply full complete set of anchor system, pc strand, pc steel wire, hydraulic jacks, electric oil pump, corrugated pipe making machine, and other equipment.
3. China top 5 PT and Pre-stress manufacturer, with CE, ISO,Ghost certificate.
4. Products market covering more than 30 countries all of the world.
5. more than 80 engineers available for oversea service, supply face to face training on buyer’s worksite.
Please let me know yor detail information as followings:
1. What is your required maximum capacity(tons) and stroke(tension journey)?
2. What is your applications?
