PC strand pulling machine
1. LS strand pusher machine can push pc strand continuously .
2. It has the features of easy operation, reliable performance, efficiency significantly.
3. The machine reduces the labour, and widely used for large-scale bridges, and constitutive objects.
4. High performance with good quality
5. It is the main tool of through strand in building bridges and large building with Prestressing work.
2. Main feature:
It is easy to operate and convenient to maintain. In the process, two people can complete the operation, it can reduce labour and improve work efficiency.
PC strand pulling machine
| Model | Diameter of pc strand | Distance of pushing | Voltage | Power | weight | Size |
| of motor | ||||||
| mm | m | v | kw | kg | cm | |
| LS-4 | 12 to 16 | 50 | 380/220 | 4 | 120 | 55×40×24 |
| LS-5.5 | 12 to 16 | 150 | 380/220 | 5.5 | 180 | 64×44×24 |
| LS-7 | 12 to 16 | 200 | 380/220 | 7 | 230 | 95×44×40 |

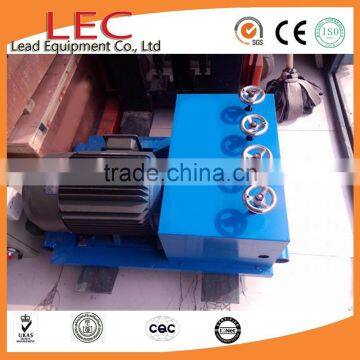

PC strand pusher machine
PC strand pusher machine worksite
Our Advantages:
We supply full complete set anchor system and equipment for construction, please see following:
A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire
B: Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.
Flat anchor system
C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.
D: Equipement: hydraulic jack, oil pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.
PC Strand:
Corrugated Pipes(Ducts)
About our company:
1. More than 10 years experience on PT and Pre-stress Concrete Construction.
2. Supply full complete set of anchor system, pc strand, pc steel wire, hydraulic jacks, electric oil pump, corrugated pipe making machine, and other equipment.
3. China top 5 PT and Pre-stress manufacturer, with CE, ISO,Ghost certificate.
4. Products market covering more than 30 countries all of the world.
5. more than 80 engineers available for oversea service, supply face to face training on buyer’s worksite.
6. Response to customer requirement 24 hours, provide full using life technical support.
Our factory
PT and Pre-stress worksite:
Please inform me your detail information as followings so i can recommend you suitable model:
1. what is your required diameter of pc strand?
2. What is your required Voltage for pc strand pusher machine?
