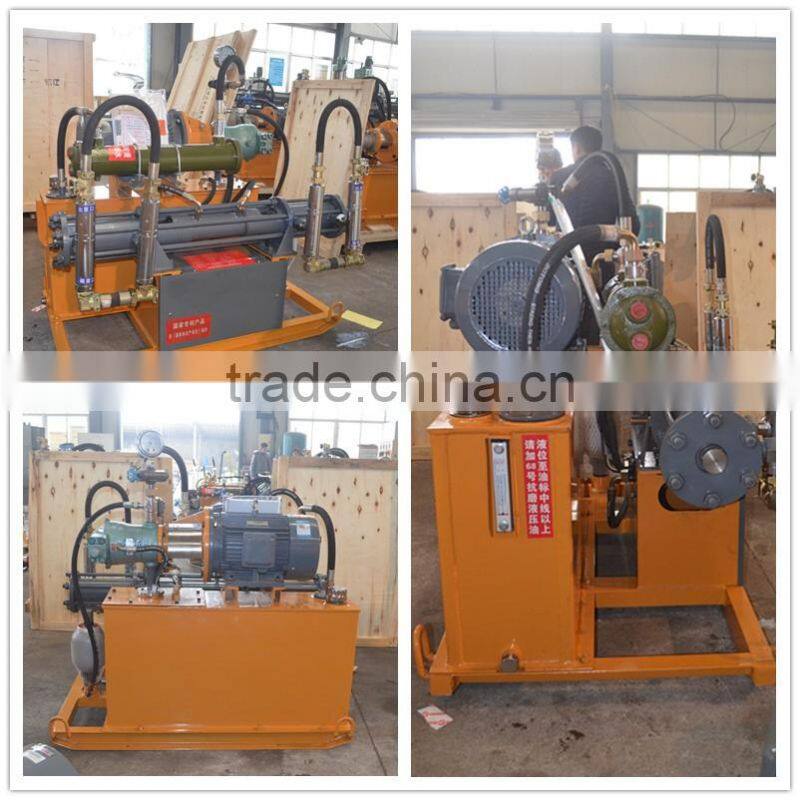

LGH-HD series Large flow Widely choices hydraulic piston grout pumps
LGH-HD series hydraulic widely used grout pumps is suitable for grouting plugging project of high pressure and large displacement.The pump transmits pressure signals by working medium(slurry and hydraulic oil) to form closed-loop automatic control function, therefore the grout pump is simple in structure, can regulate timely and accurately, and has no overpressure problem.The widely used grout pumps can adjust its output and working pressure by continuously variable adjustment, and has the function of automatic regulating output according to the pre-seted grouting final pressure.The grout pump can grout simple-liquid, dual-liquid and chemical grout.The grout pump is equipped dual-liquid regulator(patented).The technology originally comes from Japan, and is updated by us.
Our LGH-HD series widely used grout pumps have new characteristics as follows:
1. New technical hydraulic system with smooth shift and reliable work.
2. Volume and weight are about the half of the original Japanese pump.
3. Equipped with large capacity hydraulic accumulator, no impact in shift.
4. Equipped with large size water cooler, can work continuously for a long time.
5. Operation and maintenance are simple.
6. The grout pump with ISO9001-2008 and CE certificate.
Technical Sheet of grout pumps for sale:
| 7.5kw High Pressure Grout Pump | |||||
| Power(KW) | Overall Dimension | Weight(kg) | Aggregate | Pump Slurry Ratio | Hydraulic oil tank |
| 7.5 | 1.2×0.7×1.1m | 360 | ≤Φ3mm | 0.5:1~1:1(W/C) | 100L |
| Power(KW) | Model | Output(L/Min) | Pressure(Mpa) | ||
| 7.5 | LGH140/6-7.5HD | ≤140 | ≤6 | ||
| LGH120/7-7.5HD | ≤120 | ≤7 | |||
| LGH100/9-7.5HD | ≤100 | ≤9 | |||
| LGH80/11-7.5HD | ≤80 | ≤11 | |||
| LGH66/13-7.5HD | ≤66 | ≤13 | |||
| LGH60/15-7.5HD | ≤60 | ≤15 | |||
| LGH50/18-7.5HD | ≤50 | ≤18 | |||
| LGH40/22-7.5HD | ≤40 | ≤22 | |||

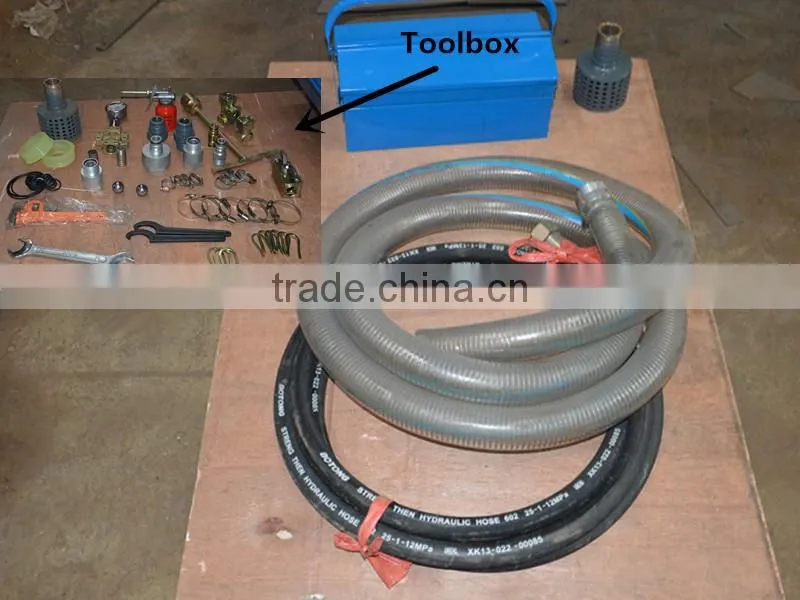

| Accessories | Suction hose,filter, delivery hose, junction device, tools, sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge. | ||||
| 15kw,18.5kw dual slurry grout pump | |||||
| Power(KW) | Overall Dimension | Weight(kg) | Aggregate | Pump Slurry Ratio | Hydraulic oil tank |
| 15,18.5 | 1.4×0.8×1.3m | 560,630 | ≤Φ3mm | 0.5:1~1:1(W/C) | 200L |
| Power(KW) | Model | Output(L/Min) | Pressure(Mpa) | ||
| 15 | LGH210/8-15HD | ≤210 | ≤8 | ||
| LGH190/10-15HD | ≤190 | ≤10 | |||
| LGH150/12-15HD | ≤150 | ≤12 | |||
| LGH120/15-15HD | ≤120 | ≤15 | |||
| LGH100/17-15HD | ≤100 | ≤17 | |||
| LGH80/24-15HD | ≤80 | ≤24 | |||
| LGH60/30-15HD | ≤60 | ≤30 | |||
| 18.5 | LGH210/9-18.5HD | ≤210 | ≤9 | ||
| LGH190/11-18.5HD | ≤190 | ≤11 | |||
| LGH150/14-18.5HD | ≤150 | ≤14 | |||
| LGH120/17-18.5HD | ≤120 | ≤17 | |||
| LGH100/20-18.5HD | ≤100 | ≤20 | |||
| LGH90/23-18.5HD | ≤90 | ≤23 | |||
| LGH80/28-18.5HD | ≤80 | ≤28 | |||
| LGH60/33-18.5HD | ≤60 | ≤33 | |||
| Accessories | Suction hose,filter, delivery hose, junction device, tools, sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge. | ||||

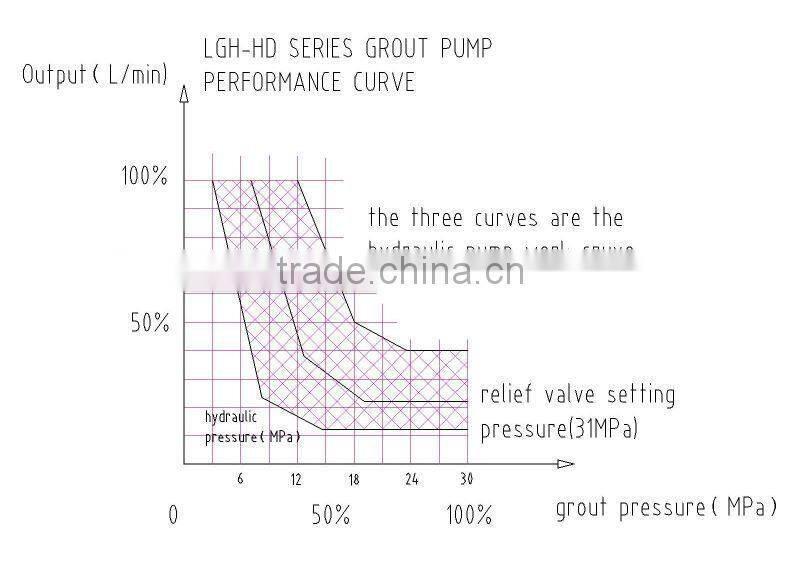

widely used grout pump performance Curve:

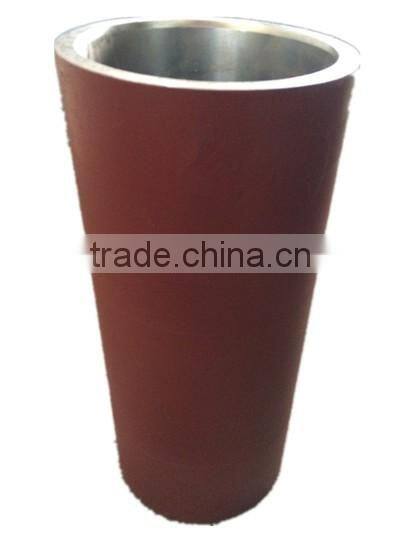

Cylinder with Germany technology, hardness is larger than 60°, Longer life.

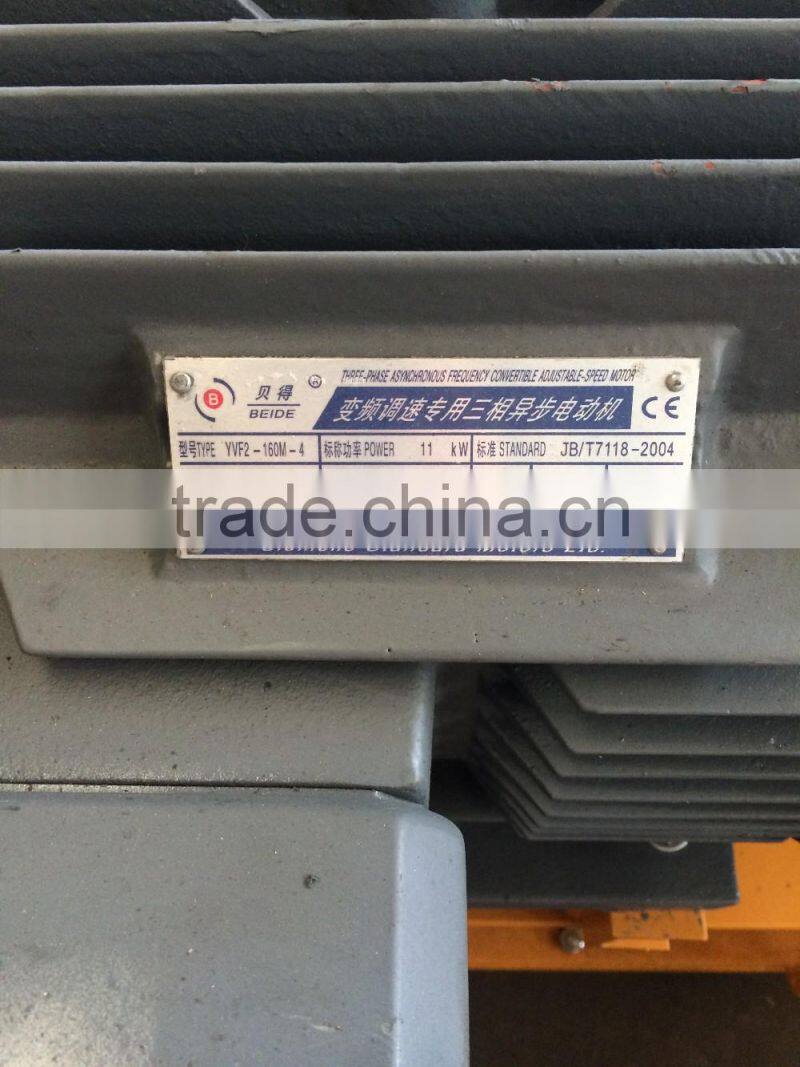

Siemens electric motor.
We also can manufacture grouting equipment which include grout pump and grout mixer.

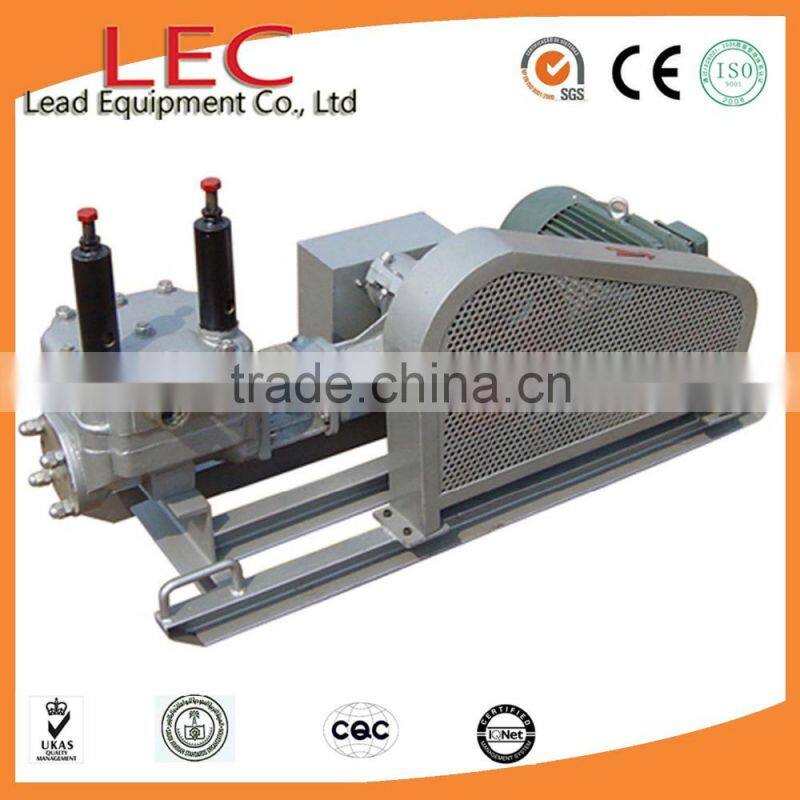

Grout pump
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
