China factory adjustable pressure and flow high pressure electric grouting pump
Description
The LDH 75/100 high pressure electric grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.
Grouting material: cement mixture, mortar/plaster, bentonite and other additive.
Applications
- Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
- Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
- Construction - pavement under sealing, slab jacking and slab raising
- Marine - underwater foundations, piers, breakers, shoreline foundations
- Mining - tunnel lining, contact grouting, shaft waterproofing
- Utilities - encasements, waterproofing, slope line grouting
- Geotechnical - deep well casing, monitor wells, well sealing and abandonment
China factory adjustable pressure and flow high pressure electric grouting pump
Technology Parametes

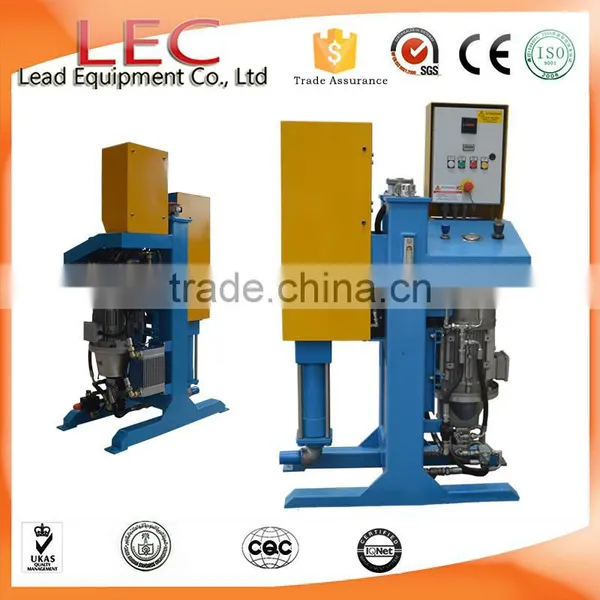

LDH 75/100 high pressure vertical grouting pump
Item | LDH75/100 PI-E grouting pump |
Piston diameter | 100mm |
Piston stroke | 150mm |
Adjustable pressure ( low pressure) | 0-50Bar/725psi |
Adjustable flow rate( low pressure) | 0-75L/min |
Adjustable pressure ( high pressure) | 0-100Bar1450psi |
Adjustable flow rate ( high pressure) | 0-40L/min |
Discharge pipe size: | M27x2 |
Inlet pipe size: | G2’’ |
Power Unit | 7.5kW |
Chassis | Skid |
Weight | 390Kg |
Overall Dimension | 1040x550x1650mm |
Note: Chassis: Skid or Tyre We also could according to your demands to customize | |
LDH 75/100 PI E high pressure vertical grouting pump

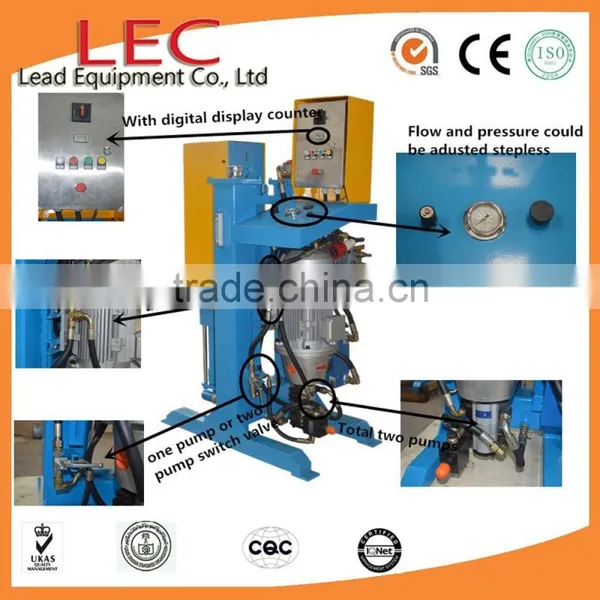

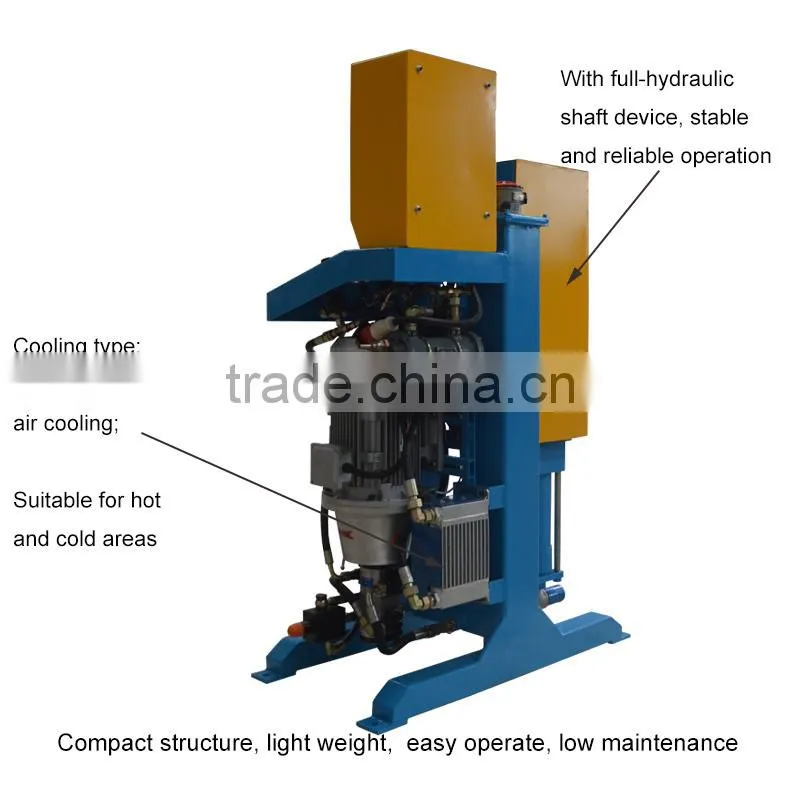

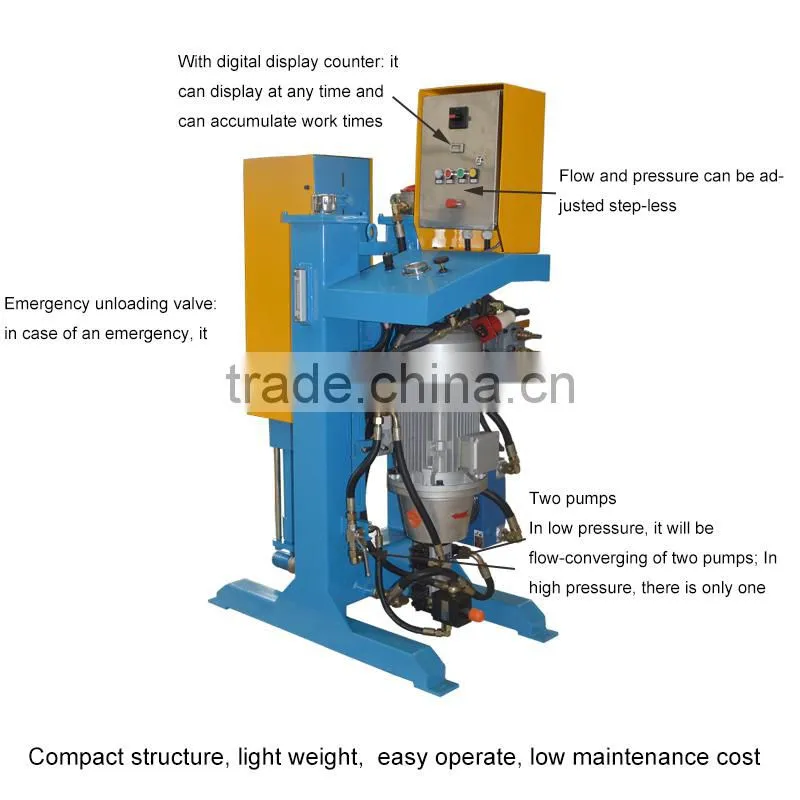

Features:
1. Compact structure, light weight, easy operate, low maintenance cost;
2. With digital display counter: it can display at any time, and can accumulate work times;
3. Flow and pressure can be adjusted step-less;
4. Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
5. In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;
6. With full-hydraulic shaft device, stable and reliable operation;
7. Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.
Plywood case.

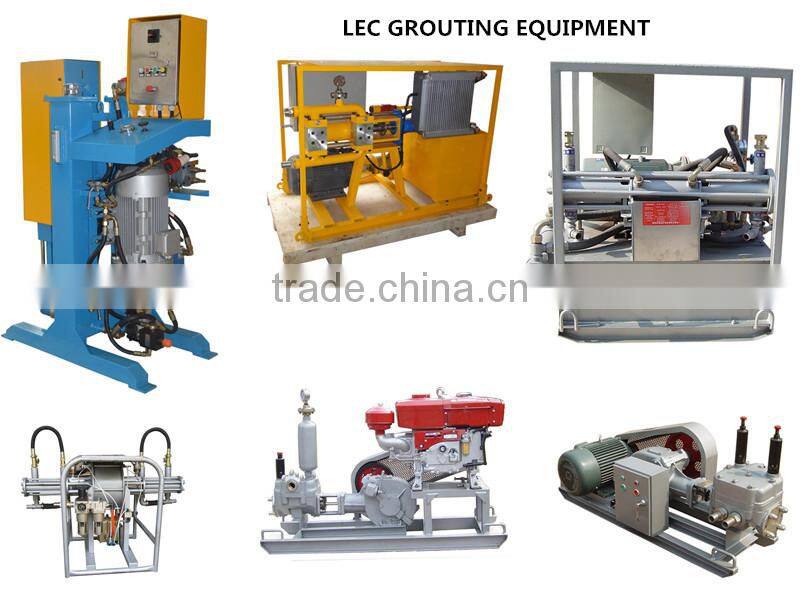

We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
