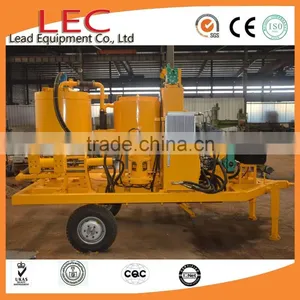

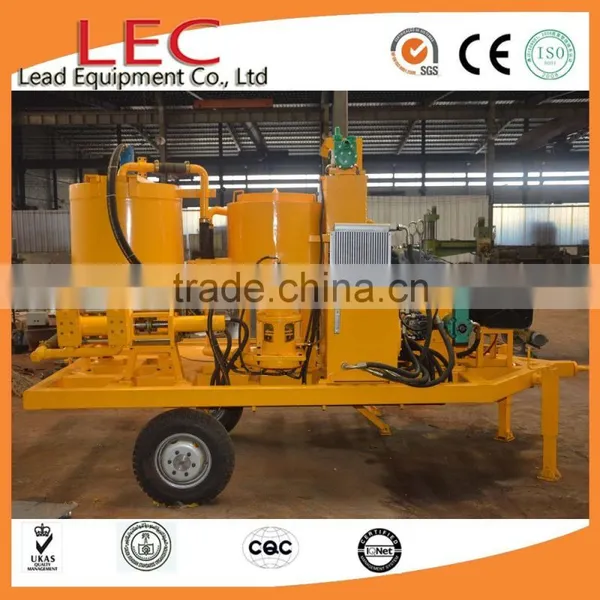

LGP200/300/100PI-D China manufacturer trailer cement grout mixing pump for sale
Description of trailer cement grout mixing pump:

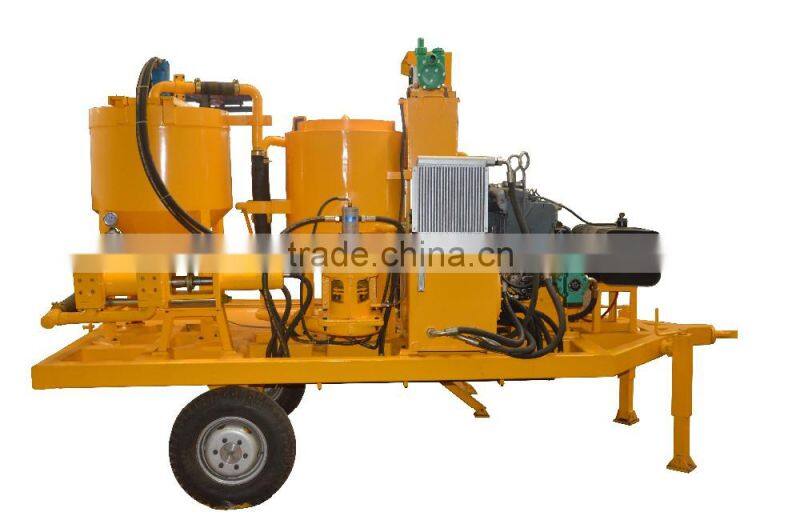

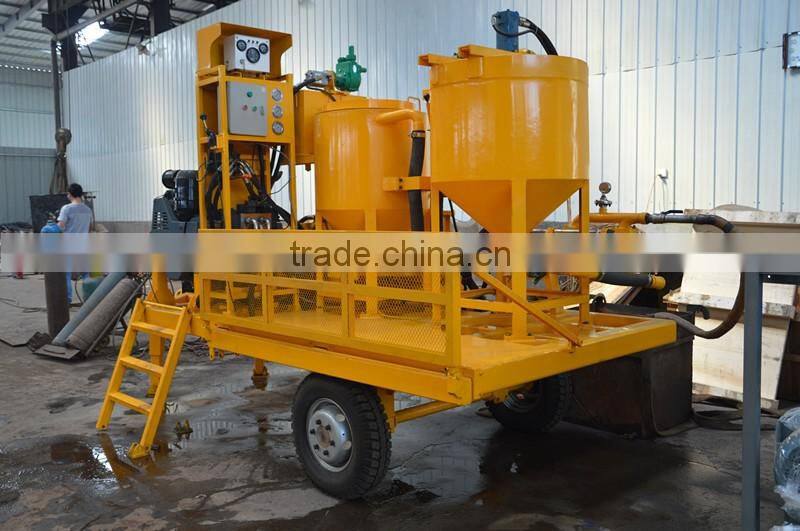

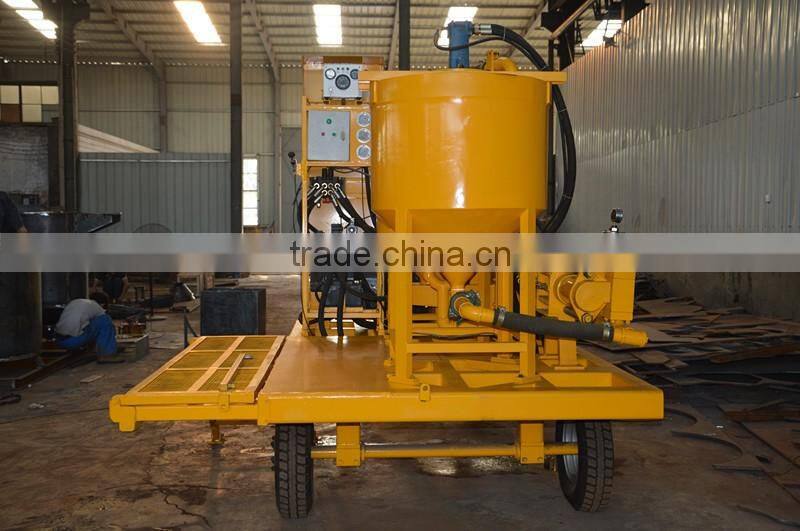

The LGP200/300/100PI-D trailer cement grout mixing pump is combination of mixer, agitator and hydraulic piston grout pump in one plant. Mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.
Features of trailer cement grout mixing pump:

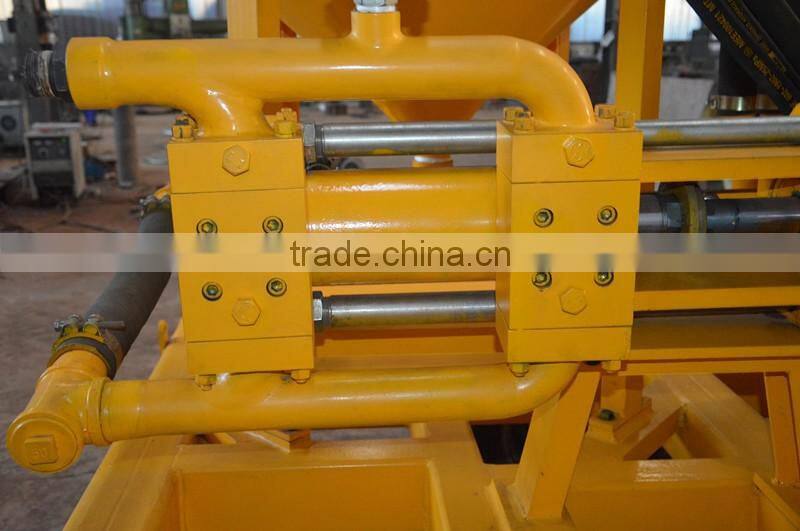

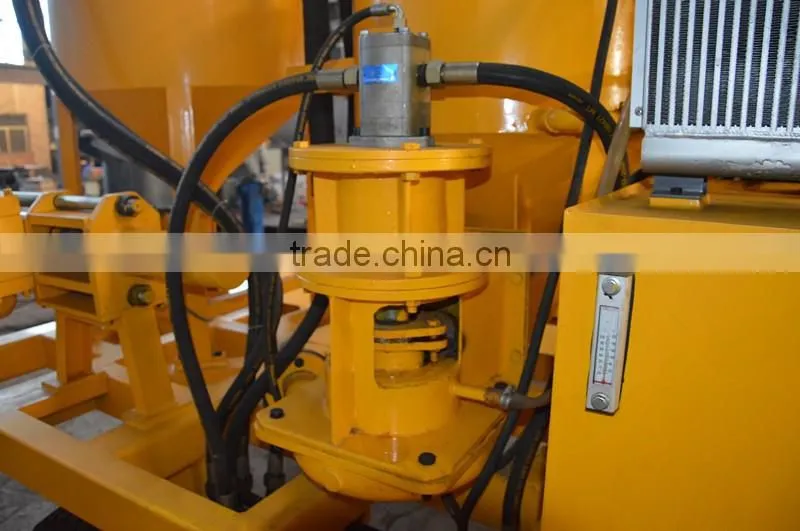

- Compact size, It is combination of mixer, agitator and hydraulic plunger grout pump in one base frame;
- Deutz diesel engine;

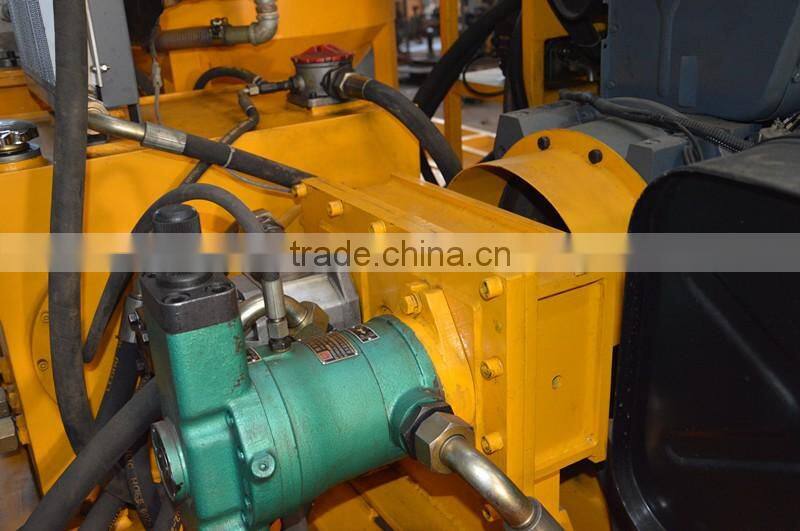

- Yuken relief valve and directional valve for hydraulic system of grout pump;
- Butterfly valve of mixer and agitator;

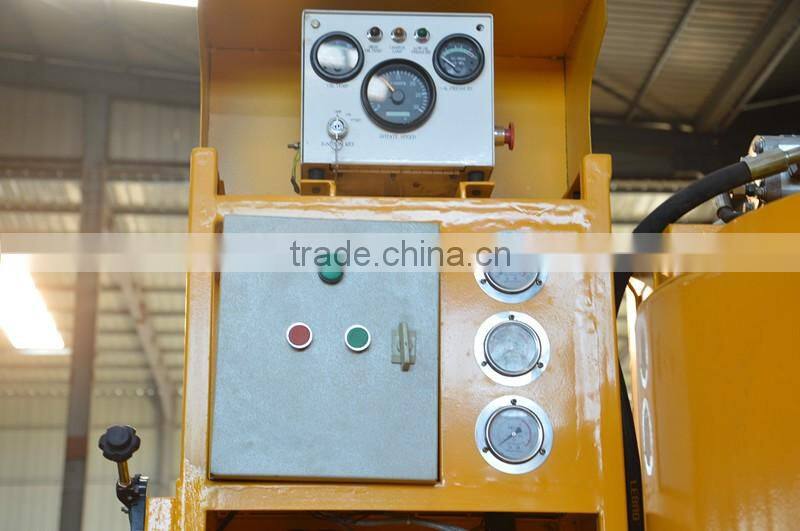

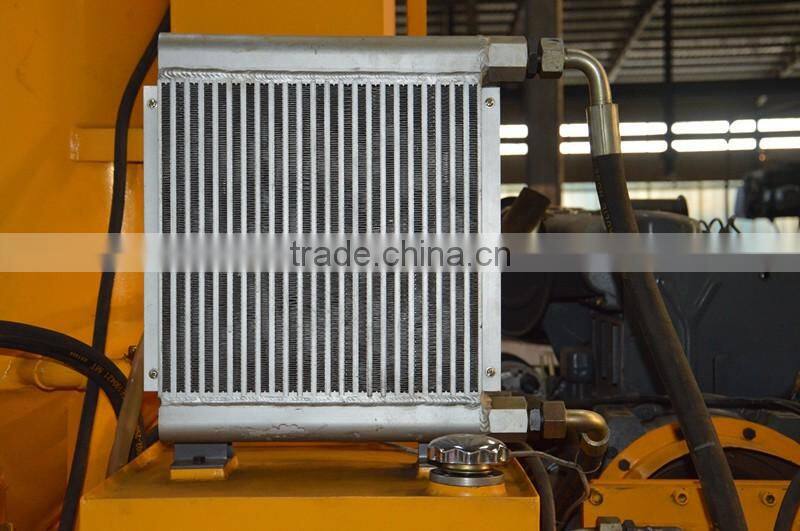

- Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;
- Full hydraulic drive
- Operation and maintenance are simple;
- With ISO, CE certificate.
Applications of trailer cement grout mixing pump
- Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
- Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
- Construction - pavement under sealing, slab jacking and slab raising
- Marine - underwater foundations, piers, breakers, shoreline foundations
- Mining - tunnel lining, contact grouting, shaft waterproofing
- Utilities - encasements, waterproofing, slope line grouting
- Geotechnical - deep well casing, monitor wells, well sealing and abandonment
Description |
Data |
Grout Station type |
LGP200/300/100PI-D |
Mixer Volume |
200L |
Mixer production(w/c ratio=1) |
4 m3/h |
Circulation capacity |
1100l/min |
Suitable W/C Ratio |
0.5 to 1 |
Mixer hydraulic motor |
1450rpm |
Agitator Volume |
300L |
Agitator hydraulic motor speed |
36rpm |
Water tank |
60L |
Grout Pump Type |
LGH90 |
Grout pump output(Max.) |
100L/min |
Grout pump work pressure |
10MPa |
Deutz F3L912 diesel |
34kw, 2200rpm |
Grout Station Overall dimension |
4130x1850x2500mm |
Grout Station Weight |
2795kg |
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me
