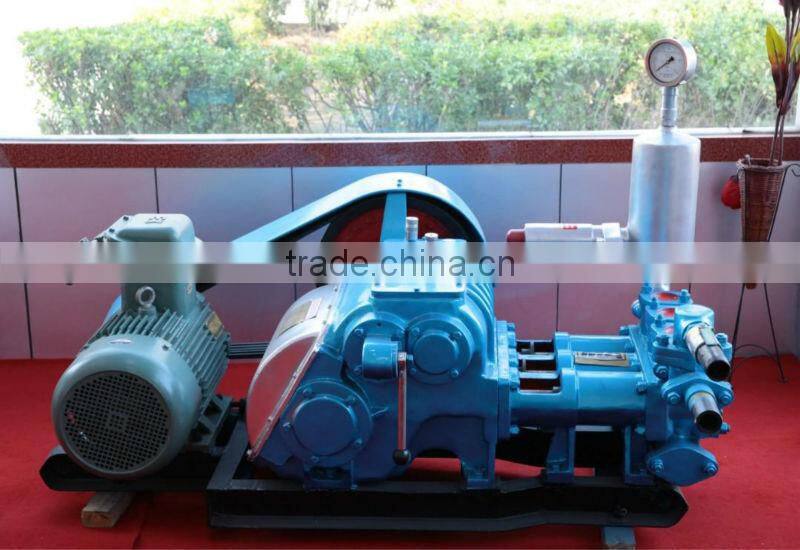

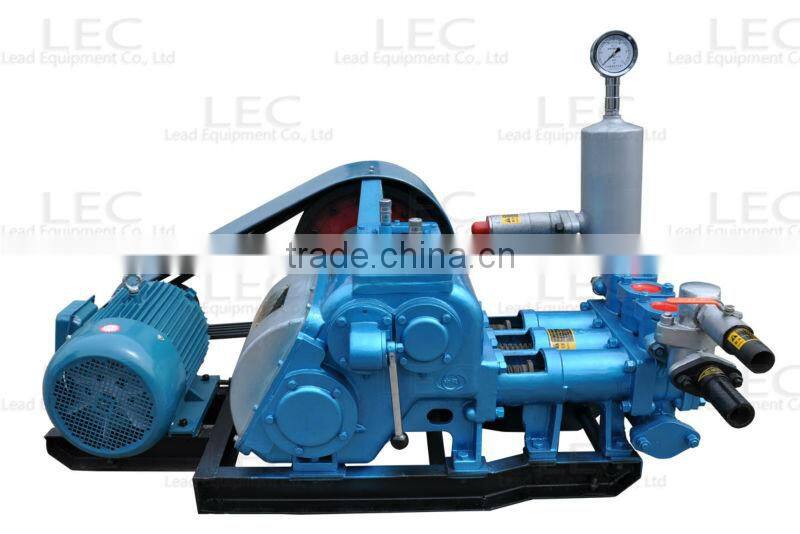

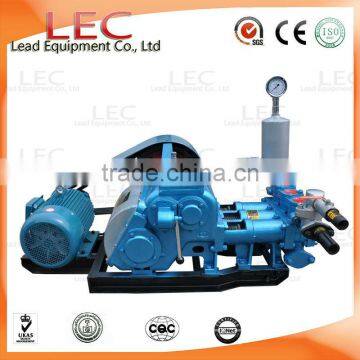

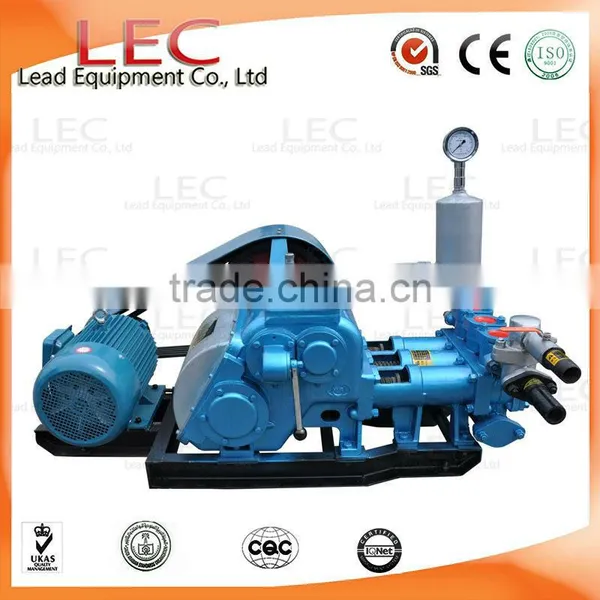

BW250 250L Output 6MPa Mortar Grouting Pump
BW250 triplex slurry pump is horizontal ,tri-cylinder, recipocating triplex-acting piston pump. Could be adjusted into different pressure and flow. Its max pressure can reach as high as 6Mpa (60 Bar).
Explosive Proof Mud Pump
Data Sheet of mortar grouting pump and slurry pump :
Type | 250L Output 6MPa Mine Horizontal Triplex Mud Pump | |||
Stroke | 100mm | |||
Bore | 80 65 mm | |||
Handle position | 1 | 2 | 3 | 4 |
Pump Speed(s.pm) | 200 | 116 | 72 | 42 |
Output volume(l.pm) | 250 | 145 | 90 | 52 |
Discharge pressure(Mpa) | 2.5 | 4.5 | 6 | 6 |
Volumetric efficiency | 85% | |||
Total efficiency | 72% | |||
power | hydraulic motor | |||
Multiple grooved pulley D.P. | B*410mm | |||
Input speed of pump (rpm) | 500r/min | |||
Max. suction head | 2.5m | |||
Inside diameter of suction hose | 76mm | |||
Inside diameter of discharge | 51mm | |||
Weight | 500KG | |||
Overall dimensions(L*W*H) | 1000*1550*1200mm | |||

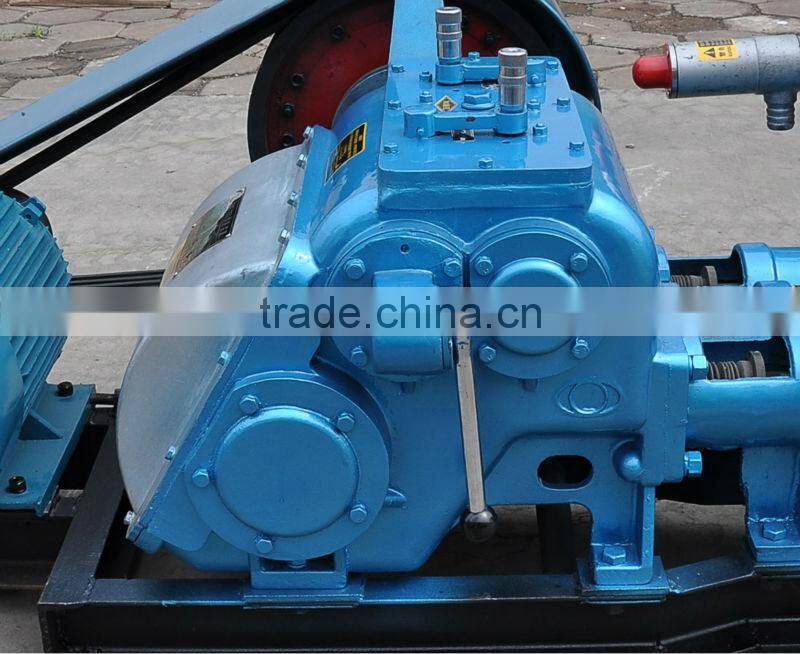

Pump Body of mortar grouting pump and slurry pump :

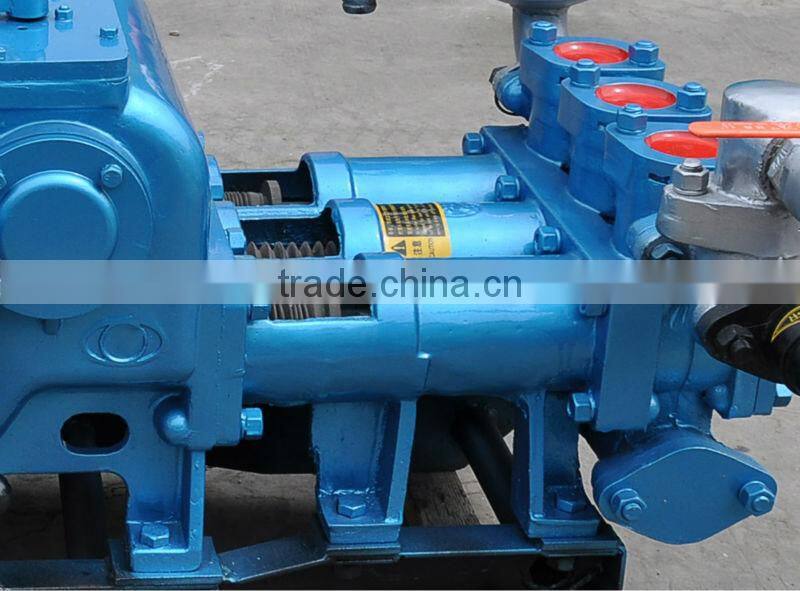

Cylinders of mortar grouting pump and slurry pump

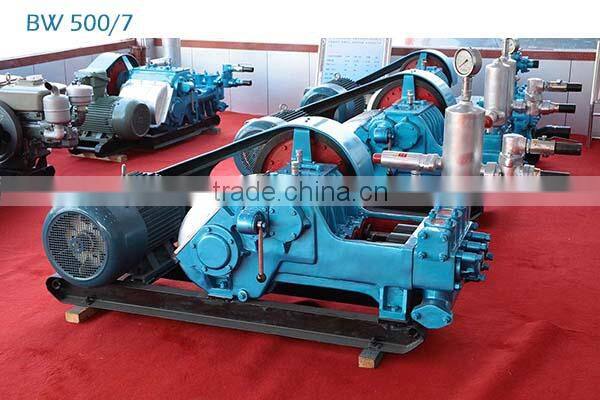

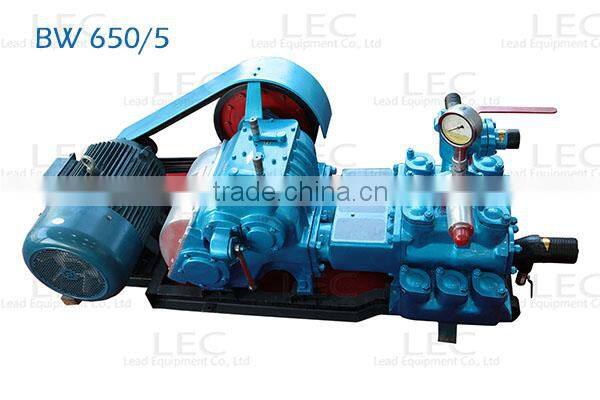

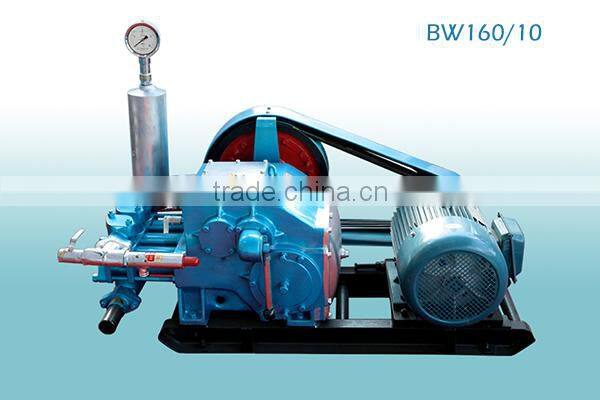

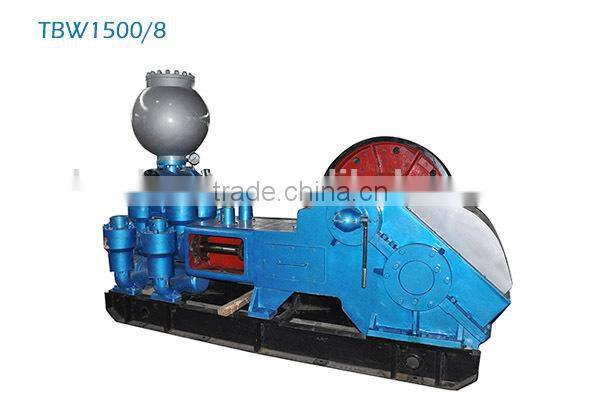

Full Range of Mud Pumps and slurry pump :

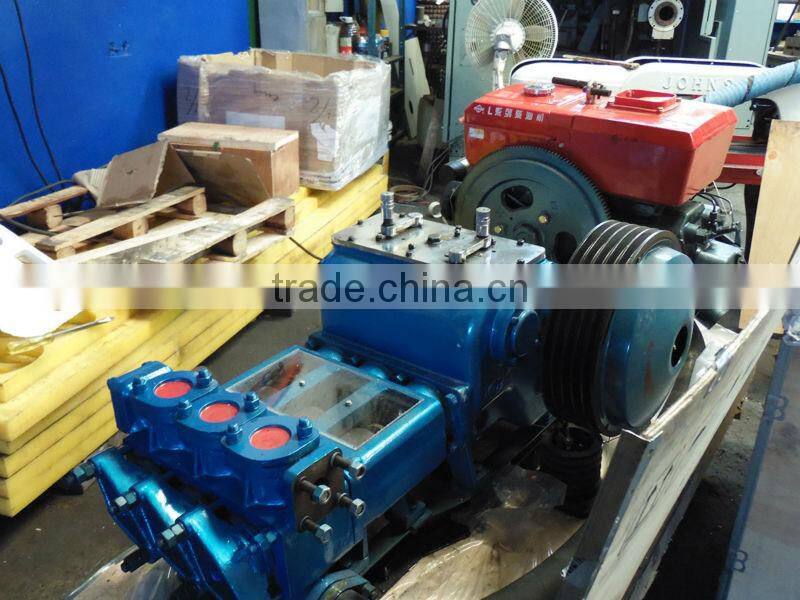

Packaging of mortar grouting pump:
our factory and research ( mortar grouting pump )
mortar grouting pump and slurry pump in application
Certificate of our mortar grouting pump
