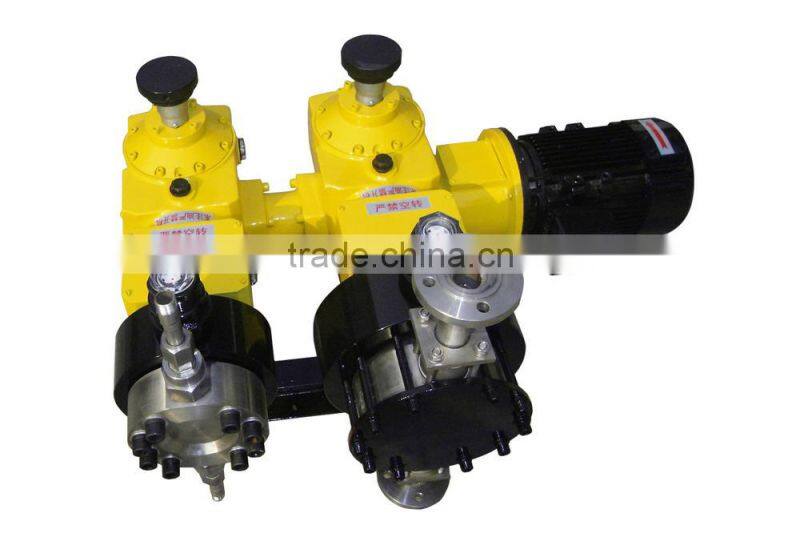

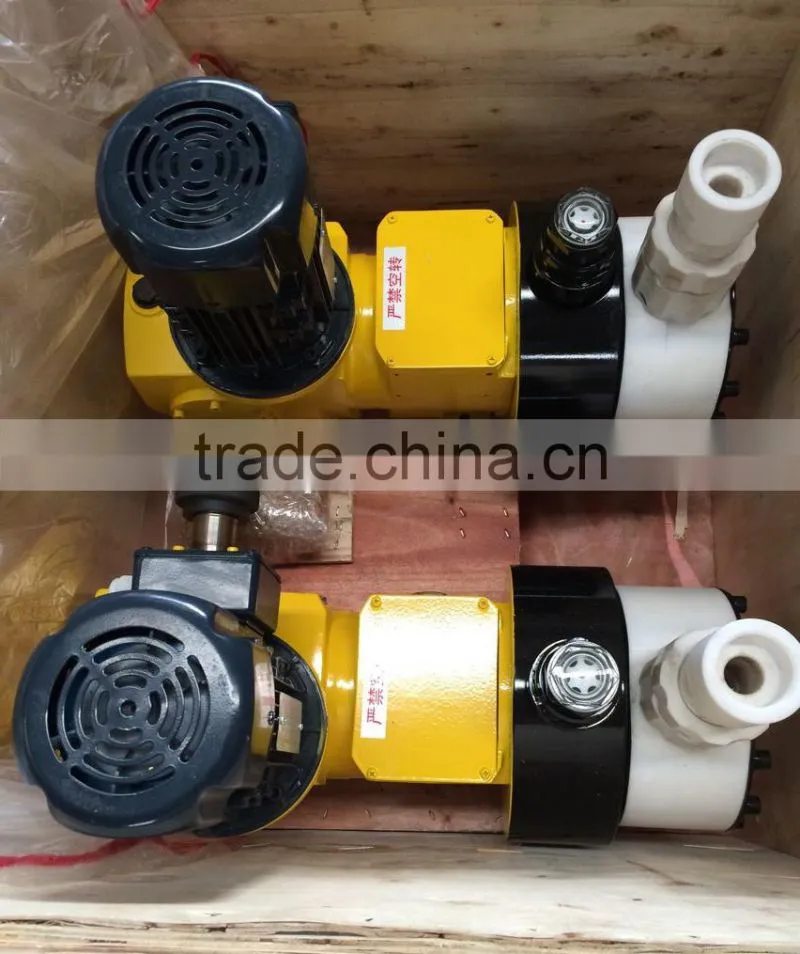

Hydraulical Diaphragm Acid Metering Pump
Dosing pump

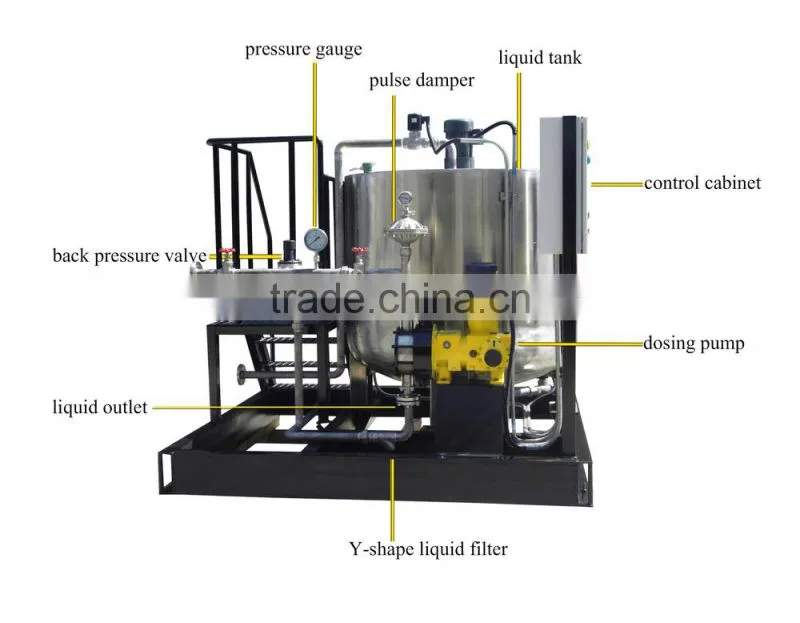

Dosing Pump in Systems
This Hydraulical Diaphragm Fuel Metering Pump
is a special reciprocating displacement pump, of which the discharge can be infinitely regulated between 0 and 100% to feed corrosive and non-corrosive liquid at a certain amount for the purposes of different process flows. It includes piston metering pump, hydraulic diaphragm metering pump. This product complies with GB/T7728-1996 metering pump standard.
J-M series Hydraulical Diaphragm Fuel Metering Pump
are extensively used in such industries and sectors as petroleum, chemical, water treatment, environmental protection, food, light industry, paper-making, pharmacy, dyeing and finishing, metallurgy and mining.
Processing of Hydraulical Diaphragm Acid Metering Pump
Turning Processing

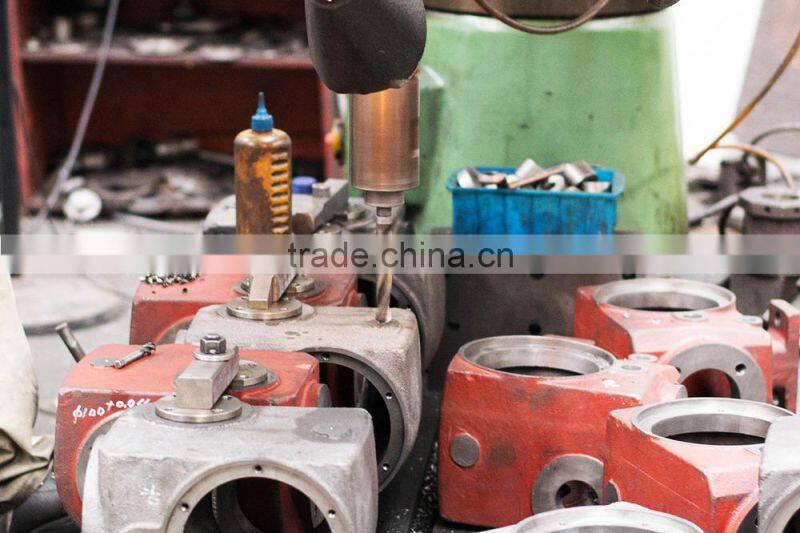

Milling Processing

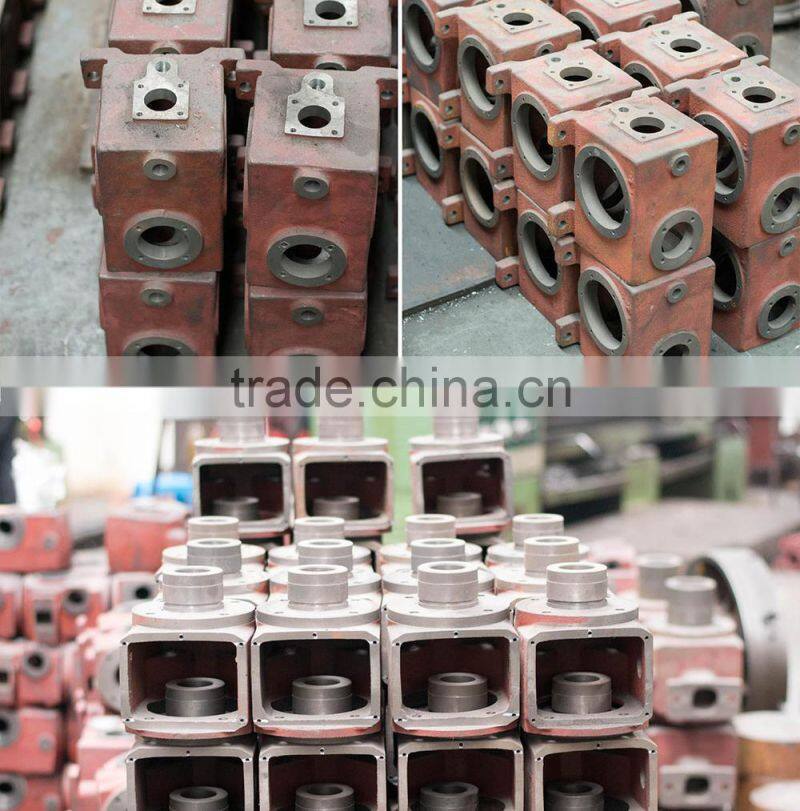

Pump Case of Hydraulical Diaphragm Fuel Metering Pump

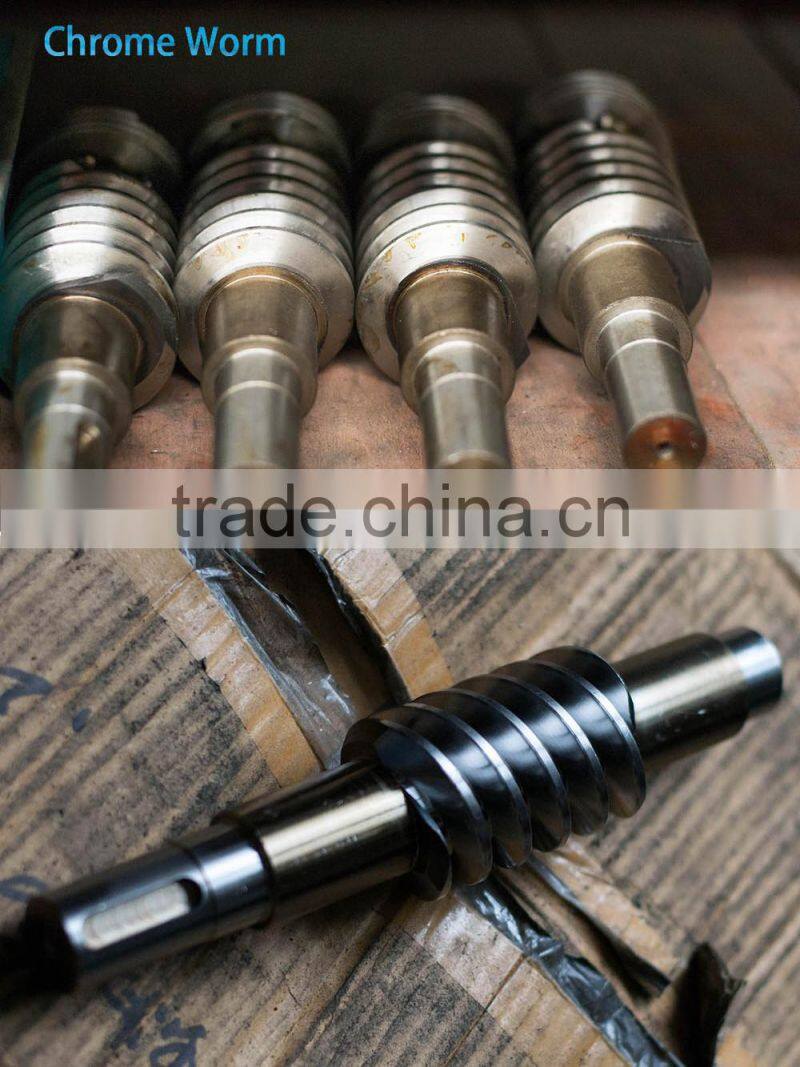

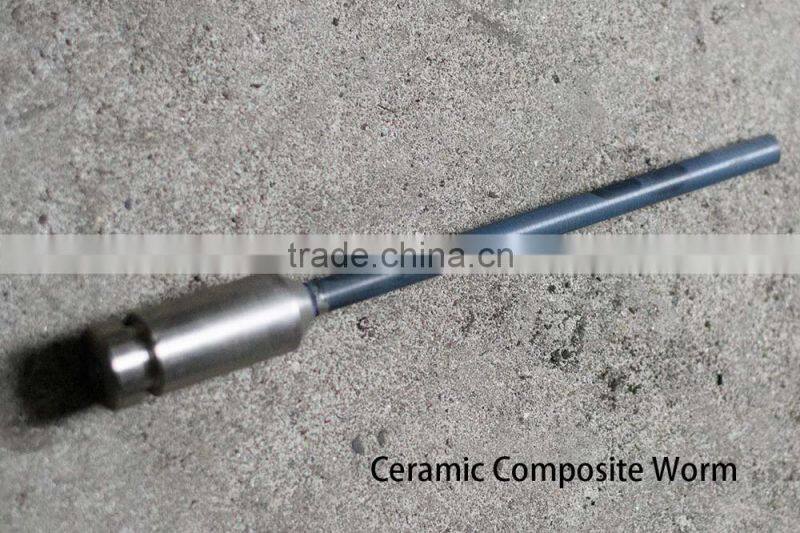

Chrome or ceramic Composite Worm
More resistant to corrosives, wearness and heat! more accurate dosing!

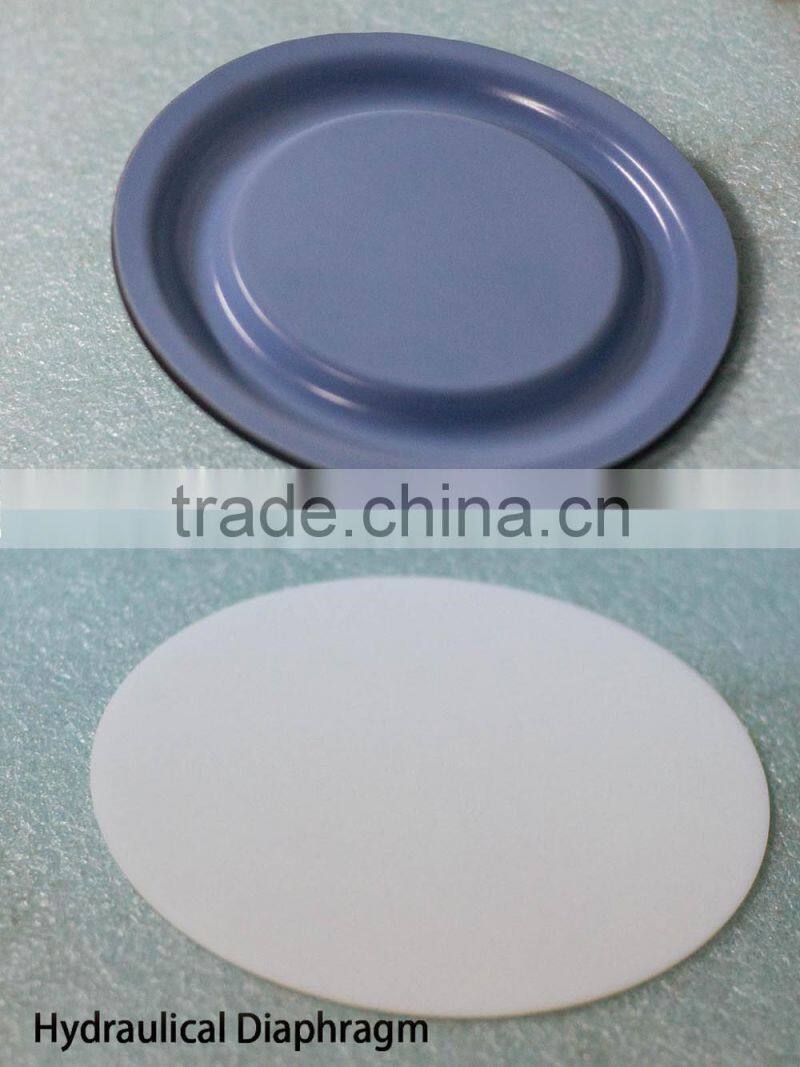

PTFE Diaphragm
Painting

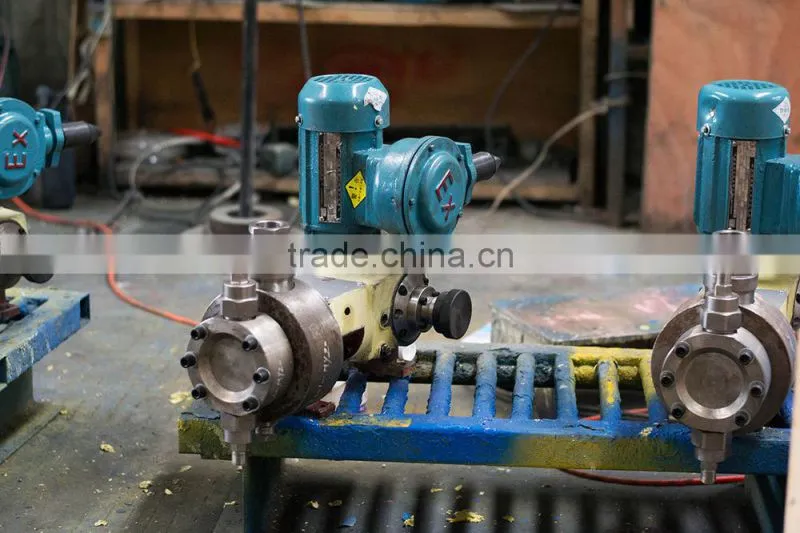

Testing

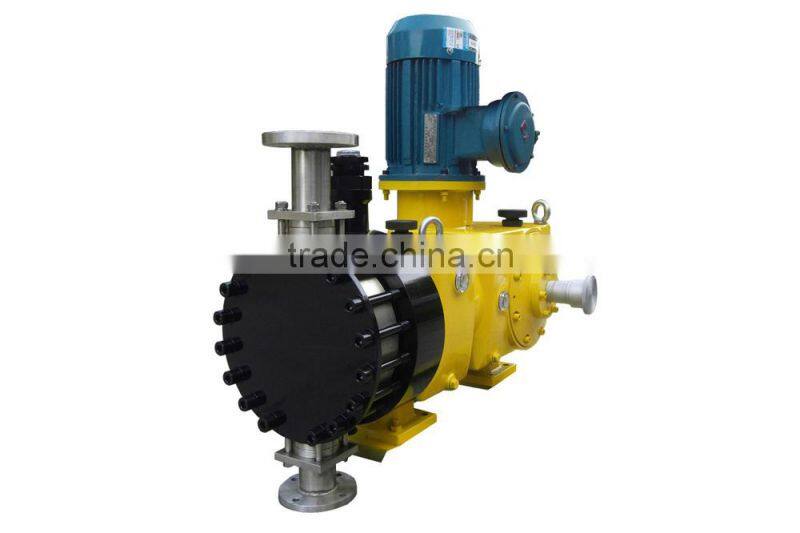

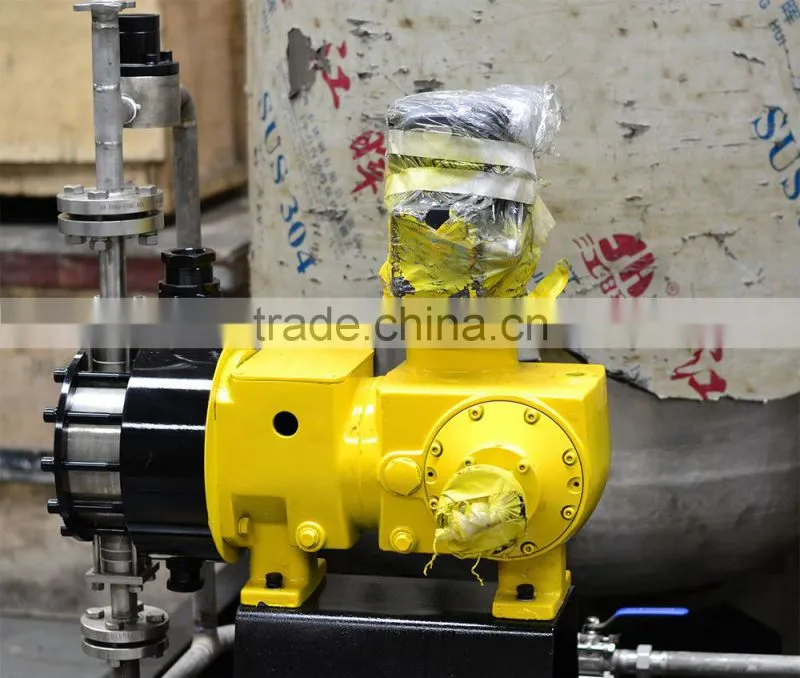

Hydraulical Diaphragm Acid Metering Pump
Features ( Hydraulical Diaphragm Acid Metering Pump )
1.Economy pump with optimal cost performance ratio
2.Simple in construction and easy to repair
3.Driven by eccentric cam gear, compact structure, requiring small room for erection
4.Dip-feed lubrication, requiring periodic replacement of oil only
5.Pushed by double cam ball bearing
6.The discharge is adjustable whether the pump is in operation or not
7.The new Teflon and rubber composite diaphragm is corrosion resistant, has long service life, and is suitable for discharge of various corrosive and hazardous liquid
8.Variety of optional overflowing materials
9.Leak-free, high safety, able to discharge various inflammable, explosive, toxic, radioactive, highly pungent and corrosive liquid
10.High precision one-way non-return valve. Accurate metering, compact conformation, good insulation, long service life, strong interchangeability, low cost, easy installation
Major parameters ( Hydraulical Diaphragm Acid Metering Pump )
1.Rated discharge: 2 - 40000 L/h (0.5 - 10566 GPH)
2.Max. rated pressure: 25 Mpa (3626 PSI)
3.Temperature of medium discharge: -30 – 50°C(100°C for stainless steel)
4.Dielectric viscosity:0.3-800mm2/s
5.Metering accuracy:±1%
Parameter ( fuel metering pump )
J1-M Series
| Model | Flow (L/h) | Max. Pressure (Mpa) |
| Motor 0.18 kW | ||
| J1-M-2/5 | 2 | 5 |
| J1-M-3.2/3.2 | 3.2 | 3.2 |
| J1-M-5/2.0 | 5 | 2 |
| J1-M-8/1.3 | 8 | 1.3 |
| J1-M-14/0.8 | 14 | 0.8 |
| J1-M-10/5 | 10 | 5 |
| J1-M-12.5 | 12.5 | 4 |
| J1-M-16/3.2 | 16 | 3.2 |
| J1-M-20/2.5 | 20 | 2.5 |
| J1-M-25/2 | 25 | 2 |
| J1-M-32/1.6 | 32 | 1.6 |
| J1-M-40/1.3 | 40 | 1.3 |
| J1-M-80/0.63 | 80 | 0.63 |
| J1-M-125/0.4 | 125 | 0.4 |
| J1-M-200/0.25 | 200 | 0.25 |
J2-M Series
| Model | Flow (L/h) | Max. Pressure (Mpa) | ||
| Motor 0.37 kW | Motor 0.55 kW | Motor 0.75 kW | ||
| J2-M-5/16 | 5 | 16 | ||
| J2-M-9/10 | 9 | 10 | ||
| J2-M-18/6.3 | 18 | 6.3 | 16 | |
| J2-M-22/12.5 | 22 | 5 | 12.5 | |
| J2-M-25/4 | 25 | 4 | ||
| J2-M-32/10 | 32 | 4 | 10 | |
| J2-M-50/6.3 | 50 | 2.5 | 6.3 | |
| J2-M-80/4 | 80 | 1.6 | 4 | |
| J2-M-100/3.2 | 100 | 1.3 | 3.2 | |
| J2-M-160/2 | 160 | 0.8 | 2 | |
| J2-M-250/1.3 | 250 | 1.3 | ||
| J2-M-500/0.63 | 500 | 0.63 | ||
| J2-M-800/0.4 | 800 | 0.4 | ||
| J2-M-1000/0.32 | 1000 | 0.32 | ||
J3-M Series
| Model | Flow (L/h) | Max. Pressure (Mpa) | |
| Motor 1.1 kW | Motor 1.5 kW | ||
| J3-M-22/20 | 22 | 12.5 | 20 |
| J3-M-28/20 | 28 | 10 | 20 |
| J3-M-63/12 | 63 | 5 | 12.5 |
| J3-M-80/10 | 80 | 4 | 10 |
| J3-M-100/8 | 100 | 3.2 | 8 |
| J3-M-125/6.3 | 125 | 2.5 | 6.3 |
| J3-M-160/5 | 160 | 2 | 5 |
| J3-M-200/4 | 200 | 1.6 | 4 |
| J3-M-400/2 | 400 | 0.8 | 2 |
| J3-M-500/1.6 | 500 | 0.63 | 1.6 |
| J3-M-800/1 | 800 | 0.4 | 1 |
| J3-M-1000/0.8 | 1000 | 0.32 | 0.8 |
| J3-M-1600/0.5 | 1600 | 0.25 | 0.63 |
| J3-M-2000/0.4 | 2000 | 0.4 | |
J4-M Series
| Model | Flow (L/h) | Max. Pressure (Mpa) | |
| Motor 1.5 kW | Motor 2.2 kW | ||
| J4-M-70/20 | 70 | 10 | 20 |
| J4-M-90/16 | 90 | 8 | 16 |
| J4-M-120/10 | 120 | 6.3 | 12.5 |
| J4-M-150/10 | 150 | 5 | 10 |
| J4-M-200/8 | 200 | 4 | 8 |
| J4-M-250/6.3 | 250 | 3.2 | 6.3 |
| J4-M-320/5 | 320 | 2.5 | 5 |
| J4-M-400/4 | 400 | 2 | 4 |
| J4-M-500/3.2 | 500 | 1.6 | 3.2 |
| J4-M-630/2.5 | 630 | 1.25 | 2.5 |
| J4-M-800/2 | 800 | 1 | 2 |
| J4-M-1000/1.6 | 1000 | 0.8 | 1.6 |
| J4-M-1250/1.25 | 1250 | 0.63 | 1.25 |
| J4-M-1600/1 | 1600 | 0.5 | 1 |
| J4-M-2000/0.8 | 2000 | 0.4 | 0.8 |
| J4-M-2500/0.63 | 2500 | 0.32 | 0.63 |
| J4-M-3200/0.5 | 0.5 | ||
| J4-M-4000/0.4 | 0.4 | ||
J5-M Series
| Model | Flow (L/h) | Max. Pressure (Mpa) | |
| Motor 5.5 kW | Motor 7.5 kW | ||
| J5-M-170/20 | 170 | 16 | 20 |
| J5-M-220/20 | 220 | 12.5 | 20 |
| J5-M-300/20 | 300 | 10 | 20 |
| J5-M-380/20 | 380 | 8 | 20 |
| J5-M-500/16 | 500 | 6.3 | 16 |
| J5-M-630/12.5 | 630 | 5 | 12.5 |
| J5-M-800/10 | 800 | 4 | 10 |
| J5-M-1000/8 | 1000 | 3.2 | 8 |
| J5-M-1250/6.3 | 1250 | 2.5 | 6.3 |
| J5-M-1600/5 | 1600 | 2 | 5 |
| J5-M-2000/4 | 2000 | 1.6 | 4 |
| J5-M-2500 | 2500 | 1.25 | 3.2 |
| J5-M-3200 | 3200 | 1 | 2.5 |
| J5-M-4000/2 | 4000 | 0.8 | 2 |
| J5-M-5000/1.6 | 5000 | 0.63 | 1.6 |
| J5-M-6300/1.25 | 6300 | 0.5 | 1.25 |
J6-M Series
| Model | Flow (L/h) | Max. Pressure (Mpa) | |
| Motor 11 kW | Motor 18.5 kW | ||
| J6-M-620/20 | 620 | 16 | 25 |
| J6-M-780/20 | 780 | 12.5 | 20 |
| J6-M-1000/16 | 1000 | 10 | 16 |
| J6-M-1250/12.5 | 1250 | 8 | 12.5 |
| J6-M-1600/10 | 1600 | 6.3 | 10 |
| J6-M-2000/8 | 2000 | 5 | 8 |
| J6-M-2500/6.3 | 2500 | 4 | 6.3 |
| J6-M-3200/5 | 3200 | 3.2 | 5 |
| J6-M-4000/4 | 4000 | 2.5 | 4 |
| J6-M-5000/3.2 | 5000 | 2 | 3.2 |
| J6-M-6300/2.5 | 6300 | 1.6 | 2.5 |
| J6-M-8000/2 | 8000 | 1.25 | 2 |
| J6-M-10000/1.6 | 10000 | 1 | 1.6 |
| J6-M-12500/1.25 | 12500 | 0.8 | 1.25 |
| J6-M-16000/1 | 16000 | 0.6 | 1 |
J7-M Series
| Model | Flow (L/h) | Max. Pressure (Mpa) | |
| Motor 18.5 kW | Motor 30 kW | ||
| J7-M-1600/20 | 1600 | 16 | 20 |
| J7-M-2000/20 | 2000 | 12.5 | 20 |
| J7-M-2500/16 | 2500 | 10 | 16 |
| J7-M-3200/12.5 | 3200 | 8 | 12.5 |
| J7-M-4000/10 | 4000 | 6.3 | 10 |
| J7-M-5000/8 | 5000 | 5 | 8 |
| J7-M-8000/5 | 8000 | 3.2 | 5 |
| J7-M-10000/4 | 10000 | 2.5 | 4 |
| J7-M-12500/3.2 | 12500 | 2 | 3.2 |
| J7-M-16000/2.5 | 16000 | 1.6 | 2.5 |
| J7-M-20000/2 | 20000 | 1.25 | 2 |
| J7-M-25000/1.6 | 25000 | 1 | 1.6 |
| J7-M-32000/1.25 | 32000 | 0.8 | 1.25 |
| J7-M-40000/1 | 40000 | 0.63 | 1 |
Our Certification ( Hydraulical Diaphragm Acid Metering Pump )
Glad to have your inquiry for our acid metering pump , you are welcome to provide information about flow and pressure. Thank you.
