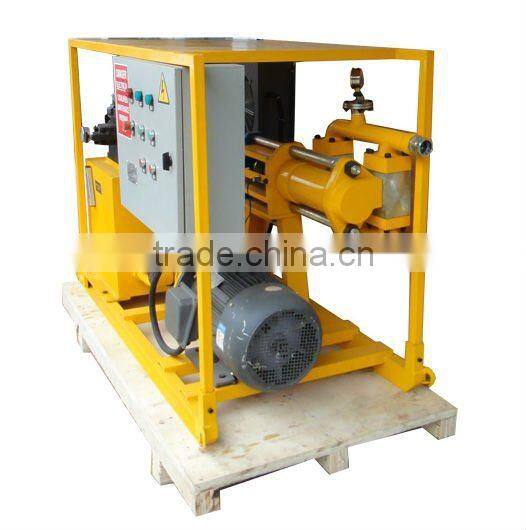

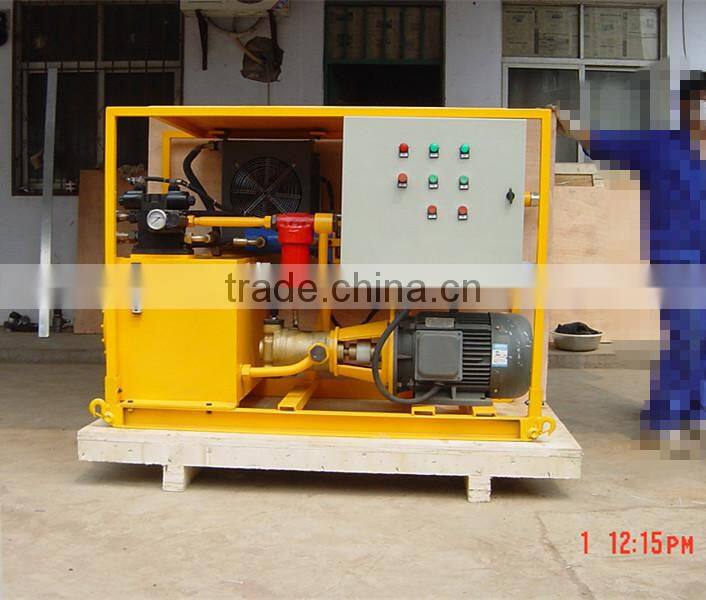

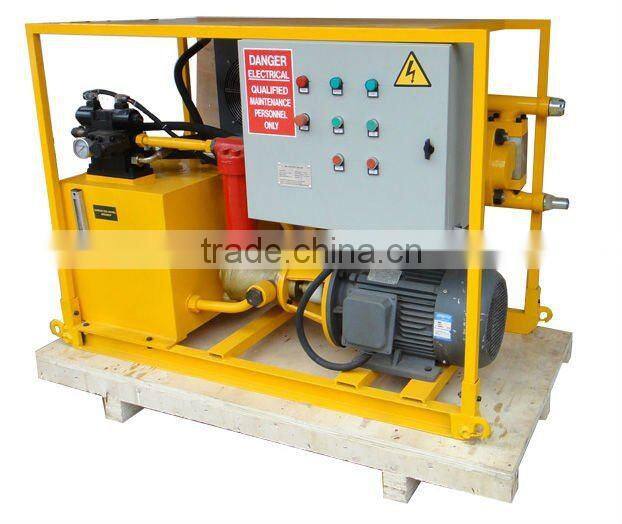

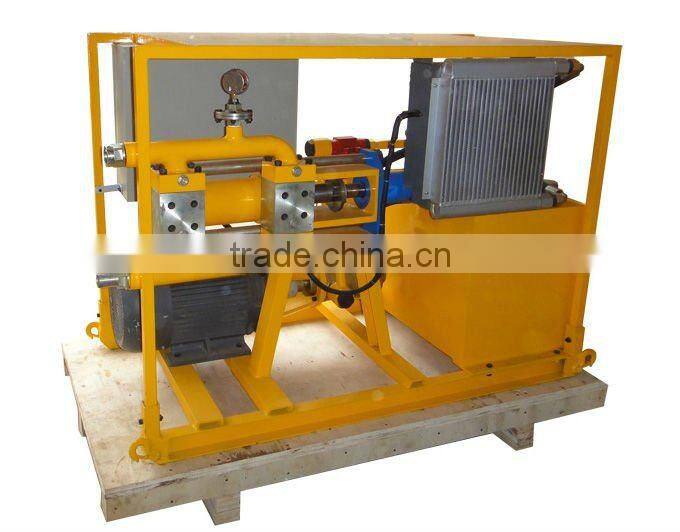

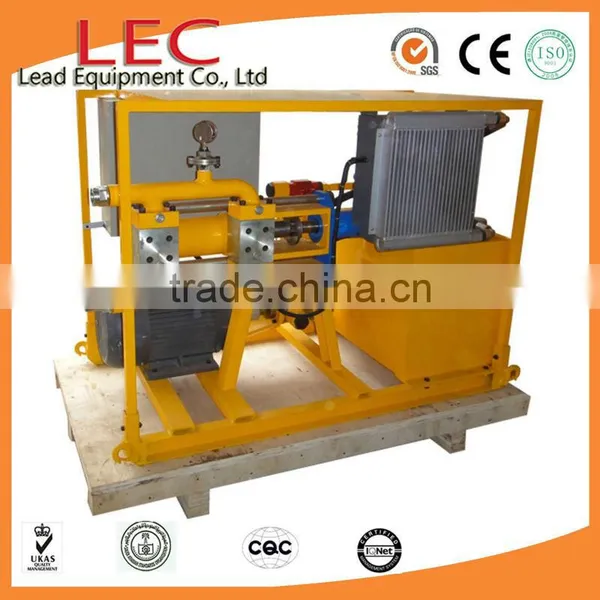

LGH70/90 China 100 bar high pressure slurry jet grouting machine
Application of jet grouting machine
LEC Hydraulic drive grouting pump are a universal high-pressure grouting pump and is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
Feature of jet grouting machine:
1.Single piston with double-acting.
2.Hydraulic drive
3.Compact structure
4.Ball valve
Technical data of jet grouting machine:
Specification: | ||
Item | LGH70 | LGH90 |
Rated Output | 0-70 L/Min | 0-100 L/Min |
Rated Pressure | 10MPa(1450PSI) | 10MPa(1450PSI) |
Cylinder Dia. | 110mm | 110mm |
Stroke/Minute | 31 | 45 |
Inlet Dia. | 38mm | 38mm |
Outlet Dia. | 32mm | 32mm |
Power Unit | 7.5kW | 11kW |
Transmission | Hydraulic drive | Hydraulic drive |
Chassis | Skid | Skid |
Weight | 450Kg | 580Kg |
Overall Dimension | 1505x770x1110mm | 1505x770x1110mm |
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre | ||

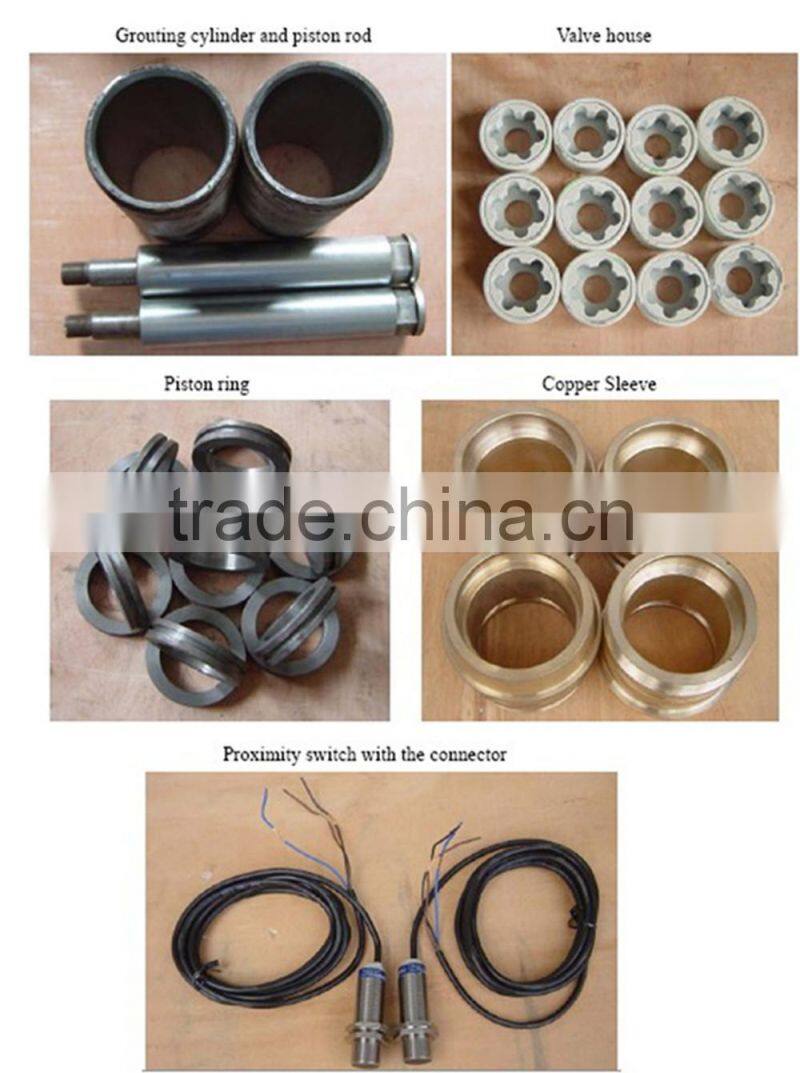

| A COMPLETE SET OF LGH70/90 Jet grouting machine | ||||
| No. | Description | Qty. | Unit | Remarks |
| 1 | Jet grouting machine LGH70/90 main unit with cooling system. | 1 | set | 11kw motor(Siemens),electric control(Schneider) |
| 2 | Conveying Hose, ID38mm, 33ft.Length/ID38 | 1 | pc | |
| 3 | Yx seal ring d60 | 5 | pc | |
| 4 | O-ring 135x5.7 | 5 | pc | |
| 5 | Yx seal ring D110 | 5 | pc | |
| 6 | O-ring 100x5.3 | 5 | pc | |
| 7 | O-ring 31.5x3.55 | 5 | pc | |
| 8 | O-ring 71x5.3 | 5 | pc | |
| 9 | valve ball SR17.5 | 4 | pc | |
| 10 | O-ring 75x5.3 | 5 | pc | |
| 11 | O-ring 45x2.65 | 5 | pc | |
| 12 | Quick Coupling | 2 | pc | |
| 13 | Accessories and tools kit | 1 | set | |
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
