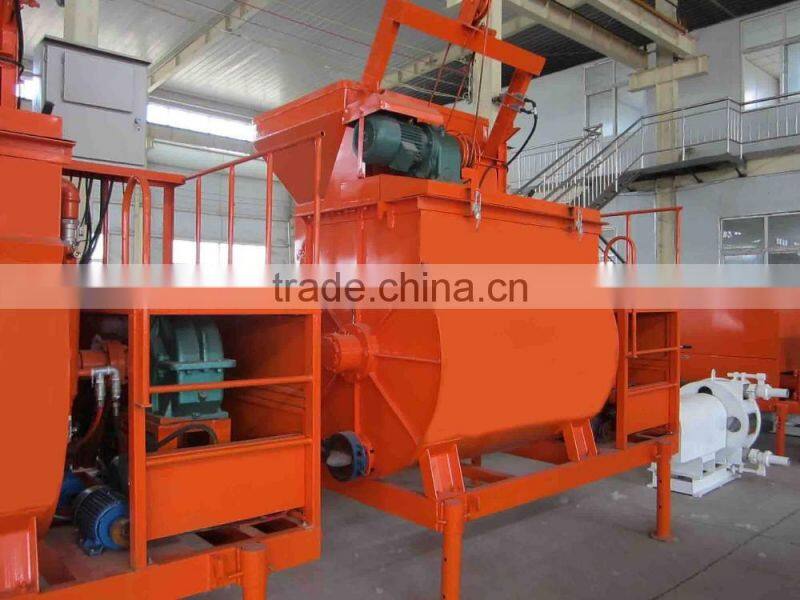

GF5 light weight foam concrete machine

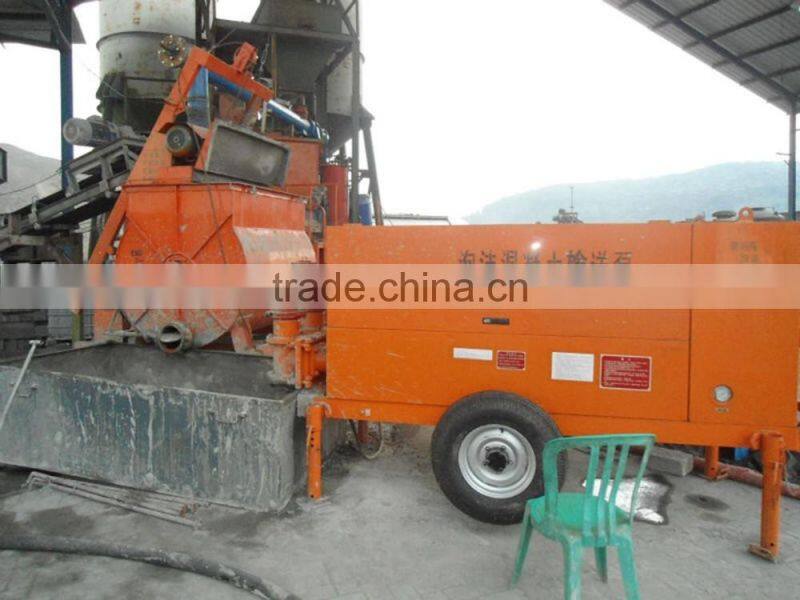

GF5 foam concrete machine is our most hot sale unit, it includes a GM1000 mixer machine and a GH50 foam concrete pump.
Brief Instruction:
Foamed concrete is a lightweight concrete derived from portland cement and common portland cement as inorganic cementing material, coal ash as admixture, sand as aggregate, mixed with organic foaming agent. Non-load-bearing walls constructed by cast-in-situ GF foamed concrete has changed the traditional way of building walls with precast concrete segments. The excellent integrity and easy operation means low labour intensity and low building cost. Besides, good strength characteristics with reduced eight, excellent sound and thermal insulation, and water proof, etc., all these performances make it an ideal substitute of present traditional walls.
Working Principle:
Cement foam machine put cement and water into a slurry mixing and then mix them in a certain proportion, press them into transmission pipelines through hydraulic cylinder; According to a certain proportion foam mixed with water and then mixed with compressed air by the high-pressure pump; In the pipeline it form the high-density foam and meticulous, at last form the foam cement with the slurry in the pipeline.

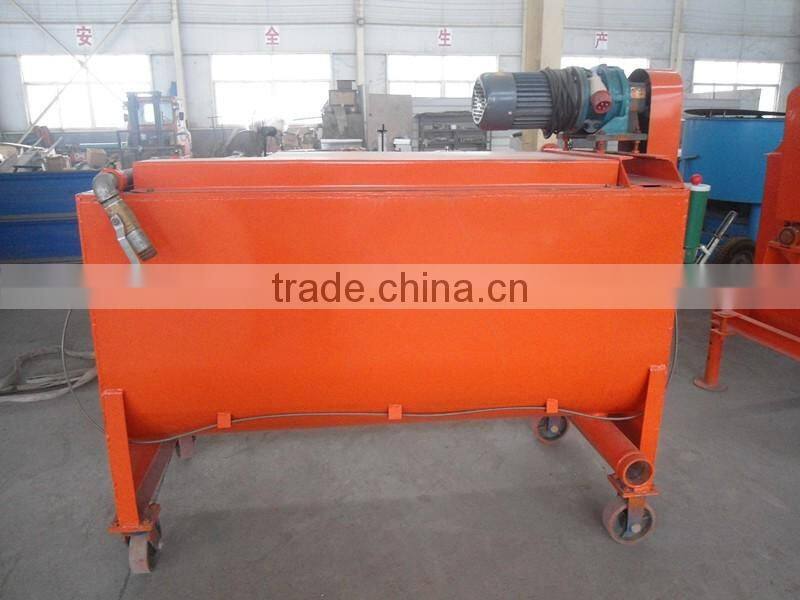

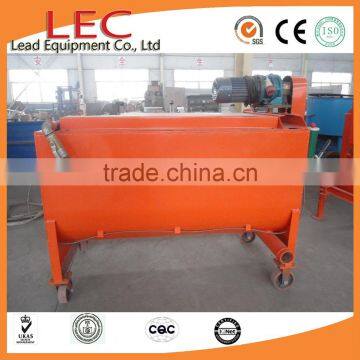

GM1000 foam concrete mixer

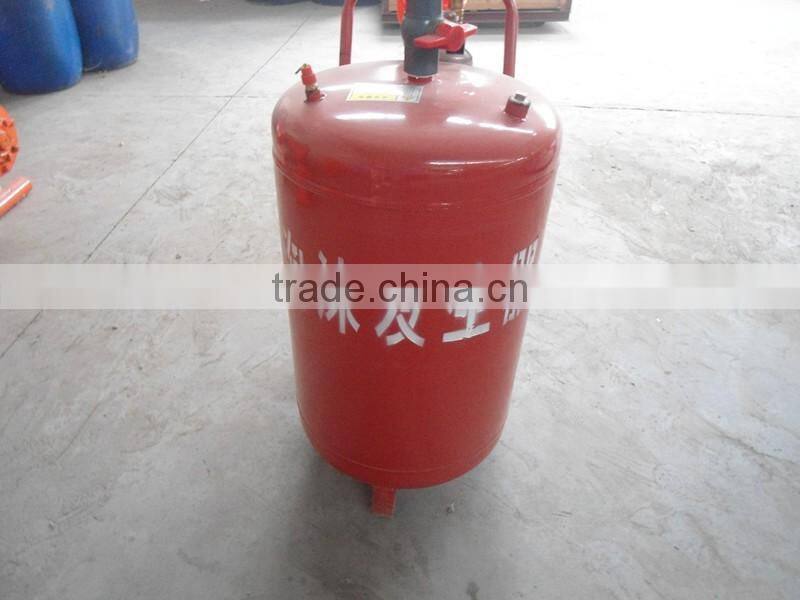

The foam concrete mixer mainly includes mixer, feeder hopper, Foam generator, water pump, control panel, tank.
Features:
1. It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.
2. Specially mixing blades, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.
3. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy.
Main technical data sheet:
Model |
GM1000 |
Max.Output |
5 m3/h |
Material input volume |
1000L |
Mixing speed |
6-8min/batch |
Mixer motor power |
1.5kw |

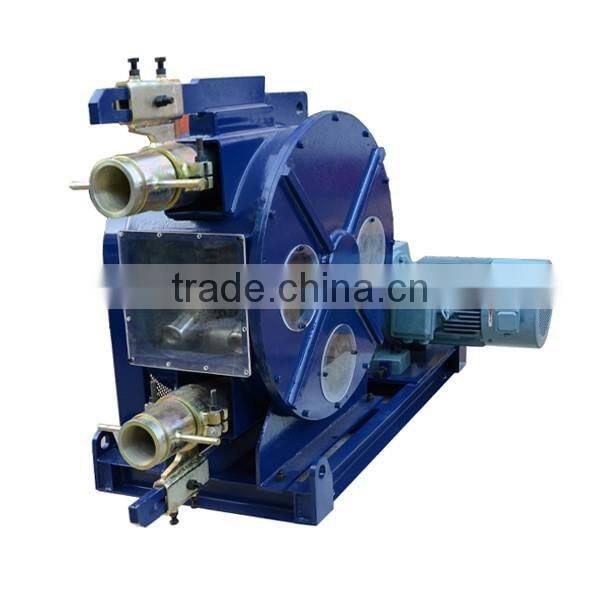

GH50 foam concrete pump
Features:
1. No valves
2. Self-priming
3. Only tube to replace
4. Spiral bevel gear SEW series
(Cycloidal pinwheel reducer gear box for option)
5. Mainly consists pump house, rotor, idel rotor, squeeze tube, and driving unit
6. Easy maintance, low cost, short down time
Technical data
Model |
GH50 |
Max.Output |
8-10 m3/h |
Max.Conveying Pressure |
2 MPa |
Max.Horizontal Transporting Range |
30 m |
Max. Vertical Transporting Height |
100 m |
Max. Particle Size of Aggregates |
10-15 mm |
Motor power |
7.5kw |
Squeeze hose brand |
Trelleborg |
The Foam concrete’s other application
1. External wall thermal insulation
2. Thermal insulation roofing
3. Thermal flooring
4. Upstandingbeam foundation ditches filling
5. Sound insulation and fire protection walls
6. Playground and track construction
7. Sound insulation layer, tunnel lining filling
8. Cellar, basement and arch filling
9. Sewers and Drains filling
10. Horizontal floor heightening
11. Water tank and fuel tank building
12. Platform filling and mending
13. Garden and rockeries
14. Foam concrete block
15. Foamed concrete precasting ,hollow wallboard casting
We can also supply other models with different capacity. Our excellent quality, competitive price, good service, better work attitude, to provide you with tailored one-stop service, welcome to discuss cooperation!
