Cast-in-situ Foam Concrete Machine
Construction Equipment for Cast-in-situ High Quality Automatic Foam Concrete Machine
Brief introduction:
Foamed concrete is a lightweight concrete derived from portland cement and common portland cement as inorganic cementing material, coal ash as admixture, sand as aggregate, mixed with organic foaming agent. This foam concrete machine has main machine, mixer, pump and transporter. The main machine has self-foaming system, self-mixing system and high pressure pumping transport system. Foam concrete is a unique product which has the strength of the cement and yet lightweight . It has long durability. It is economically cheap and environmental friendly product.
Specifications:

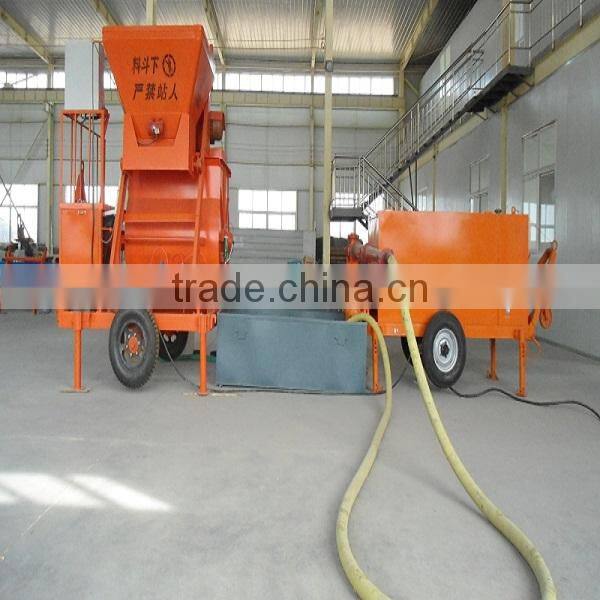

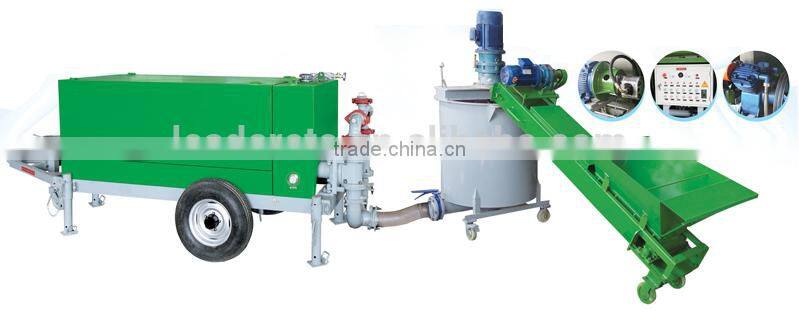

Foam concrete Machine
1. Movable type
2. ISO9001 CE
3. Warranty 1year
4. Used for light concrete block
Foam concrete Machine Features:
*Low Cost *Light Weight
*Heat Preservation *Sound Insulation
*Fireproofing *Aseismatic
*High Construction Speed *Environmental Protection
Data of Lead's Foam Concrete Mixer LD-30:
Model |
LD-30 |
Production Capacity |
15-20 m³/h |
Output Volume |
1500 L |
Material Input Volume |
2000 L |
Main Shaft Revolution |
32 r/min |
Hopper Lifting speed |
22 m/min |
Mixing Motor |
11 kW |
Winding Motor |
5.5 kW |
Water Pump Motor |
1.1 kW |
Vibrating Motor |
0.55 kW |
Foaming System |
5.5 kW |
Max. Moving Speed |
15 km/h |
Total Weight |
3200 kg |
Overall Dimension |
2600x2250x3000 mm |
Data of Foam Concrete Pump LD-30:
Model |
LD-30 |
Max. Output |
30 m³/h |
Max. Conveying Pressure |
8 MPa |
Max. Horizontal Transporting Range |
600 m |
Max. Vertical Transporting Height |
200 m |
Max. Particle Size of Aggregates |
8 mm |
Cylinder Bore |
80 mm |
Delivery Cylinder Bore |
140 mm |
Max. Pressure of Hydraulic System |
24 MPa |
Oil Pressure Box Volume |
200 L |
Motor Power |
30 kW |
Total Weight |
2200 kg |
Overall Dimension |
3100x920 x1300 mm |

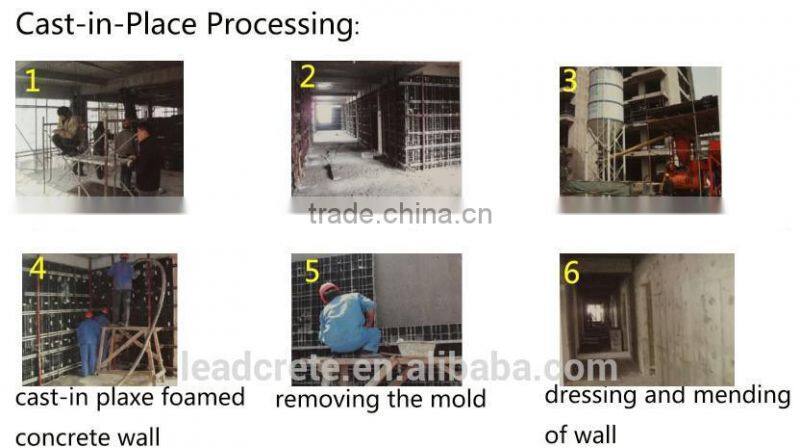

The specific production process of foam concrete machine:
1. Feeding and blend: The quantitative cement, foam agent, steady bubble enhancer is added intothe mixer, through feeding system will be quantitative strengthening agent, foaming agent, stabilizing bubble cement mixer with 30 seconds by dry blend.
2. Mixing: quantitative warm water be added into the mixer with 2 minutes by wet mixing; The quantitative foaming agent be added into the mixer with 8 to 15 seconds mixing.
3. Injection molding and foaming: this material be placed into the mould immediately to foaming with 3-5 minutes.
4. Preliminary maintenance: this process is done by several standing after injection moulding.
5. Demoulding: the foam concrete board can be demould is after initial set, which have the initialstrength.
6. Cutting: this foamed concrete board blank owning a certain intensity can be cut after demoulding, and the cutting specifications can be adjusted according to the need by the cutting blade;
7. Finish product maintenance: the curing time of foam concrete board should have no less than 7 days.
1 |
Make lightweight foam concrete blocks |
2 |
Building material for highrises |
3 |
Air-conditioned buildings |
4 |
Low cost housing |
5 |
Precast wall panels |
6 |

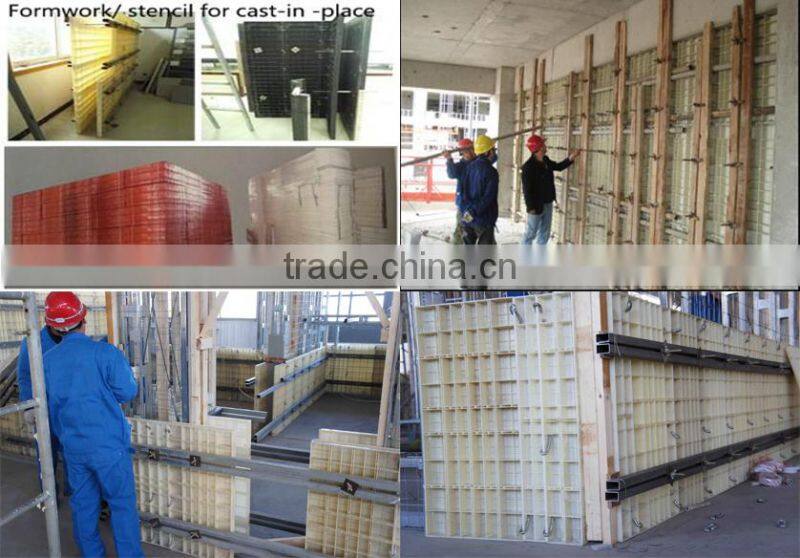

Cast wall in construction site |
7 |
Roofing insulation and flooring insulation |
8 |
Gap filling |
9 |
Road base |
10 |
Subways |

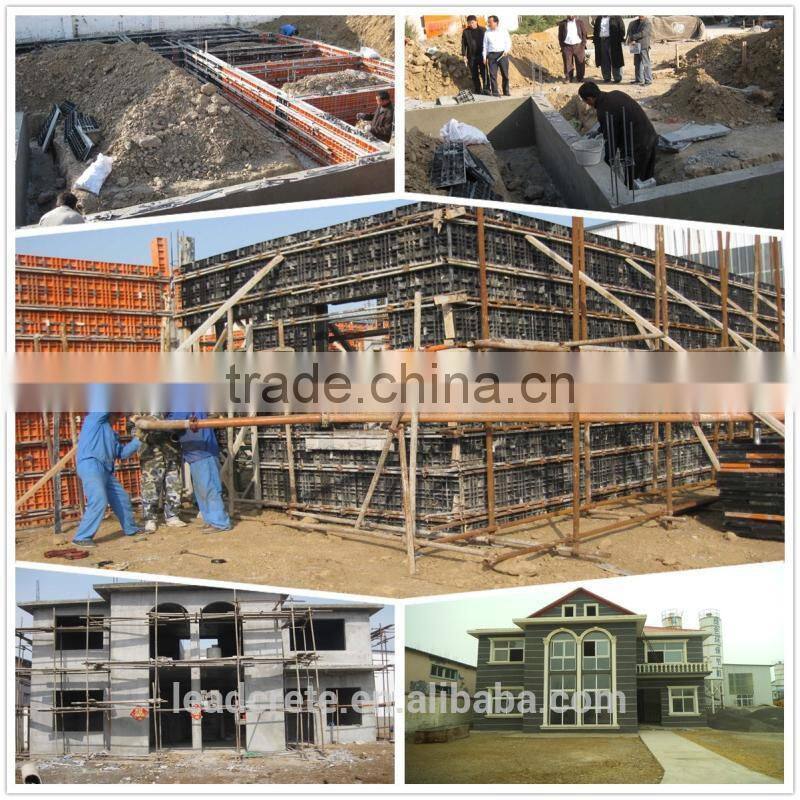

The worksite:
- Light in Weight : foam concrete blocks are very lightweight with density ranging from 300 to 1600 Kg/m3. Three times less weight then clay or fly ash brocks.
- Eco friendly : foam concrete blocks are Environment-friendly. Foam concrete is eco- friendly material as fly ash and other industrial waste material are used in part of manufacturing blocks to protect the environment. The production process of foam concrete or its use does not release any harmful effluents to ground, water or air. Foam concrete, due to its low weight is ideal for making partitions. The use of foam concrete for this purpose will reduce the need for plywood partitions. This consequently will result in reduction in deforestation and will benefit environment.
- Sound Insulation : Foam concrete Blocks are excellent for Sound insulation which keeps the house cool in Summer and warm in Winter saving energy/electricity for cooling and heating. It is possible to achieve even higher values depending upon the thickness of block.
- Thermal Insulation : Thermal insulations as a 100mm thick foam concrete wall, the equivalent thickness of dense concrete wall would have to be more than 5 times thicker and ten times heavier.
- Lower Water Absorption : The water absorption of this material in relatively lower than any other materials. This compares much better than concrete 50% and ordinary brick, which has water absorption of around 50% to 80%. The low water absorption property of these blocks will help to reduce the cracks in the walls.
- Fire Protection : Foam concrete blocks offers grate fire protection. With a just 100mm thickness of wall with density of 1000 kg/m3, offers fire endurance for heat transmission for 4 hours without releasing any oxic fumes during the fire. Fire rating of cellular concrete is far superior to that of brickwork or dense concrete.
- Easy to Handling : Foam concrete blocks are easy and quick to install, thus minimizing construction costs. They require no minimal maintenance, which reduces long- term costs. Foam concrete blocks are saving in cement, sand, water, labour, energy and time.
It usually shipped by a 40'' container:
concrete mixer (2600*2250*3000mm, Net weight 3200kg);
concrete pump (3100*920*1300mm, Net weight 2200kg).
To provide a world best quality of product and service with 100% customer focused. We strive always for honesty and best quality of products and devote ourself to become a foremost seller in foam concrete products, as well as to provide customer focused products on time with integrity.
Thank you for your arriving, for getting offer please contact with us freely.
