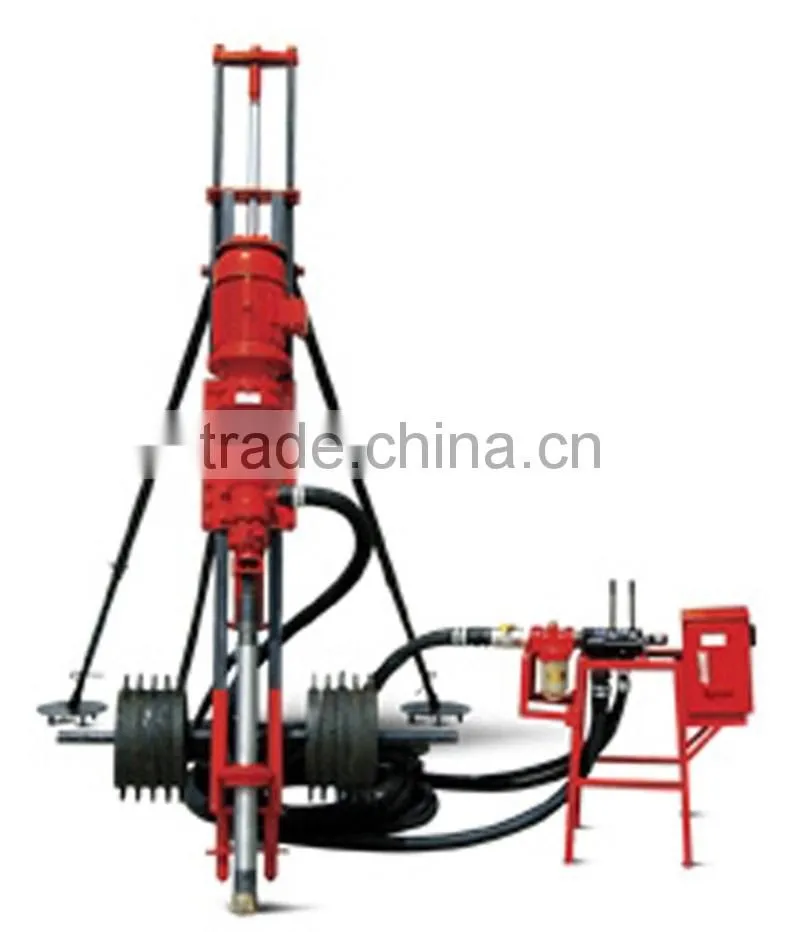

Electric portable borehole drilling rig DTH drilling machine
LD70 gold drilling equipment has simple structure, easy operation, low price, energy saving,and can also drill vertical and horizontal blast hole, especially it has low center of gravity and detachability is good, so movement and transportation are convenient.
Working Principle
LD70 electric drilling rig is the equipment that converts the electric energy andcompressed air into mechanical energy to break rock. After electrify, the drilling tool isdriven by the torque produced by cycloidal reducer through the intake seat. Compressedair are divided into two way after going through oil mist device and pneumatic valve: oneway enters into the cavity of promoting cylinder, which produces an axial force drives thedrilling tool to promote or elevate through the cylinder piston and guide rod; the other wayenters into the impactor through the intake seat, so as to achieve impact drilling
Technical Sheet of rock drilling machine:
Type |
LD70 Electric drilling rig |
Dia. of hole |
60-80mm |
Drilling depth |
15-25m |
Rotating speed |
0-125rpm |
Working pressure |
0.5-0.7Mpa |
Rod diameter-length |
40*1000mm |
Air consumption |
≥ 3.5 m³/min |
Lift power |
3600N |
Motor power |
3kw |
Overall demension |
2300*500*600mm |
Weight |
350Kg |
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD29000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Any questions,please feel free to contact me.
