Excellent Performance Automatic Concrete Brick Making Machine

   Excellent performance automatic concrete brick making machine

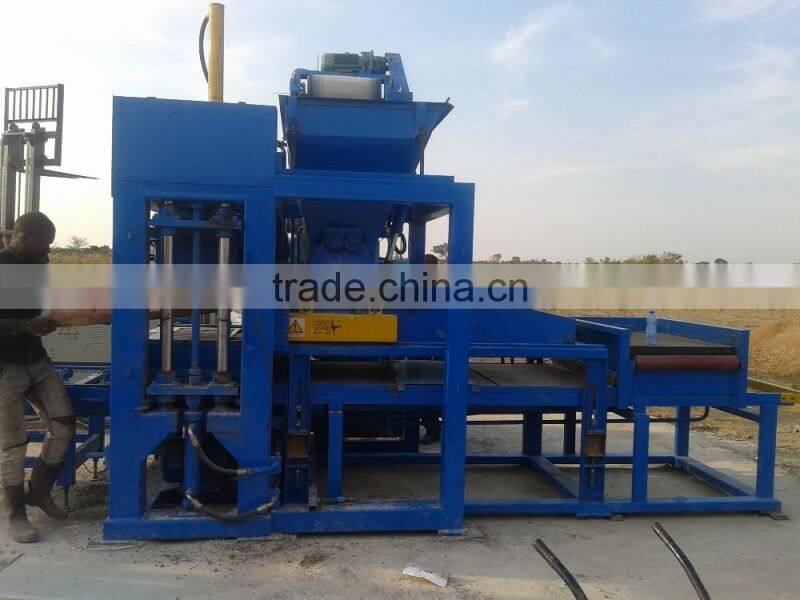

LQT5-15 Automatic block making machine with different types of moulds is used to make concrete pavement brick, hollow block, solid brick, interlocking   brick etc. It can be described as a machine to meet various needs of differentcustomers from companies or individual.

 Rawmaterial:Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Main Features

1. Way of moulding is vibration combined with hydraulic pressure. So blocks have good strength and density. The machine can produce hollow block, solid block, paving block by changing mould.

2. The way of concrete feeding into mould is compulsive by three shafts with blade. It is quick speed and well distributed. The vibration is oil immersed to have a good lubrication.

3. Only two vibration motors is always working, other motor works fitfully. So it is power saving.

4. Concrete feeder, pallet feeder, up mould and down mould is powered by the hydraulic system.

5. Mould is made with heat carburizing heat treatment. So working life of mould is improved.

Main Technical Parameters

Recommendation Configuration

Production Capacity

Notes:

1.We make mould according to size and shape of client’s block.

2.The above is theoretical production;real production depends on raw materials,working  efficiency and block specifications.

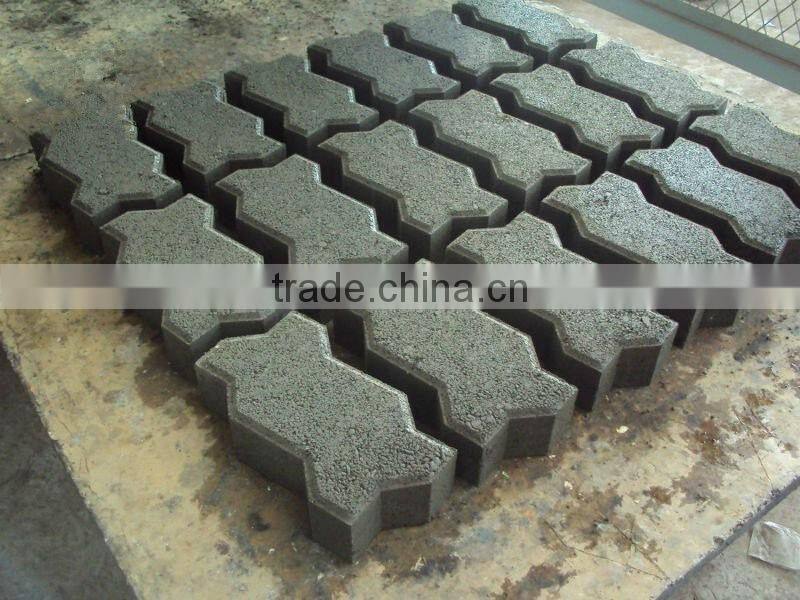

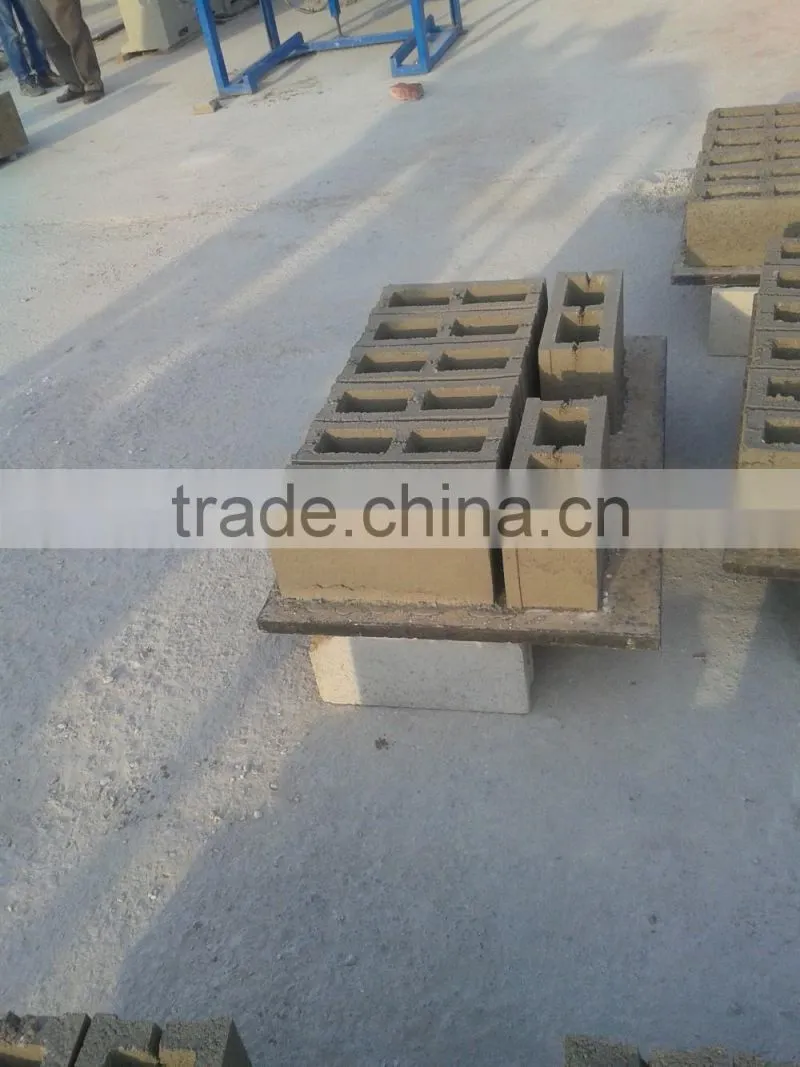

Block/brick Samples

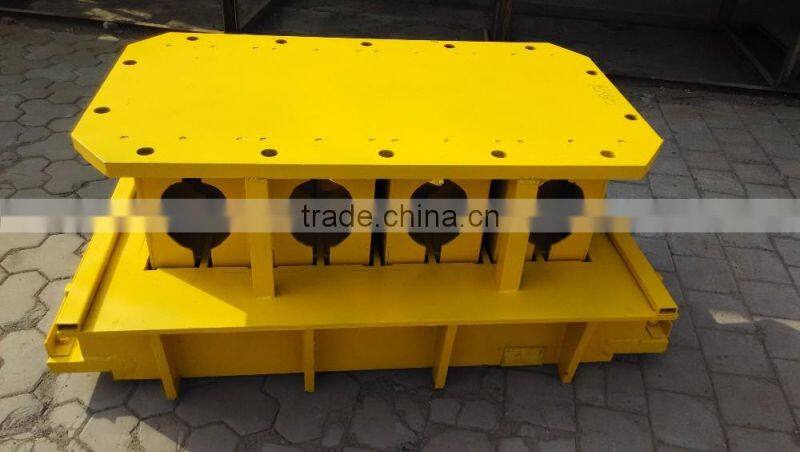

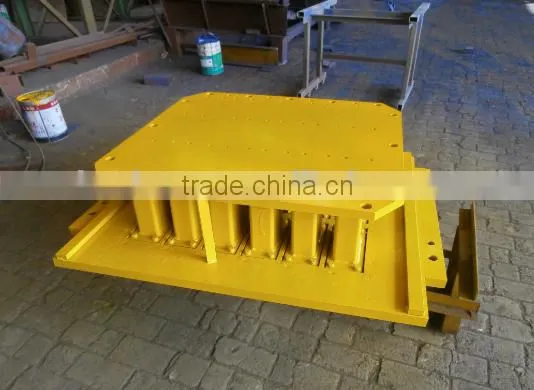

Mould

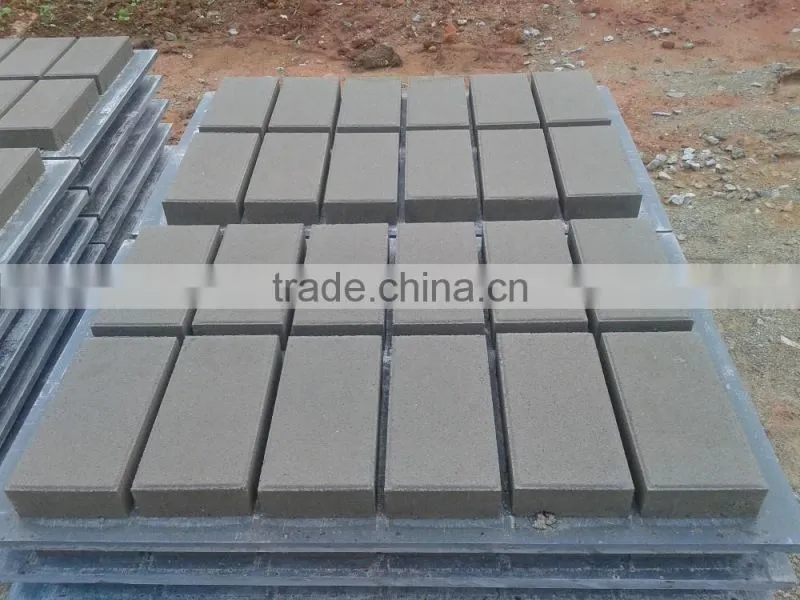

Production Show

 If you want to get more information ,please contact with me with no hesitation.
