Economical interlock brick block making machine

FOB Price

US$ 10,000 - 20,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Interlock Block Making Machine
Brick Raw Material	Other, Crushed stone, sand, cement, dust and coal fly ash and so on	Processing	Brick Molding Machine
Method	Hydraulic Pressure	Automatic	Other, semi-automatic
Capacity	60000 Pieces/day	Place of Origin	Henan, China
Brand Name	LEC	Model Number	LQT5-15
Voltage	Local Voltage	Power	24.7kw, 24.7KW
Dimension(LWH)	300019002930mm	Certification	CE/SGS/ISO9001
Warranty	One Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Economical interlock brick block making machine

LQT5-15 Semi-automatic block making machine with different types of moulds is used to make concrete pavement brick, hollow block, solid brick, interlocking brick etc. It can be described as a machine to meet various needs of different customers from companies or individual.
Raw material: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Main Technical Parameters
Description		Data
Block making machine type		LQT5-15
Automated format		Semi-automatic
Vibration Frequency		4200r/min
Vibration Force		70KN
Cycle Time		15-25sec
Power		24.7KW
Mode of Vibration		Table Vibration
Pallet Size		1100 x700x30mm
Overall Weight		6T
Overall Dimension		3000x1900x2930mm

Main Features

1. Way of moulding is vibration combined with hydraulic pressure. So blocks have good strength and density. The machine can produce hollow block, solid block, paving block by changing mould.
2. The way of concrete feeding into mould is compulsive by three shaft with blade.It is quick speed and well distributed. The vibration is oil immersed to have a good lubrication.
3. Only two vibration motors is always working, other motor works fitfully. So it is power saving.
4. Concrete feeder, pallet feeder, up mould and down mould is powered by the hydraulic system.
5. Mould is made with carburizing heat treatment. So working life of mould is improved.

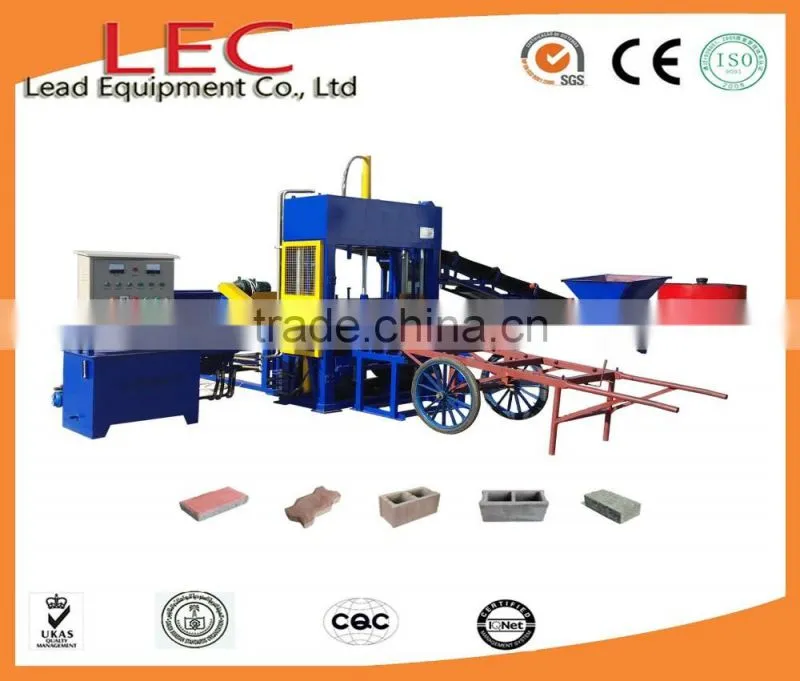

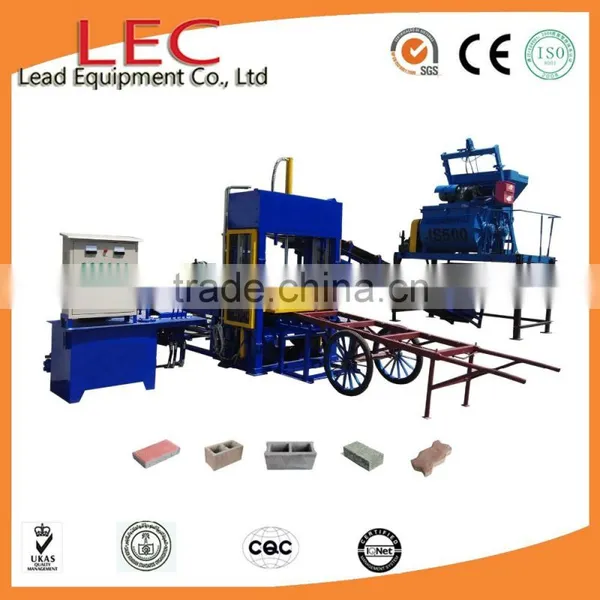

Detailed Images

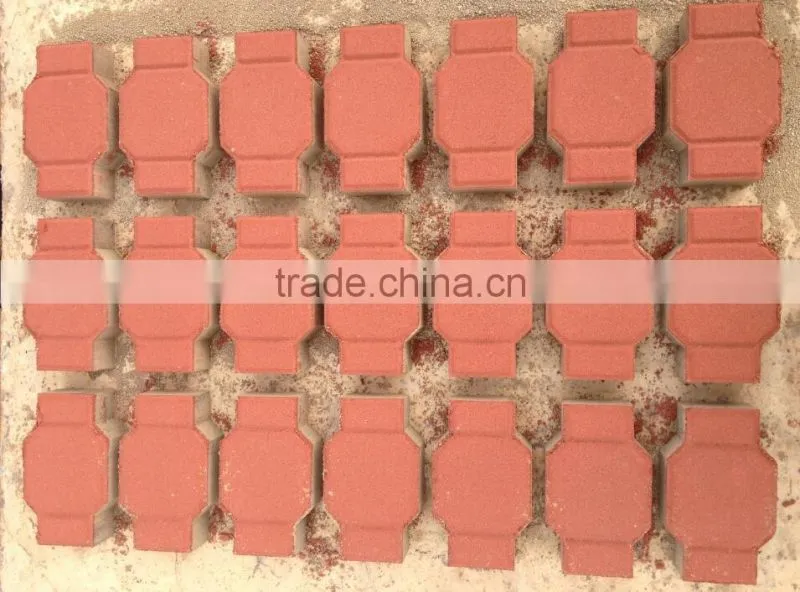

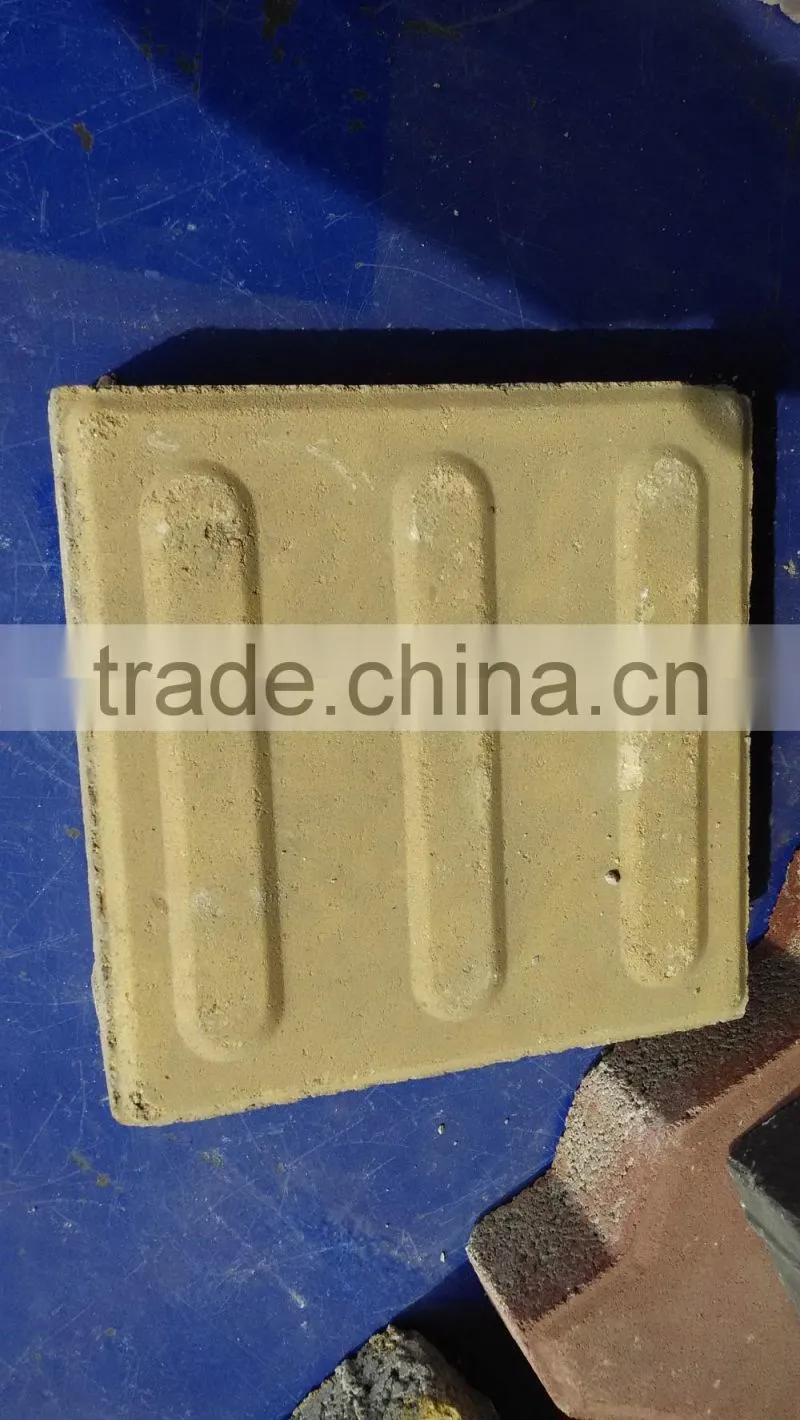

Block Samples

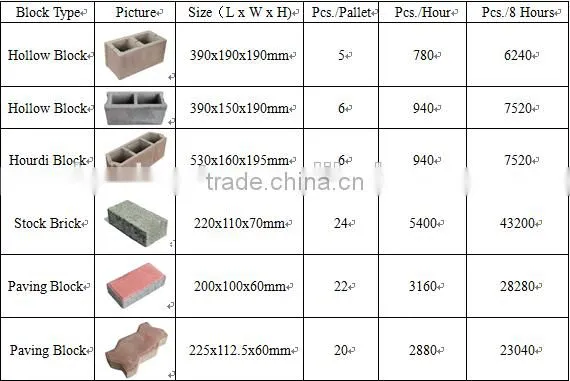

Production Capacity

Production show
