High density cement concrete brick making machine for sale
LQT5-15 Semi-automatic block making machine with different types of moulds is used to make concrete pavement brick, hollow block, solid brick, interlocking brick etc. It can be described as a machine to meet various needs of different customers from companies or individual.
Raw material: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Main Features
1. Way of moulding is vibration combined with hydraulic pressure. So blocks have good strength and density. The machine can produce hollow block, solid block, paving block by changing mould.
2. The way of concrete feeding into mould is compulsive by three shaft with blade.
It is quick speed and well distributed. The vibration is oil immersed to have a good lubrication.
3. Only two vibration motors is always working, other motor works fitfully. So it is power saving.
4. Concrete feeder, pallet feeder, up mould and down mould is powered by the hydraulic system.
5. Mould is made with carburizing heat treatment. So working life of mould is improved.
Main Technical Parameters
Description |
Data |
Block making machine type |
LQT5-15 |
Automated format |
Semi-automatic |
Vibration Frequency |
4200r/min |
Vibration Force |
70KN |
Cycle Time |
15-25sec |
Power |
24.7KW |
Mode of Vibration |
Table Vibration |
Pallet Size |
1100 x700x30mm |
Overall Weight |
6T |
Overall Dimension |
3000x1900x2930mm |
Recommendation Configuration
Description |
Quantity |
Remark |
Main Machine |
1set |
|
Hydraulic System |
1set |
|
Electric Control Cabinet |
1set |
|
Concrete Feeder |
1set |
|
Pallets Feeder |
1set |
|
Belt Conveyor |
1set |
|
Pallet Stand |
1set |
|
HT350 Mixing Machine |
1set |
|
Pallet |
15 pieces |
|
Manual Cart |
4sets |
|
Colour Feeder |
1set |
Optional Parts |
Pallet(1100x700x30mm) |
1000pieces |
Optional Parts |
Production Capacity
Notes:
1. We make mould according to size and shape of client’s block.
2. The above is theoretical production; real production depends on raw materials, working efficiency and block specifications.
Production Show

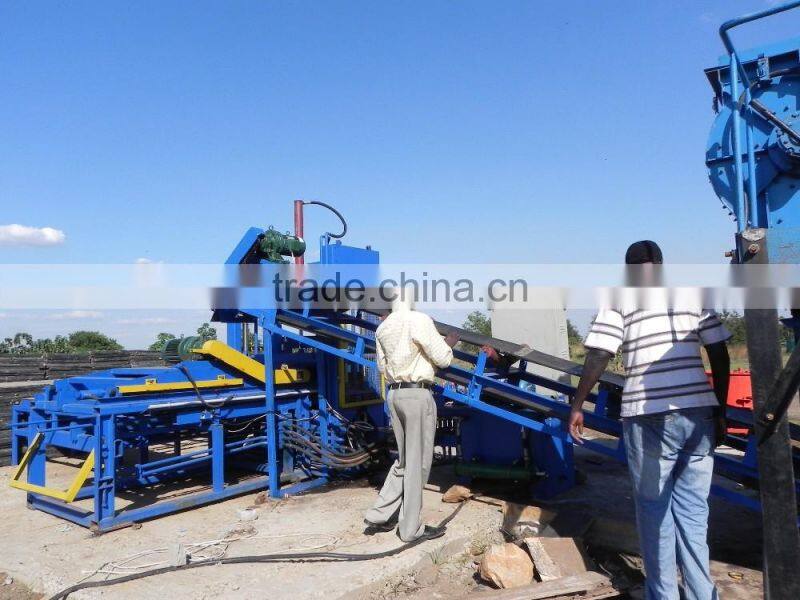

Our Brick Making Machine At Worksite
