LQT5-15 High Density Automatic Cement Brick Making Machine

LQT5-15 High Density Automatic Cement Brick Making Machine photo-1

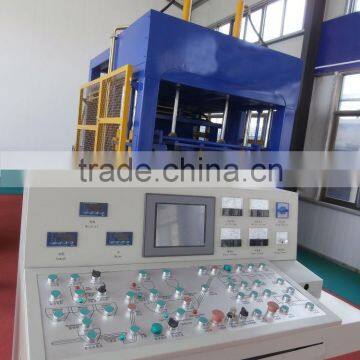

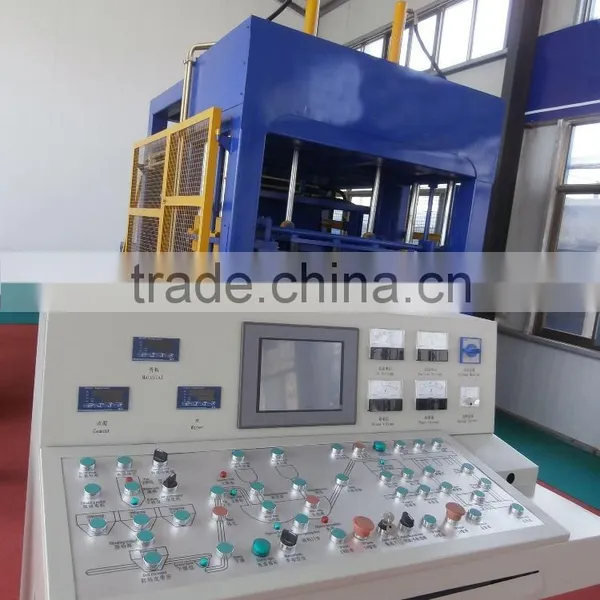

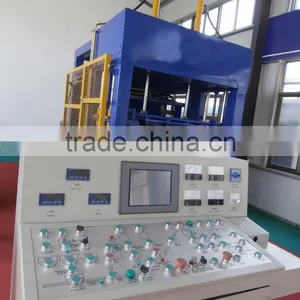

LQT5-15 High Density Automatic Cement Brick Making Machine photo-2
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, hollow block,paving block,celluar brick and so on
Brick Raw Material:
Other, Crushed stone, sand, cement, dust and coal fly ash and so on
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, hollow block,paving block,celluar brick and so on
Brick Raw Material Other, Crushed stone, sand, cement, dust and coal fly ash and so on
Processing Brick Molding Machine
Method Hydraulic Pressure
Automatic Yes
Capacity 50000-70000 Pieces/day
Place of Origin Henan, China
Brand Name LEC
Model Number LQT5-15 AUTOMATIC
Voltage Local Voltage
Power 29.7kw, 29.7KW
Dimension(L*W*H) 3000*1900*2930mm
Certification ISO9001/CE/SGS
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

LQT5-15 high density automatic cement brick making machine

LQT5-15 Automatic block making machine with different types of moulds is used to make concrete pavement brick, hollow block, solid brick, interlocking brick etc. It can be described as a machine to meet various needs of different customers from companies or individual.
Raw material: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Main Technical Parameters
Block making machine type
LQT5-15
Vibration Frequency
4200r/min
Vibration Force
70KN
Cycle Time
15-25sec
Power
29.7KW
Mode of Vibration
Table Vibration
Pallet Size
1100 x700x30mm
Overall Weight
10T
Overall Dimension
3000x1900x2930mm

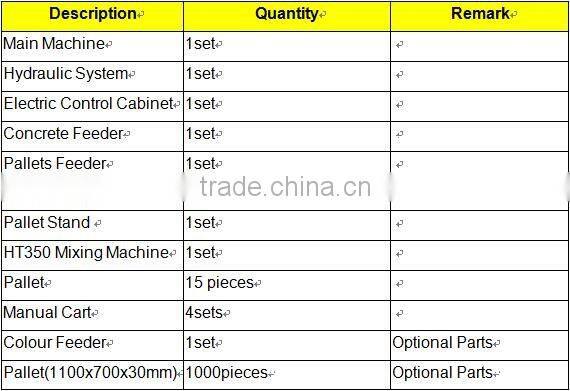

Recommendation Configuration

Main Features

1. The machine is made of super-strong steel with special welding techniques .So the machine is highly firm and shake-resistant

2. The mould, gears and shafts have heat treatment of quenching, boronizing, carburing and so on in order to ensure the quality of block machine.

3. Integrative and simultaneous vibration will make the machine have the best solid and pressure effects.

4. The machine adopts four-pole-orientation, extended and wear-resistant bushing to ensure the right movement of head of mould.

5. Adopting orienting way operation, the materials spreader will decrease the friction with mould and have a perfect spreading.

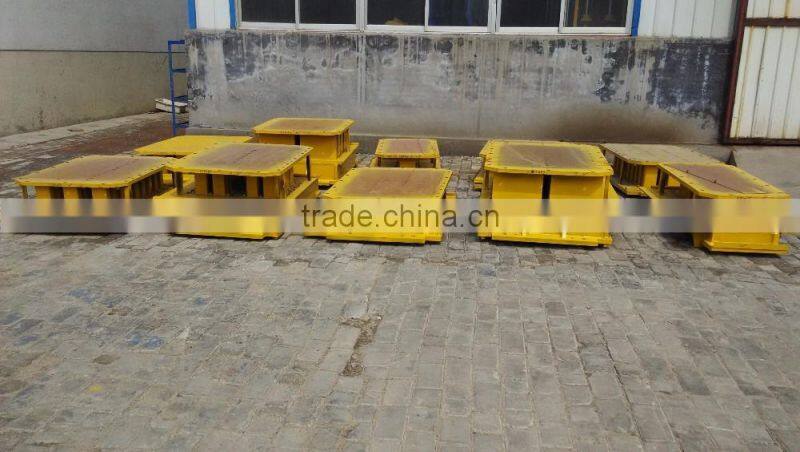

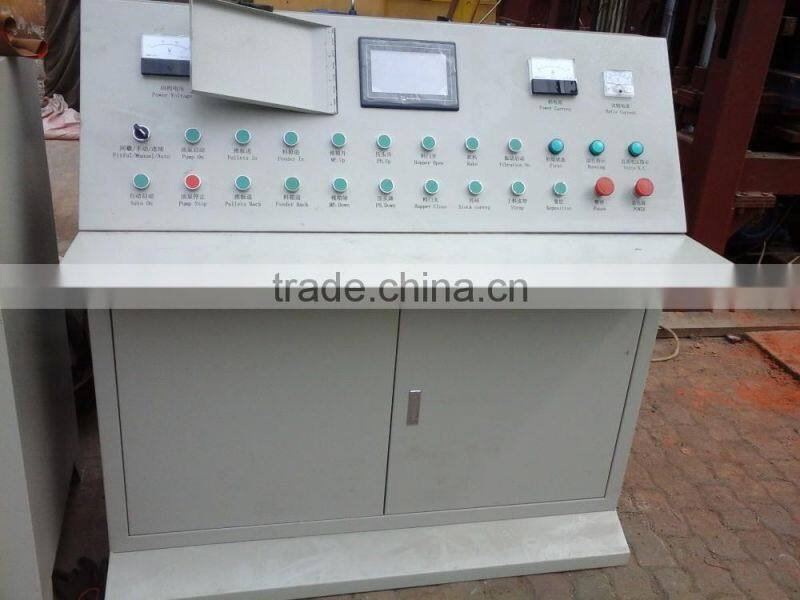

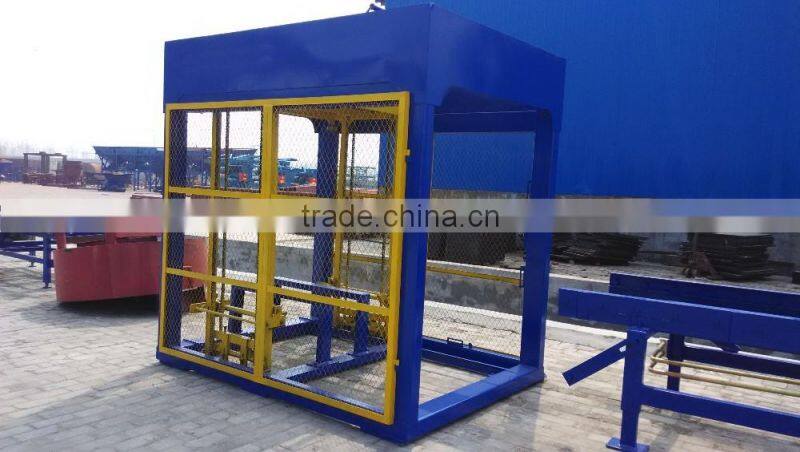

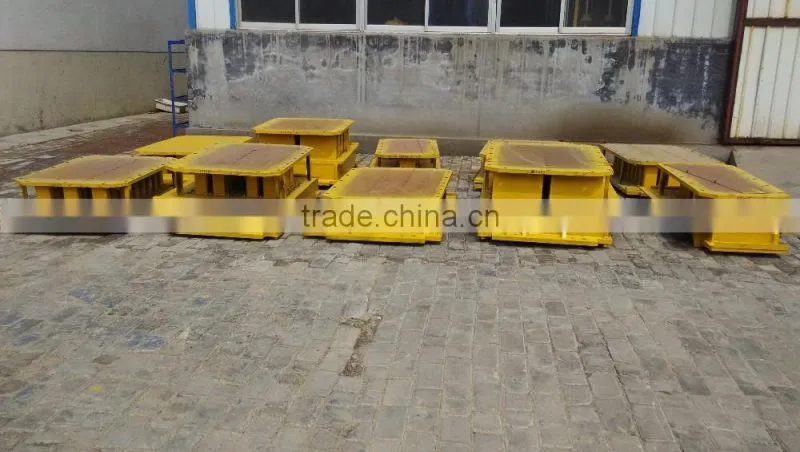

Detailed Images

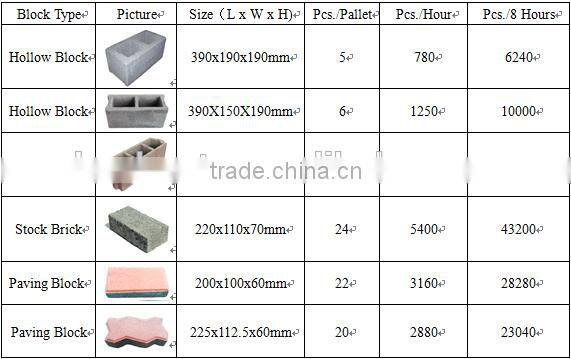

Production Capacity

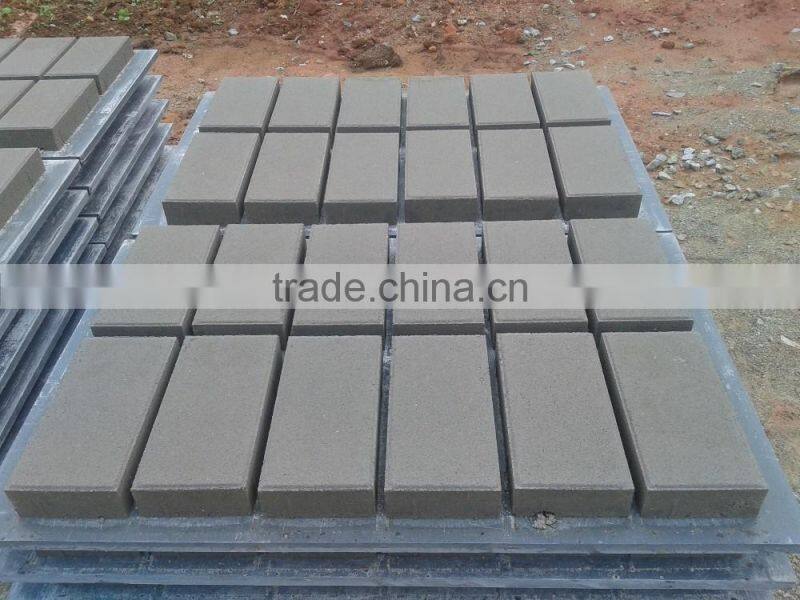

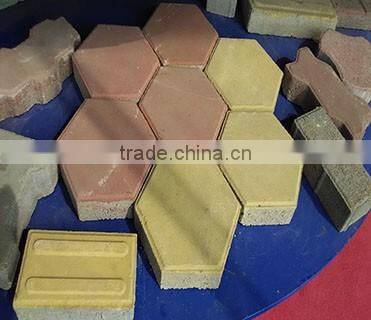

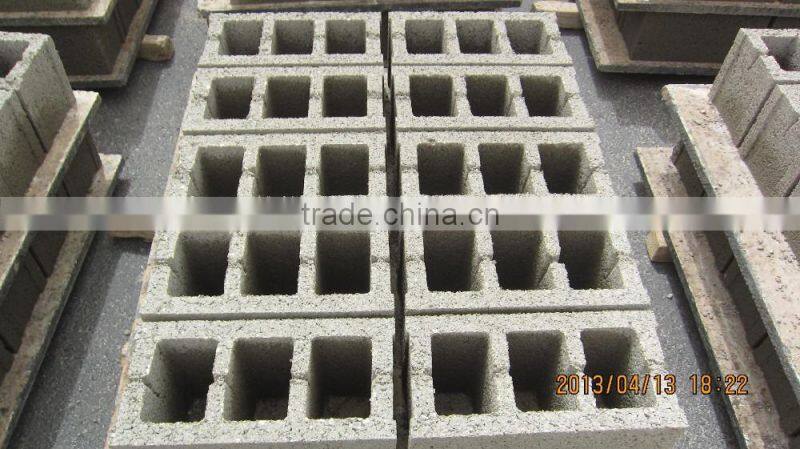

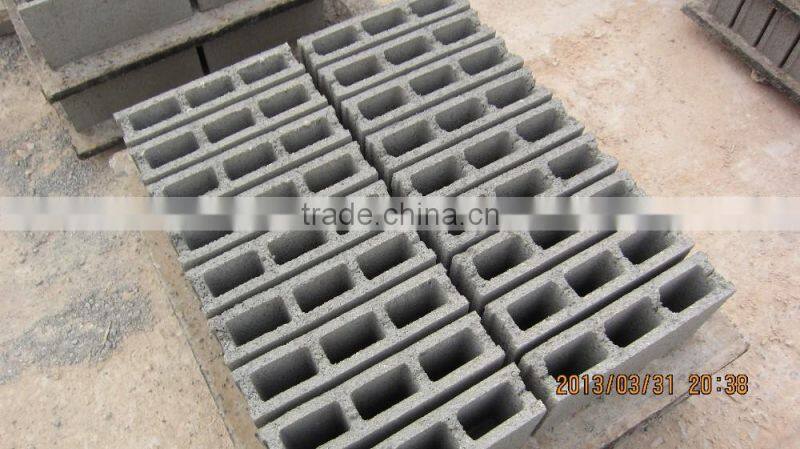

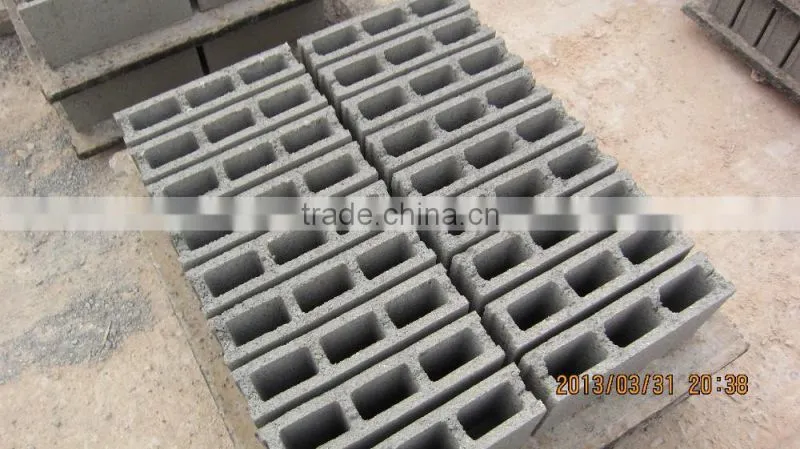

Production Show

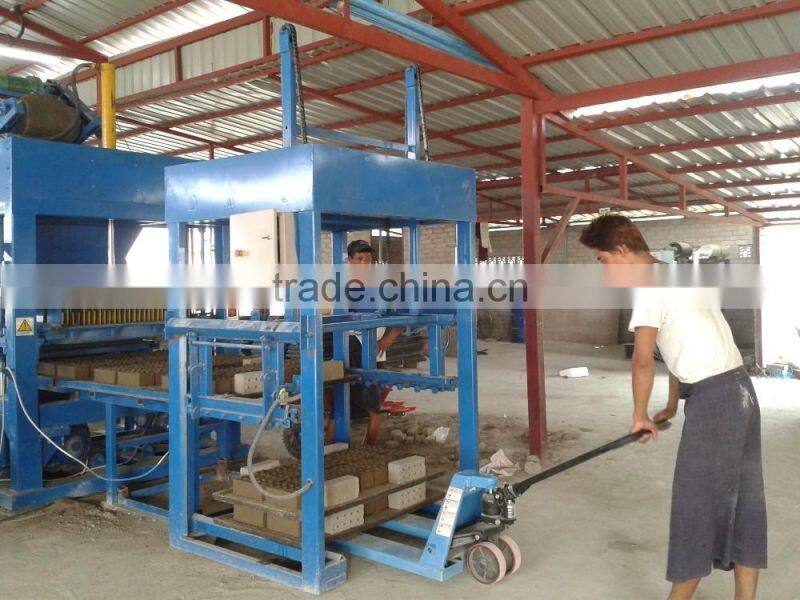

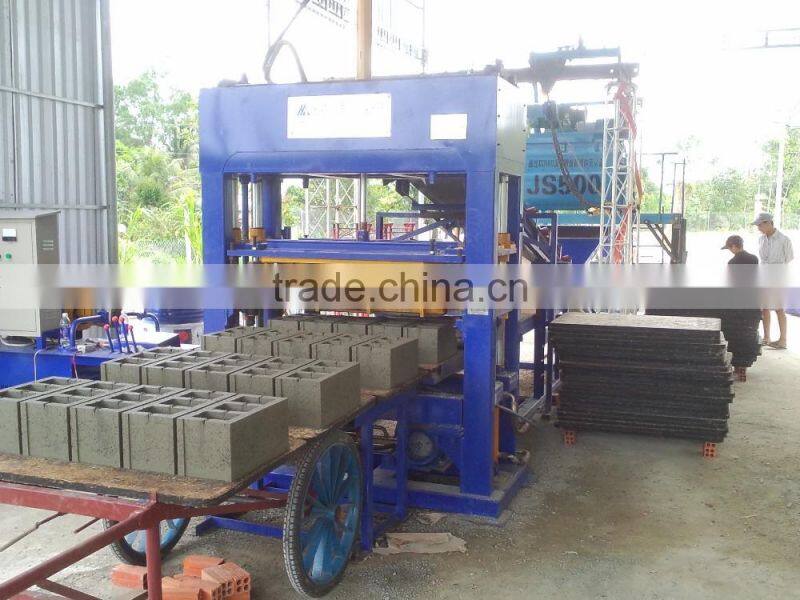

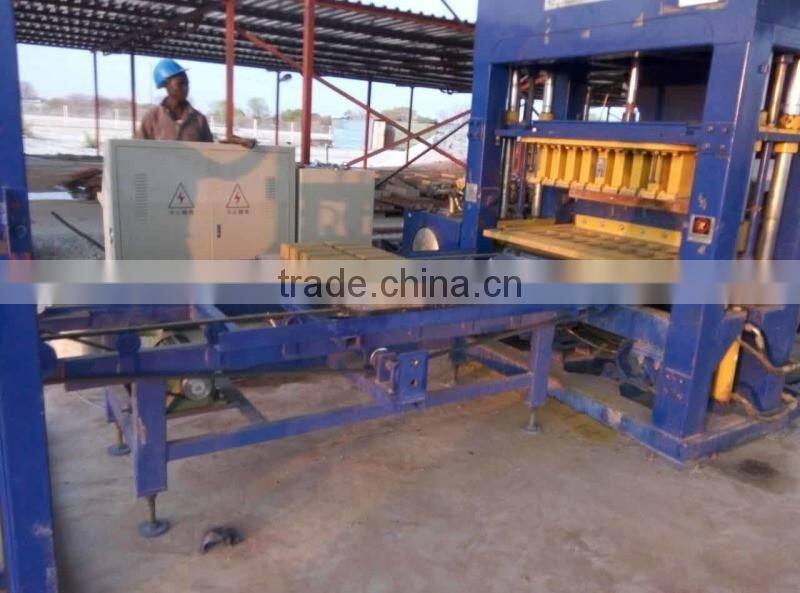

Worksite
