Hot Selling Anti-explosion Single Drum Air Winch 10 ton
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD37,000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription of 10 ton High Quality Pneumatic Air Hoisting Winch :
This 10 ton air winch is powered by piston air motor and remotely operated. It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.
Technical Data of 10 ton High Quality Pneumatic Air Hoisting Winch:
1 | Air pressure(Mpa) | 0.8 | |
2 | Rated Tension(KN) | 100 | |
3 | Rated Speed(m/min) | 6 | |
4 | Air motor | Rated power(KW) | 18.4 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | OD(mm) | 800 |
ID(mm) | 430 | ||
Width(mm) | 550 | ||
Rope capacity(m) | 100 | ||
6 | Rope diameter(mm) | 24 | |
7 | Air hose diameter(mm) | 50 | |
8 |

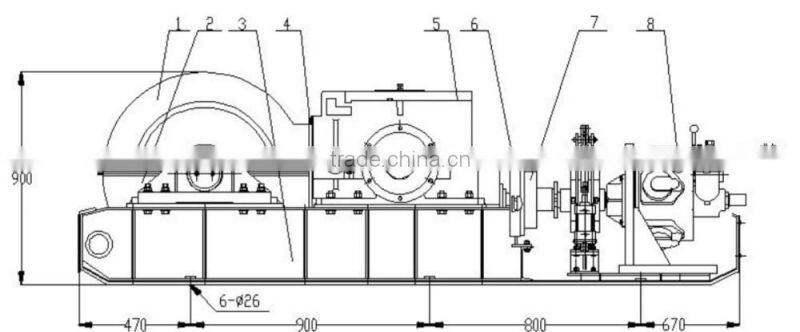

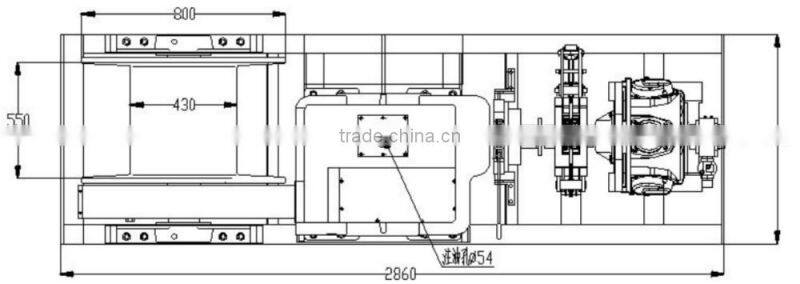

Dimension
| length(mm) | 2860 |
width(mm) | 970 | ||
height(mm) | 900 | ||
10 ton High Quality Pneumatic Air Hoisting Winch:
Air motor used for air winch:
Factory:
Thank you for your time, welcome to contact us and visit our facory!
Website:
Whatsapp/Line/Viber: +86-15222060693
FAQ:
Please inform us more detail information as followings,so we can recommend suitable type for you
1. What project will you do with about air winch?
2. Which kind of you need, we have hand operation and remote control air winch?
