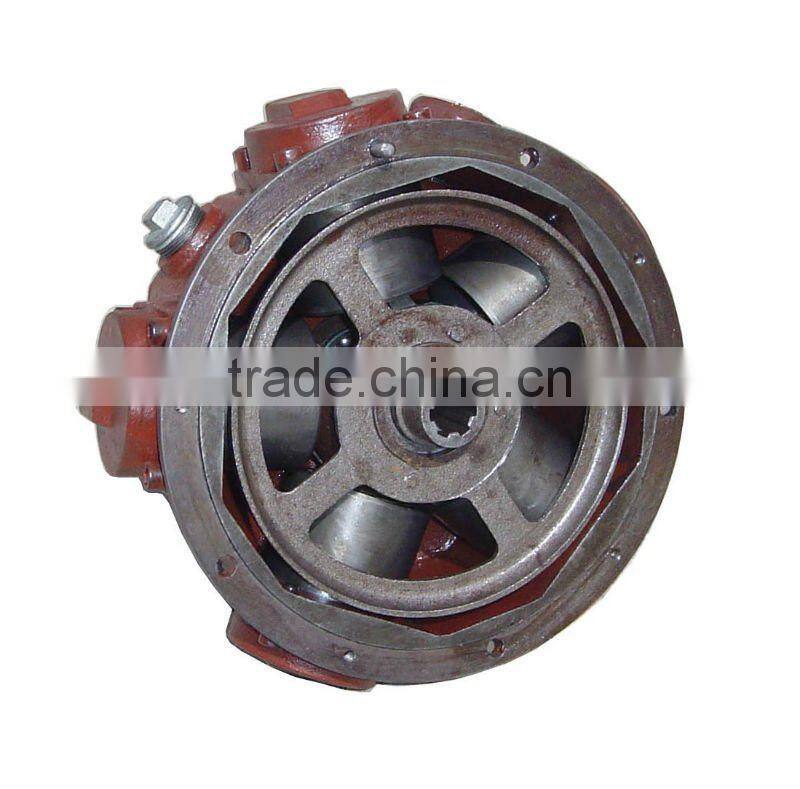

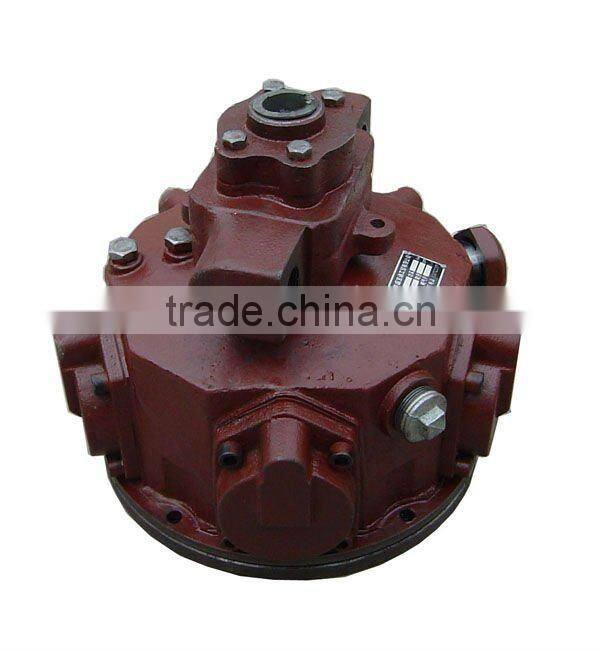

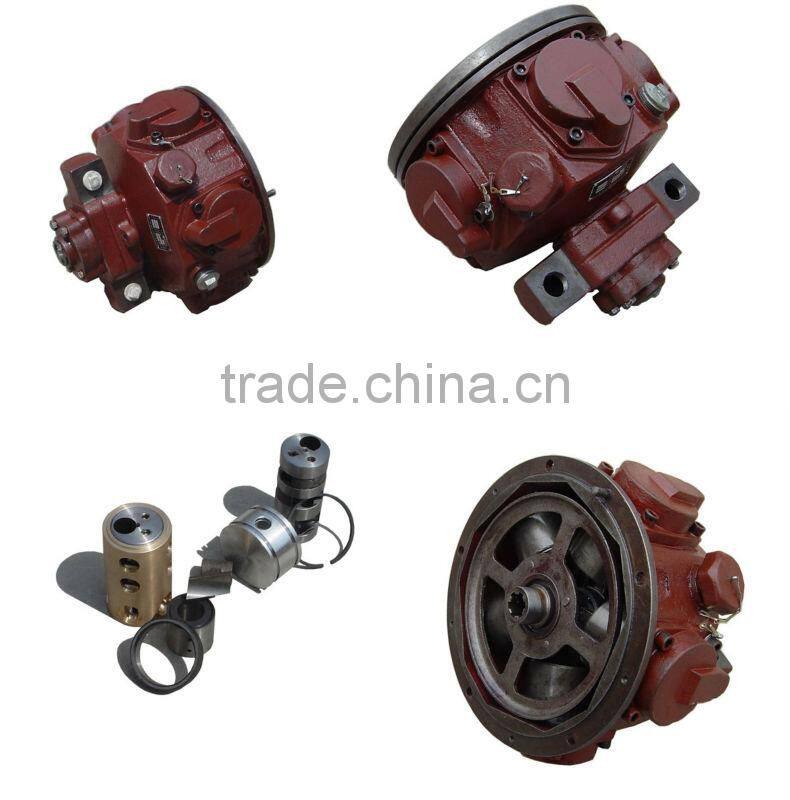

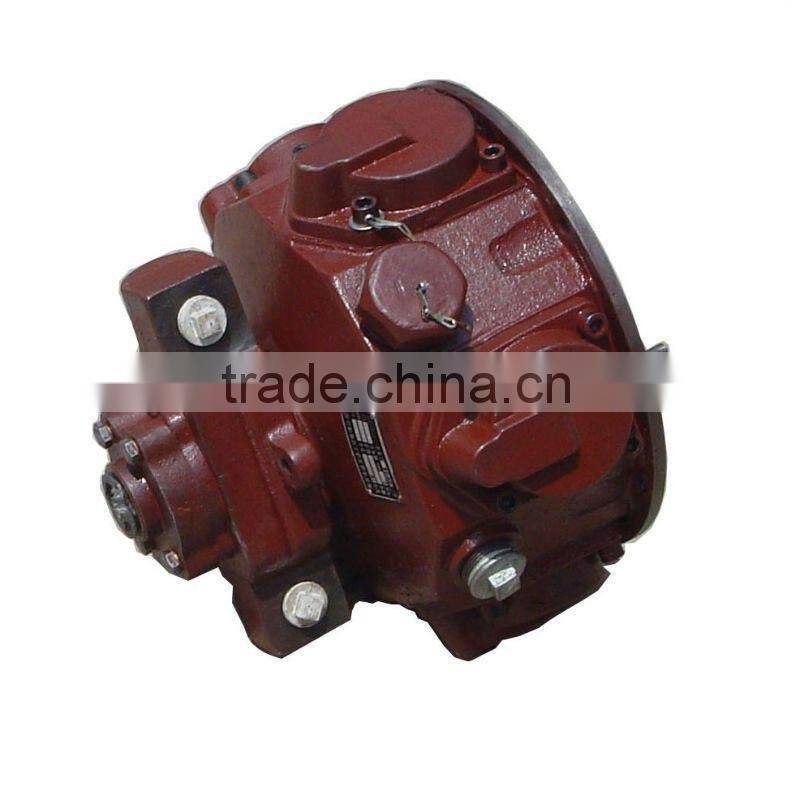

TMH Series Pneumatic Air Motor Piston, Air Motor used for Air Winch
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
With compressed air as actuating medium, piston air motor converts the pressure energy of compressed air into rotary mechanical energy. Compared to vane air motor, it has larger size and weight, lower speed, and more complex structure as per power unit, but has high started torque, well performance in low speed and longer life expectancy. It also has the feature of proof water, fire, moisture, explosion and high temperature, and has the advantages of overload automatic parking, and can start under loads. So it is also used in various trades and industries.
Features:
1proof water, fire, moisture, explosion and high temperature
2overload automatic parking, can start under loads
Technical data:
Model |
Rated Power Kw(hp) |
Rated Rev. RPM |
Rated Torque NM |
Starting Torque NM |
Air Consumption m3/min(CFM) |
Working Pressure Mpa(PSI) |
Weight KG(lbs) |
TMH3 |
3(4) |
2800 |
10 |
13 |
3.6(129) |
0.5(66) |
24 |
TMH3B | |||||||
TMH3D | |||||||
TMH3.2 |
3.2(4.4) |
1000 |
30.5 |
39.7 |
3.84(137) |
0.5(66) |
22 |
TMH4 |
4(5.4) |
1000 |
38 |
49 |
4.8(171) |
0.63(83) |
30 |
TMH4D | |||||||
TMH4A | |||||||
TMH6 |
5.88(8) |
900 |
62.6 |
81 |
8(286) |
0.63(83) |
72 |
TMH6A | |||||||
TMH8 |
8(10.9) |
650 |
117.5 |
152 |
9.4(336) |
0.63(83) |
74 |
TMH15 |
14.7(20) |
650 |
216 |
280 |
17(607) |
0.63(83) |
|
TMH15A | |||||||
TMH18.4 |
18.4(25) |
600 |
286 |
371 |
21.5(768) |
0.63(83) |
|
TMH22 |
22(30) |
600 |
300 |
400 |
21(750) |
0.63(91) |
|
TMH25 |
25(34) |
600 |
380 |
480 |
27.3(975) |
0.8(115) |
Package:
Factory:
