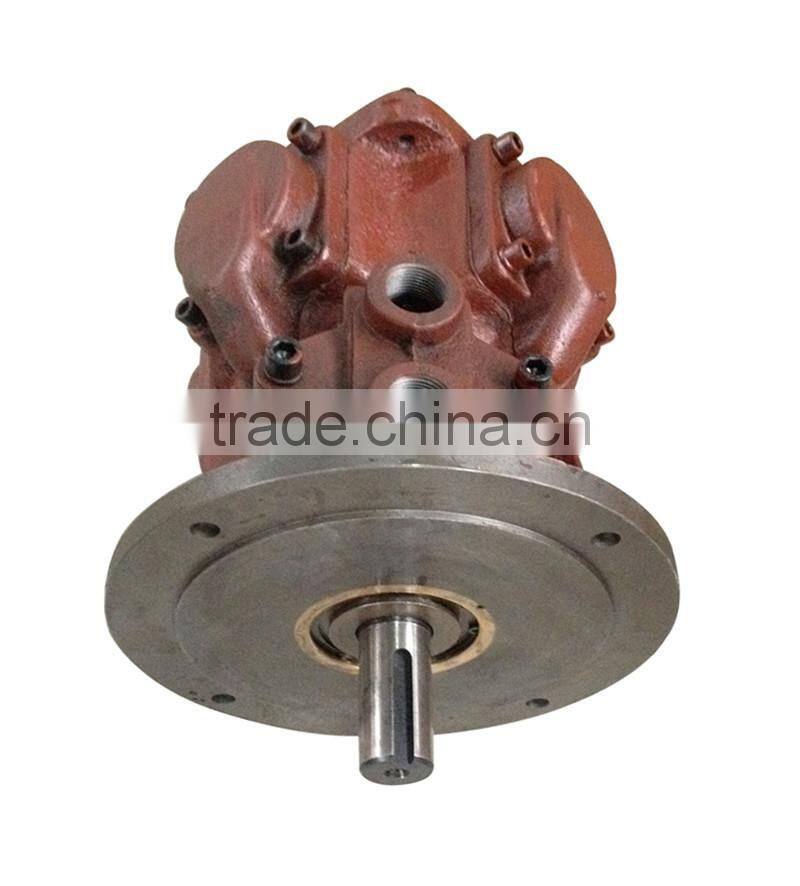

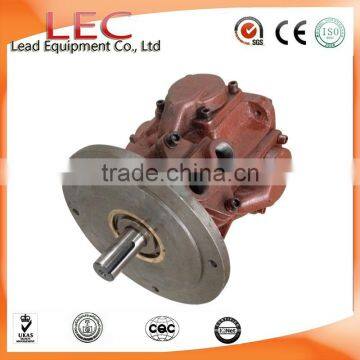

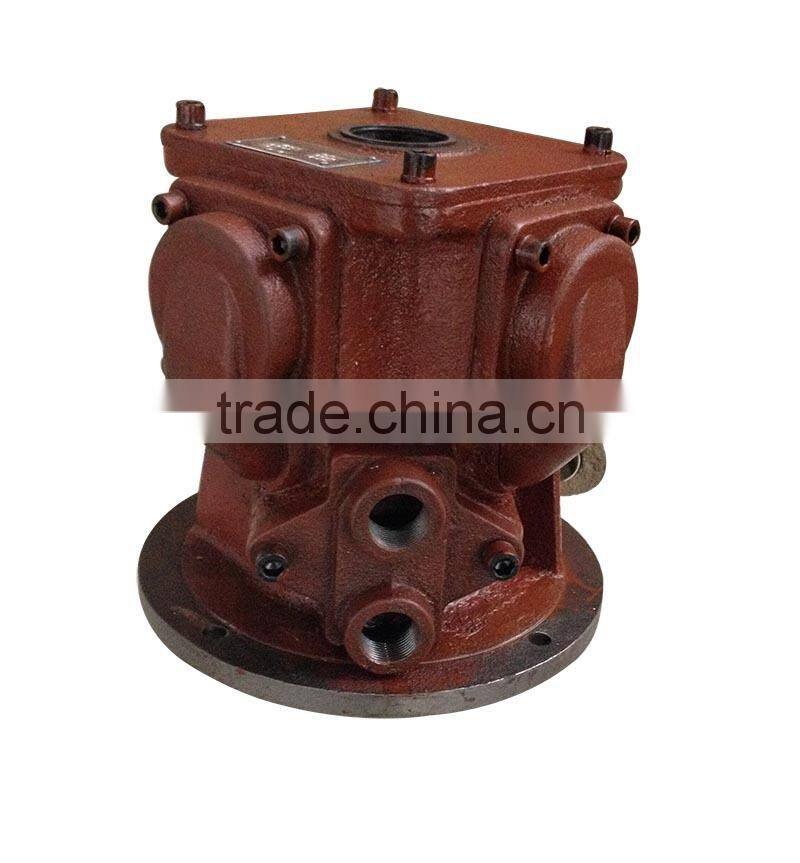

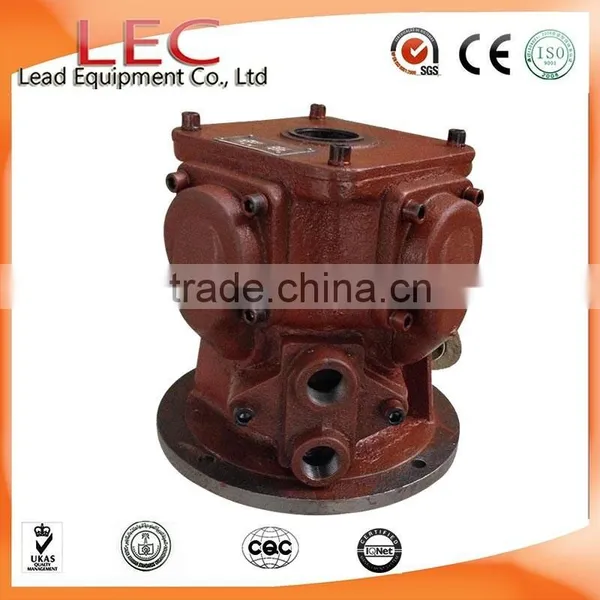

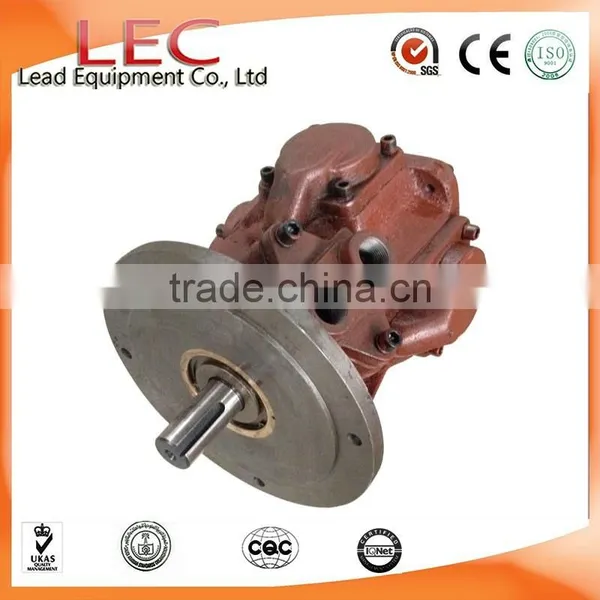

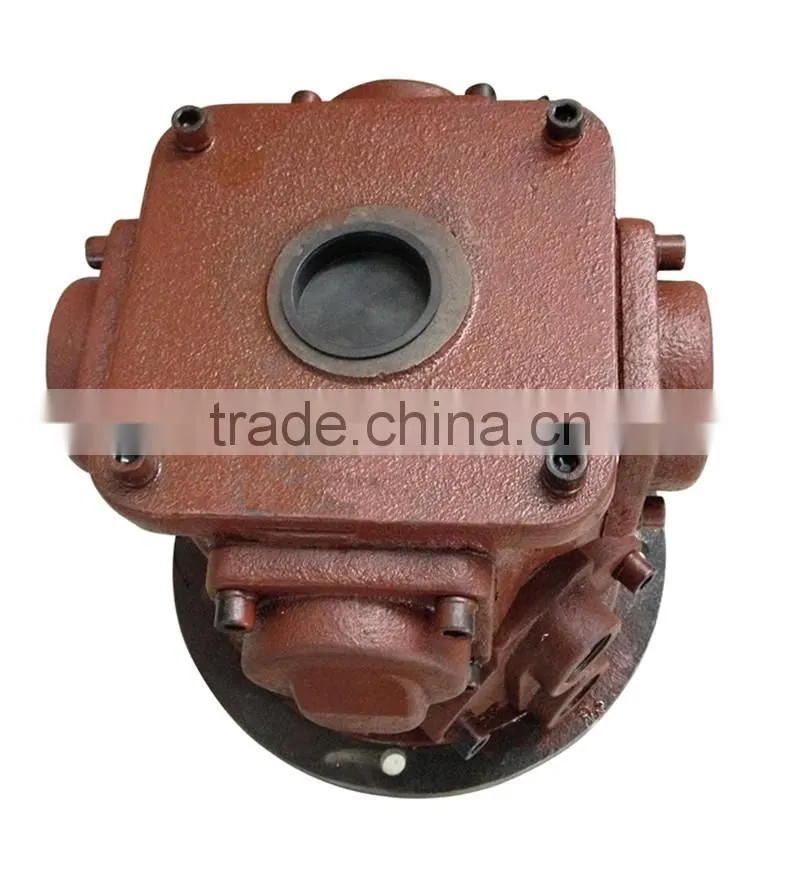

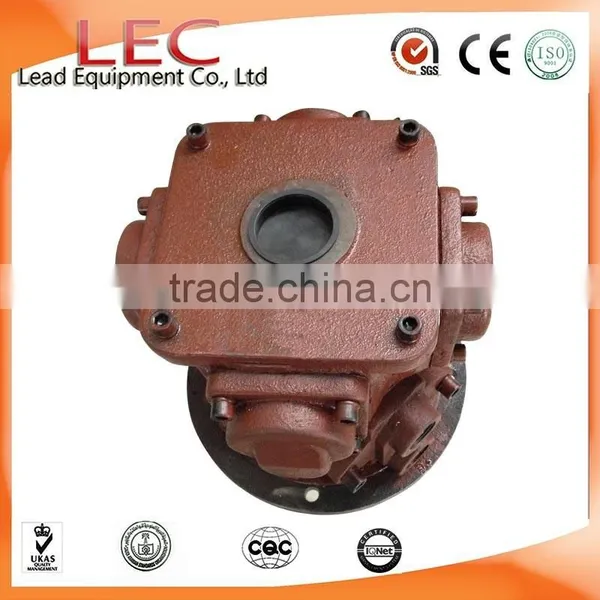

TMH Series Piston Pneumatic Air Motor
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD32000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription:
With compressed air as actuating medium, piston air motor converts the pressureenergy of compressed air into rotary mechanical energy. Compared to vane air motor, it has larger size and weight, lower speed, and more complex structure as per power unit, but has high started torque, well performance in low speed andlonger life expectancy. It also has the feature of proof water, fire, moisture, explosion and high temperature, and has the advantages of overload automatic parking, and can start under loads. So it is also used in various trades and industries.
pneumatic motor Features:
1. proof water, fire, moisture, explosion and high temperature
2. overload automatic parking, can start under loads
3. oil and gas industry for air winches
4. flame proof applications
Technical data:
Model | Rated Power Kw(hp) | Rated Rev. RPM | Rated Torque NM | Starting Torque NM | Air Consumption m3/min(CFM) | Working Pressure Mpa(PSI) | Weight KG(lbs) |
TMH3 | 3(4) | 2800 | 10 | 13 | 3.6(129) | 0.5(66) | 24 |
TMH3B | |||||||
TMH3D | |||||||
TMH3.2 | 3.2(4.4) | 1000 | 30.5 | 39.7 | 3.84(137) | 0.5(66) | 22 |
TMH4 | 4(5.4) | 2000 | 21.4 | 27.9 | 4.8(171) | 0.63(83) | |
TMH4D | 4(5.4) | 1000 | 38 | 49 | 4.8(171) | 0.63(83) | 60 |
TMH4A | |||||||
TMH5.5D | 5.5(7.5) | 1700 | 30.9 | 40.1 | 6.6(236) | 0.63(83) | 63 |
TMH5.5M | |||||||
TMH6 | 5.88(8) | 900 | 62.6 | 81 | 8(286) | 0.63(83) | 72 |
TMH6A | |||||||
TMH8 | 8(10.9) | 650 | 117.5 | 152 | 9.4(336) | 0.63(83) | 74 |
TMH15 | 14.7(20) | 650 | 216 | 280 | 17(607) | 0.63(83) | 176 |
TMH15A | |||||||
TMH18.4 | 18.4(25) | 600 | 286 | 371 | 21.5(768) | 0.63(83) | |
TMH22 | 22(30) | 600 | 300 | 400 | 21(750) | 0.63(91) | 325 |
TMH25 | 25(34) | 600 | 380 | 480 | 27.3(975) | 0.8(115) |
