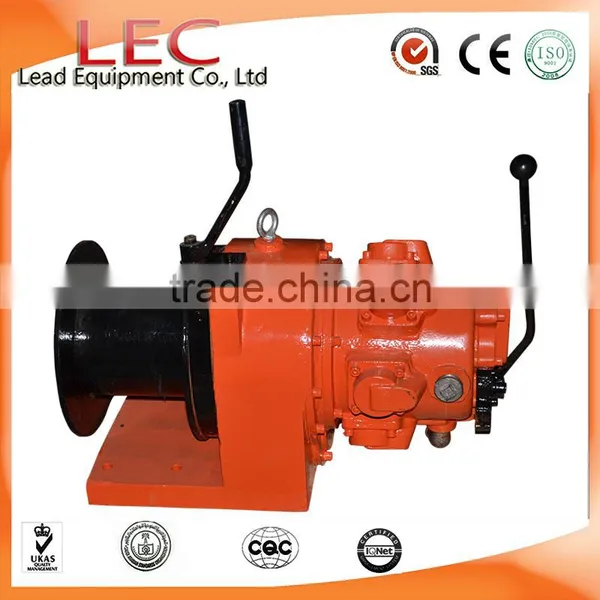

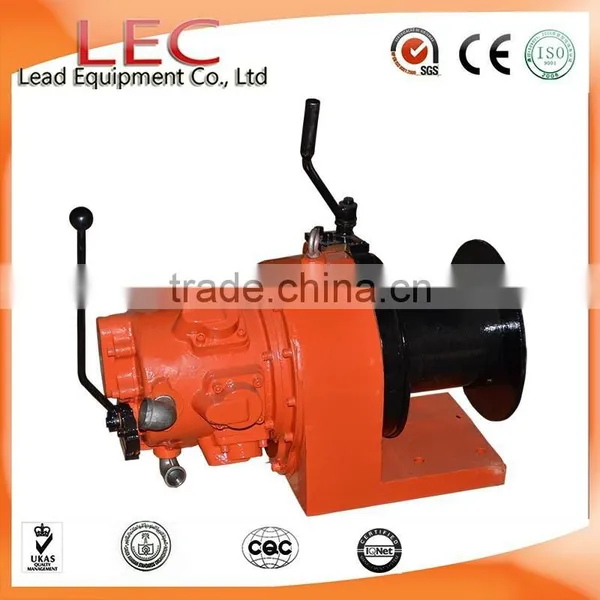

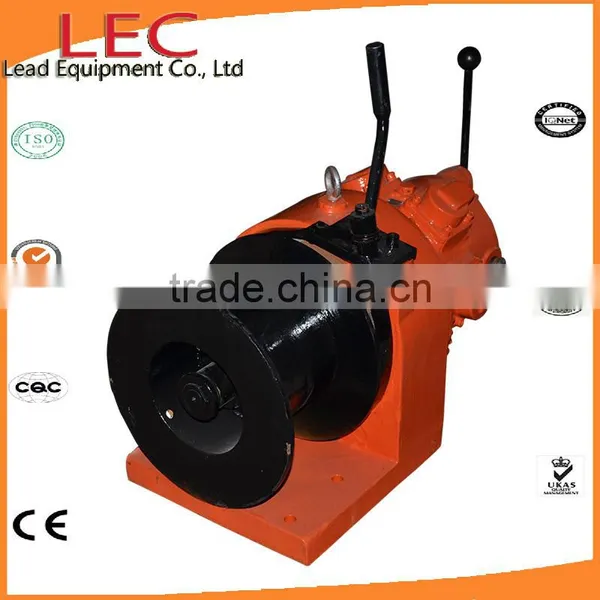

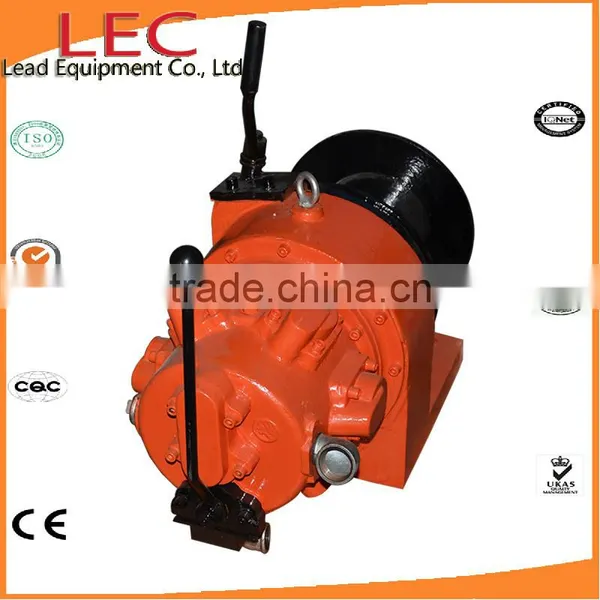

1 ton High Quality Portable Hand Brake Air Pneumatic Winches used for Mine or Construction
Product Discription:
This 1 ton air winch is powered by TMH4A piston air motor and hand operated. It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.
It has reasonable design, compact structure, and it’s also easy to transport and install.
Technical data
1 Ton Air Winch | |||
1 | Air pressure(Mpa) | 0.6 | |
2 | Rated Tension(KN) | 10 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 4.4 |
Cylinder Qty.(pcs) | 6 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 180 | ||
width(mm) | 200 | ||
Rope capacity(m) | 120 | ||
6 | Rope diameter(mm) | 8 | |
7 | Air hose diameter(mm) | 25 | |
8 |
dimension
| length(mm) | 757.5 |
width(mm) | 350 | ||
height(mm) | 521 | ||
Other Model of air winch
Air motor used for air winch :
Package:
Factory:
Certificate:
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD29000.00
Through trade assurance you can 100% payment refund up to trade assurance amount for orders
not meeting agreed Delivery or Quality terms.
