Specifications

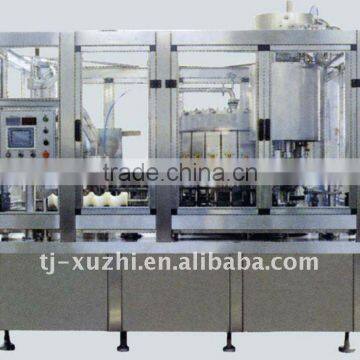

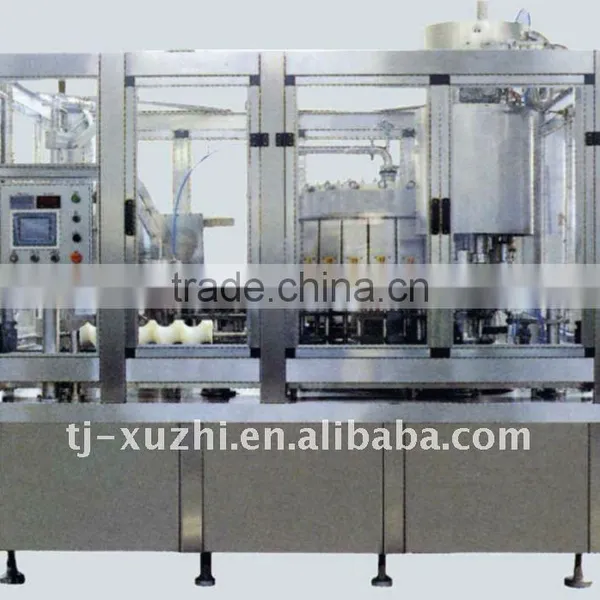

It is used in production of non-soda drink of friut juice, friut wine, minerals and pure waterpacked in polpolyester bottles.Washing,filling and capping are integrated in one machine
Main Features
*All the parts contacting with liquid directly are made of superior stainless steel, especially the filling valve are made of
stainless steel 316, which meet the requirement of food hygiene.

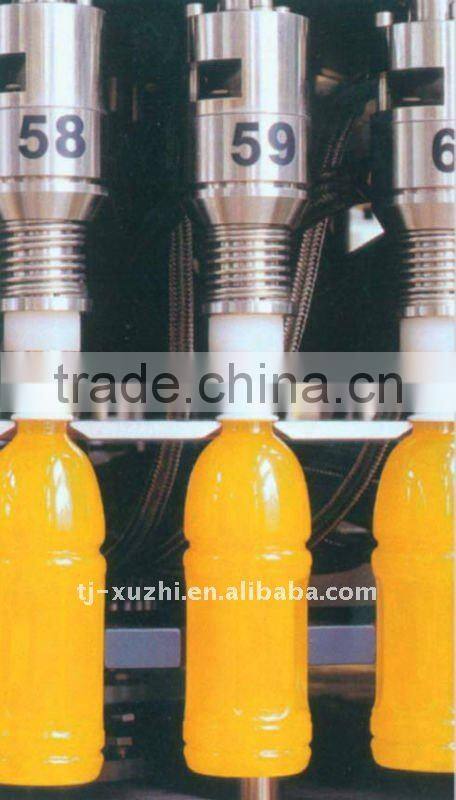

*Adopting Iow vacuum pressure filling system at high speed and high precision to ensure the filling quality. Bottle are
fed with air conveyor and transported by clapping the bottle neck and put out with normal conveyor chain so easy to change
bottle size.
*The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The
power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
*The bottle-necks are cramped and bottles are suspended during the operation process. This avoids many
malfunctions caused by thinner bottle body or different highness of bottles. This design also reduce dramatically the required
number of changeable parts, make it more convenient and quickly to change to another type of bottles.
*Controlled by frequency conversion motor+PLC+MMI, so the capacity, shift production and problem alarm could be
displayed on the screen so as to operate easily.
