acid food sterilizer
- take you hover in bacteria ----obama Brand autoclave
- please used for health &sanitation.
Hot Water Gush pulsation style on the side sterilizer: WANYUAN hot water spray is specially designed to sterilize foods in pouches and flexible plastic containers.

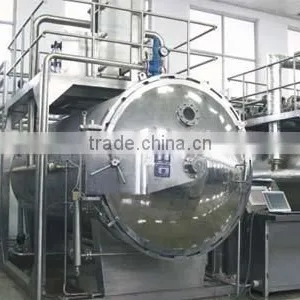

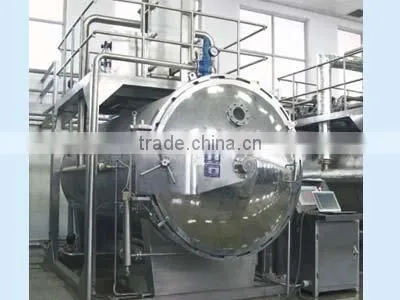

steam autoclave(autoclave series,spray autoclave)
Product Description
We are a specialist in the manufacture of retort sterilizer which has widely used
to completely sterilize the cooked food, processed beef, liquid food, and other
food after packaging.
Use scope
widely used in meat,aquatic
products,vegetables,eggs,vegetables,eggs,soup,boxfood,health food,food industry etc.
Characteristics:
Lateral spraying sterilization kettle is applicable to bag of secondary sterilization food, composed of processing tank, heat exchanger, water distribution device, various pump and valves, connecting pipe and PLC control system of touch screen.
constantly to cover packaging sterilization content spray water from nozzle in the sterilization kettle, different direction, heat transfer quick, and constantly changing hot thermal diffusion. By simulating autoclave temperature control system according to different requirements for food sterilization, heating and cooling, sterilization set, each kind of program in the best food sterilization, thus avoiding under the high temperature and high pressure due to thermal sterilization mode damage dozen faults. According to different situations, pressure control system with standard and patterns automatically adjust the pressure.
The pressure cans adjustment, to prevent the shape of the container (packaging) and breakage is very favorable. At the same time, through to the T-T, P-T records of analysis and inspection, the curve can be effectively for production and quality management.
-
This machine specification as follow: Diameter of steriliztion kettle(MM) DN1100 DN1300 DN1500 Mumber of basket(crate) 4 4 4 Maximum working pressure(MPA) 0.35 0.35 0.35 Maximum working temperature() 137 137 137 Operating velocity(R/MIN) 3-8 OR 6-12 3-8 OR 6-12 3-8 OR 6-12 Volume(M3) 0.7 1.3 2.1 Heating steam pressure(MPA) 0.6 0.6 0.6 Cyclic consumption of heating steam(KG) 300 400 500 Flow of heating steam(KG/H) 1000 1500 2500 Cooling water pressure(MPA) 0.35 0.35 0.35 Cyclic consumption of cooling water(M3) 5 7 10 Flow of cooling water(M3/H) 60 90 120 Compressed aie consumption(M3/MIN) 0.7 0.9 1.1 Electrical capacity(KG) 12-18 15-26 20-30 external Dimension L*W*H 5800*1900*3600 5800*2100*4000 5800*2200*4400
