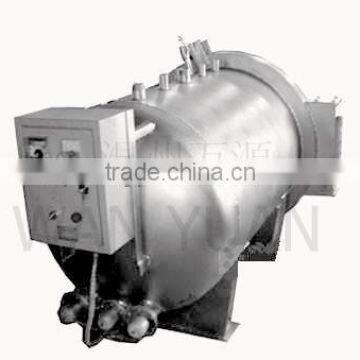

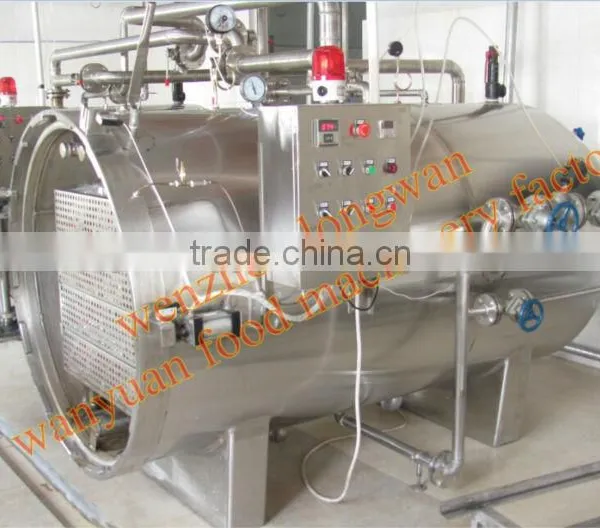

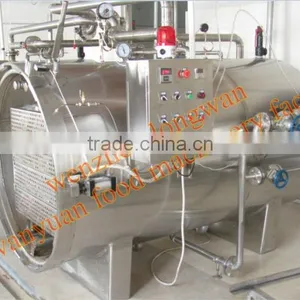

Help CenterSteam Spray Retort Sterilizer Autoclave for Meat in Glass Jar
Related Products
-
Continues Sterilizer for Beverage in BottlesUS$ 200 - 20,000MOQ: 1 Set -
Sterilizer Autoclave PLC ControlUS$ 1 - 8,000MOQ: 1 Set
-
Hot Water Spray Retort Steam Spray Autoclave RetortUS$ 3,000 - 800,000MOQ: 1 Set
-
Water Rotary Immersion Retort / Spray Retort SterilizerUS$ 5,000 - 50,000MOQ: 1 Set
-
Pouch Sterilizer Retort Made of Stainless Steel With PLC ControlUS$ 4,000 - 80,000MOQ: 1 Set
glass jar sterilizer autoclave for sale Product Description
We are a specialist in the manufacture of retort sterilizer which has widely used
to completely sterilize the cooked food, processed beef, liquid food, and other
food after packaging.
glass jar sterilizer autoclave for sale
We have three main types of retort sterilizers as follow:
1) Hot water spray retort sterilizer: the machine performs various types of high-pressure sterilization. Sterilization is achieved through the use of non-atomized
hot water droplets. The sterilized comprises a retort that is capable of receiving
multiple trays of materials, a pressurized air intake system for introducing
pressurized air into the retort, an exhaust system and multiple spray units capable
of spraying liquid such that at least one spray unit is disposed adjacent
to each tray of material. It is further defined to include a heat exchanger and
a pump for removing the liquid from the retort, passing it through the heat exchanger
and delivering the liquid to the spray units.
glass jar sterilizer autoclave for sale
2) Shower spray rotary (still) retort sterilizer: WY shower spray rotary (still)
retort sterilizer is specially designed to sterilize foods in pouches and flexible
plastic containers such as pop cans, plastic bottles, glass bottles and heating
bags. Shower spray retort sterilizer sprays high pressured hot water to the packaging
food by nozzles located at the processing tank.
glass jar sterilizer autoclave for sale
3) Hot water immersion retort sterilizer: WANYUANhot water imersion retorts are specially
designed to sterilize foods in pouches and flexible plastic containers.
It shall be ensured that all pouches are positioned in the water flow to give
much better uniformity of temperature distribution and heat transfer.
Retort Sterilizer(autoclave,retort)
glass jar sterilizer autoclave for sale specification
| Diameter of steriliztion kettle(MM) | DN1100 | DN1300 | DN1500 | |||
| Mumber of basket(crate) | 4 | 4 | 4 | |||
| Maximum working pressure(MPA) | 0.35 | 0.35 | 0.35 | |||
| Maximum working temperature() | 137 | 137 | 137 | |||
| Operating velocity(R/MIN) | 3-8 OR 6-12 | 3-8 OR 6-12 | 3-8 OR 6-12 | |||
| Volume(M3) | 0.7 | 1.3 | 2.1 | |||
| Heating steam pressure(MPA) | 0.6 | 0.6 | 0.6 | |||
| Cyclic consumption of heating steam(KG) | 300 | 400 | 500 | |||
| Flow of heating steam(KG/H) | 1000 | 1500 | 2500 | |||
| Cooling water pressure(MPA) | 0.35 | 0.35 | 0.35 | |||
| Cyclic consumption of cooling water(M3) | 5 | 7 | 10 | |||
| Flow of cooling water(M3/H) | 60 | 90 | 120 | |||
| Compressed aie consumption(M3/MIN) | 0.7 | 0.9 | 1.1 | |||
| Electrical capacity(KG) | 12-18 | 15-26 | 20-30 | |||
| external Dimension L*W*H | 5800*1900*3600 | 5800*2100*4000 | 5800*2200*4400 | |||
glass jar sterilizer autoclave price
