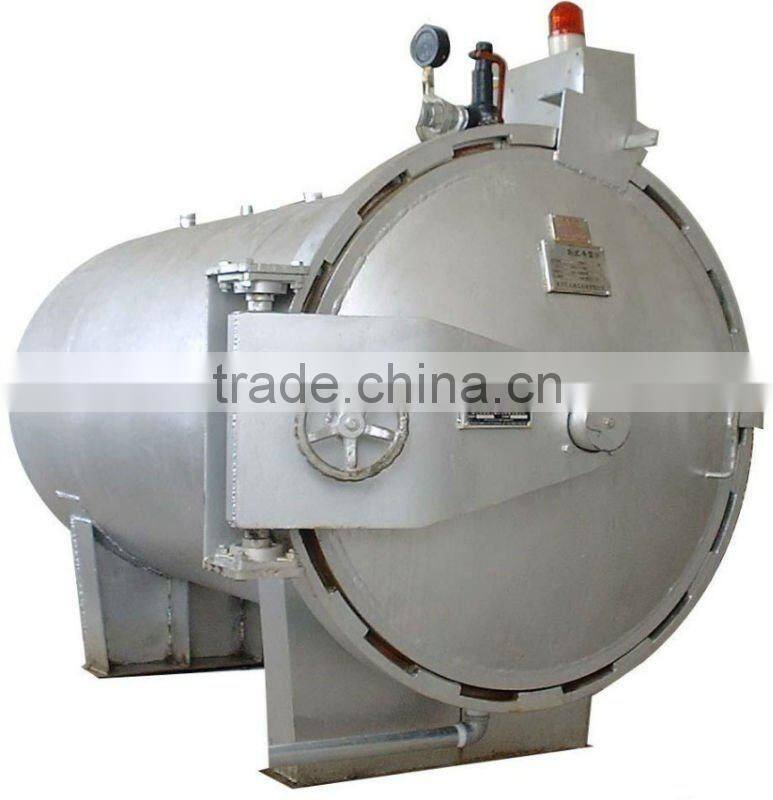

steam heating food sterilizer retort made of carbon steel 3CBM autoclave sterilizer
acid food sterilizer retort autoclave
- take you hover in bacteria ----obama Brand autoclave
- please used for health &sanitation.
1.The GT7C sreies horizontal sterilizer is a barrel sterilizeration equipment using the compressing air to do the counter-pressure ,the locking nanhead,using the self-locking,is convenient to open and start.
2.The horizontal sterilizer body:including the body,safely interlocking equipment,the cover,the swivel,the track,the sealing,the idler wheel,the locking block,the steam nozzel.the cooling water pipe,the gate valve,and so on.
MODEL | GT7CW 720 | GT7CW 1200 | GT7CW 2000 | GT7CW2400 | |
produce capacity (cans/one time) | 720 | 1200 | 2000 | 2400 | |
Tank body size (mm) | 900*1500 | 1100*2000 | 1200*3000 | 1200*3500 | |
volume (m3) | 1.1 | 2.2 | 3.9 | 4.5 | |
Number of basket(crate) | 2 | 3 | 4 | 5 | |
maximum temperature (0C) | 1430C | ||||
working temperature (0C) | ≤1380C | ||||
maximum pressure (Mpa) | 0.3MPa | ||||
working pressure (Mpa) | ≤0.25Mpa | ||||
safety valve Kai-hop pressure (Mpa) | 0.27Mpa | ||||
working medium | Food, Water, steam, compressed air | ||||
main pressure parts of material | SUS304/Q235-B | ||||
Water once sterilization (m3) | ≈3 | ≈4 | ≈6 | ≈6.5 | |
weight of equipment(kg) | 700 | 982 | 1302 | 1391 | |
External dimensions L×W×H (mm) | 2000×1450X1232 | 2520×1600×1440 | 3550×1750×1550 | 4050×1750X1550 | |
steam heating food sterilizer retort
