SS316L Wine Storage Tank,wine Cooling Tank

SS316L Wine Storage Tank,wine Cooling Tank photo-1

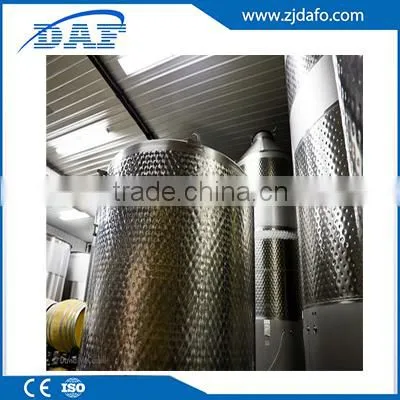

SS316L Wine Storage Tank,wine Cooling Tank photo-2

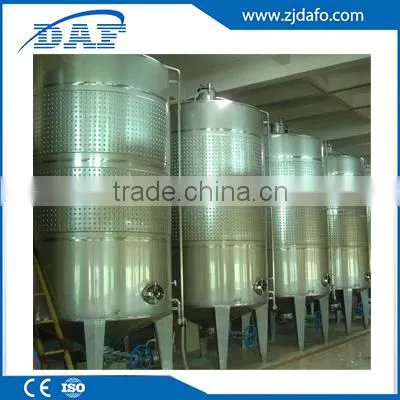

SS316L Wine Storage Tank,wine Cooling Tank photo-3

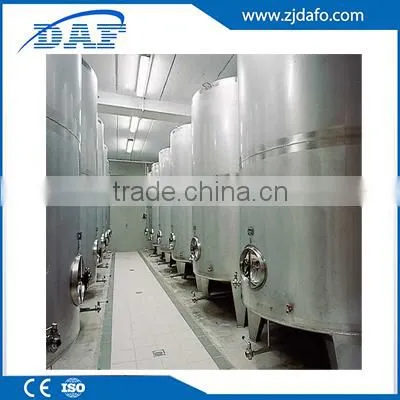

SS316L Wine Storage Tank,wine Cooling Tank photo-4

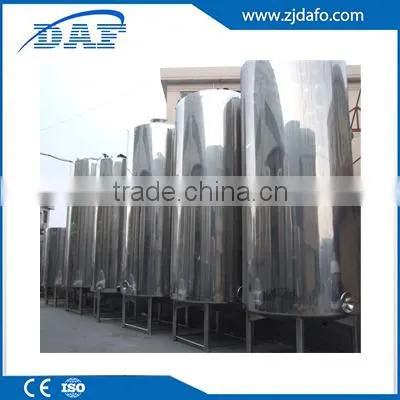

SS316L Wine Storage Tank,wine Cooling Tank photo-5

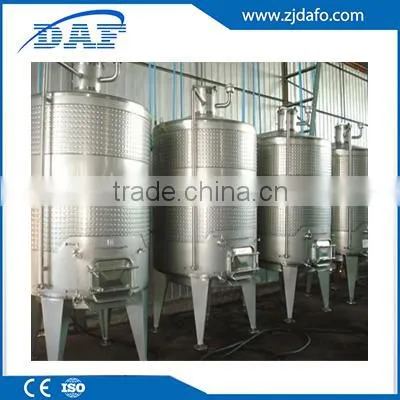

SS316L Wine Storage Tank,wine Cooling Tank photo-6
US$ 3,500 - 9,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
DAFO
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name DAFO
Model Number DF-ST
Processing Types Other, wine
Voltage customized
Power(W) customized
Weight made-custom
Dimension(L*W*H) made-custom
Certification CEISO



Product Description




Stainless steel316L wine storage tank,wine cooling tank

This liquid storage vessel of Sanitary Storage tanks are made of stainless steel (SUS304 or SUS316L). All joints and inside is mirror finished without any dead angle and cleaned easily.

Description:
1.It is mainly used as storage container,transfer tank for liquid, wine, juice, milk, dairy, drinks etc.
2.The tank legs can be choice between brake wheels easy remove or adjustable supports for well fixed.
3.Both inside and outside stainless surface are polished for easy cleaning,and produce a cover to avoid material splashing during processing and avoid volatilization of the solvent liquids;
5.The design of dished end and round bottom to avoid any dead corner during your process.
Material made of SUS304,316L,or others according to customer requirements.



Configurations:

1.It is sealed type, and the material contacting the liquid is the stainless steel 304 or 316L
2.Top inlet, sideway outlet.

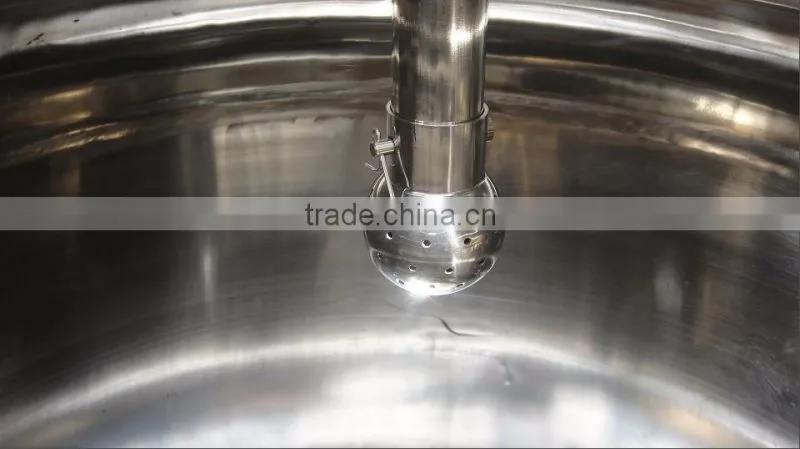

3.A self-rotating CIP spray ball
4.A set of air respirator.
5.A set of liquidometer
6.A 0-100 thermometer
7.Manhole 450mm



Technical parameters

Nomtal volume

Working pressure (Mpa)

Working temperature (!1)

L(mm)

L1(mm)

D(mm)

D1(mm)

H(mm)

1000L

0.099

100

1950

1500

1050

900

300

2000L

0.099

100

2300

1900

1400

1200

300

3000L

0.099

100

2600

2000

1800

1400

300

5000L

0.099

100

3260

2500

1800

1600

300

9000L

0.099

100

4300

3500

1900

1700

300

10000L

0.099

100

4700

3900

2100

1900

350

20000L

0.099

100

5650

4500

2800

2400

350

30000L

0.099

100

6250

4900

3000

2900

350

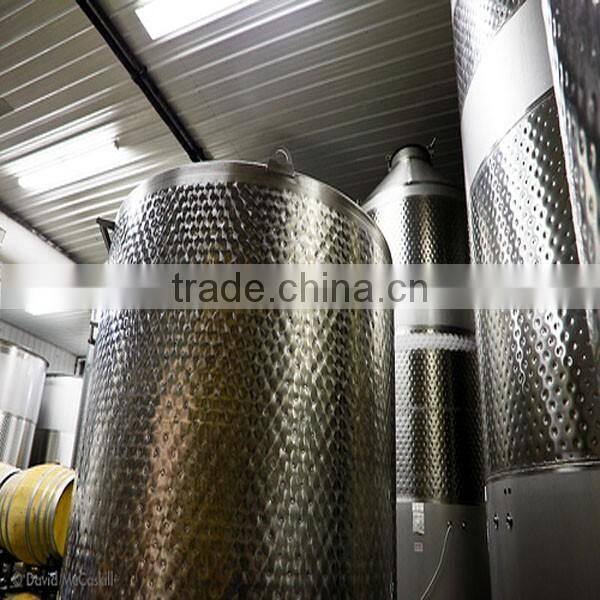

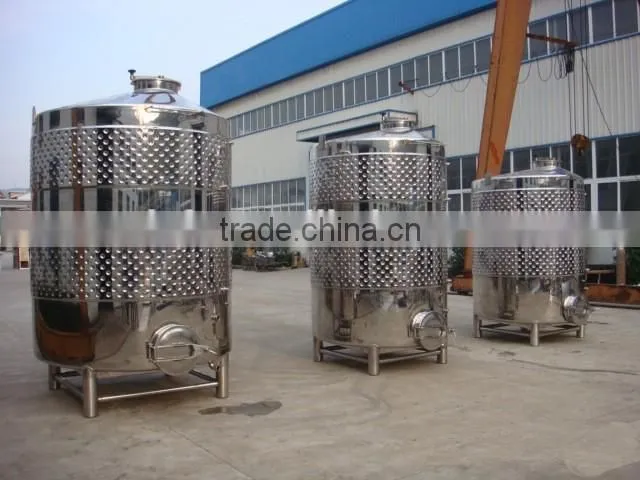

SS316L wine storage tank,wine cooling tank

SS316L wine storage tank,wine cooling tank

SS316L wine storage tank,wine cooling tank

SS316L wine storage tank,wine cooling tank







Company Information



Our company’s advantages over other companies:



      Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.

We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.

Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

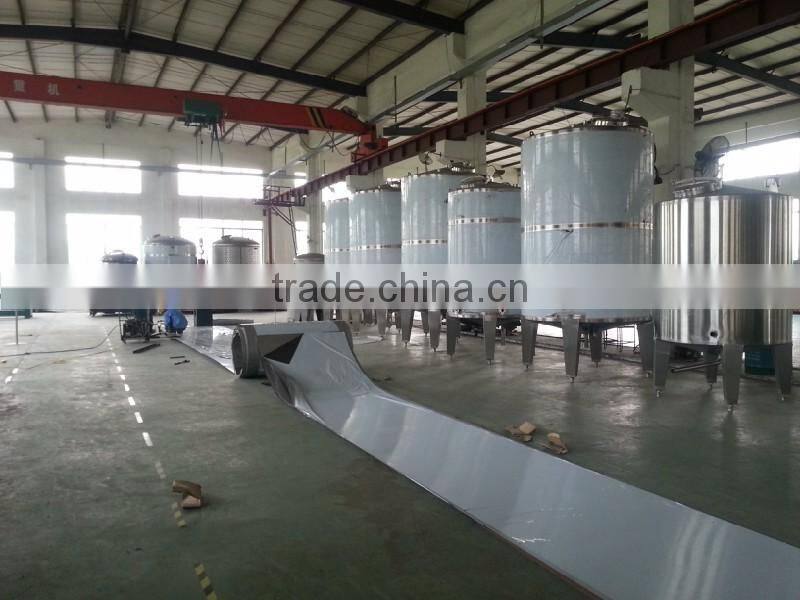

SS316L wine storage tank,wine cooling tank



Our company’s quality certification:



We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.

Our company’s customer segmentation:

Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,

Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.



Choose us and get more benefits:



1. Deliver innovative products in the market at a faster pace;

2. Enhance the reliability of product’s quality;

3. Decrease the total cost of the product effectively;

4. Improve research personnel’s ability of creative design;

5. Gain more leading technologies about product development and increase the competitive advantage of products.SS316L wine storage tank,wine cooling tank





Packaging & Shipping



Shipment



Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.

Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.SS316L wine storage tank,wine cooling tank

Our Services



Pre-sale service:



1. Free of making offers, craft and technical guidance.

2. We can provide company’s qualification certification and the drawings.

3. We can also make customized products according to customer’s needs.



After-sale service:



1. We provide long-term after-sale service.

2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.SS316L wine storage tank,wine cooling tank

FAQ



We can offer several payment methods which can ensure your capital’s security, such as the following:

L/C   T/T   D/A   D/P

Western Union

MoneyGramSS316L wine storage tank,wine cooling tank
