1.Cooling wine fermenting tanks,sus 304 or 316
2.Capacity:7bbl~50bbl
3.Brewery fermentation tank and dimple fermentation tank

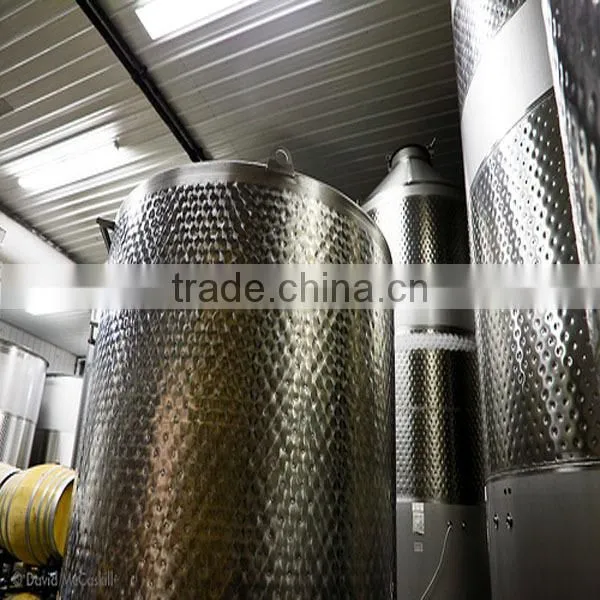

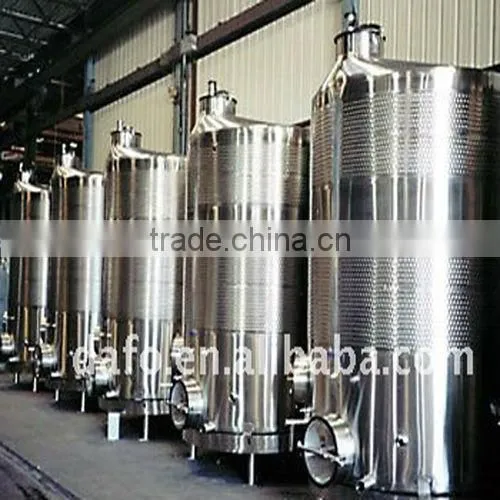

Cooling Wine fermenter Tank,stainless steel wine fermenter/Dimpled fermentation equipment
Full range of custom designed stainless steel tanks up to 500hl (50m³). Pressurized/Non Pressurized,
Double jacketed or with single jacket, insulated or non-insulated, with or without cooling zones, heated or non-heated vessels, cylindrical or conical tanks. Dished or common heads/bottoms.
Customized brewery tanks & vessels.
Agitation tanks. Milk storage tanks. Vinegar tanks.
Edible oil tanks. Wine tanks/vessels.
CIP & sanitary tanks.
Beer tapping tanks. Soft-drink tapping tanks.
Features of this tank are as follows
1.Fermentation tank is made of SUS304 stainless steel;
2.With cylindrical tank body;
3.With semi-open cover;ABB motor
4.Equipped with manhole;
5.Digital thermometer;
6.CIP spray ball;
7.Four supporting legs;
8.Temperature and level transmitters;
9.Heating and cooling jacket;
10.with PU as insulation;
11.Equipped with agitator on top which is controled by engine,widely used for milk
fermentation or ice cream aging;
12.The capacity is in specific from 500L to 100,000L.
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
-How to choose product
-Material you can choose stainless steel 304 or 316L.
-Each tank can be customize according to clients'request.
-Tank be equipped with parts like valve,stir,sight glass etc.
-You can choose tank size,or make special size for you.
| Uniform nominal volume(m³) | Dg | H | a | b | c | d | F1 | F2 | manhole |
| 0.5 | 800 | 1000 | 40 | 40 | 25 | 40 | 20 | 20 | 400 |
| 1 | 1000 | 1300 | 50 | 50 | 25 | 50 | 20 | 20 | 400 |
| 2 | 1200 | 1800 | 50 | 50 | 25 | 50 | 20 | 20 | 400 |
| 3 | 1400 | 2000 | 65 | 50 | 40 | 65 | 20 | 20 | 400 |
| 4 | 1600 | 2000 | 65 | 50 | 40 | 65 | 20 | 20 | 400 |
| 5 | 1600 | 2500 | 80 | 65 | 40 | 80 | 20 | 20 | 400 |
| 6 | 1800 | 2300 | 80 | 65 | 50 | 80 | 20 | 20 | 400 |
| 8 | 2000 | 2500 | 80 | 65 | 50 | 80 | 20 | 20 | 500 |
| 10 | 2200 | 2600 | 100 | 80 | 50 | 80 | 20 | 20 | 500 |
| 15 | 2200 | 3900 | 100 | 80 | 50 | 80 | 20 | 20 | 600 |
| 20 | 2600 | 3700 | 100 | 100 | 80 | 80 | 20 | 20 | 600 |
| 30 | 2800 | 4800 | 100 | 100 | 80 | 80 | * | * | 600 |
| 40 | 3000 | 5000 | 100 | 100 | 80 | 80 | * | * | 600 |
| 50 | 3500 | 5200 | 120 | 100 | 80 | 80 | * | * | 600 |
| 60 | 3500 | 6200 | 120 | 100 | 80 | 80 | * | * | 600 |
| 80 | 4000 | 6400 | 150 | 120 | 80 | 80 | * | * | 600 |
| 100 | 4000 | 8000 | 120 | 120 | 100 | 100 | * | * | 600 |
