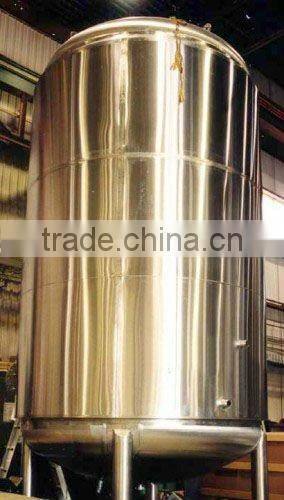

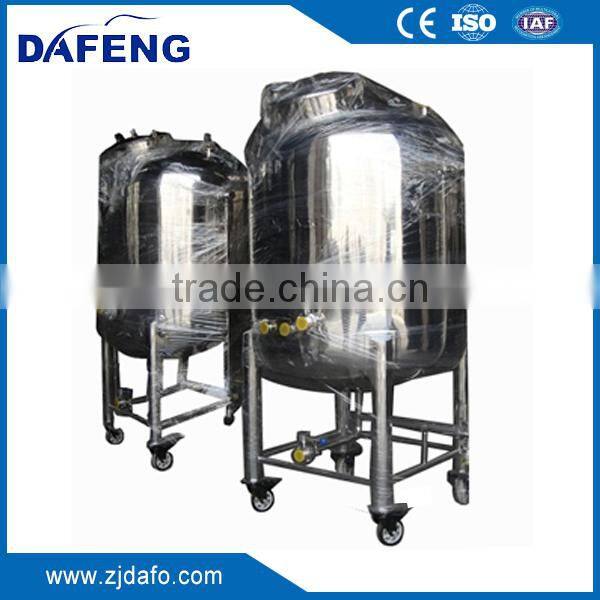

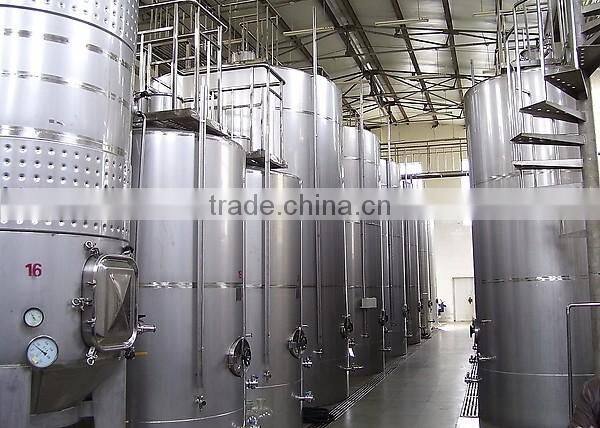

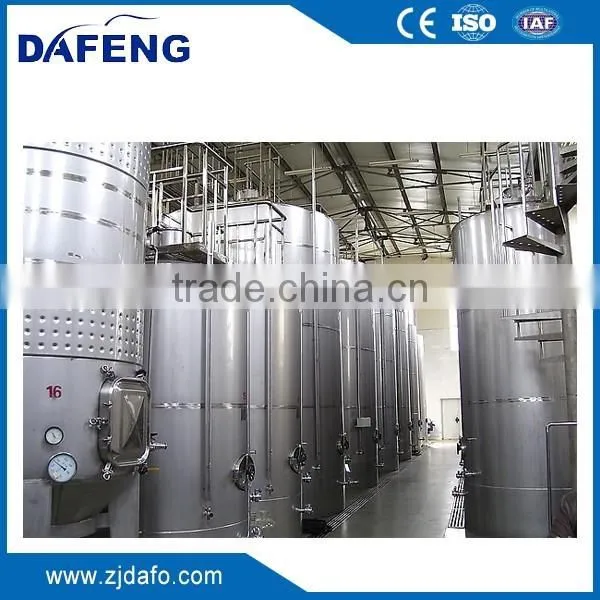

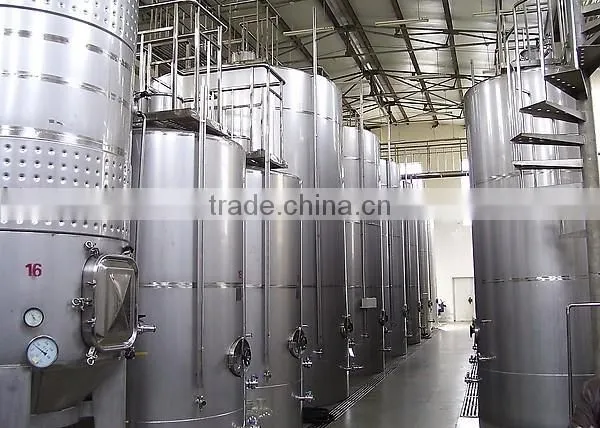

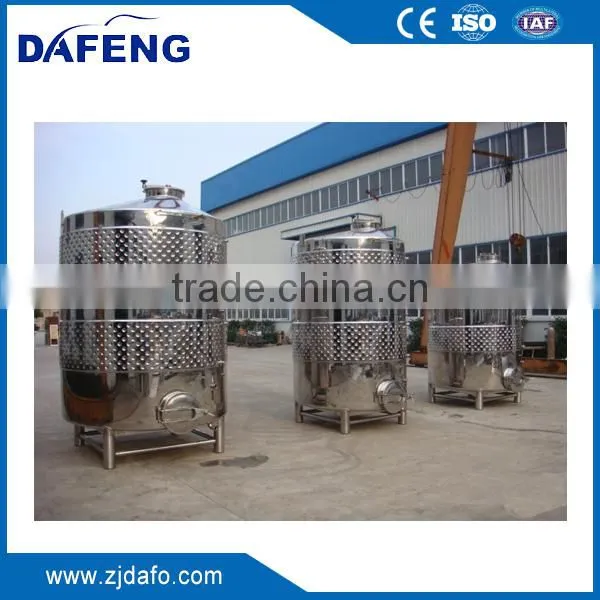

1000L-50000L stainless steel red wine fermentation tank
The wine fermentation or fermenting tank is a product developed by our company according to the wine fermenting technology from abroad. The equipment is mainly composed of top,body,cooling jacket part,liquid level observation part,conical bottom part, bottom residue scraping mechanism,residue discharging device,wine storage and wine internal circulating system etc
Technical Parameters
| Nominal volume(L) | Working pressure | Working temperature |
L (MM) |
L1 (MM) |
D (MM) |
D1 (MM) |
H (MM) |
| 1000L | 0.098 | 100 | 1950 | 1500 | 1050 | 900 | 300 |
| 2000L | 0.098 | 100 | 2300 | 1800 | 1400 | 1200 | 300 |
| 3000L | 0.098 | 100 | 2600 | 2000 | 1600 | 1400 | 300 |
| 5000L | 0.098 | 100 | 3250 | 2500 | 1800 | 1600 | 300 |
| 8000L | 0.098 | 100 | 4300 | 3500 | 1900 | 1700 | 300 |
| 10000L | 0.098 | 100 | 4700 | 3800 | 2100 | 1900 | 350 |
| 20000L | 0.098 | 100 | 5650 | 4500 | 2600 | 2400 | 350 |
| 30000L | 0.098 | 100 | 6250 | 4800 | 3000 | 2800 | 350 |
Specification:
1.Material: SUS304/SUS316L
2.Volume: 200L~20,000L larger
3.Winery system, wine fermentation tank
Equipment:
♦ Drain port DKE2”TRI CLOVER(tanks 500GAL and 1000GAL )or DKC2”TRI
CLOVER (TANKS 1500GAL and 2000GAL )
♦ Packing port 2”TRI CLOVER
♦ Sample valve port 3/4”TRI CLOVER
♦Oval manway 310x440mm,thr frame seamlessly formed out of the tank wall
(tanks 500GAL)or oval manway
♦ Top manway 420mm
♦ Connection for thermometer 1/2”NPT
♦ Connection for probe 1/2”NPT

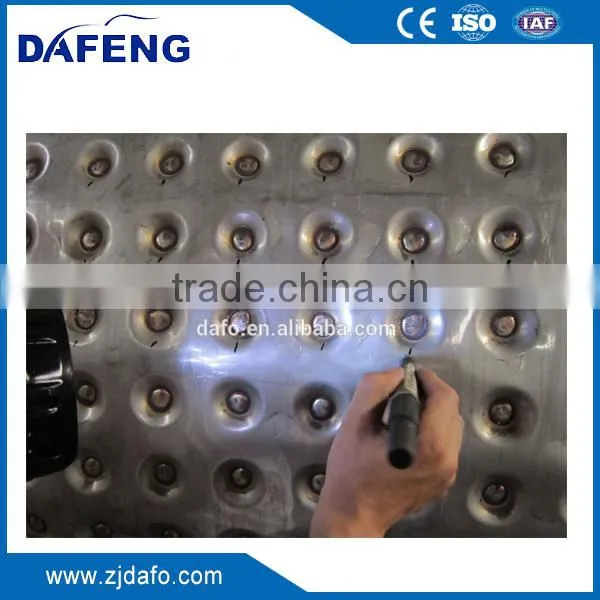

♦ Cooling jacket Vt h750mm 6bar
♦ Lifting rings
♦ Ladder hoider,width 410mm
ACCESSORIES
♦ Sample valve 3/4”TRI CLOVER
♦Clamp 3/4”TRI CLOVER
♦Gasket 3/4”TRI CLOVER
♦ Pressure compensating valve DIN 50
♦ Material:ALS 1316-tank;AISI304-OTHER PARTS
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
We can offer several payment methods which can ensure your capital’s security, such as the following:
L/C T/T D/A D/P
Western Union
MoneyGram
More options of delivery:
1. EXW (EX works)
2. FCA (Free Carrier)
3. FAS (Free Alongside Ship)
4. FOB ( Free on Board)
5. CFR (Cost and Freight)
6. CIF (Cost, Insurance and Freight)
7. CPT (Carriage Paid to)
8. CIP (Carriage, Insurance Paid to)
9. DAF (Delivered at Frontier)
10. DES (Delivered Ex Ship)
11. DEQ (Delivered Ex Quay)
12. DDU (Delivered Duty Unpaid)
13. DDP (Delivered Duty Paid)
