wine stainless steel tank
- 20 Set / Sets per Month
- ningbo
- T/T Credit Card
- 10HL 5HL Automated Brewhouse Equipment
- 10HL 20HL 5HL Automatic Brewery System
- medical alcohol 75% ethanol making machine production line
- beer production line barley malting equipment
- 1000L fermentation tank for yogurt processing line
- high quality yogurt stirred yogurt processing line fermentation tank
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | DF |
Model Number: | WFT | Processing Types: | Alcohol | Voltage: | customized |
Power(W): | customized | Dimension(L*W*H): | accordingly | Weight: | accordingly |
Certification: | CE,ISO9001 | Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

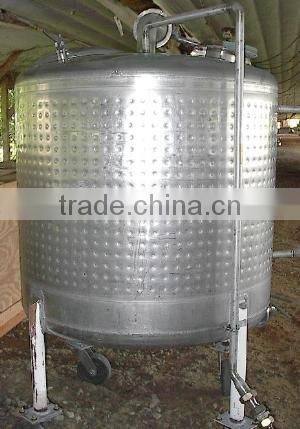

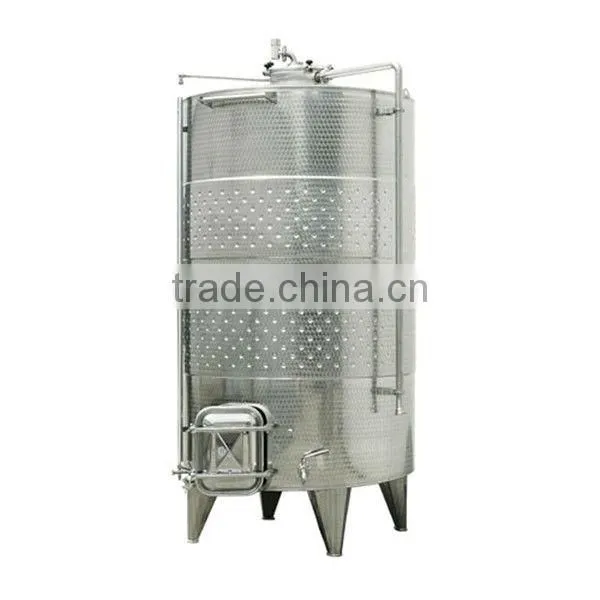

Dimple jacketed wine fermentating tank wine fermenting tank is a product developed by our company according to the wine fermenting tank technology from abord. The equipment is mainly composed of top,top material distributing device,cooling jacket part,liquid level observation part,conical bottom part, bottom residue scraping mechanism,residue discharging device,wine storage and wine internal circulating system etc.
Specification:
1.Material: SUS304/SUS316L
2.Volume: 200L~20,000L larger
3.Winery system, wine fermentation tank
Equipment:
♦ Drain port DKE2”TRI CLOVER(tanks 500GAL and 1000GAL )or DKC2”TRI
CLOVER (TANKS 1500GAL and 2000GAL )
♦ Packing port 2”TRI CLOVER
♦ Sample valve port 3/4”TRI CLOVER
♦Oval manway 310x440mm,thr frame seamlessly formed out of the tank wall
(tanks 500GAL)or oval manway
♦ Top manway 420mm
♦ Connection for thermometer 1/2”NPT
♦ Connection for probe 1/2”NPT
♦ Cooling jacket Vt h750mm 6bar
♦ Lifting rings
♦ Ladder hoider,width 410mm
ACCESSORIES
♦ Sample valve 3/4”TRI CLOVER
♦Clamp 3/4”TRI CLOVER
♦Gasket 3/4”TRI CLOVER
♦ Pressure compensating valve DIN 50
♦ Material:ALS 1316-tank;AISI304-OTHER PARTS
Technical parameters:
ID | | FW500GAL | FW750GAL | FW1000GAL | FW1500GAL | FW2000GAL |
| It | 2000 | 3100 | 4100 | 6000 | 7800 |
Gal | 538USGAL | 820USGAL | 1090USGAL | 1588USGAL | 2070USGAL | |
D | mm | 1110(44inch) | 1370(54inch) | 1580(63inch) | 1900(63inch) | 2050(63inch |
H | mm | 2000(79inch) | 2000(79inch) | 2000(79inch) | 2000(79inch) | 2250(79inch |
Z | mm | 2750(108inch) | 2750(108inch | 2750(108inch | 2750(108inch) | 3000(108inch |
N | mm | 350(14inch) | 350(14inch) | 350(14inch) | 350(14inch) | 350(14inch) |
M | ibs | 372 | 490 | 593 | 778 | 892 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Reactors,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Logo of our partners:
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
