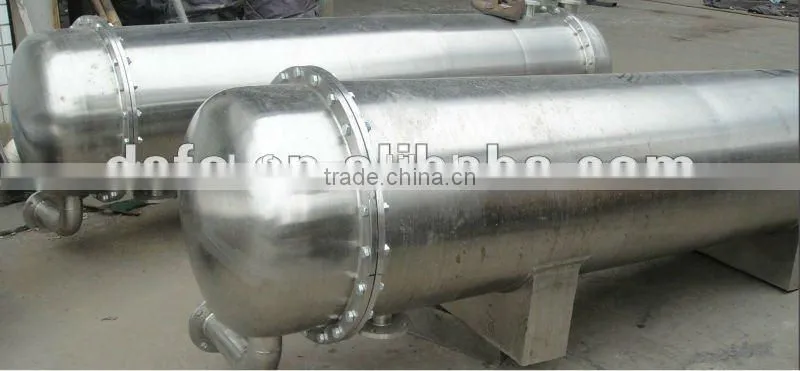

flanged shell tube heat exchanger/transfer
- 100 Set / Sets per Month
- ningbo/shanghai
- Credit Card
- New Aluminum 15L Capapity air oil cooler for concrete mixer truck
- 12L Capapity air oil cooler for concrete mixer truck
- Standard New Oil Cooler for concrete mixer truck
- Standard Hydraulic Oil Cooler for Concrete Mixer Truck
- Aluminum Plate and Bar Hydraulic Oil Cooler for Concrete Mixer Truck
- Hydraulic Oil Cooler for Concrete Mixer Truck
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | DF |
Model Number: | LNQ-5 | Structure: | Tube Heat Exchanger | Liquid Flow Rate: | 6.6 m*m*m/h |
Maximum Working Pressure: | 9.9MPa | Voltage: | 220/380V | Weight: | 1-2t |
Dimension(L*W*H): | 800-3000mm | Power(W): | 1hp-100hp | Certification: | CE |
Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

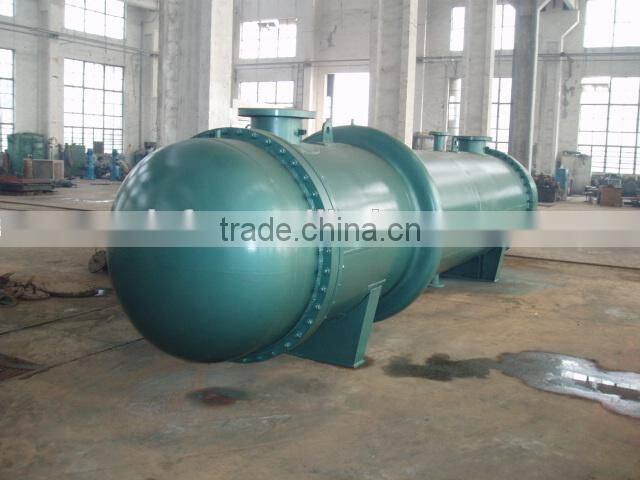

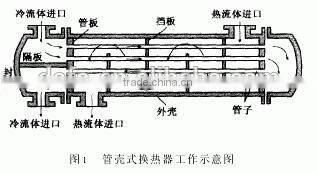

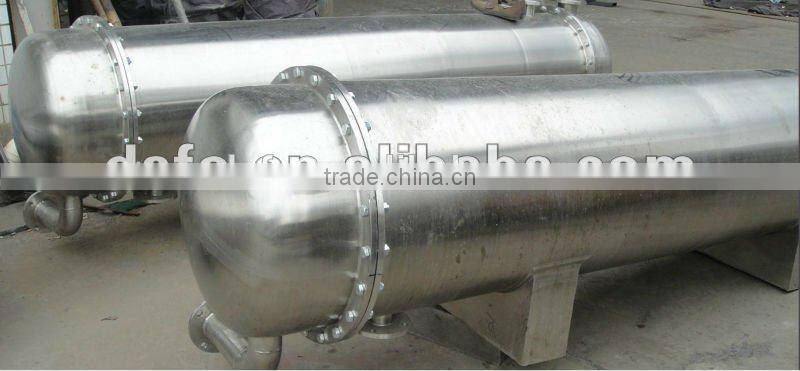

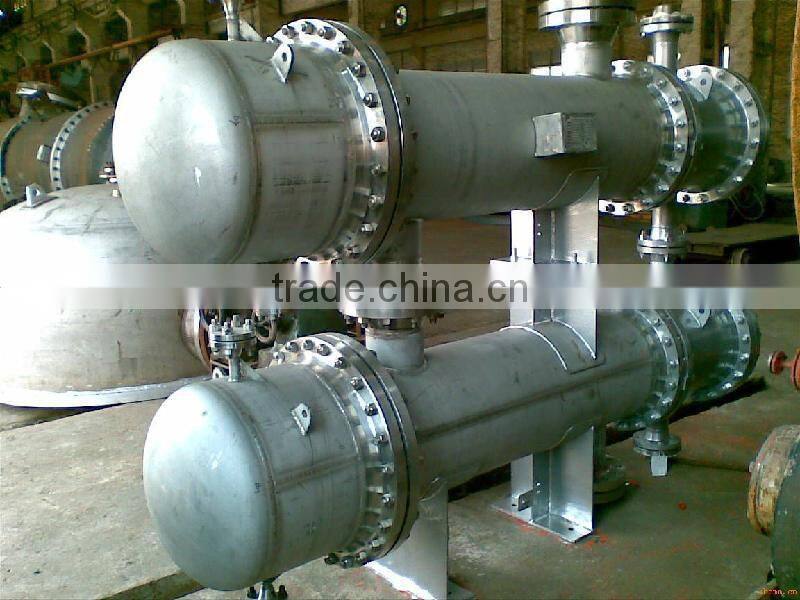

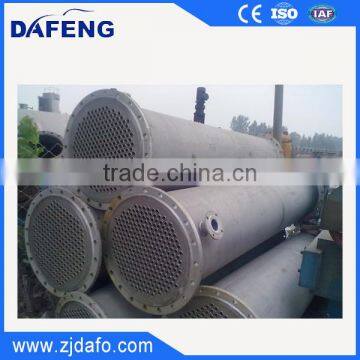

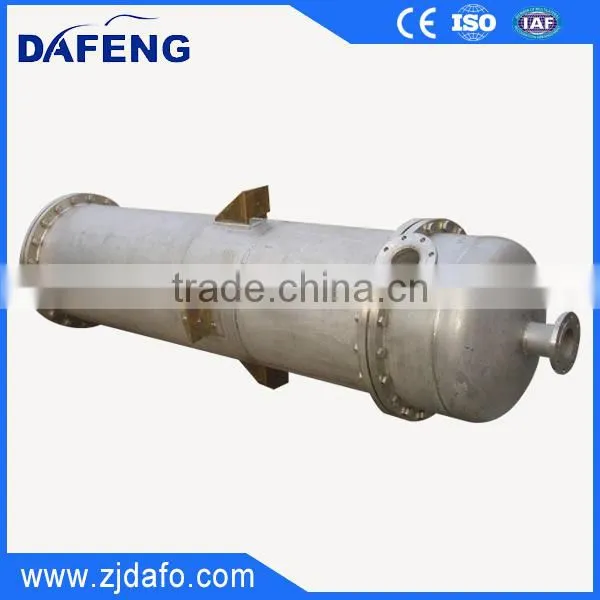

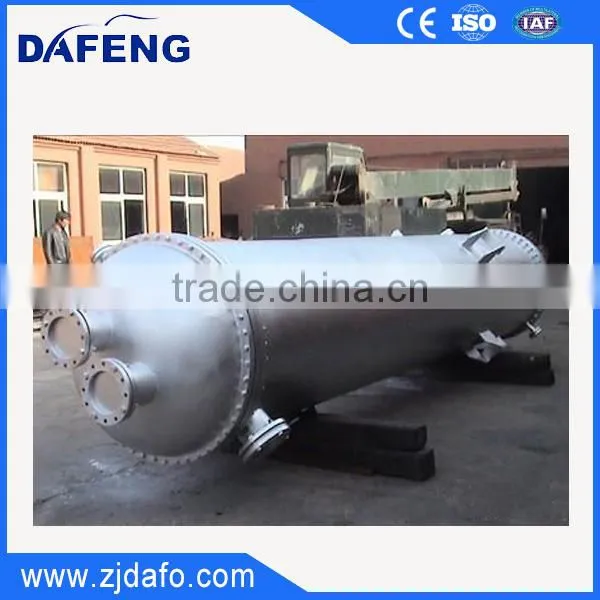

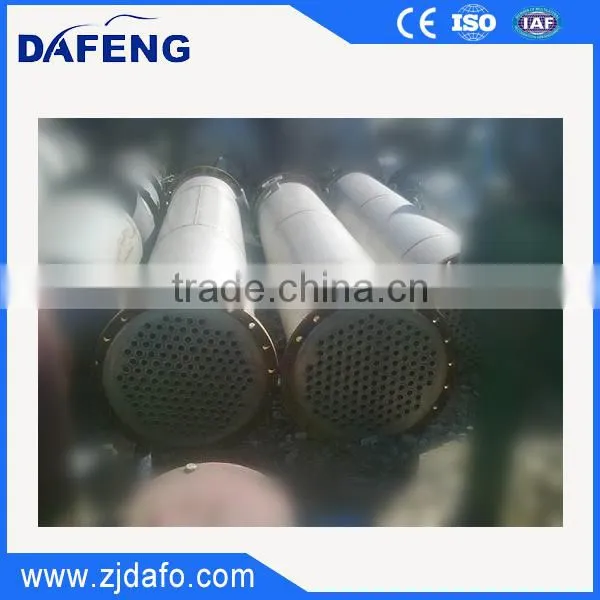

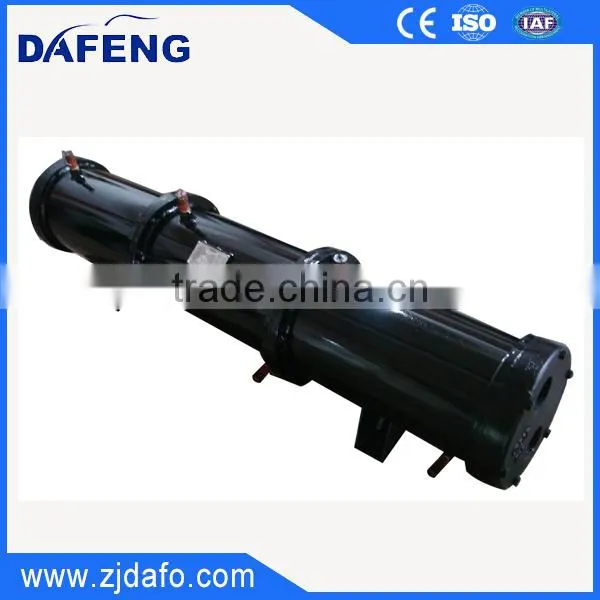

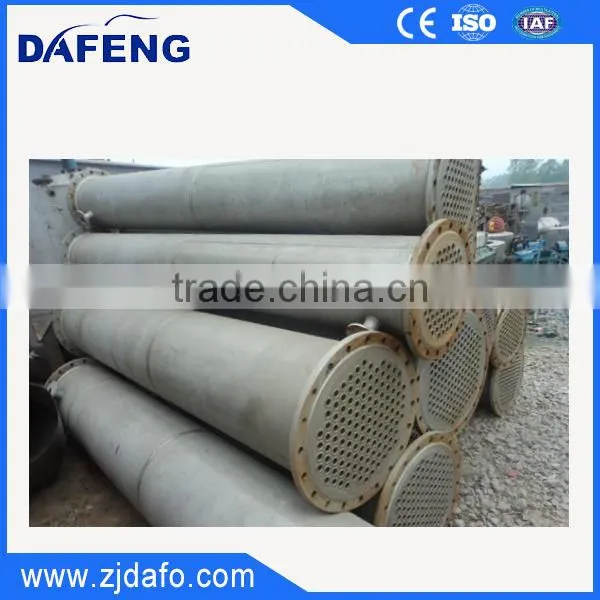

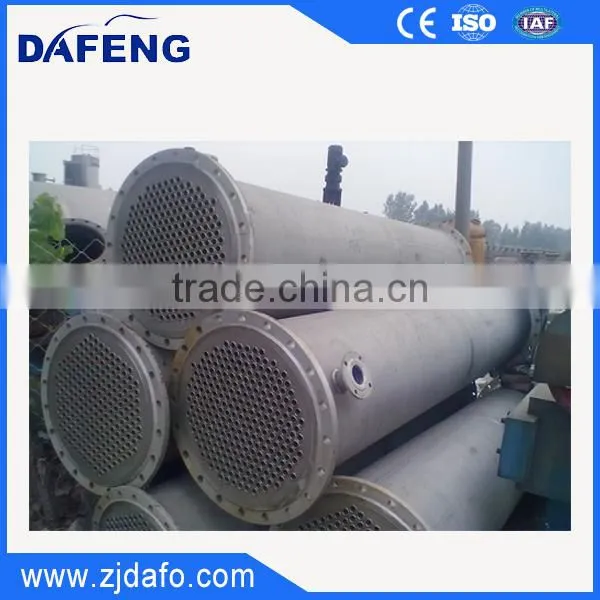

Shell and tube heat exchanger
Application:widely used in fluid heat exchange of the drugs-manufacturing,chemistr,food Fields.
Our Shell and Tube Heat Exchangers can be customised to meet customer requirements. They are available in a wide range of design variations, special materials and features to meet virtually any heat transfer requirements.
The heat exchangers materials are carefully selected to suit the medium flowing in them. The tubes are available in Stainless steel.The shells are available in steel, stainless steel, aluminium and bronze.
Dafeng, for more than a decade, offers standard and custom built shell and tubes heat exchangers for the power generation, petrol chemical, marine and manufacturing industry. The heat exchangers are designed according to the required specification like TEMA, ASME or SINOMEC’s proprietary design.
Certificate: ASME "U" stamp, DNV, LR, BV, ABS, GL, etc.
It also canspecial design according to the material and
requirement from the customer' s procedure, heat exchanger 1 - 200 m².
Specification(m2) | Effective Length (mm) | O.D (mm) | Weight (kg) |
0.5 | 800 | 159 | 60 |
1 | 800 | 159 | 90 |
1.5 | 1200 | 208 | 138 |
2 | 1200 | 220 | 155 |
3 | 1400 | 300 | 236 |
5 | 1200 | 300 | 260 |
10 | 1600 | 400 | 390 |
15 | 2400 | 400 | 560 |
20 | 2600 | 400 | 800 |
30 | 3200 | 450 | 1005 |
40 | 3500 | 500 | 1310 |
50 | 4000 | 500 | 1620 |
60 | 4000 | 500 | 1850 |
70 | 4000 | 500 | 2080 |
80 | 3500 | 600 | 2320 |
90 | 4000 | 600 | 2600 |
100 | 3000 | 700 | 2950 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Choose us and get more benefits:
1. Deliver innovative products in the market at a faster pace;
2. Enhance the reliability of product’s quality;
3. Decrease the total cost of the product effectively;
4. Improve research personnel’s ability of creative design;
5. Gain more leading technologies about product development and increase the competitive advantage of products.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
We can offer several payment methods which can ensure your capital’s security, such as the following:
L/C T/T D/A D/P
Western Union
MoneyGram
