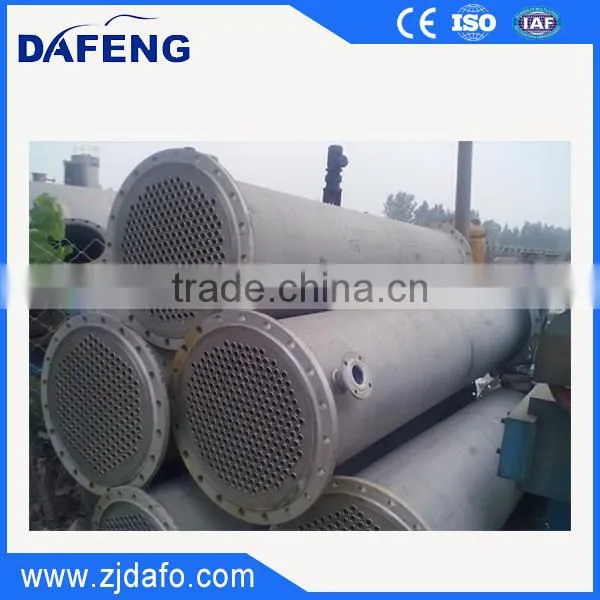

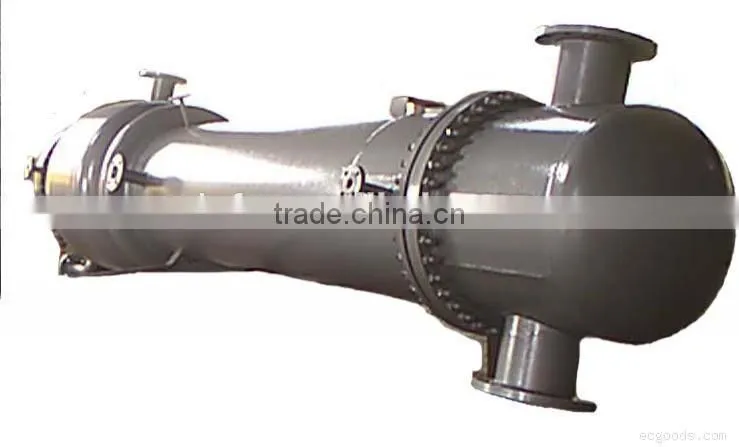

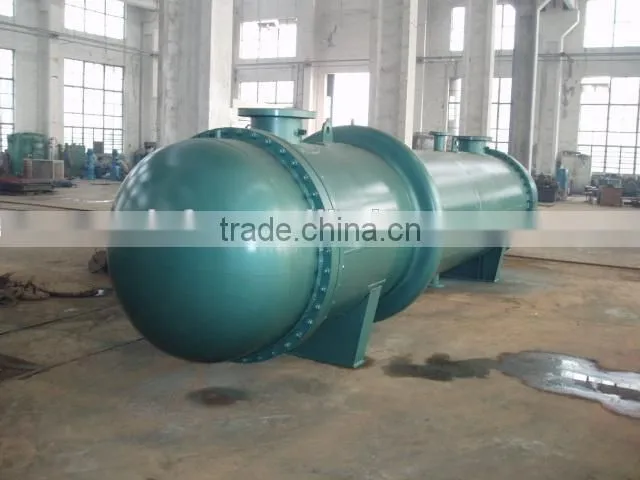

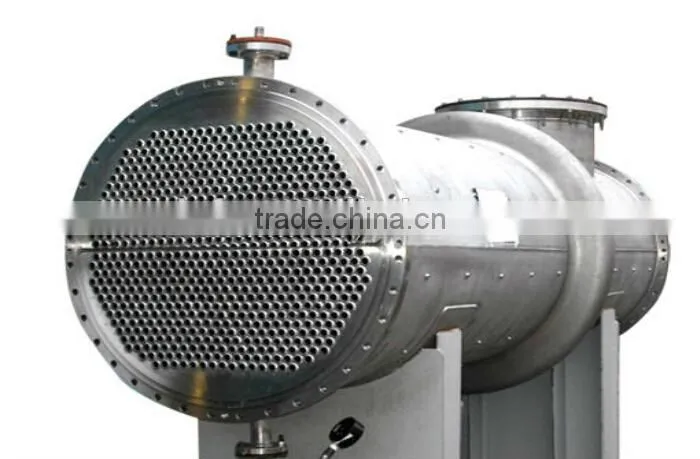

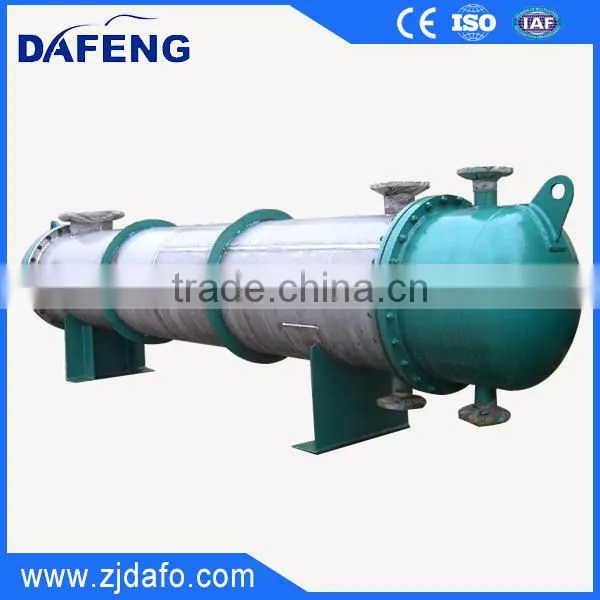

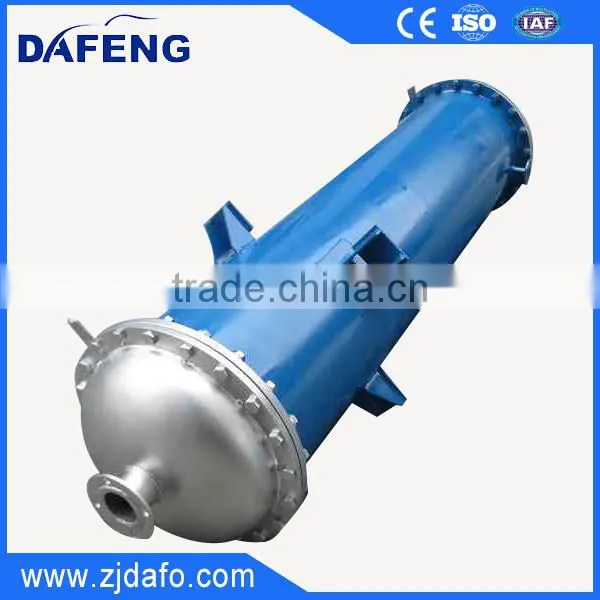

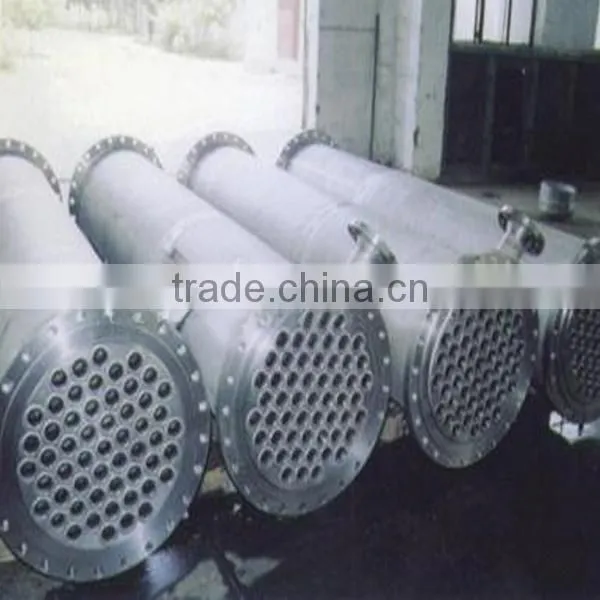

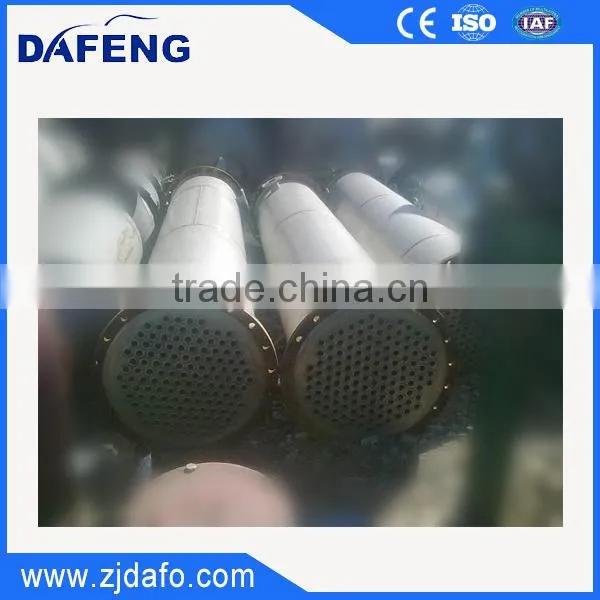

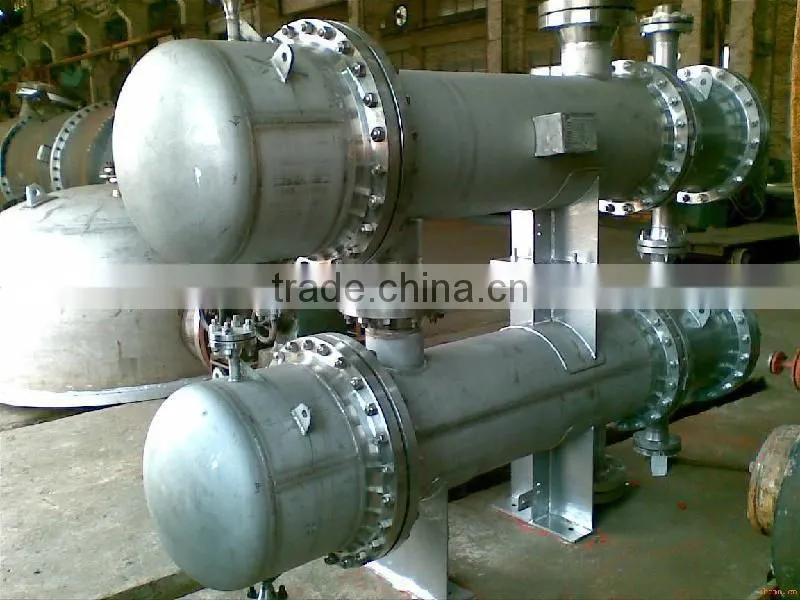

Shell and Tube condensing Unit
- 20 Set / Sets per Month
- ningbo/shanghai
- Credit Card
- New Aluminum 15L Capapity air oil cooler for concrete mixer truck
- 12L Capapity air oil cooler for concrete mixer truck
- Standard New Oil Cooler for concrete mixer truck
- Standard Hydraulic Oil Cooler for Concrete Mixer Truck
- Aluminum Plate and Bar Hydraulic Oil Cooler for Concrete Mixer Truck
- Hydraulic Oil Cooler for Concrete Mixer Truck
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | DF |
Model Number: | Tubular-heat-exchanger | Structure: | Tube Heat Exchanger | Maximum Working Pressure: | 1.6MPa |
Weight: | accordingly | Dimension(L*W*H): | as per standard | Certification: | CE |
Warranty: | 3 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Tubular heat exchanger, is widely used in fluid heat
exchange of the drugs-manufacturing, chemistry industry, food, spin-ning and weaving profession.
According to the different procedure, there are two kinds of material: 316L and 304.
It can also be used to kill the bacteria wilh pure vapor according to the procedure.
Due to its good sealing, wide applicable condition and not easy pollution, it is especially suitable for the heal transfer
of the the water chilling,heating,vapor condensing,drying powder in the drugs injection manufacturing profession, water purification, in the process of biological preparations, as well as for the rising and decreasing temperature of medicine fluid.
It also can make a special design according to the material and special
requirement from the customer' s procedure, manufacture heat exchanger 1 - 200 m².

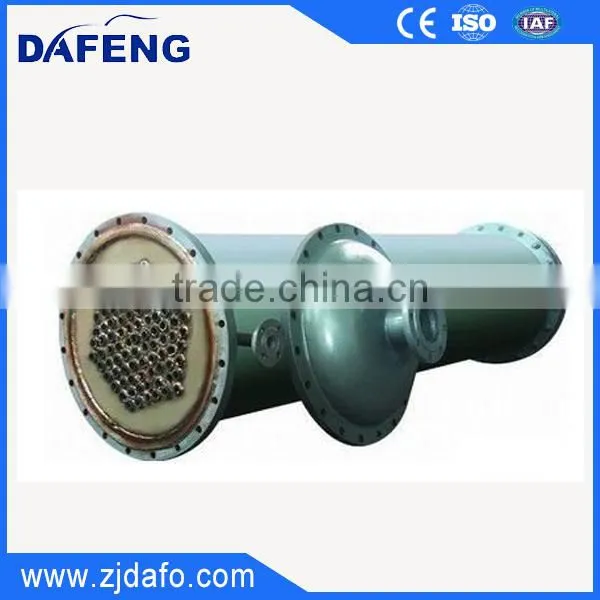

Detailed introduction to Shell & Tube Condenser (Heat Exchanger)
This Shell and tube type Condenser (heat exchanger) are designed to provide our clients the best solutions available in Refrigeration applications.
Its main function is to condense the refrigerant from steam into liquid. The shell and tube part is made of high performance Stainless steel 316L,tubes Q235-B, steel 20# etc. and its coppers tubes with grooves both outside and inside to achieve best efficiency.
1,A Series (Ranging from 11,340Kcal/h to 831,600Kcal/h): Matching for single compressor unit.
2,B Series (Ranging from 37,800Kcal/h to 1,134,000Kcal/h): Matching for double compressors unit.
3,C Series (Ranging from 56,700Kcal/h to 340,200Kcal/h): Matching for triple compressors unit.
Suitable for R22, R134A, R407C, R410A, R404A, etc. Please contact us for more details.
Specification(m2) | Effective Length (mm) | O.D (mm) | Weight (kg) |
0.5 | 800 | 159 | 60 |
1 | 800 | 159 | 90 |
1.5 | 1200 | 208 | 138 |
2 | 1200 | 220 | 155 |
3 | 1400 | 300 | 236 |
5 | 1200 | 300 | 260 |
10 | 1600 | 400 | 390 |
15 | 2400 | 400 | 560 |
20 | 2600 | 400 | 800 |
30 | 3200 | 450 | 1005 |
40 | 3500 | 500 | 1310 |
50 | 4000 | 500 | 1620 |
60 | 4000 | 500 | 1850 |
70 | 4000 | 500 | 2080 |
80 | 3500 | 600 | 2320 |
90 | 4000 | 600 | 2600 |
100 | 3000 | 700 | 2950 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
