Heat Exchange Condensing Unit

Heat Exchange Condensing Unit photo-1

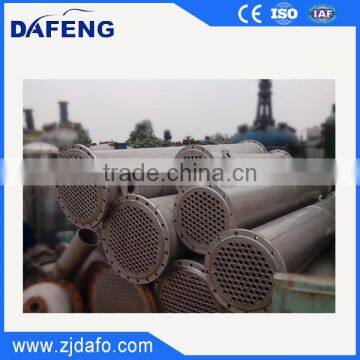

Heat Exchange Condensing Unit photo-2
Heat Exchange Condensing Unit photo-3

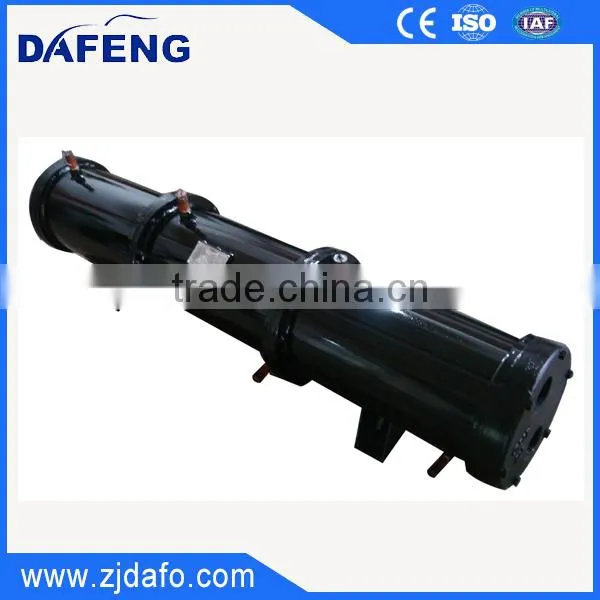

Heat Exchange Condensing Unit photo-4
Heat Exchange Condensing Unit photo-5
Heat Exchange Condensing Unit photo-6
US$ 900 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
DF
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name DF
Model Number Tubular-heat-exchanger
Structure Tube Heat Exchanger
Maximum Working Pressure 1.6MPa
Weight accordingly
Dimension(L*W*H) as per standard
Certification CE
Warranty 3 years
After-sales Service Provided Engineers available to service machinery overseas





Product Description

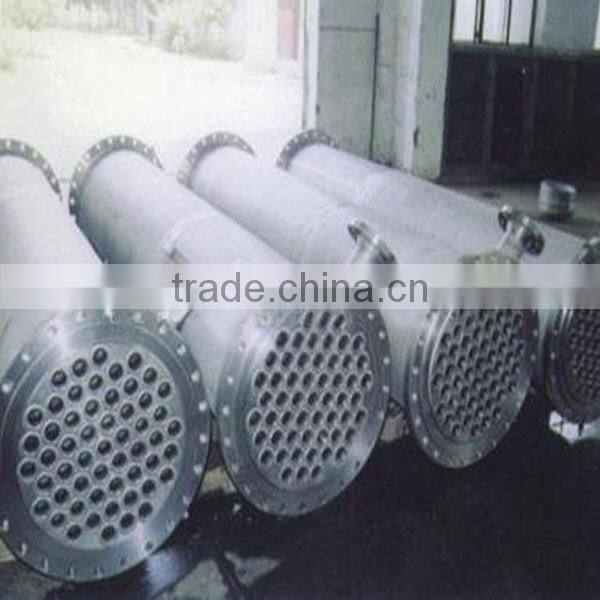

Tubular heat exchanger, is widely used in fluid heat

exchange of the drugs-manufacturing, chemistry industry, food, spin-ning and weaving profession.



According to the different procedure, there are two kinds of material: 316L and 304.



It can also be used to kill the bacteria wilh pure vapor according to the procedure.

Due to its good sealing, wide applicable condition and not easy pollution, it is especially suitable for the heal transfer

of the the water chilling,heating,vapor condensing,drying powder in the drugs injection manufacturing profession, water purification, in the process of biological preparations, as well as for the rising and decreasing temperature of medicine fluid.

It also can make a special design according to the material and special

requirement from the customer' s procedure, manufacture heat exchanger 1 - 200 m².

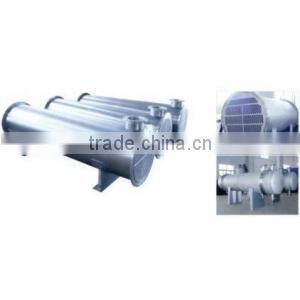

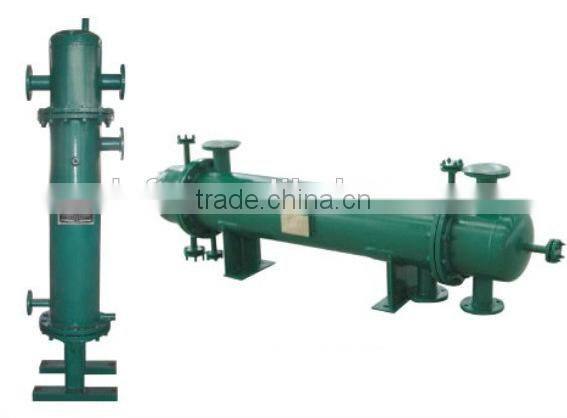

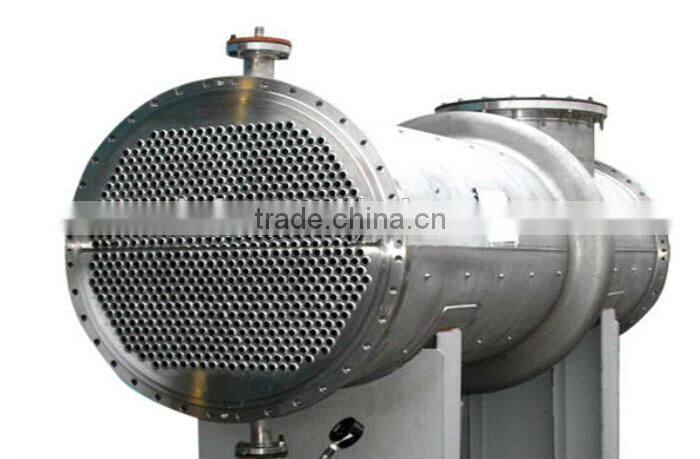

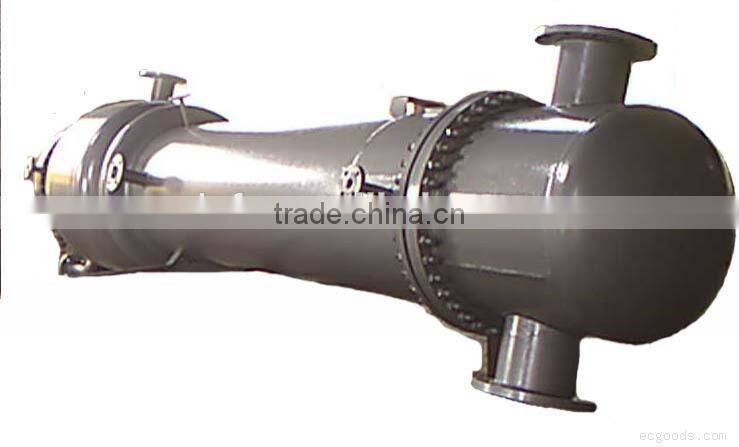

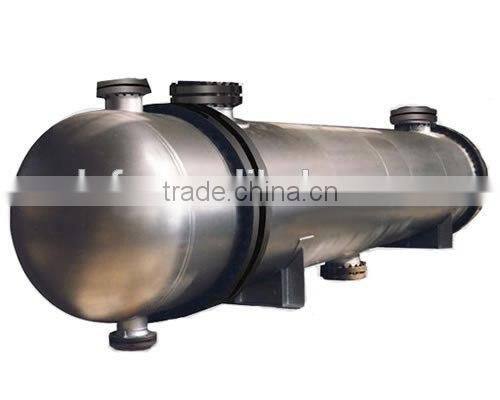

Detailed introduction to Shell & Tube Condenser (Heat Exchanger)

This Shell and tube type Condenser (heat exchanger) are designed to provide our clients the best solutions available in Refrigeration applications.



Its main function is to condense the refrigerant from steam into liquid. The shell and tube part is made of high performance Stainless steel 316L,tubes Q235-B, steel 20# etc. and its coppers tubes with grooves both outside and inside to achieve best efficiency.



1,A Series (Ranging from 11,340Kcal/h to 831,600Kcal/h): Matching for single compressor unit.



2,B Series (Ranging from 37,800Kcal/h to 1,134,000Kcal/h): Matching for double compressors unit.


3,C Series (Ranging from 56,700Kcal/h to 340,200Kcal/h): Matching for triple compressors unit.



Suitable for R22, R134A, R407C, R410A, R404A, etc. Please contact us for more details.



Specification(m2)

Effective Length (mm)

O.D (mm)

Weight (kg)

0.5

800

159

60

1

800

159

90

1.5

1200

208

138

2

1200

220

155

3

1400

300

236

5

1200

300

260

10

1600

400

390

15

2400

400

560

20

2600

400

800

30

3200

450

1005

40

3500

500

1310

50

4000

500

1620

60

4000

500

1850

70

4000

500

2080

80

3500

600

2320

90

4000

600

2600

100

3000

700

2950

Heat Exchange condensing UnitHeat Exchange condensing Unit

 Heat Exchange condensing Unit Heat Exchange condensing Unit

Heat Exchange condensing UnitHeat Exchange condensing UnitHeat Exchange condensing UnitHeat Exchange condensing UnitHeat Exchange condensing UnitHeat Exchange condensing Unit



Company Information

Our company’s advantages over other companies:



      Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.

We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.

Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

Packaging & Shipping

Shipment



Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.

Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
