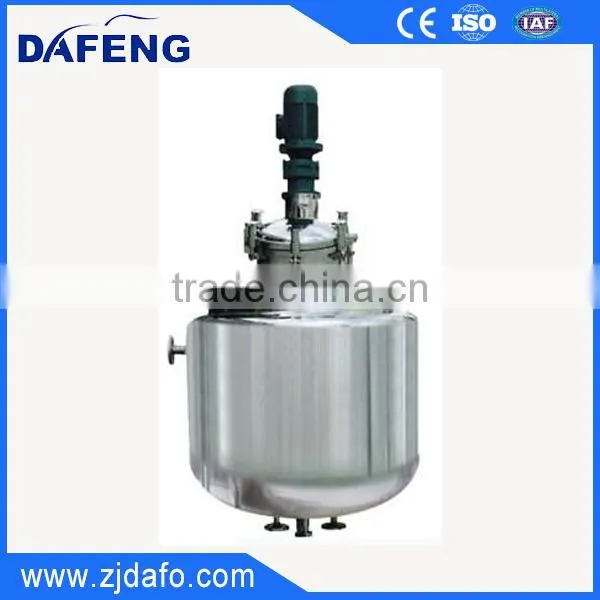

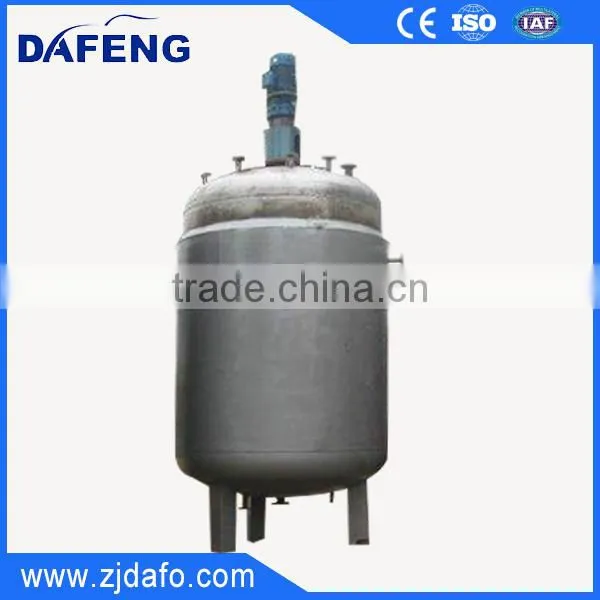

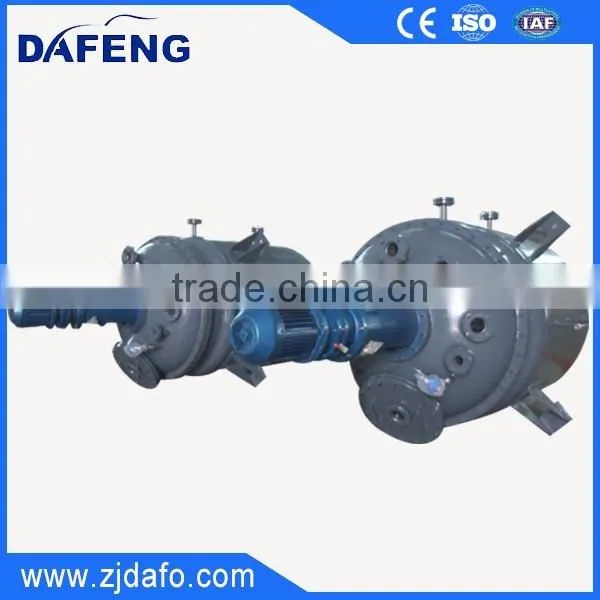

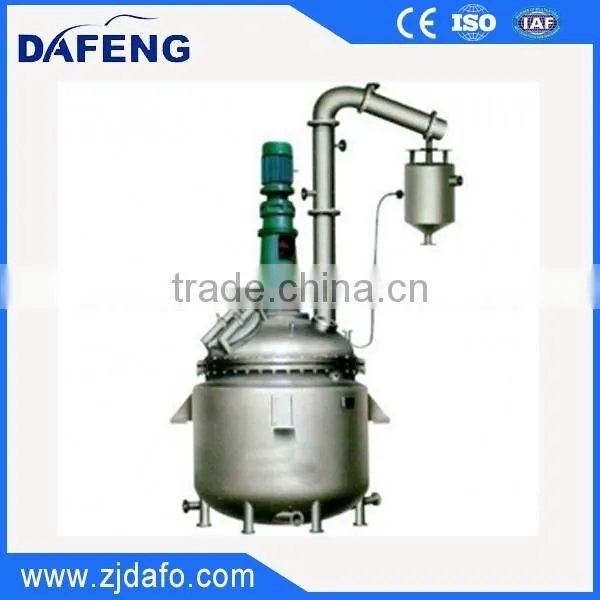

Name: 7000L stainless steel industrial reactor
Detail:
this tank can be made to various stainless steel tank, main material use SUS316L,304 stainless steel 2B roll plate;the proof leak and anti-corrosion, with slow speed anchor type agitator.with automatic spraying and cleaning nozzle in the tank to ensure producing procedure comply with Chemical Industry standards,or meet GMP requirements.
For mixing,reaction, fermentation etc.
1)Tank (Pressure Vessel) volume: 1--120 cubic meters
2)Dimension: Diameter and height according to the requirements
3)Material: Stainless Steel (304 or 316L)
4)Tank shell thickness: 2mm or more (according to the design or client required)
5)Pressure (MPa): Atmospheric pressure-Middle pressure-high pressure (According to the Chinese Design standard)
6)Function: Chemical Reacting
7)Design temperature C-degree: -5-80
8)Medium:auxiliaries,paints for lether,paper
9)Tank surface: The original surface of the stainless steel plate (polishing if required)
10)Mixer: Top side
11)General accessories: Manhole, CIP, respirator, sight glass, safety valve,converter
12)Manufacture standard: Chinese Pressure Vessel Design and Making Standard
13)Guarantees inner quality and safety, appearance and function by introducing international advanced large-sized equipment of pulse plasma arcwelder and auto polishing machines and so on

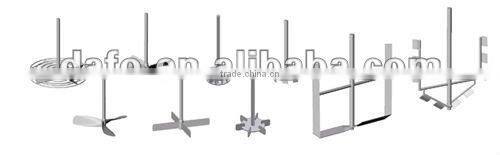

Agitators
guarded cage turbine type • propeller type • radial turbine type • axial turbine type • squirrel cage Rushton turbine • disperser type • bottom & side sweep • bottom & side scraper
Main Dimension And Parameters
Effective volume | Dimension of tank(D×h) | Total height(H) | Heat preservation layer | Diameter of inlet & outlet | Motor power | Blending speed |
(L) | (mm×mm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
1000 | 1060×1220 | 2550 | 60 | 51 | 0.75 | 0-100 |
2000 | 1340×1500 | 2900 | 60 | 51 | 3 | 0-100 |
3000 | 1410×2000 | 3400 | 60 | 51 | 5.5 | 41 |
5000 | 1810×2000 | 3500 | 60 | 51 | 7.5 | 41 |
8000 | 2060×2440 | 4000 | 60 | 51 | 11 | 36 |
10000 | 2300×2440 | 5250 | 60 | 51 | 15 | 36 |
15000 | 2300×4020 | 6620 | 60 | 51 | 20 | 36 |
20000 | 2300×4820 | 7400 | 60 | 51 | 25 | 20 |
50000 | 2300×7500 | 10100 | 60 | 76 | 30 | 20 |

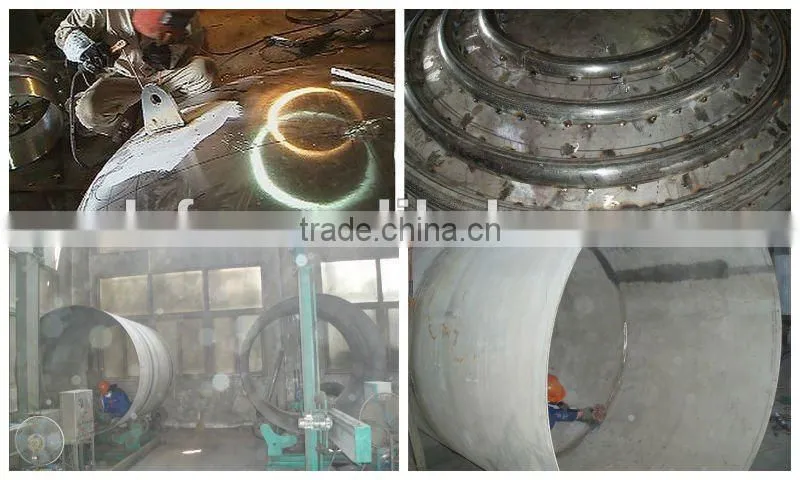

WELDING

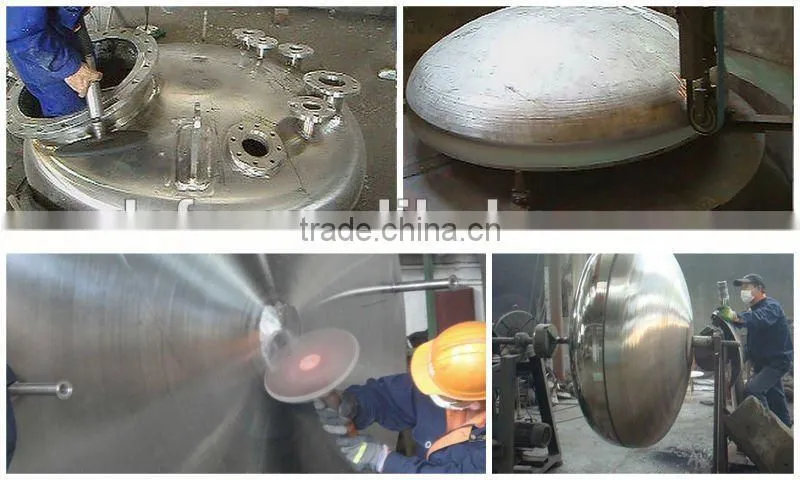

POLISHING
PRESSURE TEST
- Manhole;CIP cleaner;Thermometer;Liquid lever meter and controller;Sanitary breathing cover;Mixer;motor;Inverter
- Other accessories
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
