Help CenterPharmaceutical Jacketed Reactor Pressure Vessel
Related Products
-
Steam Heated Chemical ReactorUS$ 1,500 - 9,900MOQ: 1 Set -
5000L Pharmaceutical Mixing VesselsUS$ 1,000 - 8,000MOQ: 1 Set
-
High Temperature Chemical ReactorUS$ 500 - 5,000MOQ: 1 Unit
-
7000L Stainless Steel Industrial ReactorNegotiableMOQ: 1 Set
-
Polyester Resin Stirred Tank ReactorUS$ 1,000 - 20,000MOQ: 1 Set
Specifications
1.Reaction kettles include reactors, reaction kettles,2.asme pressure vessel,30000L
3.material,stainless steel316L
4.GMP
1.Material:SUS304 or 316
2.Pharmacy,chemical industry ,food and light industry
nsist of tank body,jacket, mixing system
Instroduction:
Reaction kettles include reactors, reaction kettles, decomposition kettle, polymerizing pot etc. which are widely used in chemical engineering, light industry, dyes, medical, dyes, military industry and bio-engineering. We can produce 500L~30000L reaction kettles which are made from stainless steel304,316L etc. Reactor feature fast heating, good resistance to high temperature and corrosion, non-pollution and easy use. They are widely used in petroleum, chemical engineering, rubbers, pesticides, dyes, medicines and food.
extensively used in chemical, pharmaceutical, dye-stuff, pesticide and food enterprises
Working Pressure:In the tank 1.6MPa
In the jacket 0.5MPa
Working Temperature:In the tank 0-200oC
In the jacket 0.6MPa
Design Temperature:200oC
Agitator Speed:85r/min
Agitator Model:Frame type
Technical table
National Volume(L) |
300 |
500 |
1000 |
1500 |
2000 |
Actual Volume(L) |
370 |
588 |
1200 |
1750 |
2180 |
Area of Heat Exchange |
1.75 |
2.6 |
4.5 |
6.2 |
7.2 |
Airproof model |
Padding airproof Mechanism airproof |
||||
Reductor Model |
RT-3 |
RT-5 |
RT-10 |
RT-15 |
RT-20 |
Features:

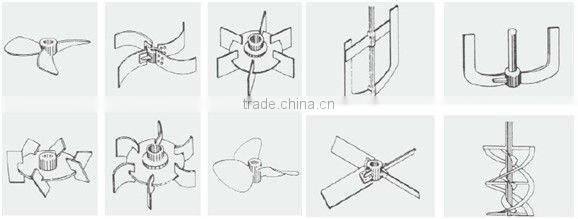

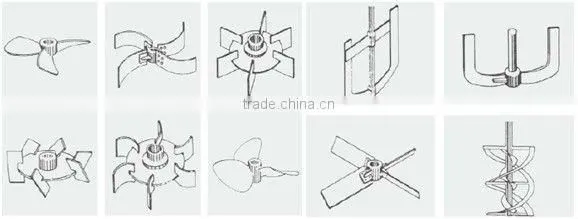

- The blending forms are divided into anchor type,frame type and oar type etc.
- The heating methods are steam,electric heating and heating transfer oil to satisfy the techology requirements under different working conditions such as anti-acid,ant-alkali.anti-high-temperature,anti-abrasion and anti-corrosion.
- The seal adopts special sanitary mechanical seal to guarantee the material is out of pollution
- The forms of support lug or leg can be choosed ,the equipment isnterface adops ISO standard rapid installation chuck type. Hygienic and Convenient.
- It provided with asepsis respirator ,CIP rotary cleaning ball,sight glass ,flange ,and quick-open manhole etc
