3 Ton per Hour Tube UHT Mini Milk Pasteurizer Machine

3 Ton per Hour Tube UHT Mini Milk Pasteurizer Machine photo-1

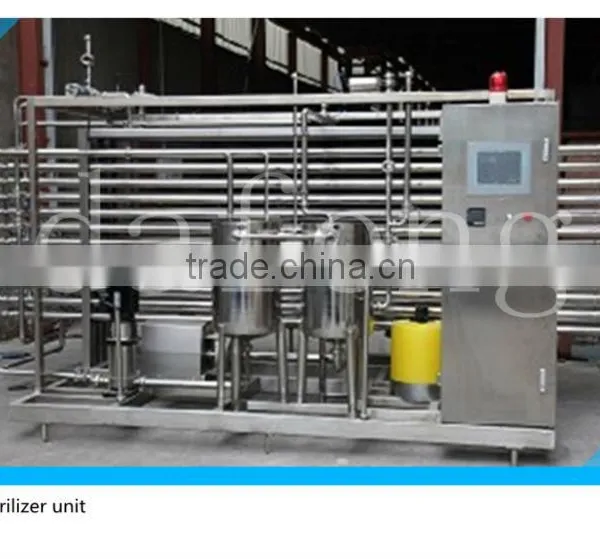

3 Ton per Hour Tube UHT Mini Milk Pasteurizer Machine photo-2

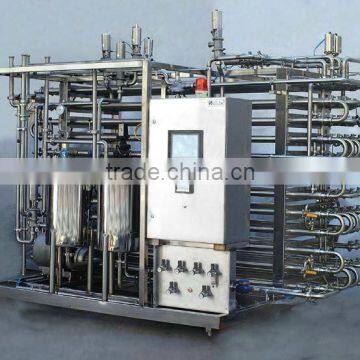

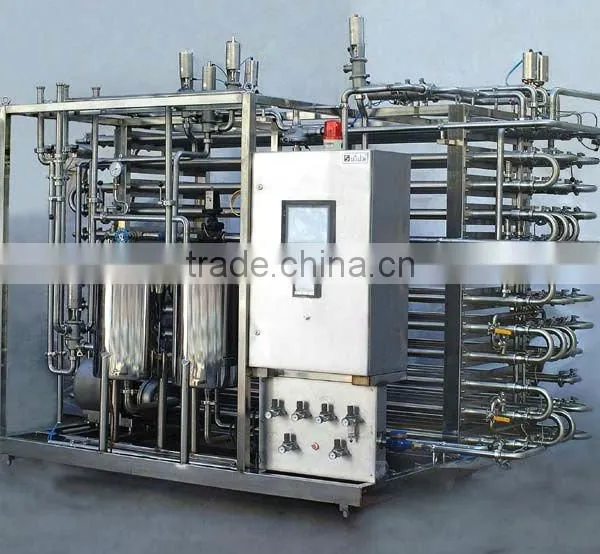

3 Ton per Hour Tube UHT Mini Milk Pasteurizer Machine photo-3
3 Ton per Hour Tube UHT Mini Milk Pasteurizer Machine photo-4

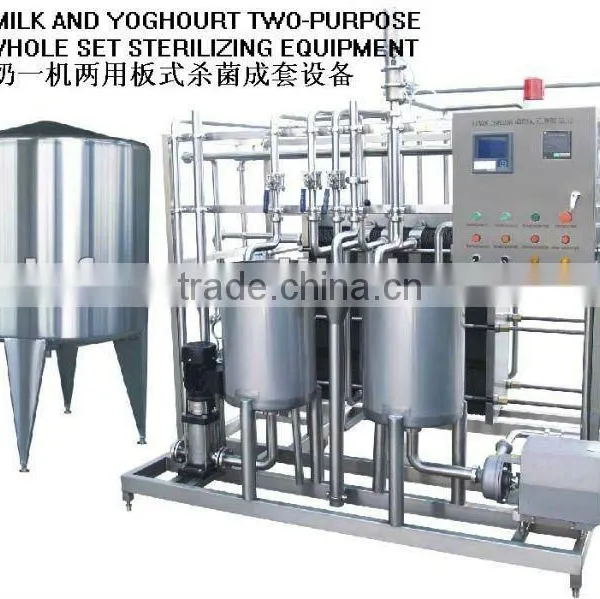

3 Ton per Hour Tube UHT Mini Milk Pasteurizer Machine photo-5

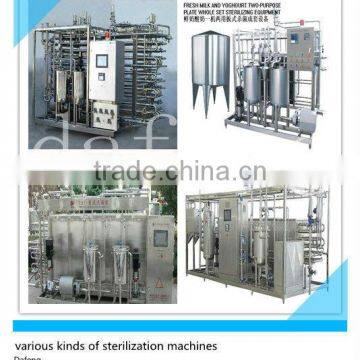

3 Ton per Hour Tube UHT Mini Milk Pasteurizer Machine photo-6
US$ 990 - 9,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
DF
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name DF
Model Number sterilizer
Type Processing Line
Voltage 380Voltage
Power(W) customized
Weight customized
Dimension(L*W*H) made-custom
Certification made-custom
Warranty 3 years
After-sales Service Provided Engineers available to service machinery overseas





Product Description



3 ton per hour Tube UHT mini milk pasteurizer machine

Capacity ability from 1T/H to 20T/H.

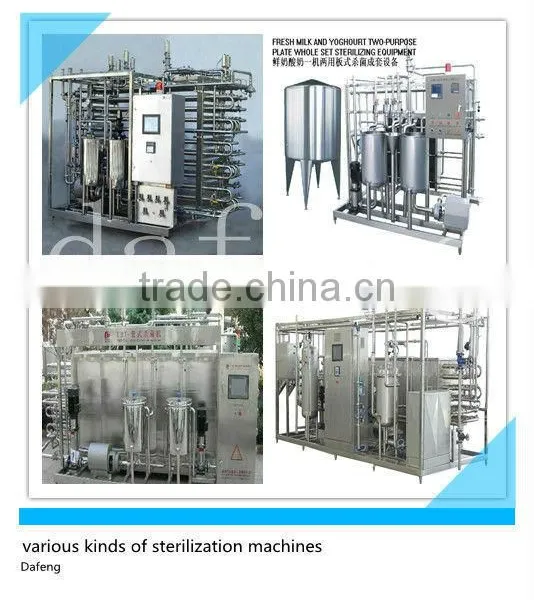

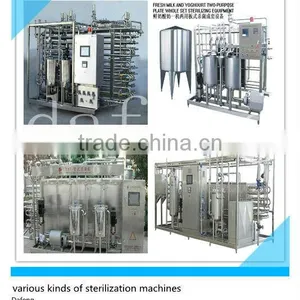

We have tube type UHT aseptic sterilizer, plate type UHT setrilizer

 semi-automatic/fully automatic

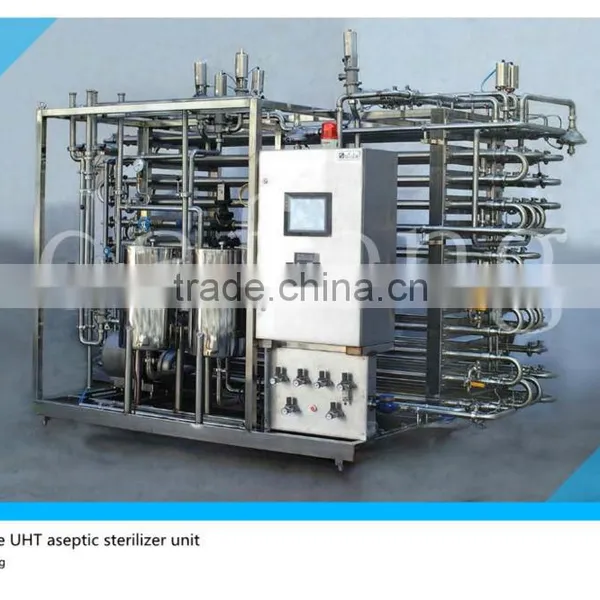

Advantages-Tube UHT aseptic sterilizer unit


The tube sterilize machine can take hot process on the liquid foods and beverage. Compared to the sterilizer of other model,  it  has  the  following  characteristics:
  • High heat effect, 90%of the heat can be recycled after heating the material.
  • Temperature ap between the medium and the material is small, so to realize gentally heating; the heating pipe adopts wave pipe, the material and the medium are both in flow.
  • It's of high automatic degree, can automatically control and record from CIP cleaning to pipe sterilizing to sterilizing the material.
  • It's of precise and reliable sterilizing temperature control: automatically control the affecting sterilizing temperature system such as steam pressure, flow , and material flow.
  • The inside of the material pipe adopts advanced polish technology, pipe joints automatically, pipe design realize complete automatically clean, and the whole process sterilizes, so to ensure the system aseptic.
  •  It's of strong system safety,the fillings all adopts reliable product with good capacity, the design values the human,safe equipment, and the steam, hot water and the material all adopts pressure protection methods and alarm system.
  • It's of high reliability system, the main fillings such as material pump, hor water pump, valves, electric elements of controlling system. Tube pasteurizer and yoghourt special sterilizer can be designed to order.

Technical details

model and specification

capacity

steam consumption

steam pressure

power

outline dimensions of integral type

outline dimensions of split type

weight

pipe diameter

t/h

kg/h

bar

kw

l*w*h

l*w*h

kg

material

steam

medium

TG-UHT-1MQJ

1

40

6.0

4.0

3.3*1.6*1.8



1960

25

DN25

25

TG-UHT-1.5MQJ

1.5

60

6.0

4.0

3.3*1.6*1.8



1960

25

DN25

25

TG-UHT-2MQJ

2

80

6.0

6.0

3.5*1.8*2.0



2160

38

DN25

38

TG-UHT-3MQJ

3

120

6.0

6.0

3.5*1.8*2.0



2420

38

DN32

38

TG-UHT-4MQJ

4

160

6.0

7.0

4.5*2.0*2.0

6.5*0.9*1.4

2570

38

DN32

38

TG-UHT-5MQJ

5

200

6.0

7.0

4.5*1.8*2.0

6.5*0.9*1.4

2940

51

DN40

51

TG-UHT-6MQJ

6

240

6.0

7.0

4.5*2.0*2.2

6.5*0.9*1.4

3300

51

DN40

51

TG-UHT-8MQJ

8

320

6.0

11.0

4.5*2.0*2.2

6.5*0.9*1.4

3700

51

DN50

51

TG-UHT-10MQJ

10

400

6.0

11.0

4.5*2.0*2.2

6.5*0.9*1.4

4200

51

DN50

51

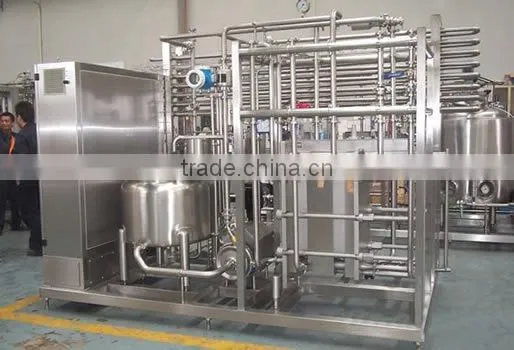

3 ton per hour Tube UHT mini milk pasteurizer machine

3 ton per hour Tube UHT mini milk pasteurizer machine

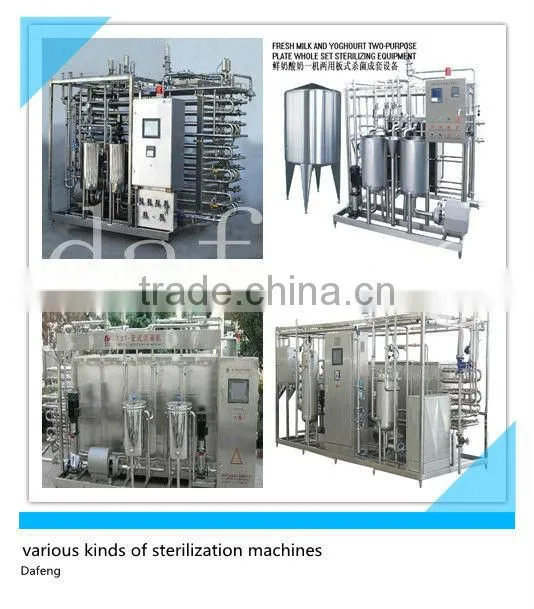

Milk steam sterilizer

3 ton per hour Tube UHT mini milk pasteurizer machine

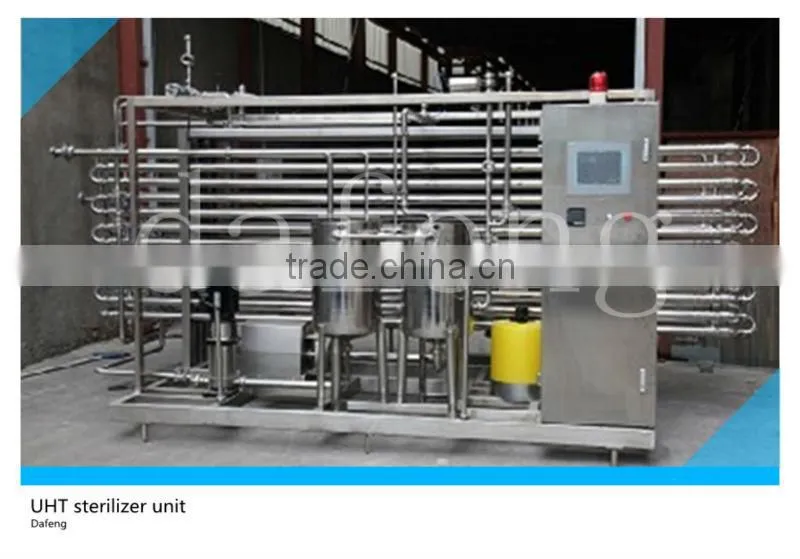

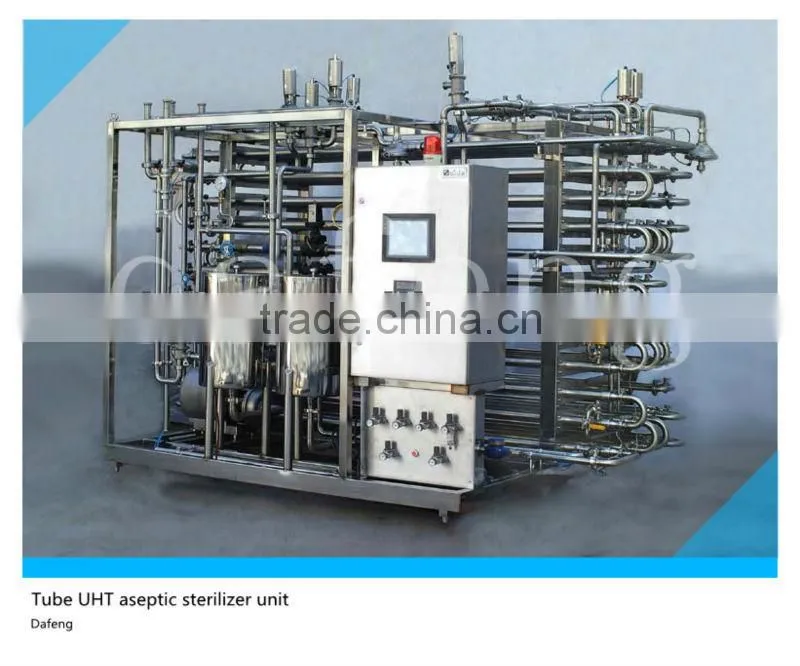

Tube type UHT aseptic sterilizer

3 ton per hour Tube UHT mini milk pasteurizer machine
